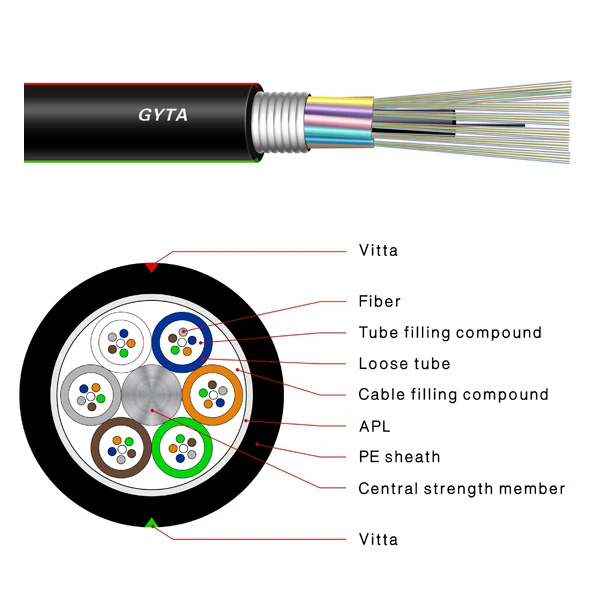

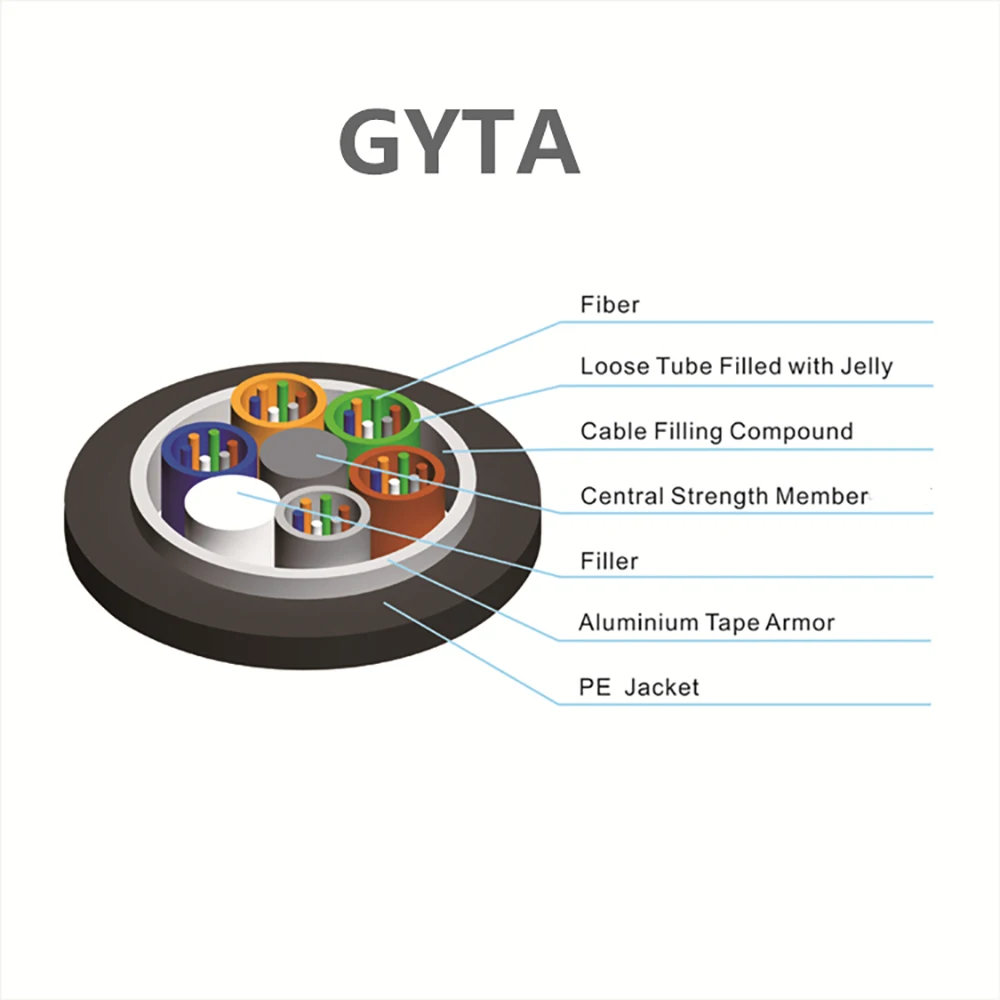

Anti Rodent Armoured GYTA Underground Optical Fiber Cable
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling
compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
is completed with a PE sheath.
Specification
Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | ||||||
Condition | mm | 1310/1550 | 850/1300 | 850/1300 | ||||||
Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | ||||||
Cladding diameter | um | 125±1 | 125±1 | 125±1 | ||||||
Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||||
Coating diameter | um | 242±7 | 242±7 | 242±7 | ||||||
Tensile strength | Long term（N） | 600N | |||||||||||
Short term（N） | 1500N | ||||||||||||
Crush load | Long term | 300N/100mm | |||||||||||
Short term | 1000N/100mm | ||||||||||||
Bending radius | Dynamic | 20D | |||||||||||
Static | 10D | ||||||||||||
Installation Temperature | -10℃～+60℃ | ||||||||||||
Storage Temperature | -40℃～+70℃ | ||||||||||||
NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
No. of tubes | 4 | 4 | 4 | 4 | 6 | 8 | 12 |
Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
Fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
Loose tube diameter (±0.1mm) | 1.6 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | 2.0 |
Thickness of loose tube (±0.05mm) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Out diameter (±0.5mm) | 8.6 | 8.6 | 8.6 | 9.8 | 10.8 | 12.2 | 14.9 |
Thickness of out diamter (±0.1mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
Loose tube | Material | PBT | Color | Standard spectrum | ||||||||
Filler rod | Material | PP | Color | Black | ||||||||
Central strength member | Material | Steel wire | Diamter | 1.4(6-48) 2.0(72-144) | ||||||||
Armor | Material | Aluminum tape | ||||||||||
Water blcoking system | Material | Filling gel / Water blocking tape | ||||||||||
Out sheath | Material | MDPE | Color | Black | ||||||||
