M12 4-контактный Штекерный гнездовой кабельный разъем для


Поделиться:

Цена:173,28 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Overview

Product Description

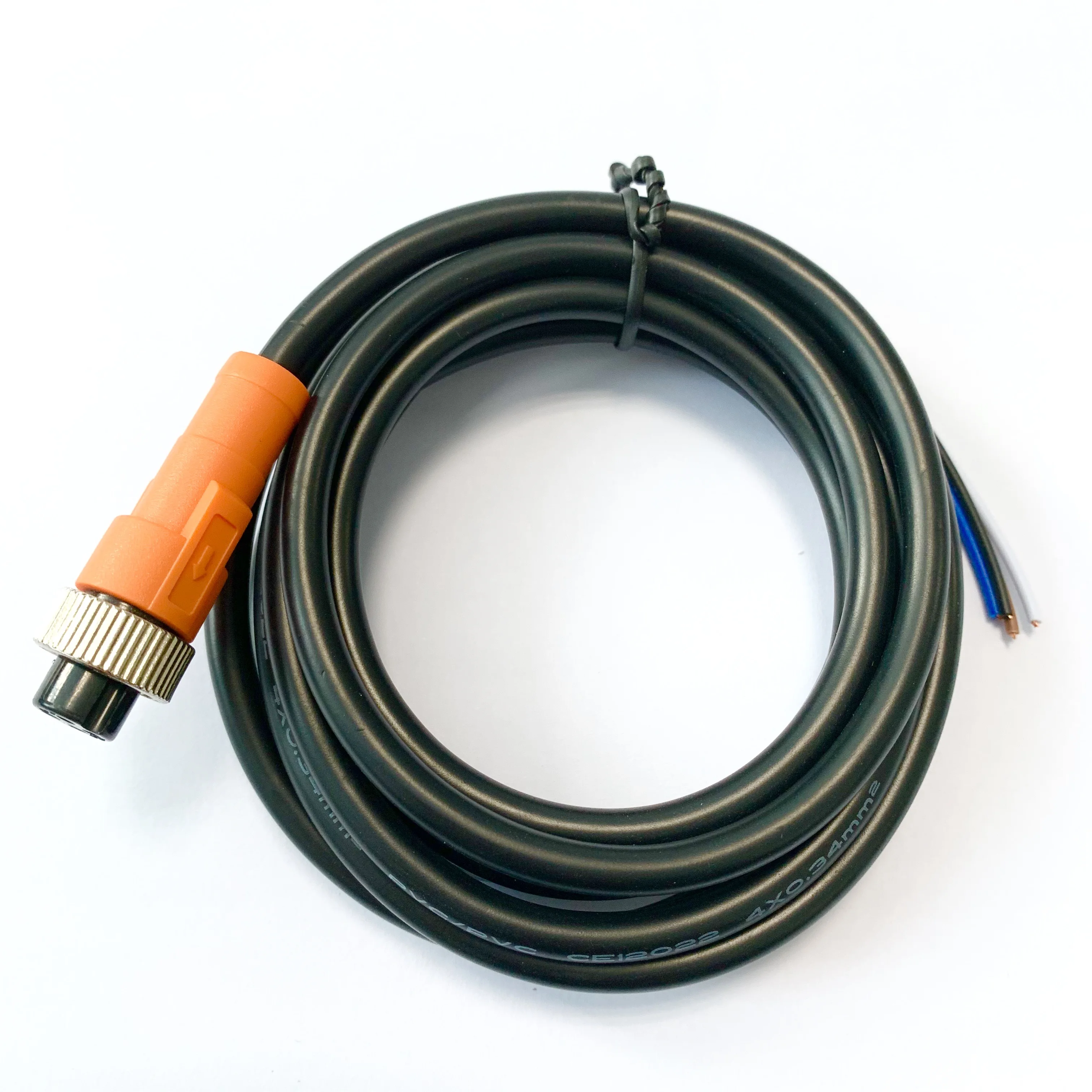

Factory M12 Electrical Wire Connector Ip67 Male Waterproof M12 Cable 4 Pin Conector M12




• M12 Circular connector according to IEC 61076-2-101

• M12 circular connector with M12*1.0 screw locking equivalent to Binder, Phoenix, Lumburger automation...

• Waterproof rating is IP67, protected from dust and water during immersion, resistant to many oils and chemical

Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, REACH, UL certificate

Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 5
Gender: Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25℃~+85℃

Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC

Electrical data:
Rated Current: 4A
Rated Voltage: 60V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ

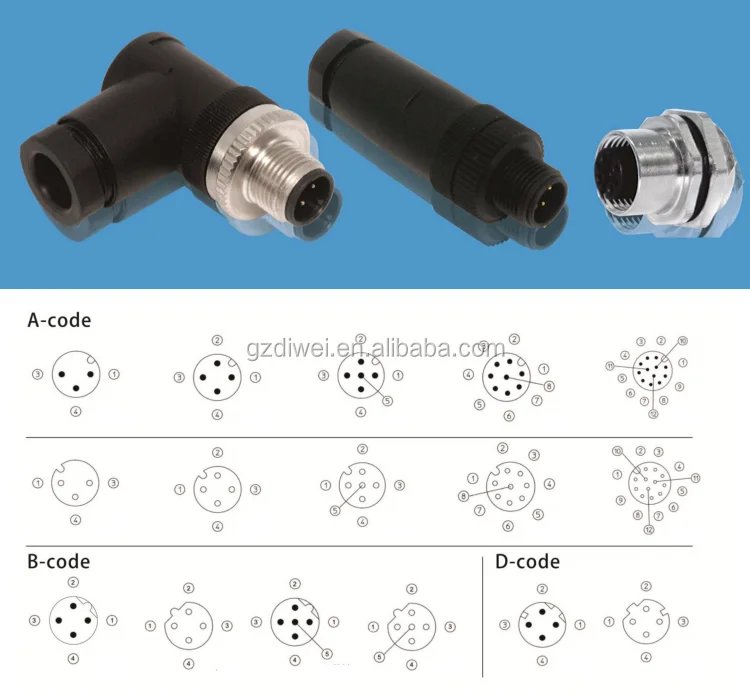

M12 connector types:



Product  parameter

DIWEI M12 male female connector waterproof led connector
1         Model No.          M12C04
2 Material Connector Body Nylon(PA66)+GF UL94V-0 1/16''
3 Contact Brass with Gold Plated
4 Sealing  Silica Gel
5 Property Current Rating 15A
6 Voltage Rating 100V
7 Contact Resistance <10mΩ
8 Insulation Resistance 10MΩ at DC 200V
9 Breakdown Voltage 1.5KV/1minute
10 Temperature Rating -40°C~+105°C
11 Durability(Plug/Unplug) 3000 times
12 Waterproof Rating IP67
13 Cable Max. Diameter 7.0 mm
14 Pins Range 3, 4, 5, 8, 12,17
15 Certificate CCC; CE; ROSH



Picture of Product Details:

1. Pins Number:

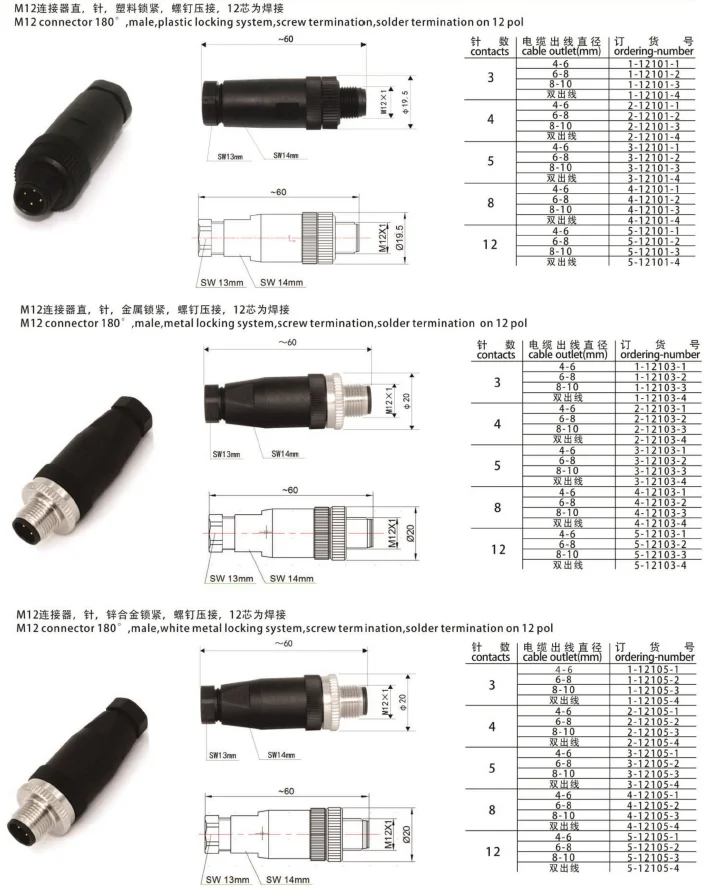

2. Straight M12 Connector

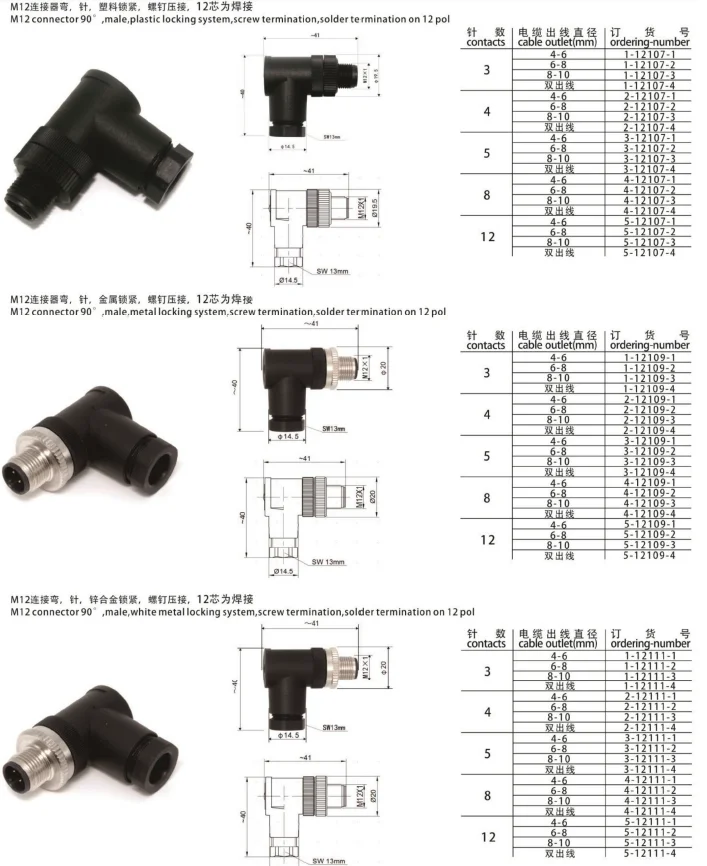

3. Right Angle M12 Connector

More Information Pls Contact us:

#

product application



More choice

lemos connector
 Welcome to our homepage:
#


Certifications



our advantage

lemos connector




1.Q:How can i get samples?
A: It's my honor to offer you samples, but we can only give you three for free, and the freight should be

     paied by yourself.


2.Q:How many materials you can provide?
A:There's some different materials from connector and cable, we usually use PVC/Nylon material to

     product connector, PVC/Rubber/PU/Silicone material was used in cable. Of course we can also

     according to your requirments to choose the material.


3.Q:How does your factory do regarding quality control?
A:Quality is priority.Diwei people always attach great importance to quality controlling from the very

     beginning to the very end. Our factory has gained ISO9001,ISO14001.


4.Q:How to deliver the goods?
A: DHL,UPS,TNT,Fedex,Aramex and forwarder are accept


5.Q: What's payments you can accept?
A:Accept T/T in advance, Paypal, Western Union and Escrow.


6.Actual drawing,picture and part No. will assist to get a competitive price soon.


7.The inventory goods will be delivered within 2-3 workdays,and the customized goods will be

   delivered within 5-7 workdays.



payment & shipping

lemos connector

Company Information

lemos connector

Diwei was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M5, M8, M12, M16, M23,Also have military waterproof connector, push pull lemos connector, quick- connect connector, snap- in connector etc . They're mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on ,they are equivalent to Phoenix, , Binder, Lumberg and Molex etc.





With several years experience in self researching and developing ,Diwei represent a professional manufacturer of industrial connector, cable assemblies and worldwide custom made solution provider.



Our philosophy and purpose is: Customer Foremost, Service First. Quality first.Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany,Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers.

Warmly welcome you join in us, your support will be always our motivation!
