VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel



Product Description


CNC blade is the floorboard of the indexable turning blades, is the mainstream of modern metal cutting applications of products are mainly used in metal cutting milling cutting cutting thread turning areas such as the material can be divided into the coating blade metal ceramic blade ceramic knife carbide blade super-hard etc. Its characteristic is high efficiency high wear-resisting, than traditional welding blade alloy blade processing efficiency more than four times as coating technology advances, the key technology of wear-resistant high temperature resistant breakthrough will further improve the efficiency and reduce the processing cost.





Grade





























































































Grade



Performance



YBC151



High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.



YBC152



Thick TiCN and Al2O3 coating



YBC251



tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.



YBC252



Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.



YBC351



Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.



YBG102



nc-TiAN coating and fine-grained matrix.



YBG202



nc-TiAN coating and fine-grained matrix.



YBG205



Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.



YBG302



nc-TiAN coating and flexible cemented carbide matrix.



YBM151



Special organizational structure and TiCN, thin Al2O3 and TiN coating.



YBM251



Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.



YBM253



With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.



YBD052



CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.



YBD102



CVD coating (thick Al2O3 & thick TiCN) , hard matrix.



YBD152



CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.



YBD252



CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.



YNG151



Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.



YNG151C



Physics weather deposit (PVD) coating, high toughness ceramal matrix.



YD101



Fine particle hardness phase WC and bond phase Co.



YD201



Middle particle hardness phase WC and bond phase Co.

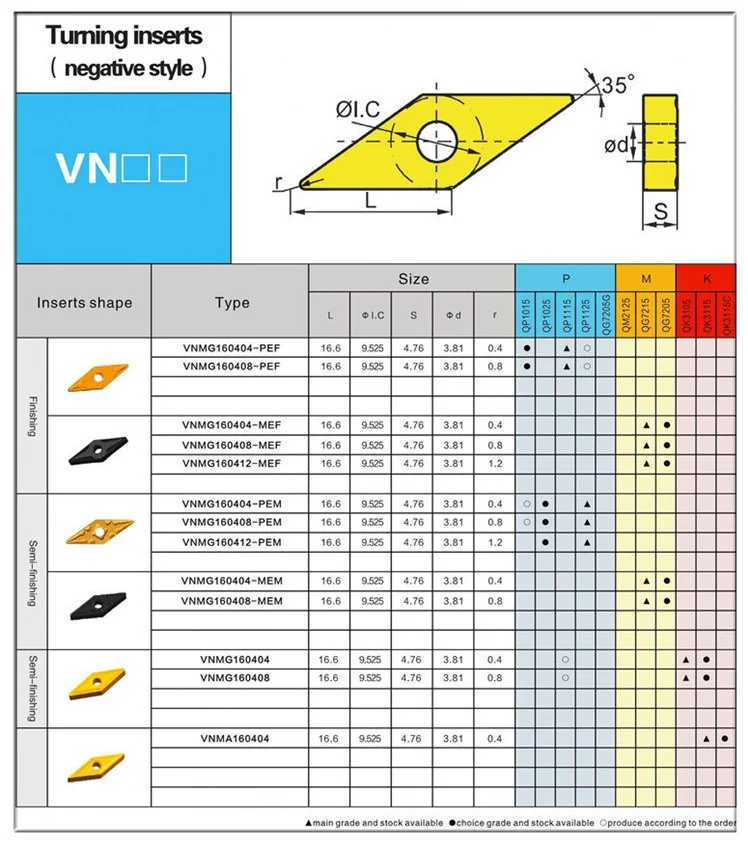

Specification


 VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Application





CNC turning and milling tungsten carbide tool products are widely used in:


Automobile manufacturing,


Mold manufacturing,


Aviation industry,


Defense industry,


Heavy industry and many other fields.


We can produce various types of tungsten carbide tool blades according to different custom drawings. We can provide a complete set of solutions for the processing field.

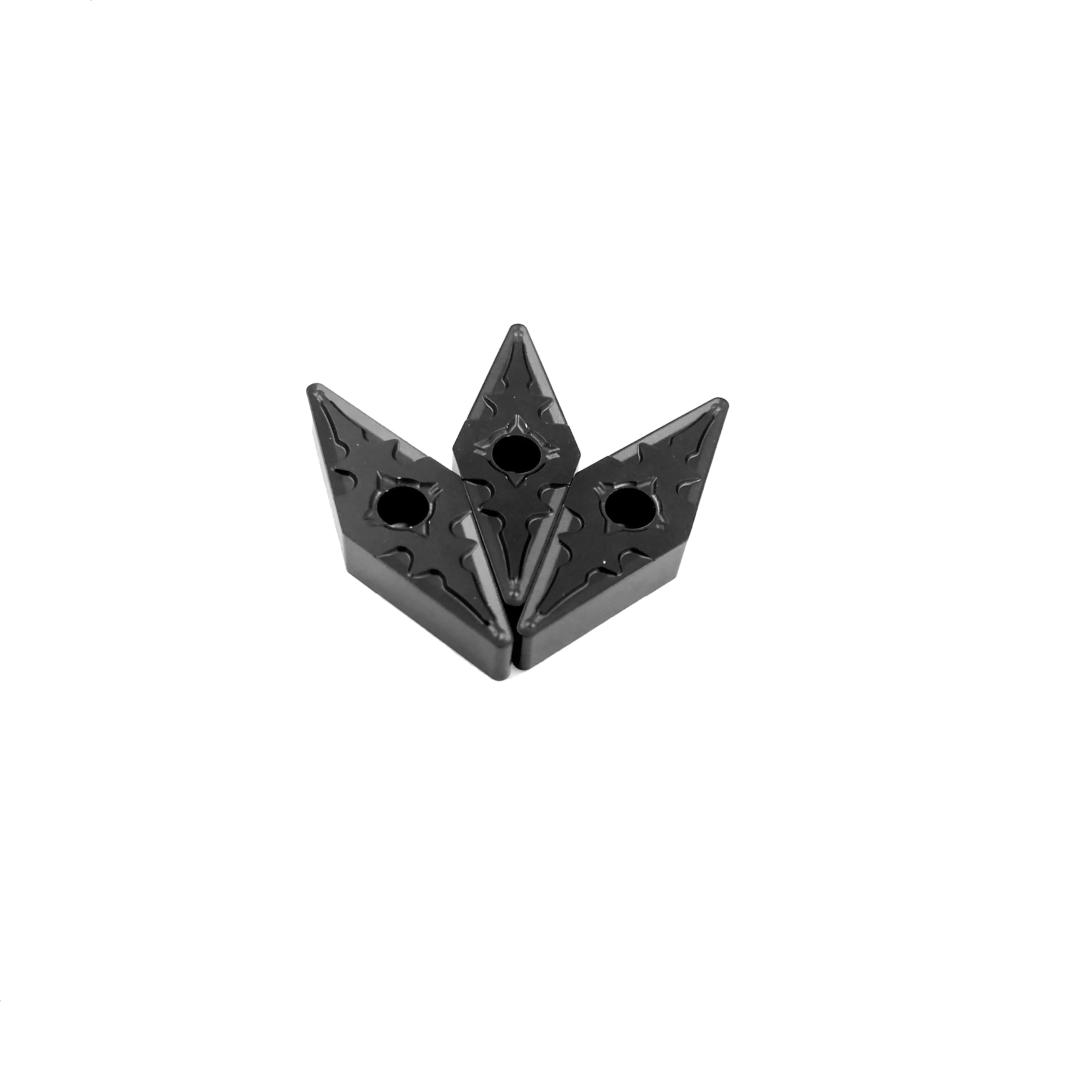

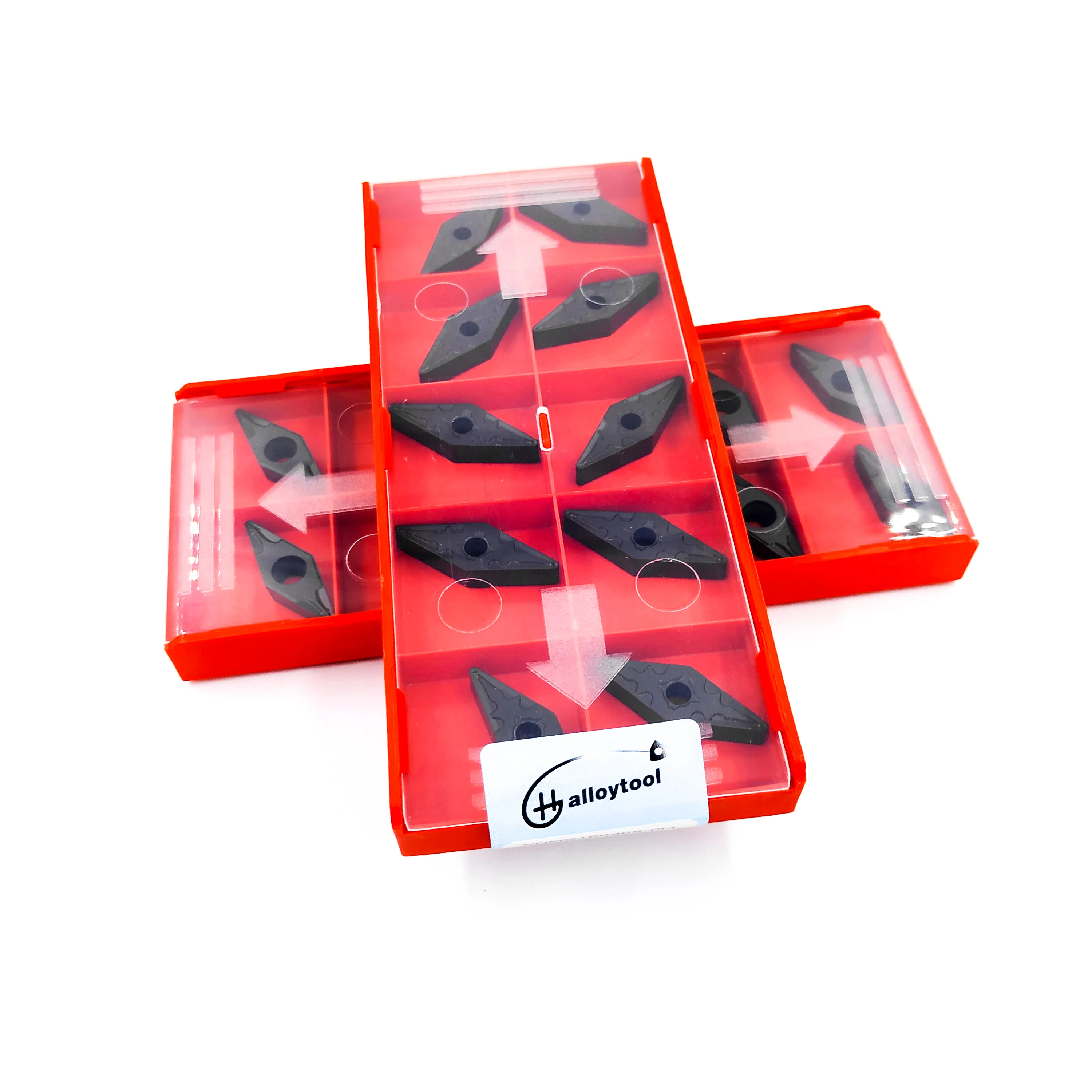

Product Photo


 VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for SteelVNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel

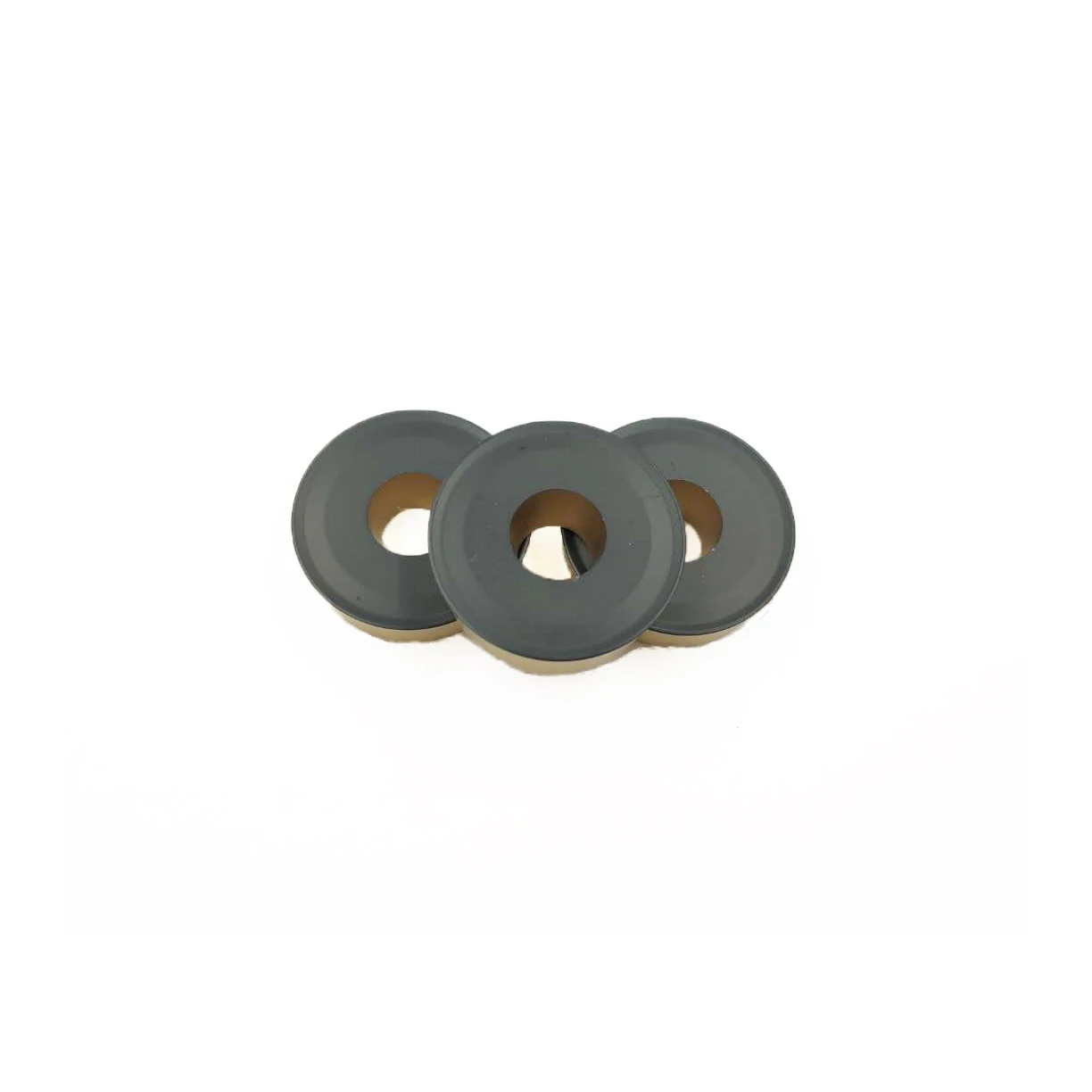

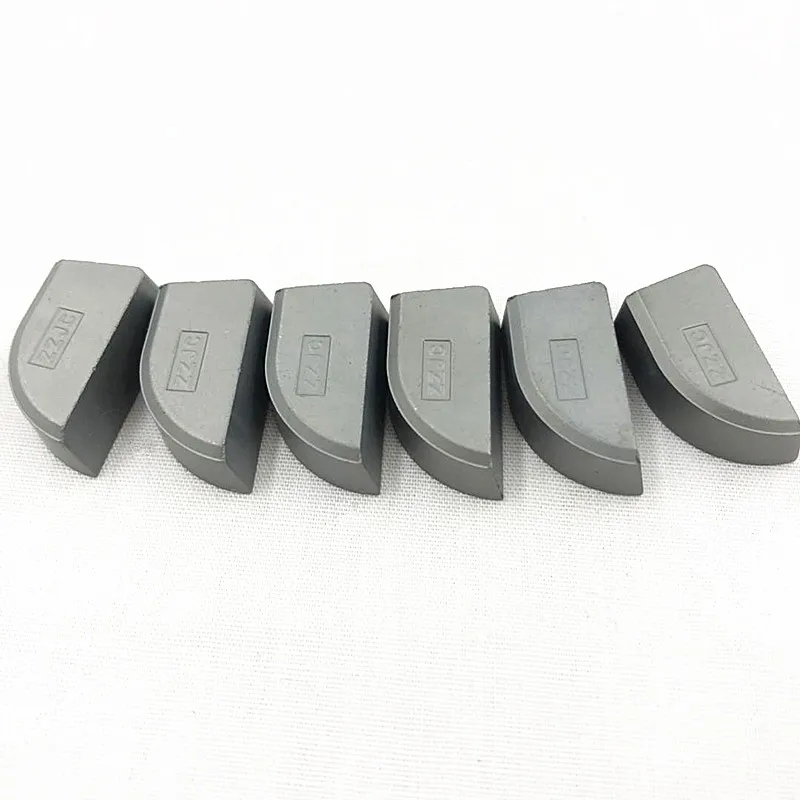

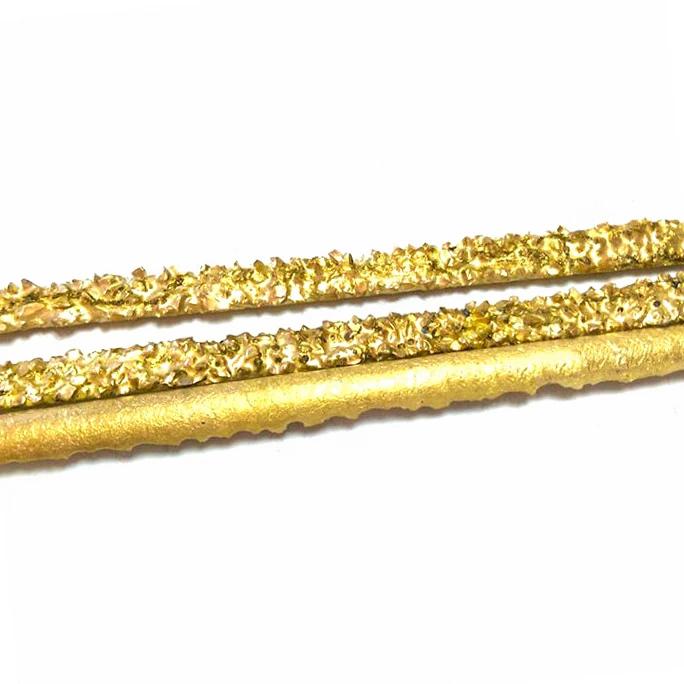

Series Product


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for SteelVNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Company Information


Zhuzhou HGtool Tungsten Carbide Co., Ltd. was established on 2015 and located in Zhuzhou, Hunan province, specializing in the research and development, production, sales and technical services of new materials.VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Customer Photo


Who We Serve:


The products are exported to more than ten countries and regions such as Europe, America and Southeast Asia.


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Our Trade Show:


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Quality Assurance


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for SteelVNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





Packaging & Shipping


 A. standard packaging


1).Plastic box with foam inside and carton outside.


2).The carton has foam inside and carton outside.


3).Inner box/inner packing material, outer plywood box (heavy duty product).


Customizable packaging: according to customer requirements for special packaging.


VNMG160408 CNC Inserts Types Carbide Turning Cutting Tools for Steel





FAQ


Q1: Are you a factory or a trading company?


A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.





Q2:What is your principle for the samples?


A: We offer free samples if you are willing to pay the freight.





Q3:What is your delivery time?


A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.





Q4:Do you have any test reports or certificates?


A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.





Q5: Do you provide after-sale service?


A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement





Q6: What should I do before contacting?


A: You can provide specific dimensions or drawings, and tell us the quantity of each item, and your application of this item. Other special requirements is also available.





Q7:How to contact us?


A: Directly contact us from inquiry, or by whatsapp or wechat. Other ways you can also provide us.
