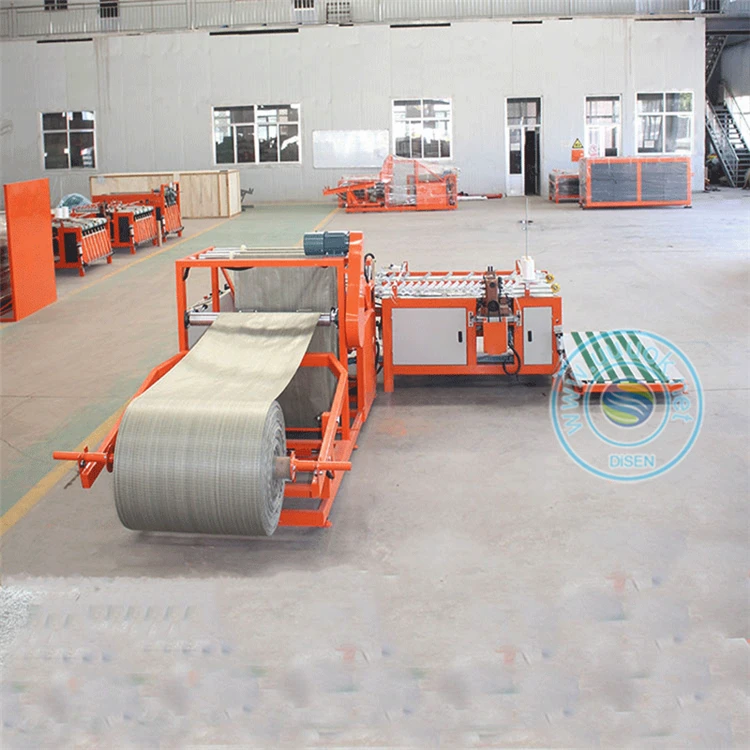

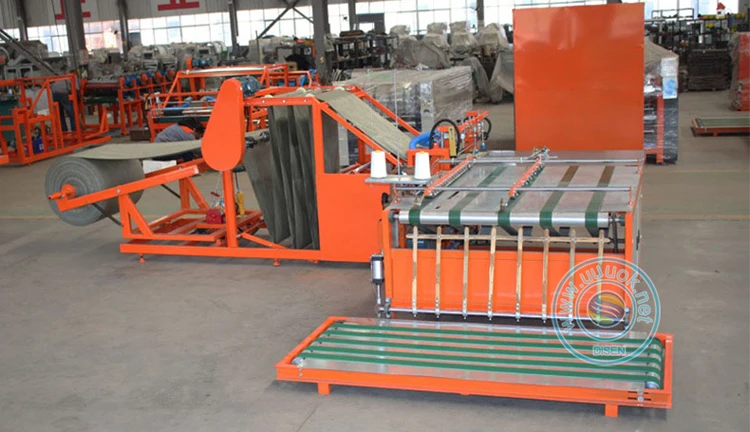

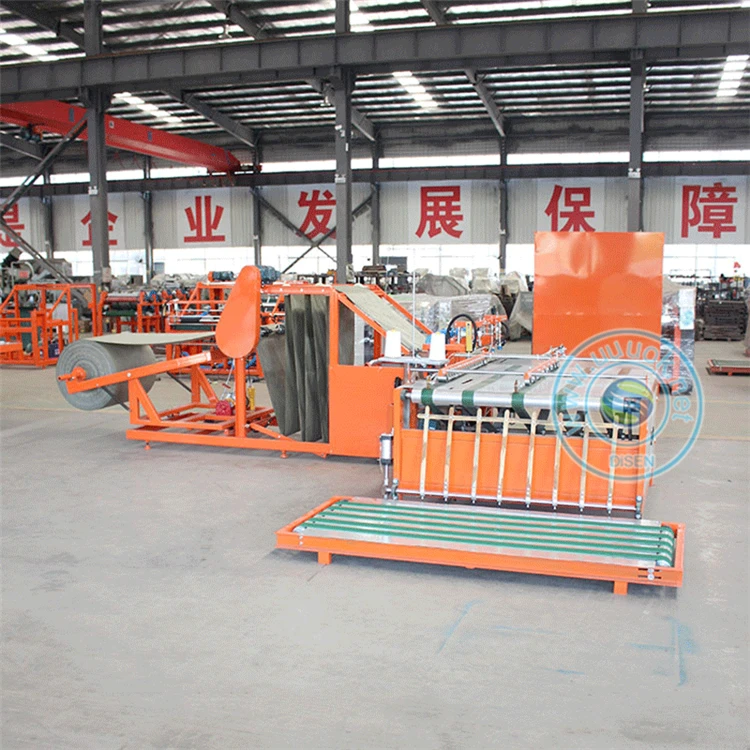

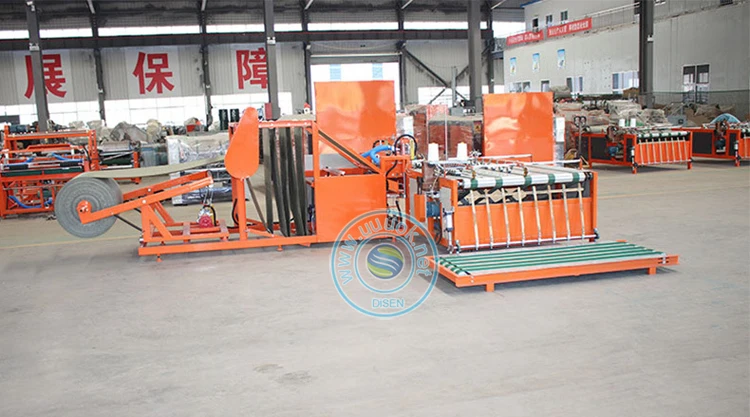

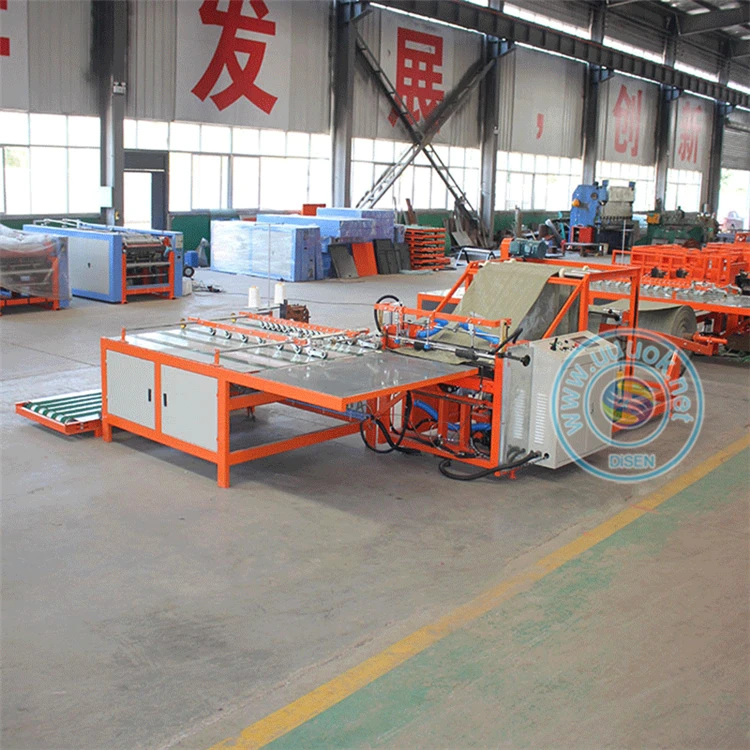

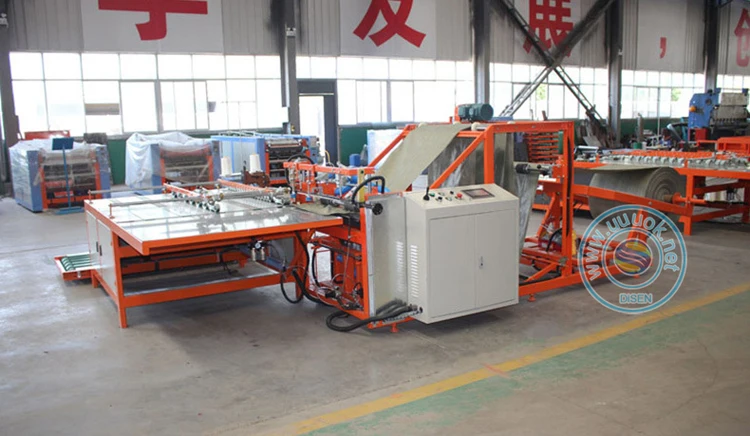

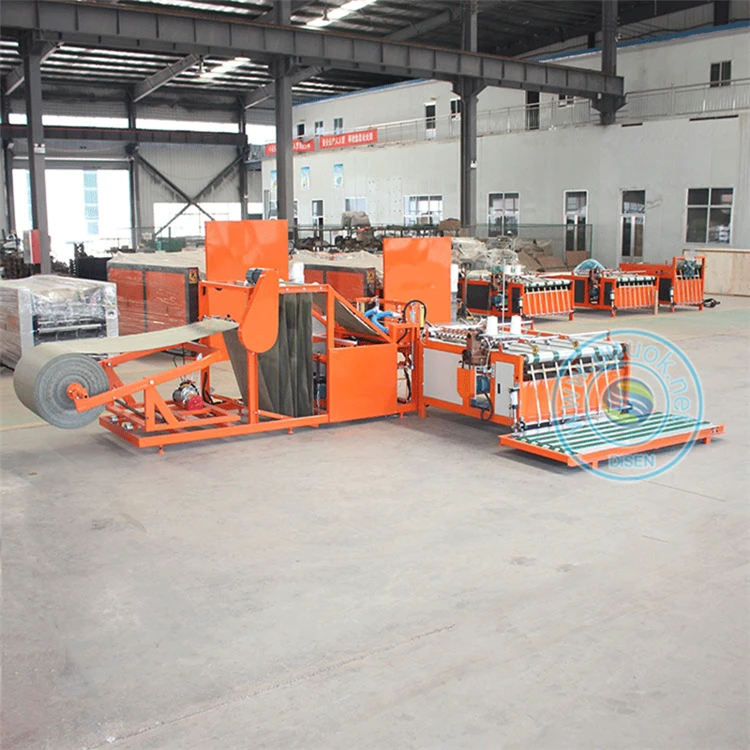

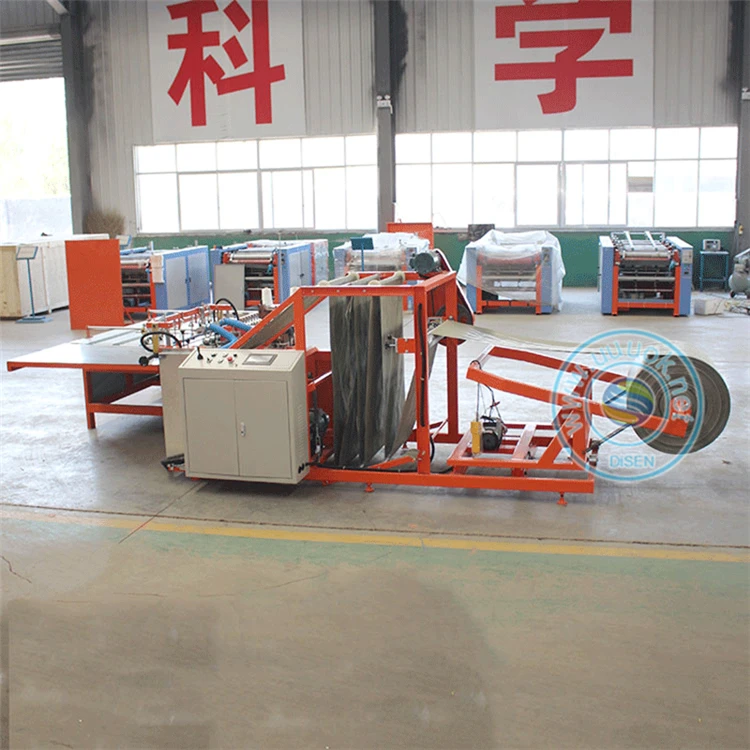

Машина для производства плетеных мешков PP и производственная

Product parameters

Motor power: 3.5 kw
Cutting speed: 30-45/min
Number of employees: 1
Cutting width: 200-800 mm
Cutting length: 400-1300 mm

Machine weight:2000kg
Dimensions: 5000*2400*1600 mm

Features:
1. Electrical parts: Adopting foreign advanced electrical control systems, high degree of automation, few failures and low maintenance rate.
2. Unwinding part: automatic pneumatic winding, photoelectric automatic tracking correction.
3. Color mark tracking: imported color mark electric eye tracking, suitable for woven bags after continuous printing.
4. Cut-off part: The hot cutter uses a heated cutter, double rubbing, and the cold knife uses a servo motor to control the cold knife blade.
5. The feeding bag adopts servo counting length, which makes the cutting more accurate.
6. Steering part: This machine uses a servo motor to control the mechanical device, which solves the deviation of the sewing machine's woven bag when turning, so that the woven bag can be fed into the sewing machine more accurately.
7 sets of film parts: The film feeding and the servo motor are used to measure the length to make the cutting more accurate. Cut, iron the bottom and cover film at one time.
8. Sewing part: It adopts industrial sewing machine with upper awning, which is more efficient.
9. The speed of the whole machine is uniformly adjusted, and unwinding, cutting, film feeding, film covering, conveying, and sewing can be started with one button. Operation adjustment and replacement specifications are simple and convenient.
