Product Description

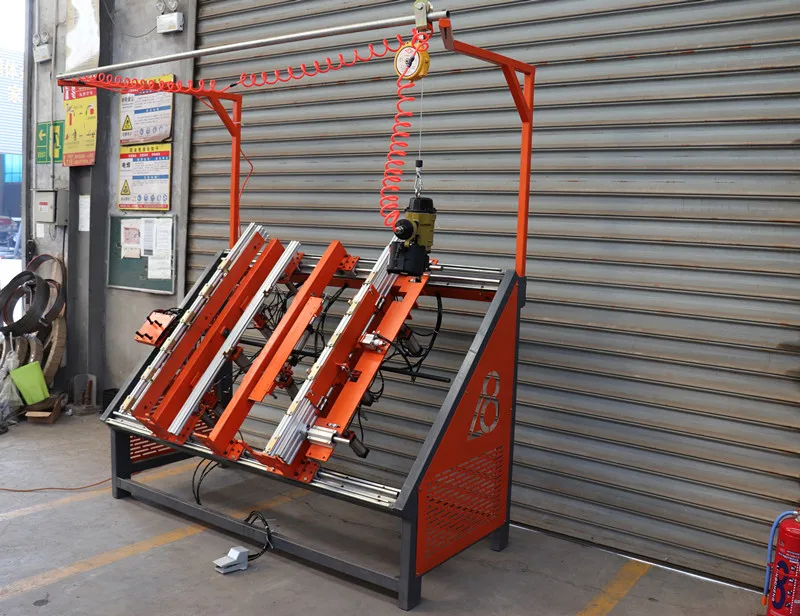

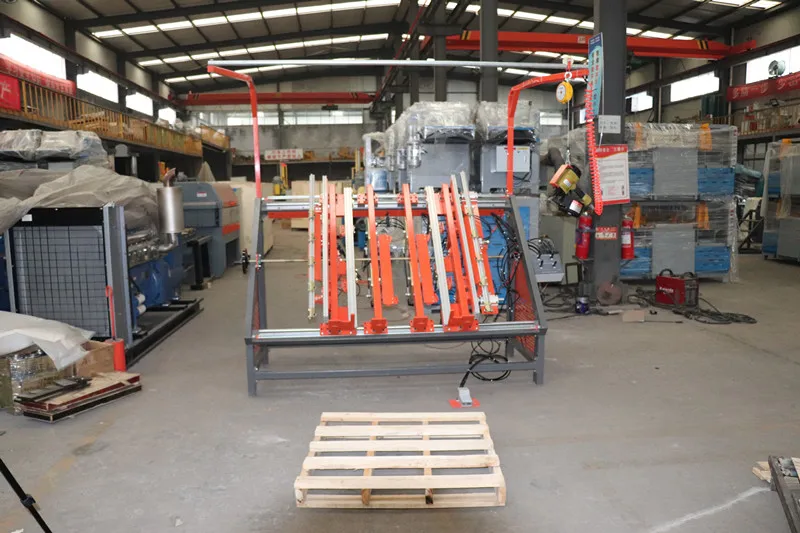

1. Manual Wood Pallet Nailing Table
A universal pneumatic nailing table, Pneumatic PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Pneumatic PT-1700 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1500 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
Pneumatic PT-1700 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1500 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
Model | PT-1700 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Operational mode | Pneumatic operation |
Air pressure | 0.8MPA |
Production effciency | 30-40pcs /h |
Number of beams | 3p (or customized) |
Number of nail guns | 1P (CN70) American Stanley staple gun |
Weight | 440kg |
Size | 2250*980*1900mm |

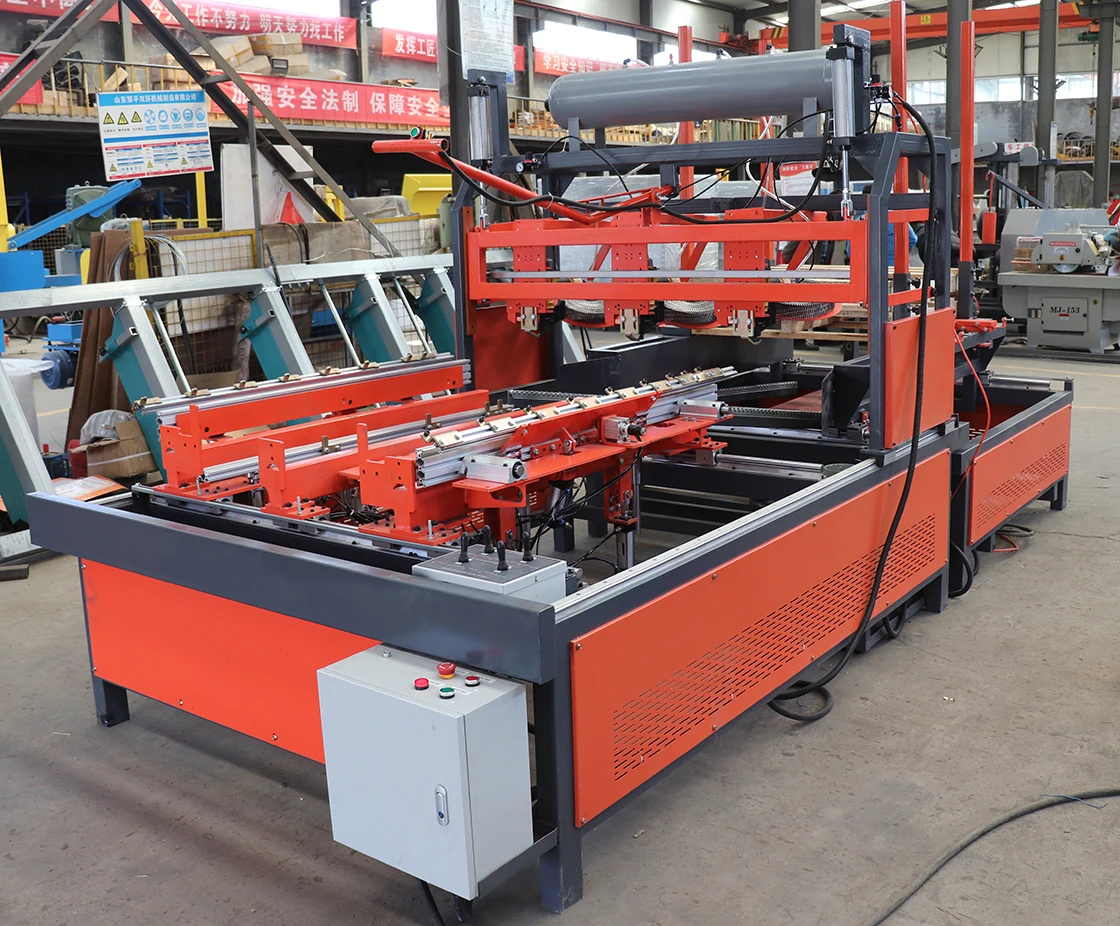

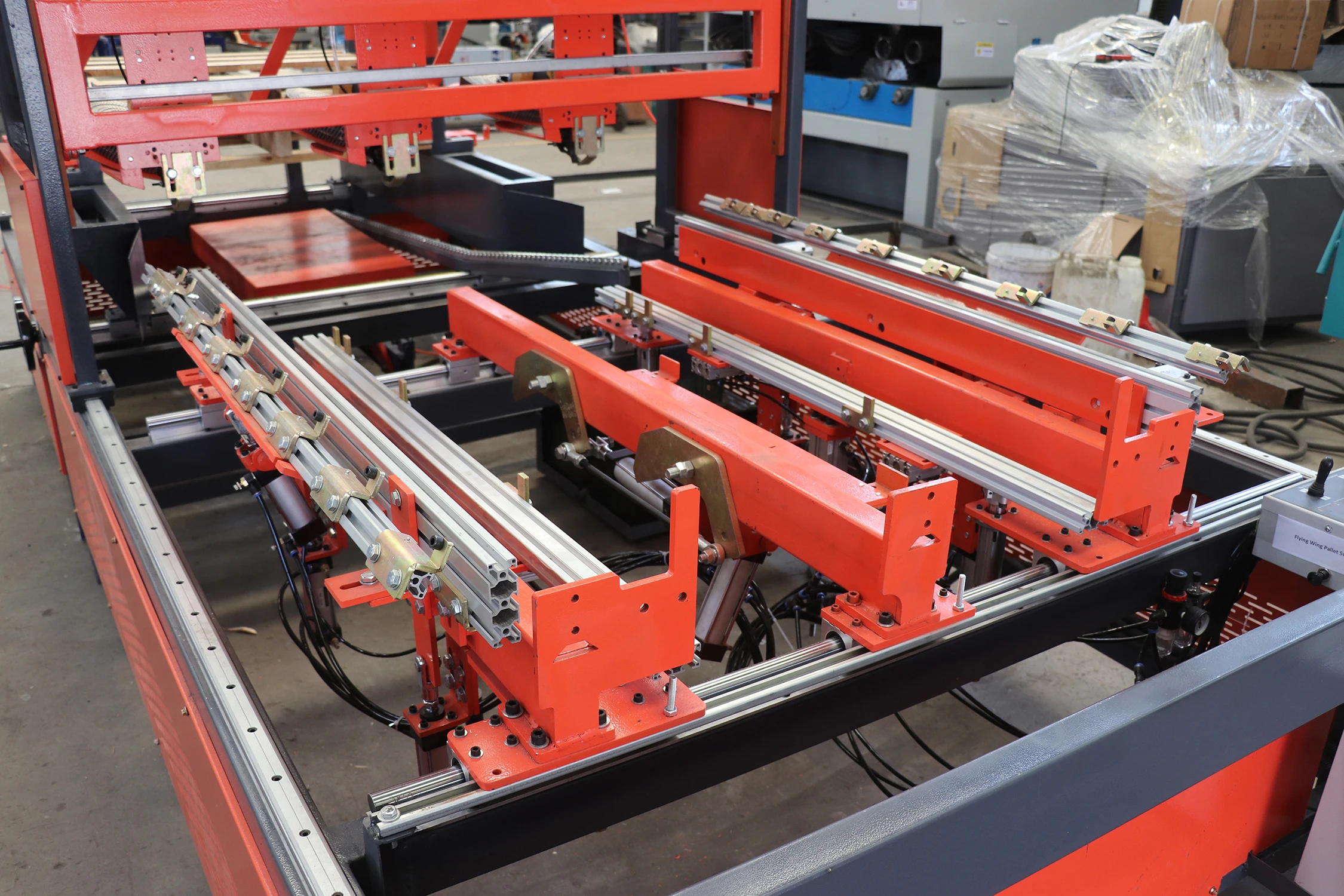

2. Semi-Automatic Pallet Nailing Machine
Model | AWPN-1500 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Feeding mode | Hand pull |
Palletizing mode | Automatic |
Operational mode | Pneumatic operation |
Voltage | 380V/480V or other |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production effciency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Palletizing quantity | 10P |
Weight | 2000kg |
Overall dimension | 3800*2200*2217mm |
Package size | 2500*2200*2500 |

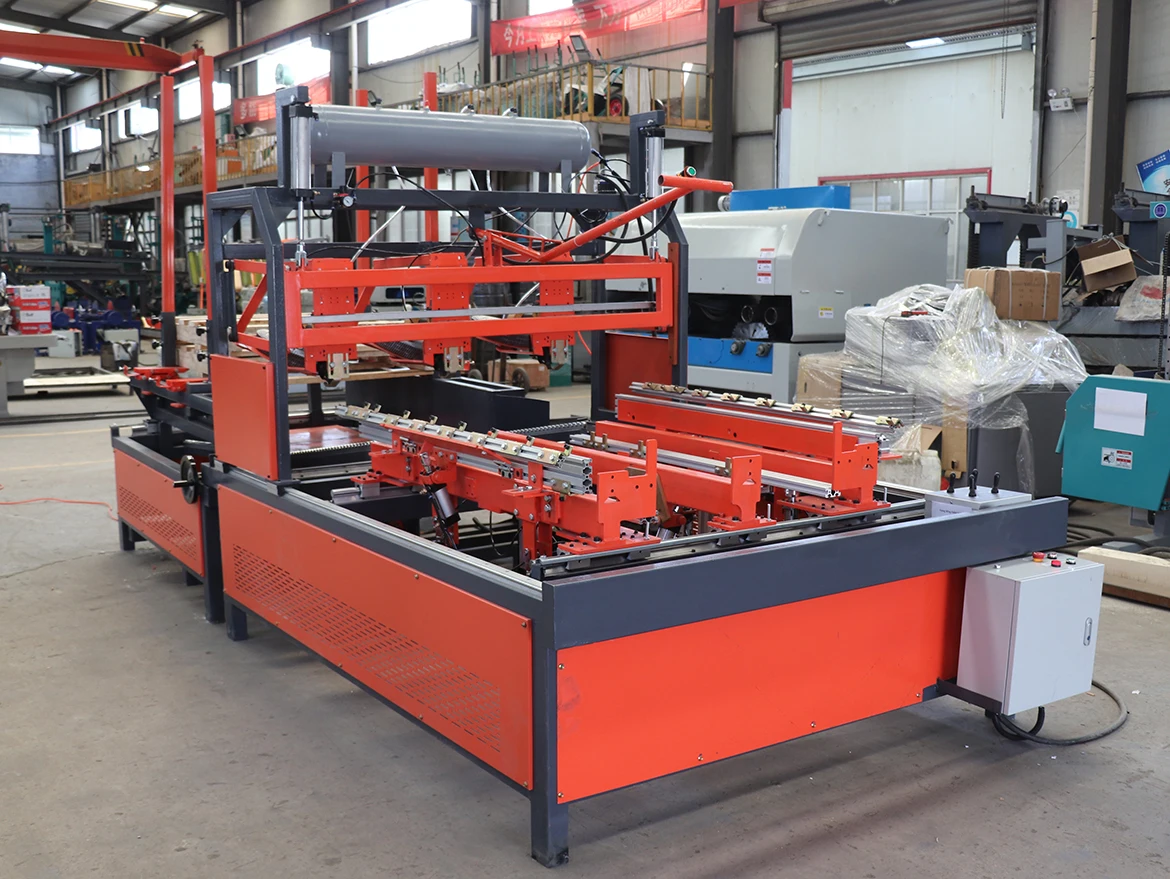

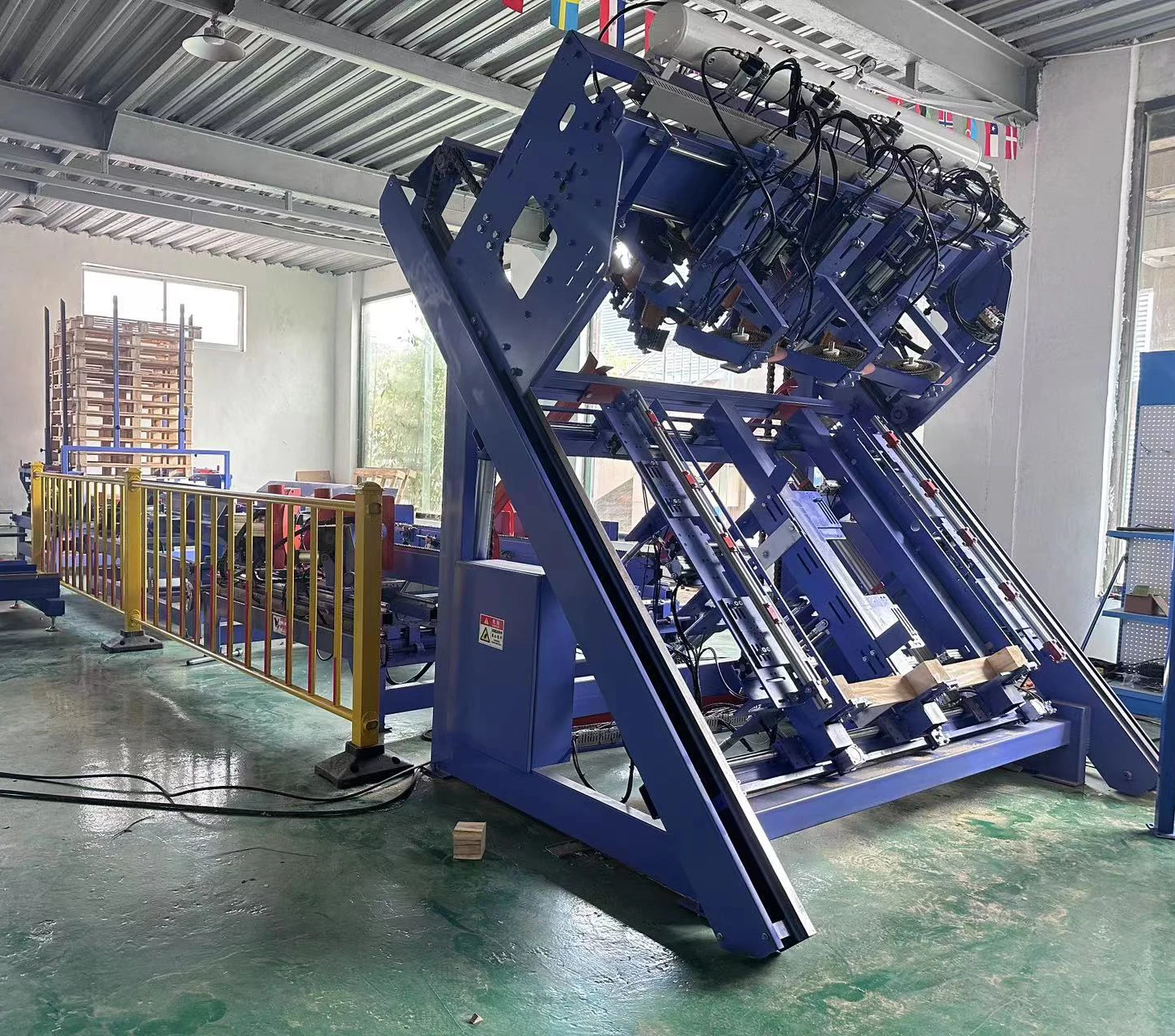

3. US type Automatic Wood Pallet Nailing Machine
-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
Model | AWPN-1300 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 220V/ 2kw Servo motor |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production effciency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Weight | 2000kg |
Size | Host machine 1660*1970*2217mm Stacking 2945*2054*1410 |
15 inches Big Touch Screen
Easy to Operation
Quick plug
No need for complex wiring work
just plug it in
Remote Monitoring,Fault diagnosis
This is the fault query screen
Remote diagnosis
Connected to Wifi, our engineers can remote diagnosis and lifetime free upgrade system

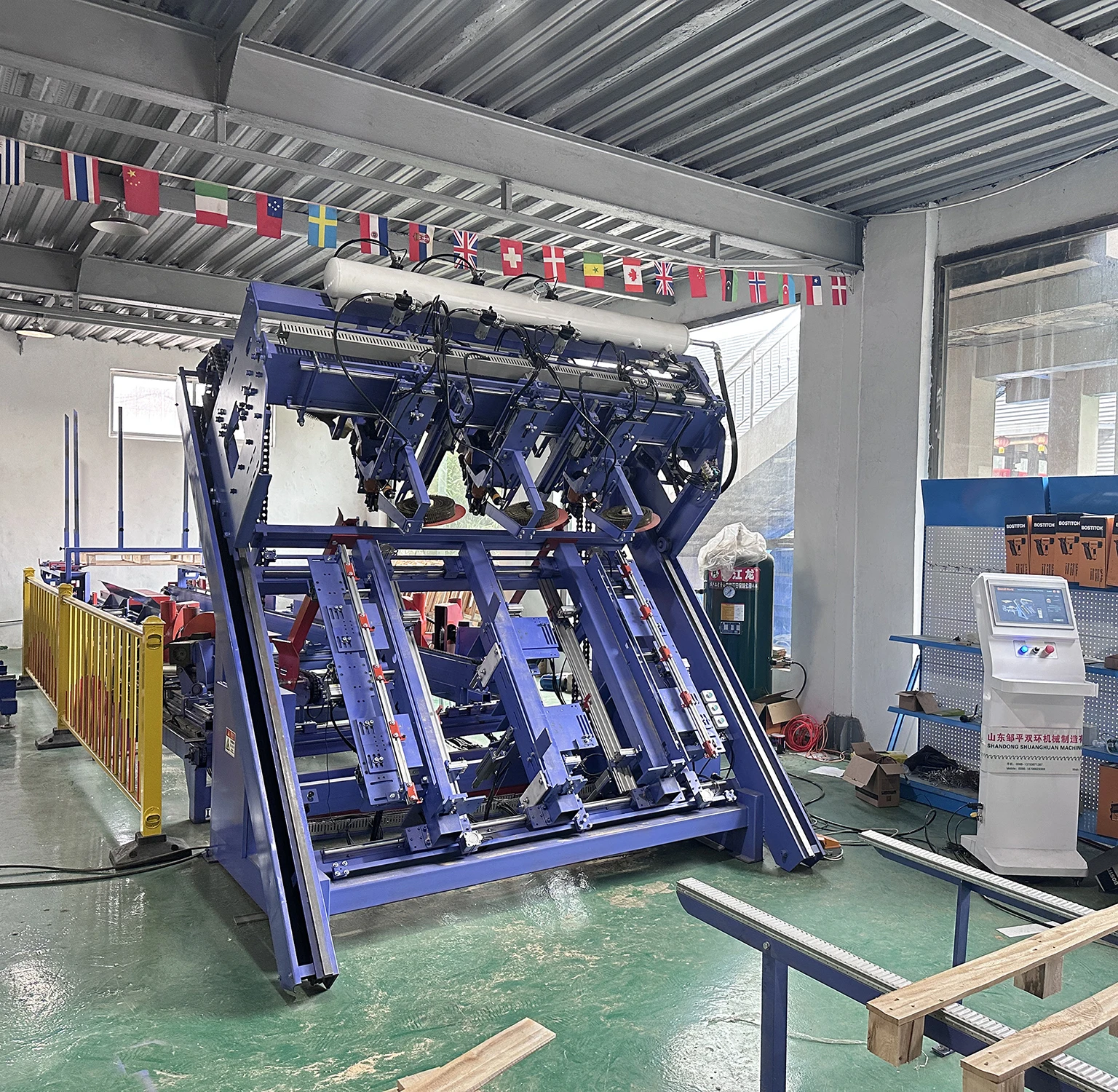

4. Euro Automatic Wood Pallet Nailing Machine
Euro wood pallet Nailing Machine

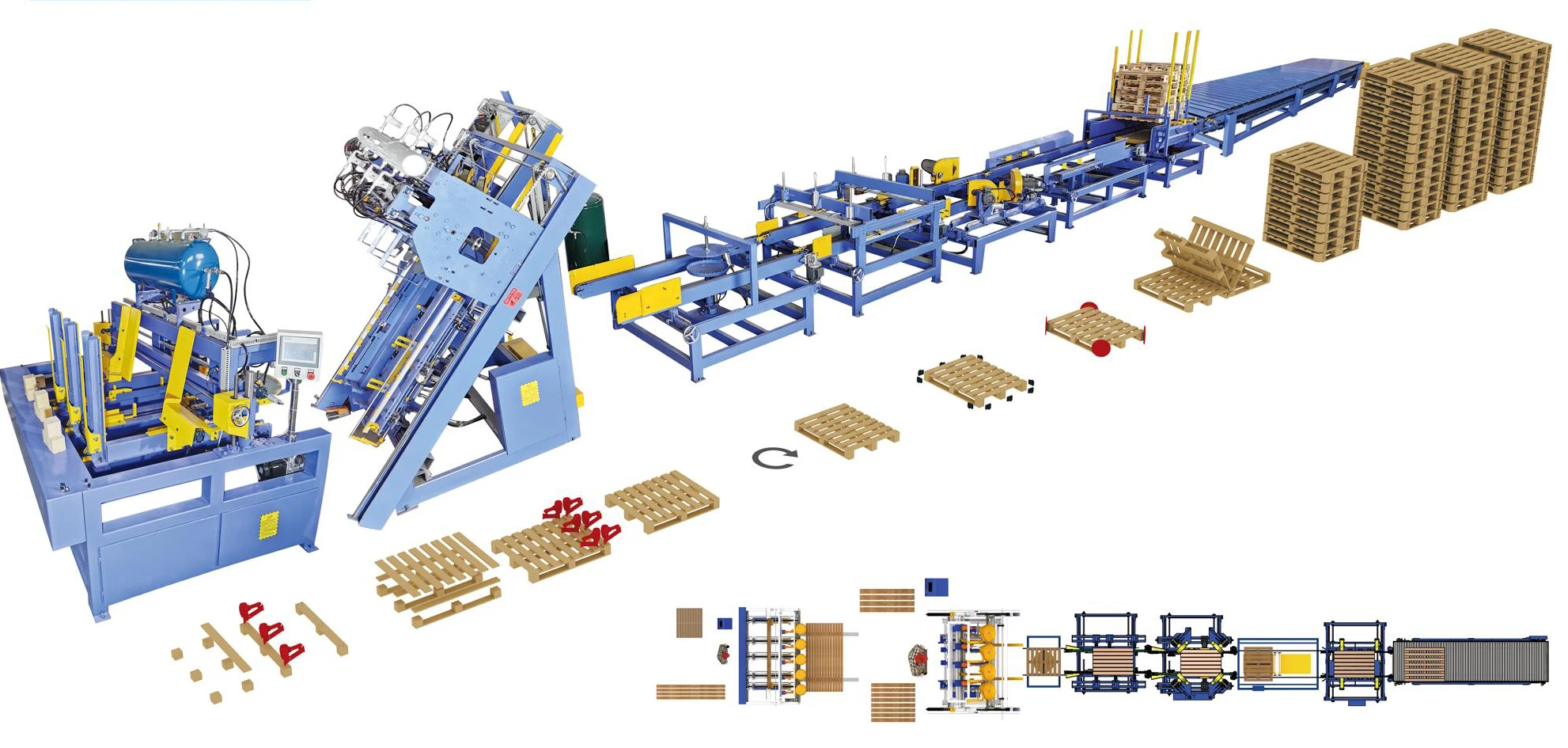

5. Euro Pallet Nailing Production Line

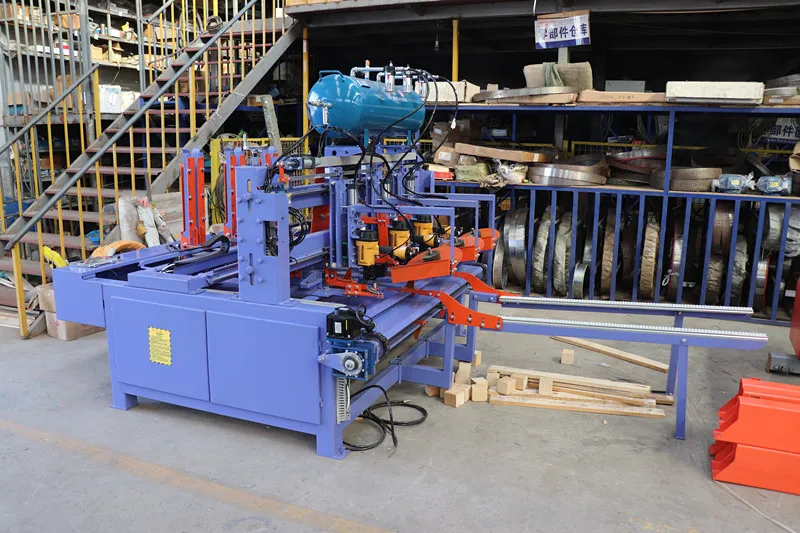

Pallet Block Nailing Machine

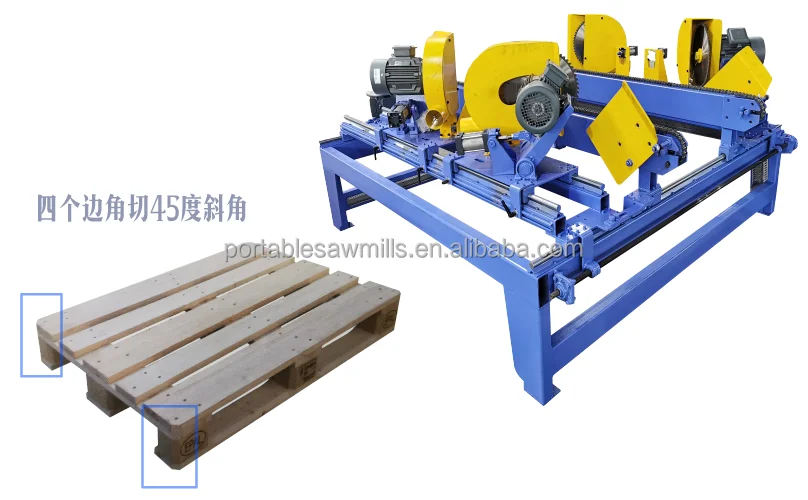

Pallet Angle Cutting Machine
Pallet Turning Machine
Pallet Branding Machine

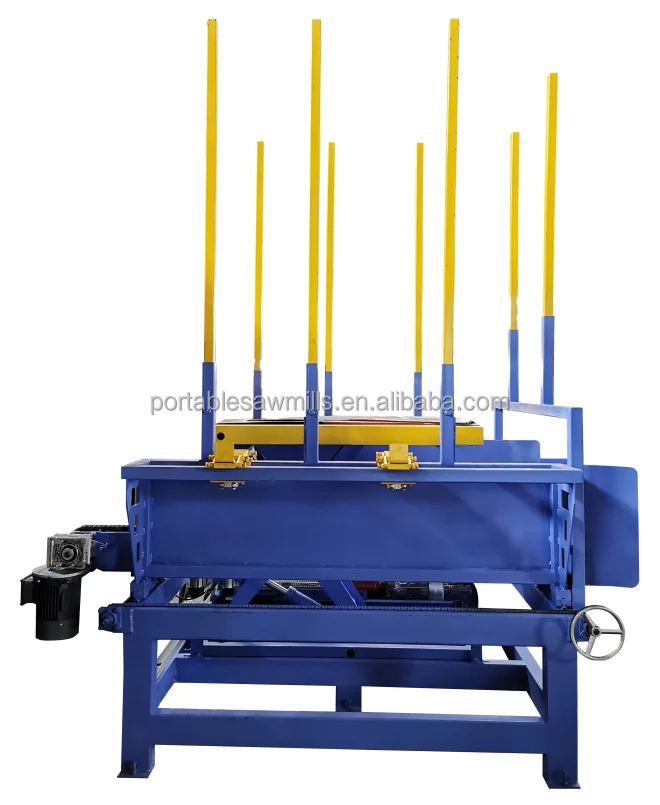

Pallet Stacker

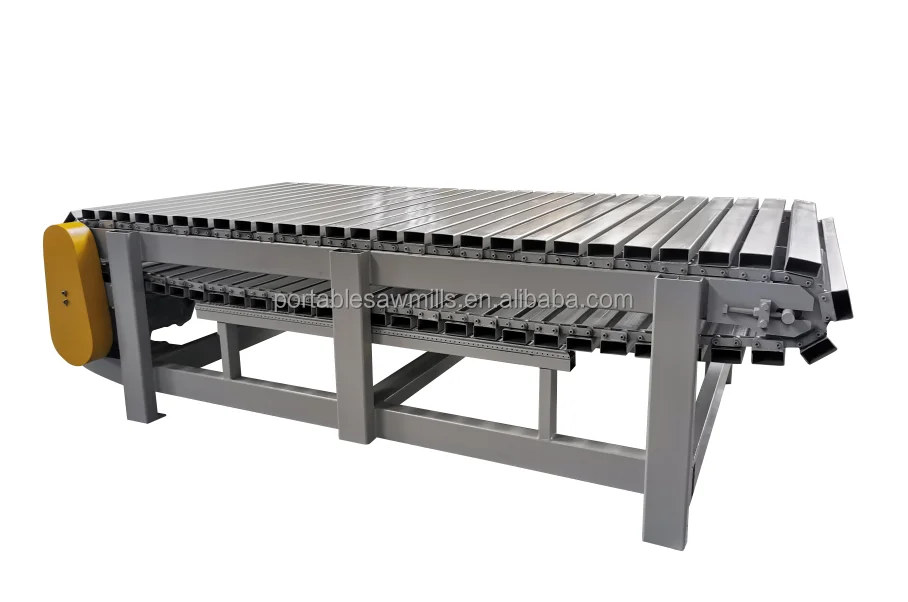

Pallet Storage Platform

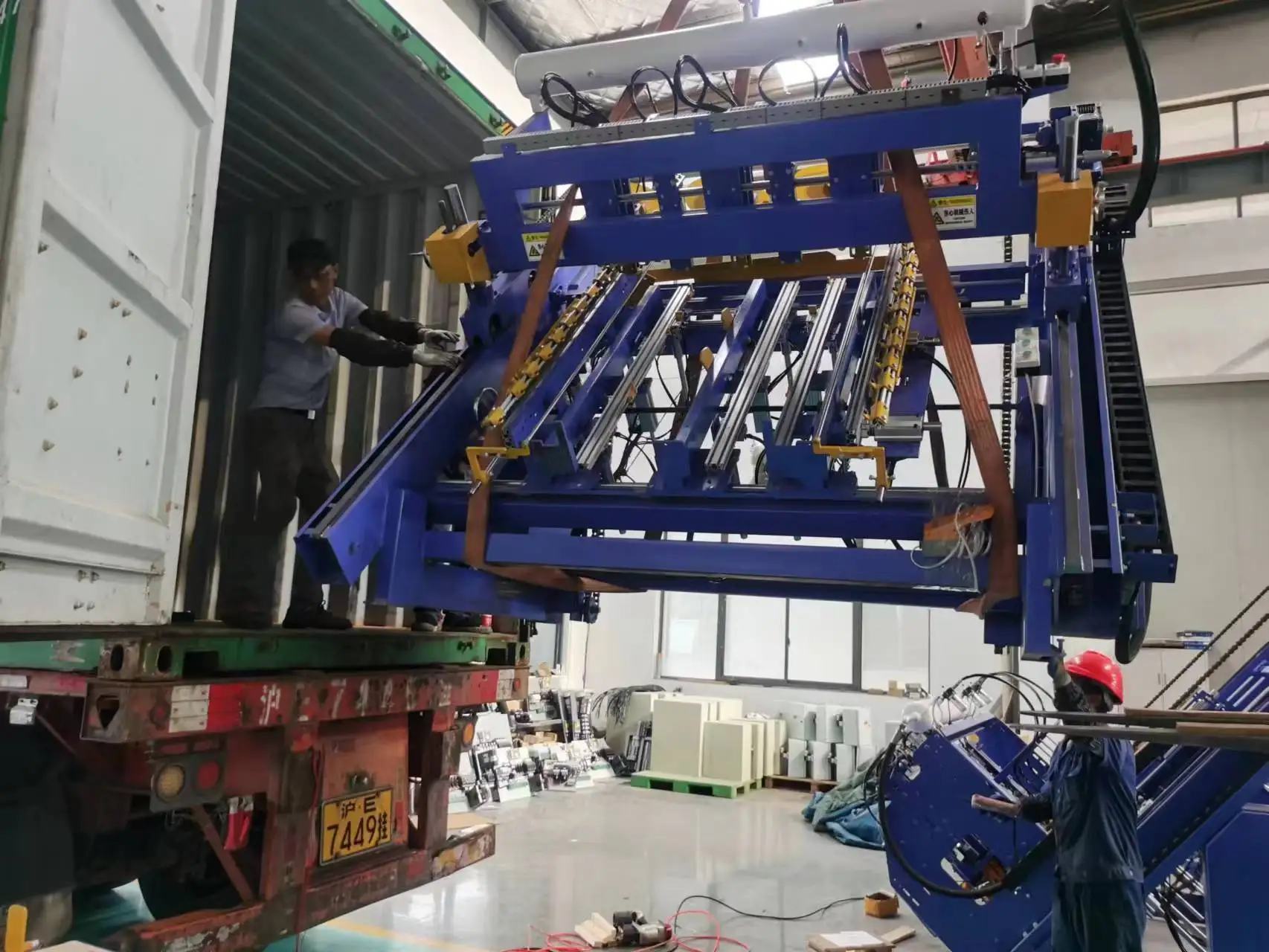

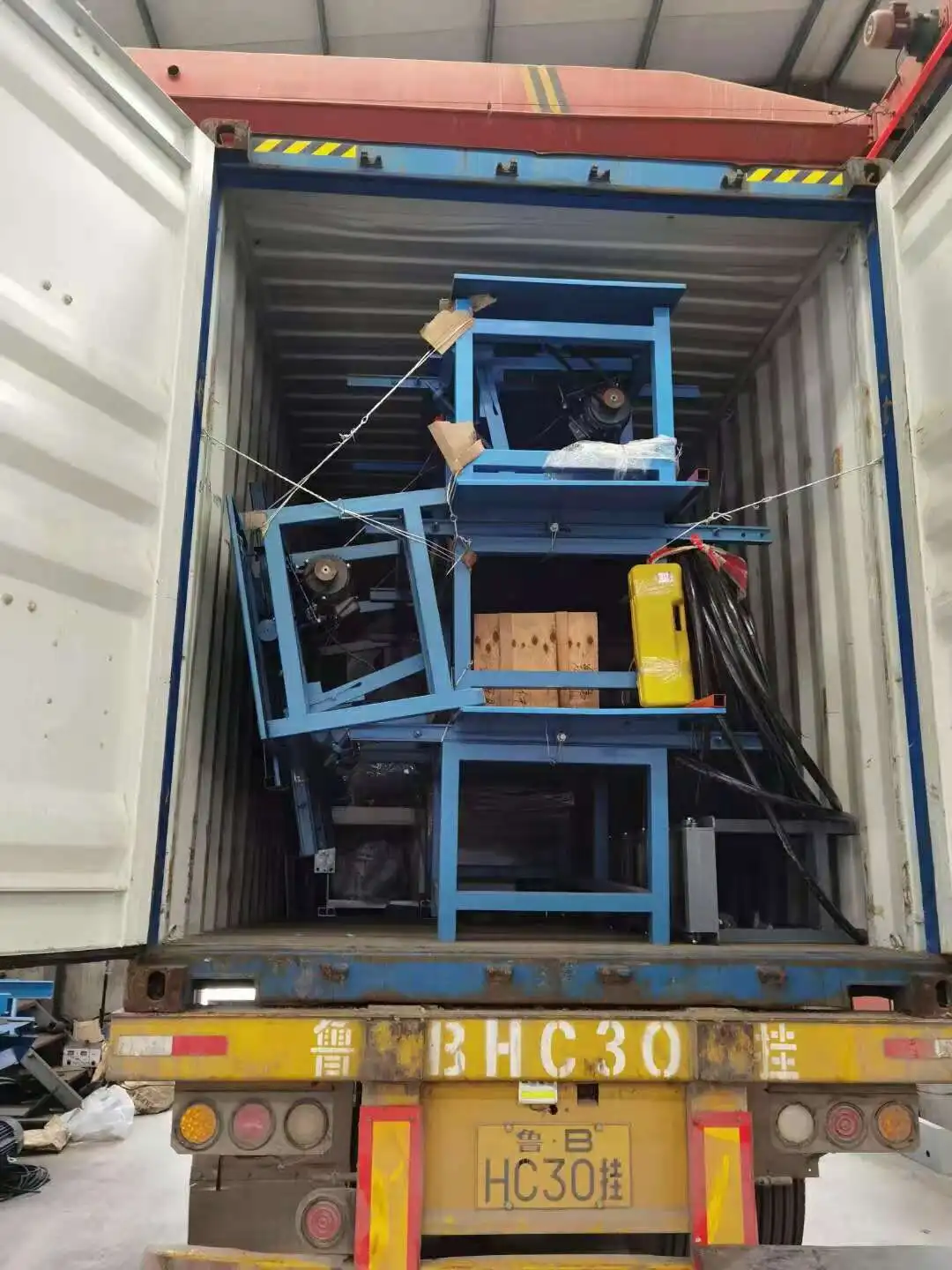

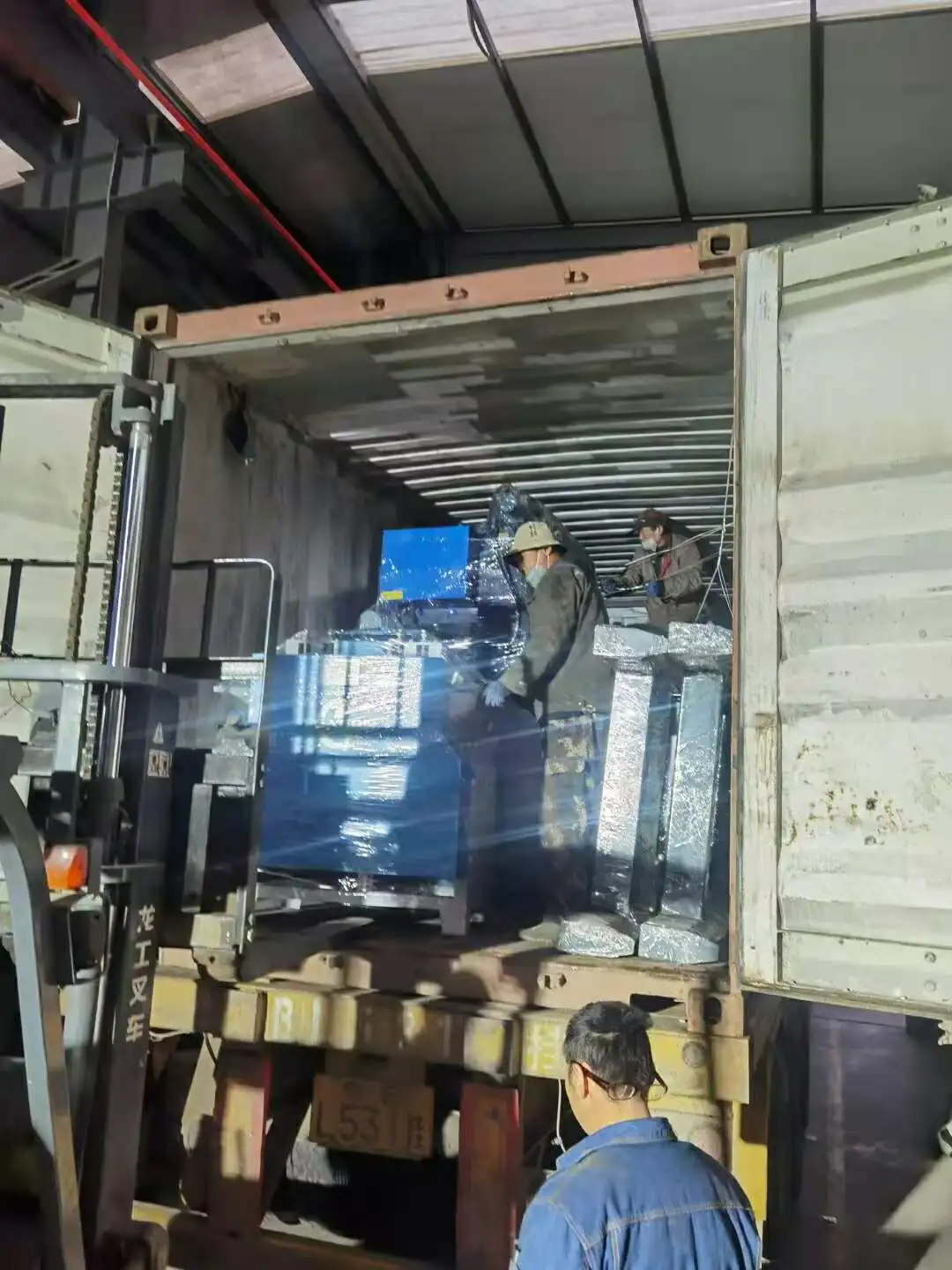

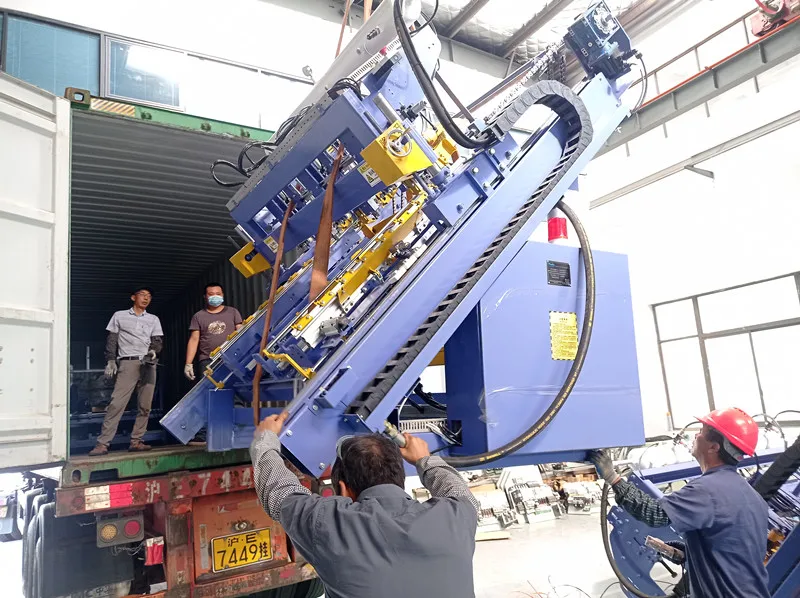

Package and Delivery
