Product Description

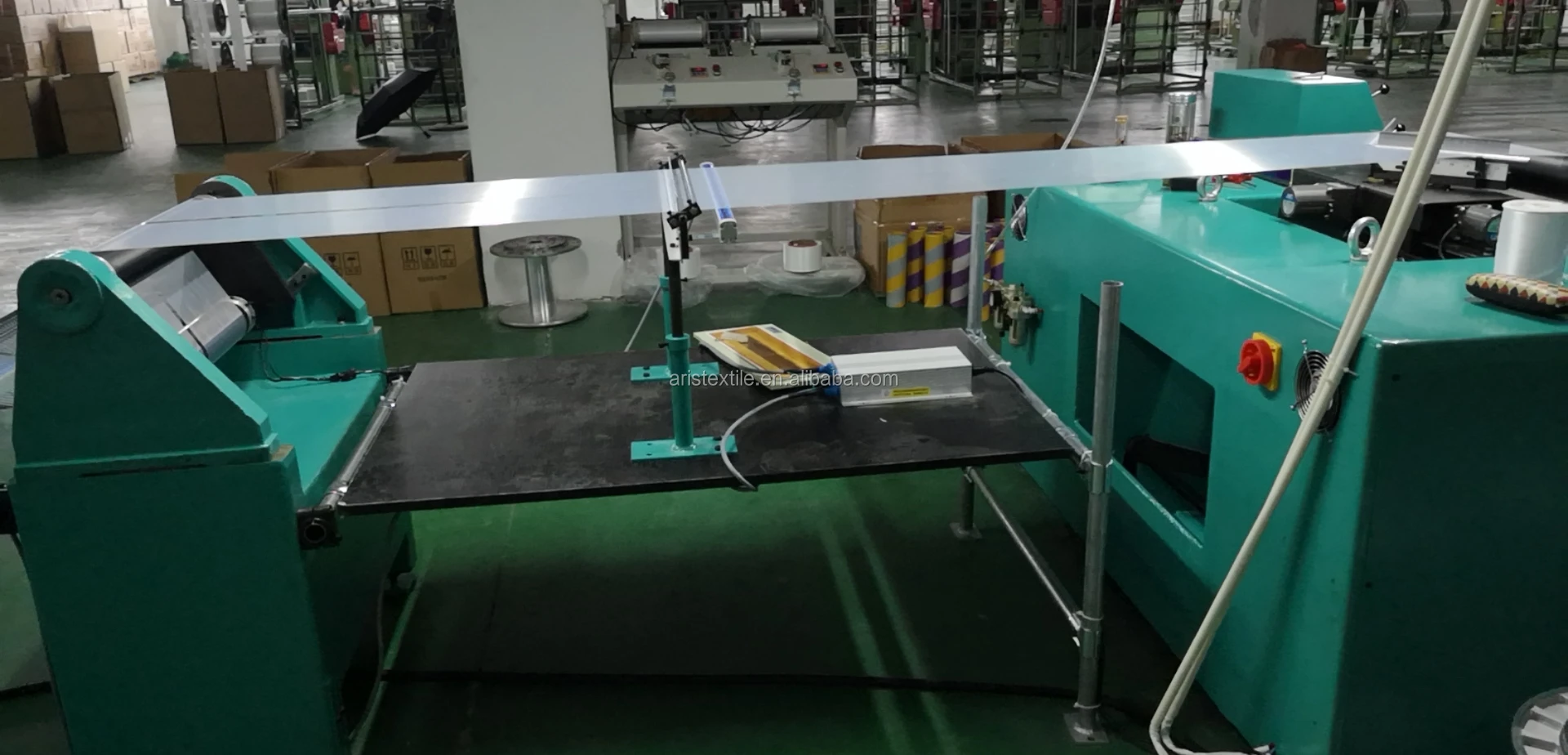

AS14/17 High Speed Hook & Loop Yarn Beam Warping Machine
Technical parameters | ||
Line Speed | 0~1000m/min | |
Max. Tension of line | 400N | |
Brake Torque | 200NM | |
Up and Down of Beam | Pneumatic control | |
Tight and release of Beam | Pneumatic control | |
Diameter of Speed Roller | 80mm | |
Power of Main Motor | 5.5kw | |
Control type of Main Motor | Inverter control | |
Monitoring Way | Microcomputer controlled touch screen | |
Pressure of Pneumatic source | 4bar | |
Beam size used | Φ17"×14" | |
Main configurations | ||
Main motor | WNM OF CHINA | |
Inverter | INVT OF CHINA | |
Test components A | AUTONICS OF SOUTH KOREA | |
Test components B | KOYO OF JAPAN | |
Pneumatic components | AIRTAC OF TAIWAN | |
PLC | OMRON OF JAPAN | |
Touch screen | MCGS OF BEIJING | |
Operating components | SCHNEIDER OF FRANCE | |
Terminal components | PHOENIXCONTACT OF GERMANY | |
Bearings | NSK OF JAPAN | |
- Technical specification
1. The main motor is controlled by converter. The constant and reliable digital pulse close ring guarantees the speed fast or slow is stable.
2. The bracket movement of beam is controlled by pneumatic, and its position is accuracy controlled by the operator, which select the different position according to beam's diameter.
3. The tail bracket is controlled by pneumatic, and the shaft adepts centre fixing shaft head. These two features make the damage to inner beam caused by the shift lower down to the minimum.
4. The main brake and the roller brake adepts electronic disc brake. And the braking force is controlled by electronic regulator. Front and rear brake synchronization
5. The reed motors of width direction and side's direction adopt AC small motor, which are simple and easy to operate. The starching plank adopts manual control.
2. The bracket movement of beam is controlled by pneumatic, and its position is accuracy controlled by the operator, which select the different position according to beam's diameter.
3. The tail bracket is controlled by pneumatic, and the shaft adepts centre fixing shaft head. These two features make the damage to inner beam caused by the shift lower down to the minimum.
4. The main brake and the roller brake adepts electronic disc brake. And the braking force is controlled by electronic regulator. Front and rear brake synchronization
5. The reed motors of width direction and side's direction adopt AC small motor, which are simple and easy to operate. The starching plank adopts manual control.
