TECHNICAL PARAMETERS

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing,
cutting the finished products automatically, complete line include 1 set mask making machine and 1 sets

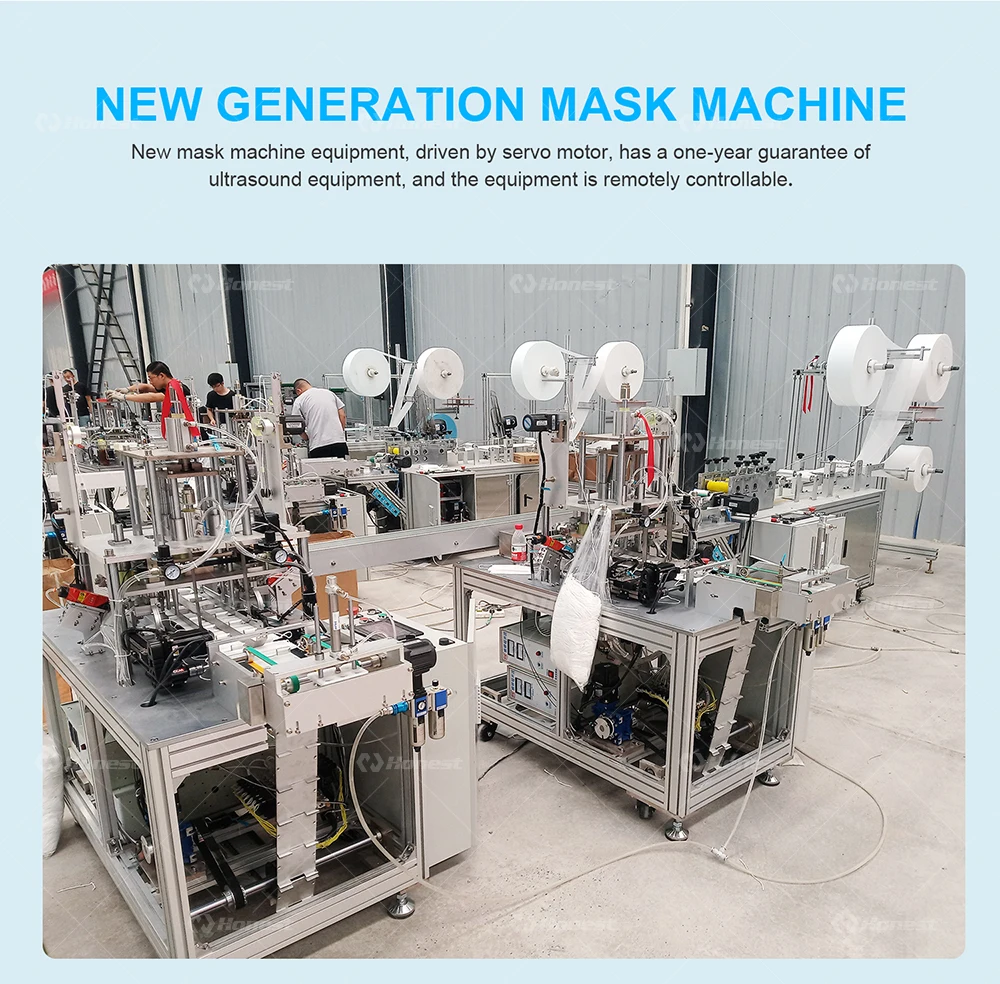

automatic ear loop welding machine. With the new generation of mask machine equipment, the number
of cylinders used is reduced, and motors are used instead, so that the failure rate is greatly reduced and
the production efficiency rises linearly.


Products Name
Fully Automatic 3 Ply Nonwoven Fabric Disposable Medical Facemask Machine Surgical Face Masks Making Machine
Production Capacity
100-120pcs/min
Model
ZYPK-120
Dimension(L *W*H)
6900mm* 36738mm* 2022mm
Power
14.15kw
Voltage
220 V土5% ,50/60HZ
Mask Layer
1-4ply
Weight
1500kg
Air pressure
0.5-0.7Mpa
The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail.




Product Structure

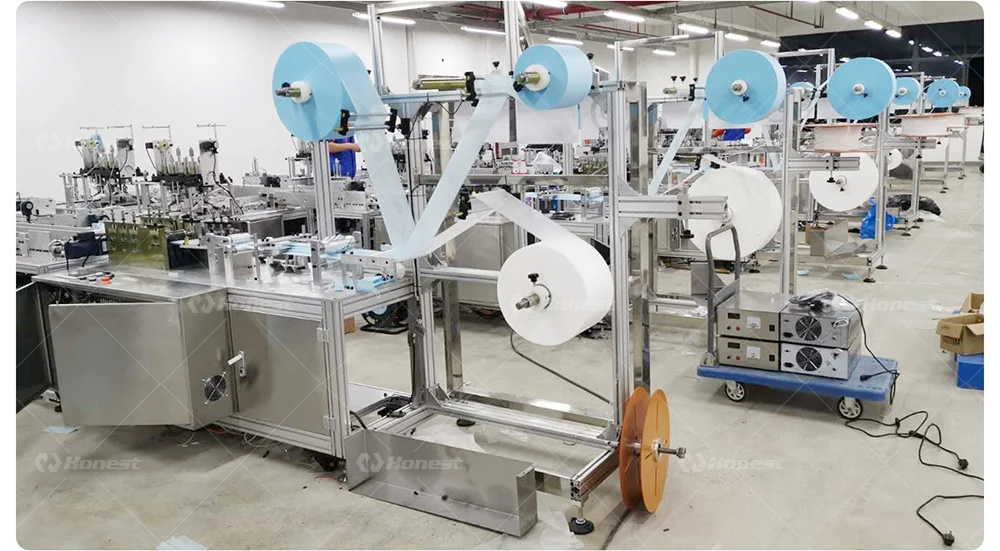

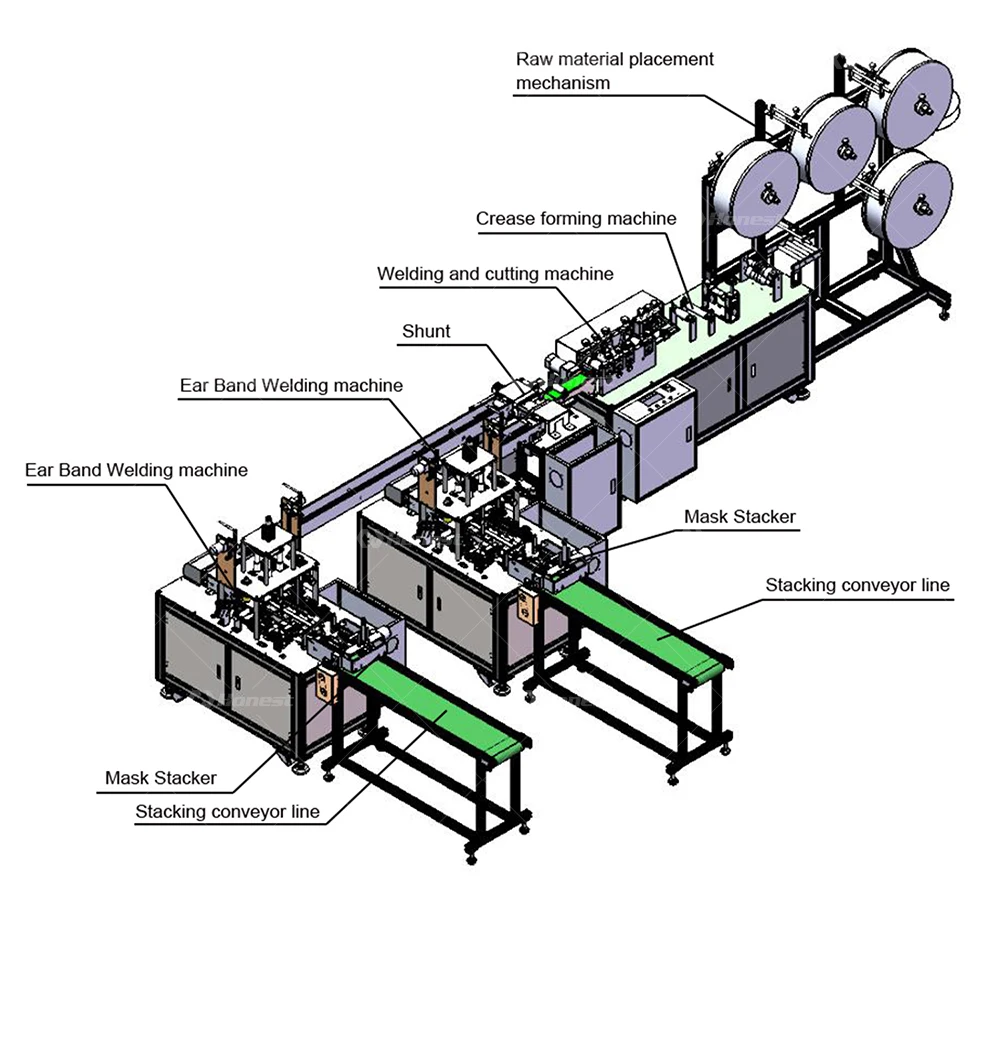

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by

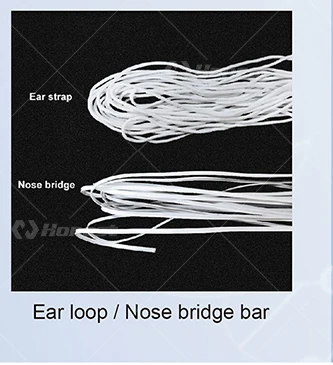

rollers after unwinding, and the fabric is automatically folded and hemmed; Bridge of nose strip whole roll
welding stations through an assembly line, and finally forming the mask by ultrasonic weldling; when the
traction unroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then
ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band
mask is made, it is transported to the flat belt line for collection.

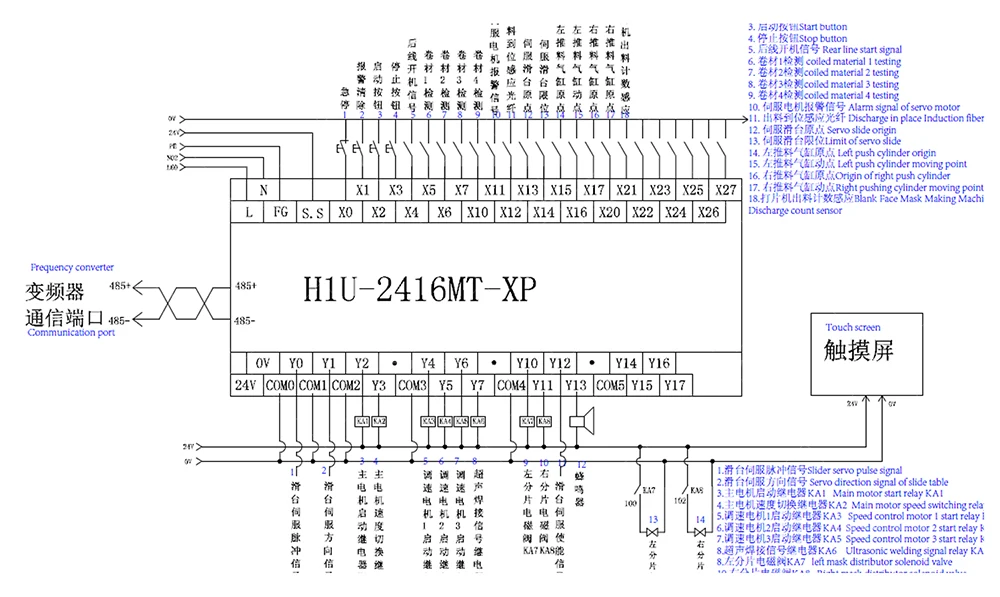

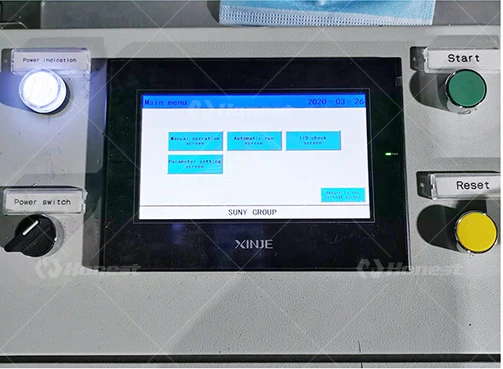

INTELLIGENT TOUCH
PL C
PLC has three languages to choose
from, Chinese, English and another
language you want to choose.

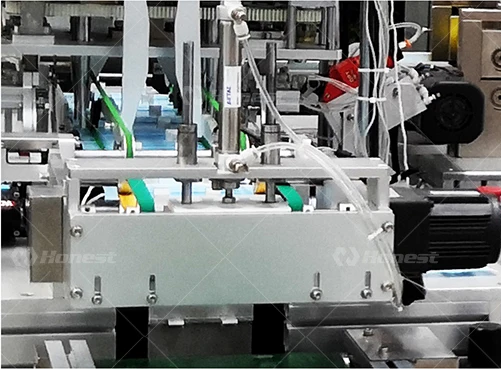

WELDING & CUTTING
MACHINE

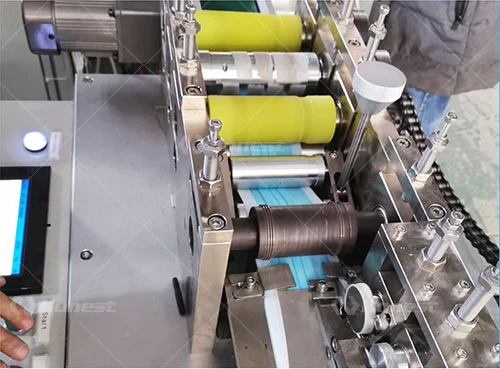

From fabric, folding, welding to cutting,
the whole blank production process is
fully automatic, and the ultrasonic
welding roller can customize logo.




EAR LOOP
WEL ,DING MACHINE

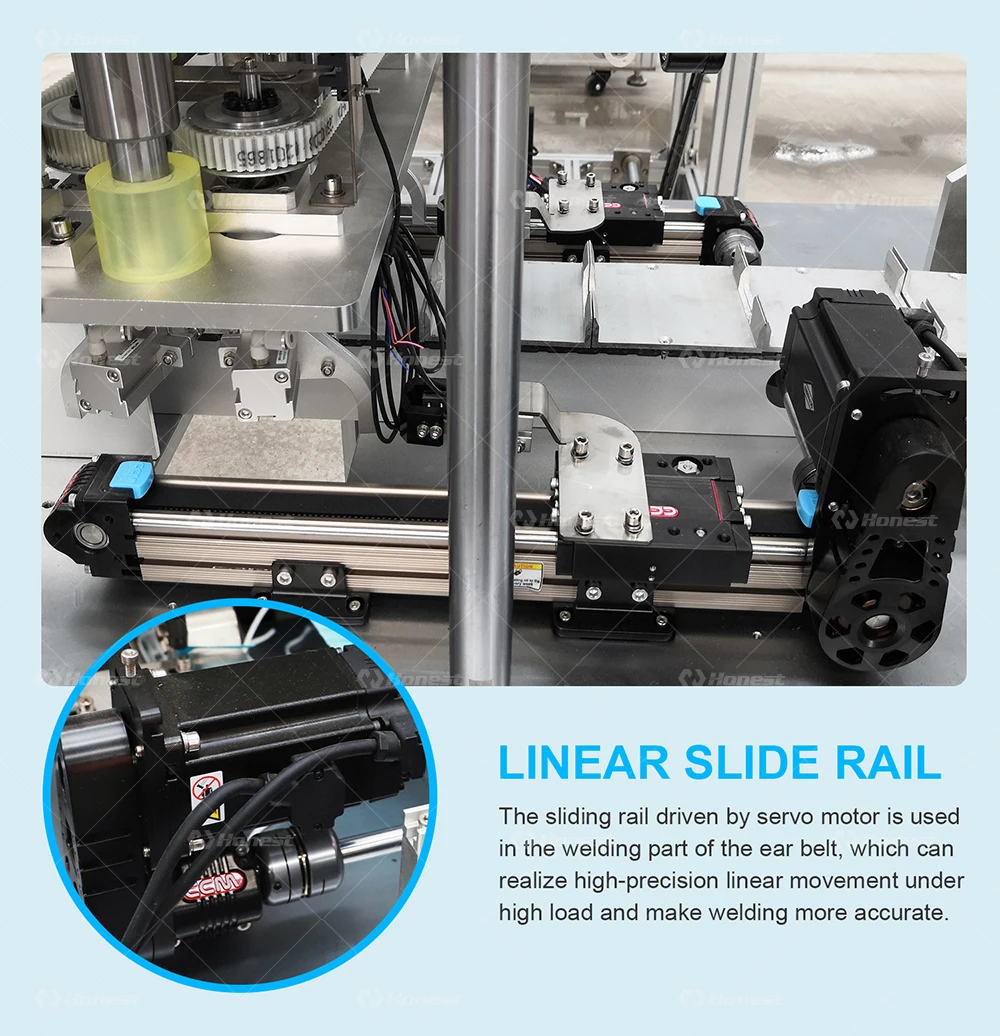

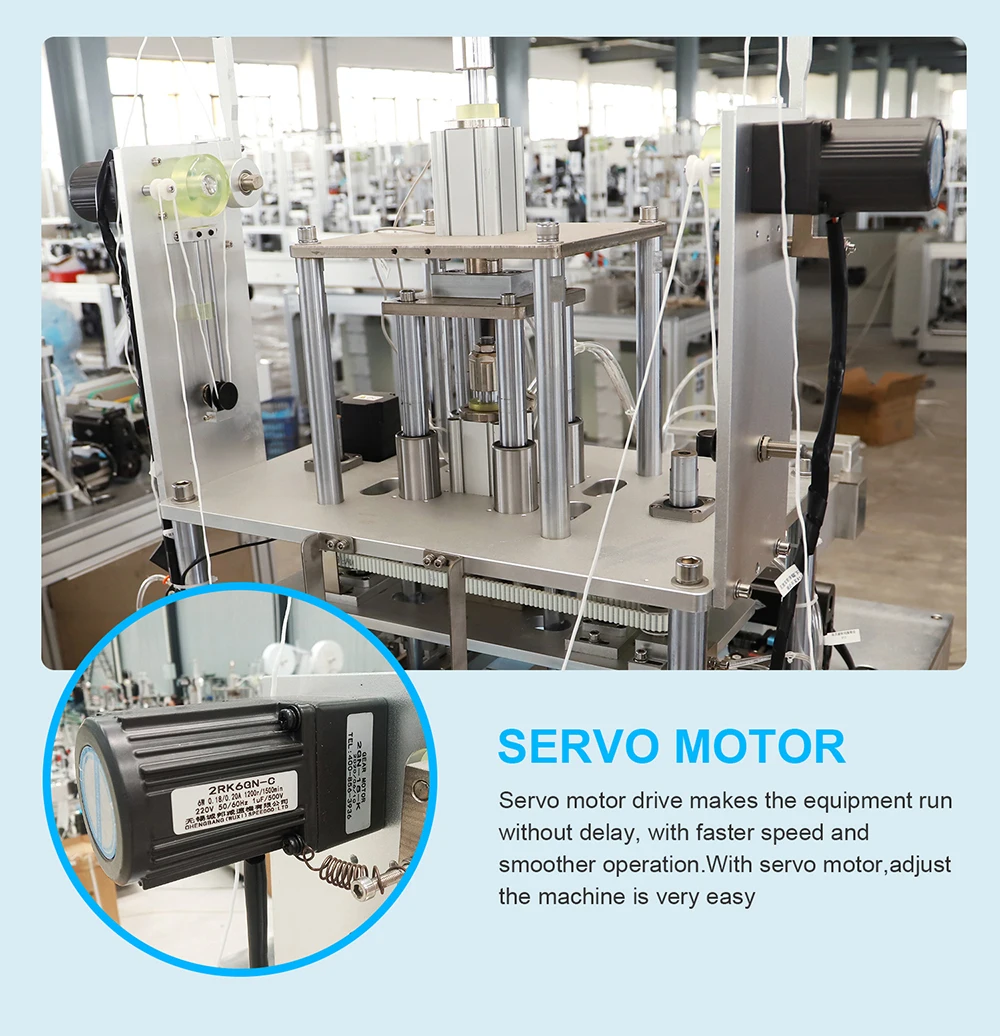

The welding structure of the new ear
strap adopts double guide rails for
horizontal welding and multiple servo
motors for driving, so the welding speed
is fast and stable, and the qualified rate
of the mask is over 98%.





STACK SYSTEM
Automatic counting stack equipment,
servo motor, customer can customize
the number of stacks.

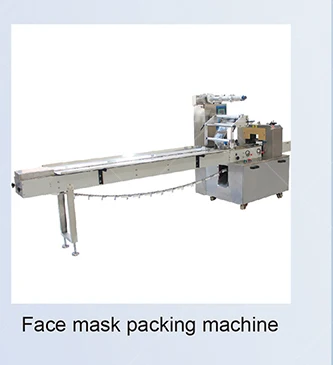

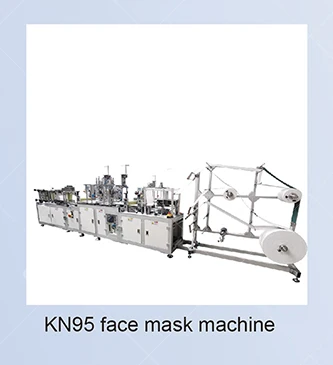

Recommend Products






Choose Us


1. CE certified product and test machine with materials before delivery

CE certified products, Before leaving the factory, all machines must be debugged with materials to reach the normal trial production status, and the goods can be delivered only after the customer's remote video acceptance (domestic friends or third-party organizations' on-site acceptance);





2. Provide equipment drawings

We will provide electrical drawings, installation drawings for equipment placement, videos and documents for solving common machine failures, so as to facilitate customers' later installation and debugging.

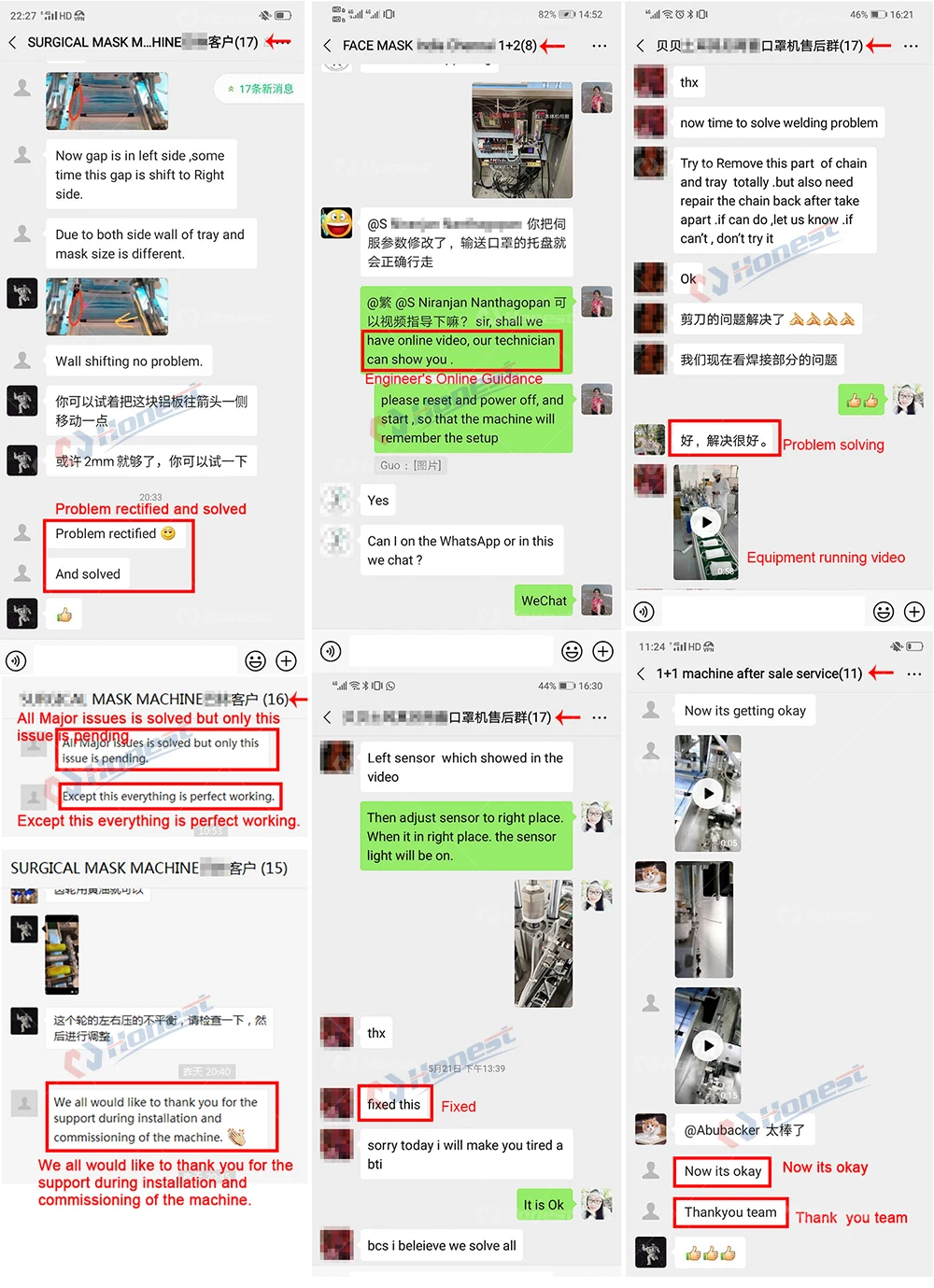

3. Many to one after-sales service

In addition to providing equipment installation videos for customers, we will set up a service team for customers with after-sales needs, including the company's manager, sales manager, engineers, customers and other relevant personnel, so that customers can answer any questions at any time. These online guidance services are completely free.

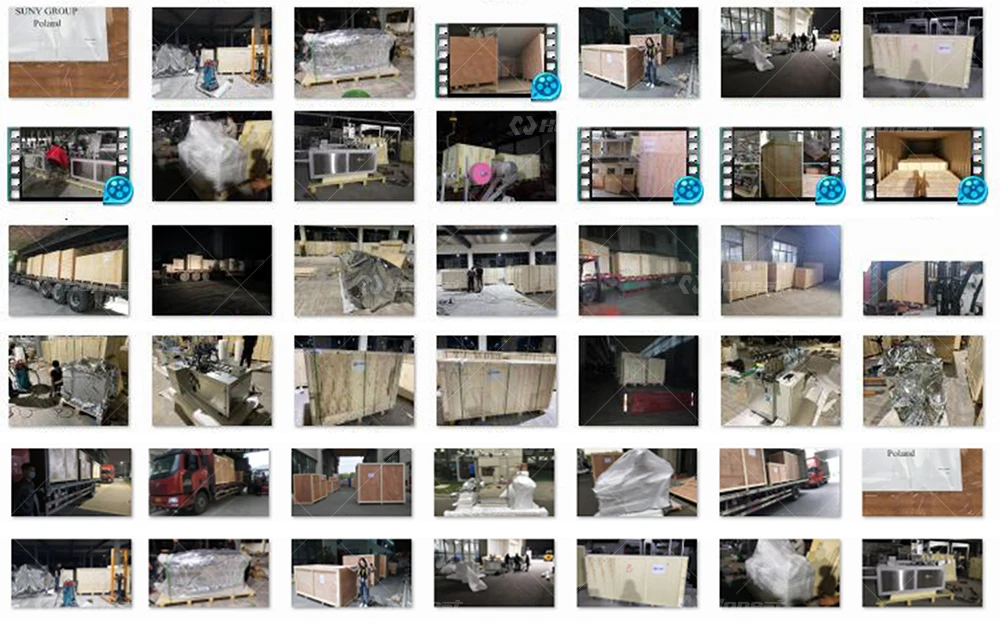

Delivery


Our products are packed in vacuum inside and wooden cases outside. Customers marvel at the quality of our equipment when they receive the goods. The equipment is of great weight and the packaging is very professional.




Quality Assurance






Company Show


Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
