12038 HBL осевой вентилятор потока промышленный охлаждающий для генератора озона 2 провода двойной
- Категории: Вентиляторы >>>
- Поставщик: Shandong,Topwin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

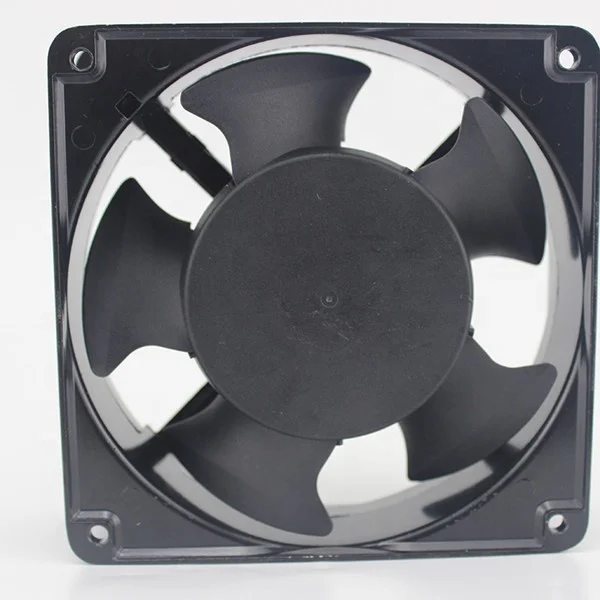

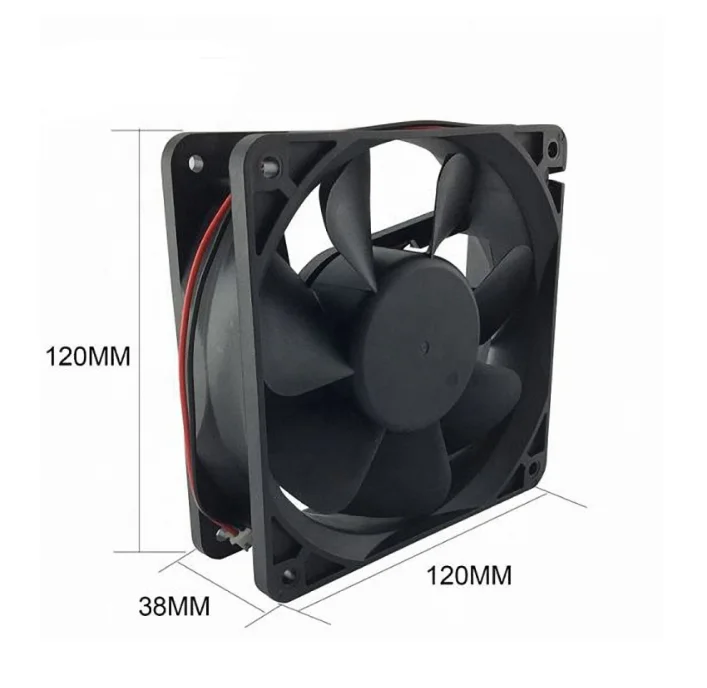

12038 HBL Axial flow fan Industrial Cooling Fan for ozone generator 2 Wires double ball bearing
Product Description
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Cast Aluminum
4. Connection: Wire & Terminal
5. Protection: Polar & Locked
6. IP Class: Max IP68
7. Insulation Class: B
8. Compressive Strength: 500v
9. Storage Temperature: -20°--- 70°
10. Working Temperature: -10°--- 60°
Specification
| MODEL NO. | VOLTAGE | FREUENCY | CURRENT | POWER | SPEED | MAX AIR FLOW |
| (V) | (HZ) | (A) | (W) | (RPM) | (CBM/H) | |
| 12038HBL | AC 220 | 50/60 | 0.14 | 21 | 2600 | 160 |
| 12038HSL | AC 220 | 50/60 | 0.14 | 21 | 2500 | 155 |
| 12038HBL | DC 12/24 | 50/60 | 0.33 | 2.64 | 2400 | 22.3 |
| 12038HSL | DC 12/24 | 50/60 | 0.33 | 2.64 | 2400 | 22.3 |
| 12025HBL | AC 220 | 50/60 | 0.1 | 18 | 2100 | 66.6 |
| 12025HSL | AC 220 | 50/60 | 0.14 | 21 | 2500 | 155 |
| 8025HBL | AC 220 | 50/60 | 0.08 | 14 | 2300 | 27 |
| 8025HSL | AC 220 | 50/60 | 0.08 | 14 | 2300 | 27 |
Packaging & Shipping

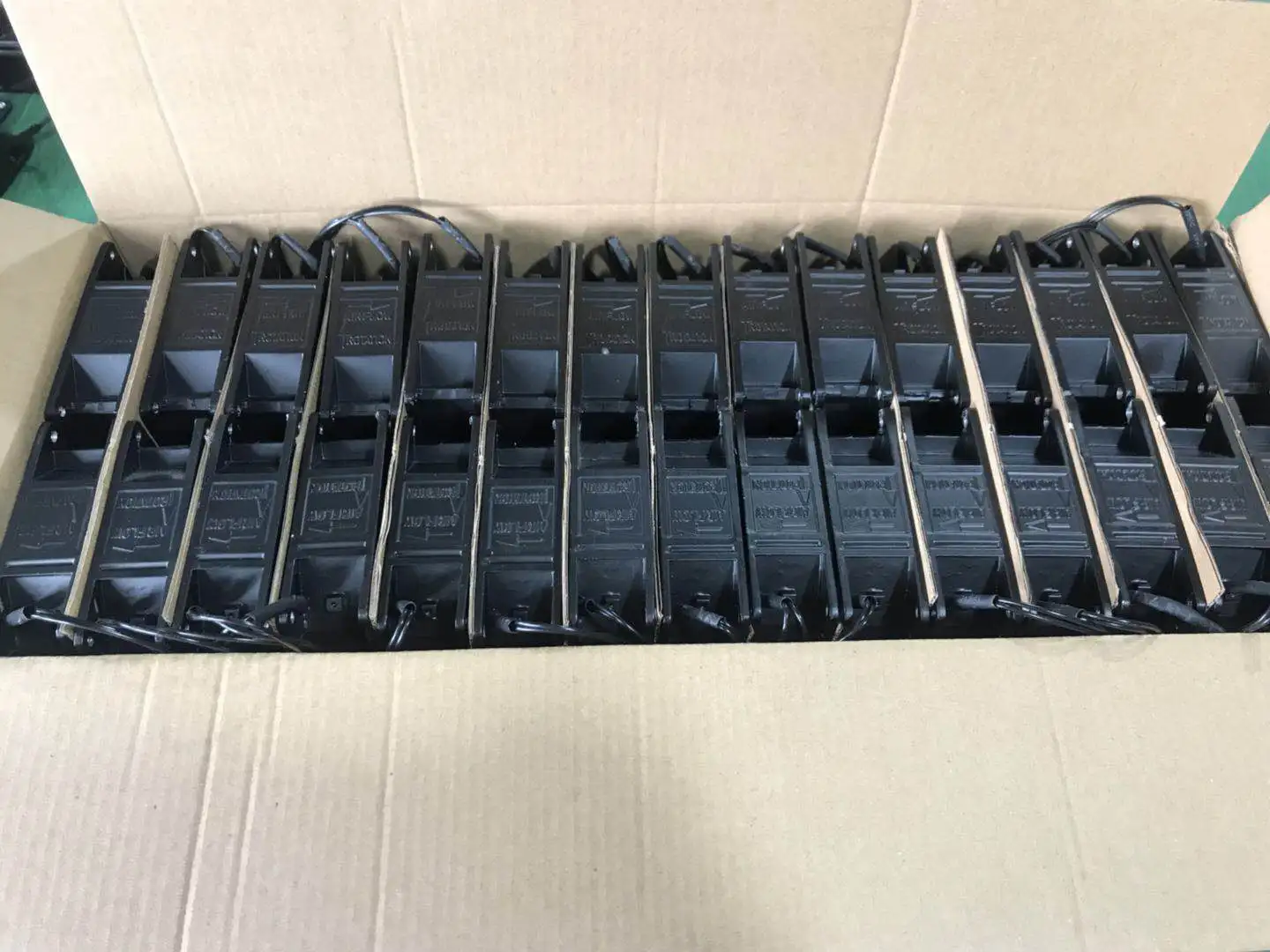

12038 HBL Axial flow fan Industrial Cooling Fan for ozone generator 2 Wires double ball bearing will be packed in carton.
40 units in one carton
Carton size:51*30*28.5cm
Carton gross/net weight:22/21KGs
