AMD-357 револьверный Железный механический штамповочный
- Категории: Punching Machines >>>
- Поставщик: Qingdao,Amada,Numerical,Control,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

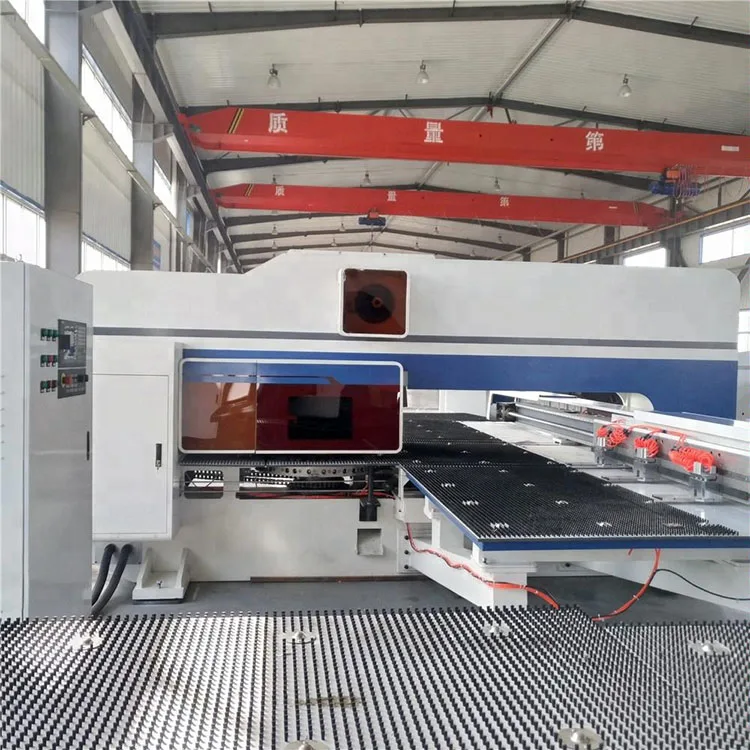

Mechanical Type Turret Punch/CNC Punching Machine
AMD-357 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate,lamps, kitchen equipment, air conditioners and other sheet metal processing industries.
Technical parameter
Model | AMD-357 |
Capacity | 300/500 KN |
Driving Type | Mechanical driving |
CNC System | Siemens/Fanuc |
Max. Processing sheet (Reposition) | 1000/1250/1500/1750 mm1500/2500/4000/6000 mm |
QTY of Clamp | No.3 |
Max. Processing Sheet Thickness | 6 mm |
Max. Punch Diameter | Φ88.9 mm |
Max. Punch Hit at 1mm Pace | 400 hpm |
Max. Punch Hot at 25mm Pace | 220 hpm |
QTY of Station | No.24/32 |
Controlling Axis | No.4 |
Machine Frame | O type |
Max. Feeding Speed | 60 m/min |
Tooling Rotation Speed | 30 rpm |
Accuracy | ±0.1 mm |
Rated Power | 20 KW |
Air Pressure | 0.6-0.8 MPa |
Outline Dimension | 4490*5300*2110 mm |
Details:
With servo motor, faster speed and higher stability
Equipped with secondary positioning system to realize processing without dead angle
Control System
Panasonic servo motor controller, ESTUN punch controller, Schneider electrical components
Panasonic servo motor and reducer
Worktable
We adopt brush and universal ball mixer work table,can not only facilitate processing,but also can protect the plate very well.

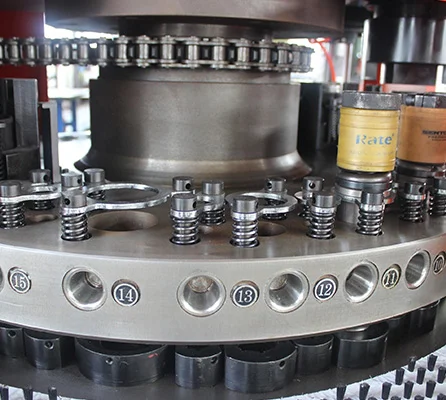

Ductile iron turret station
With the features of automatic lubrication and minimal wear
Use casting integrated type thick turret mold disc
With the features of automatic lubrication and minimal wear
Use casting integrated type thick turret mold disc

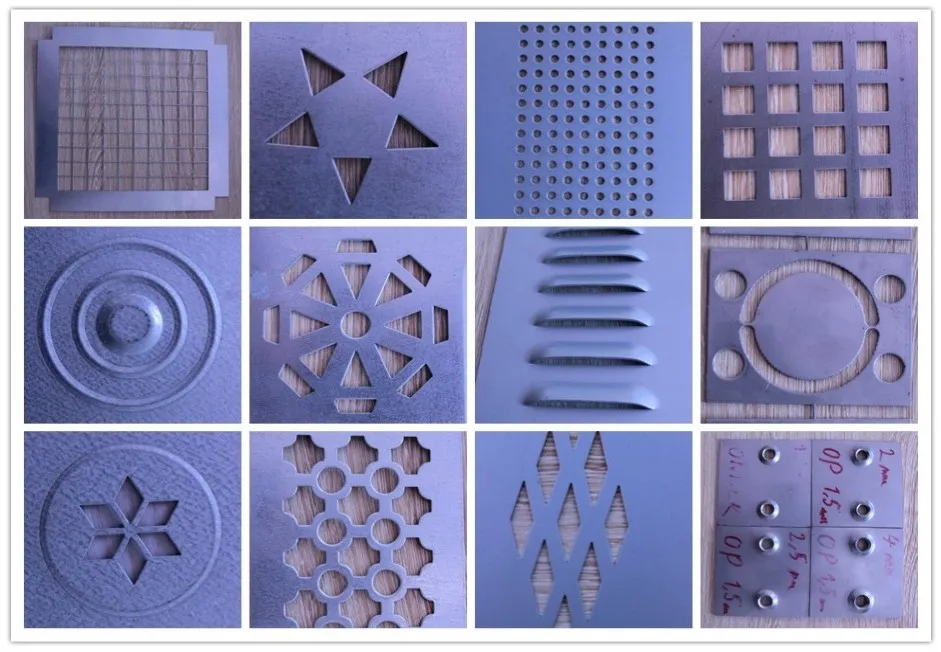

Punching Sample

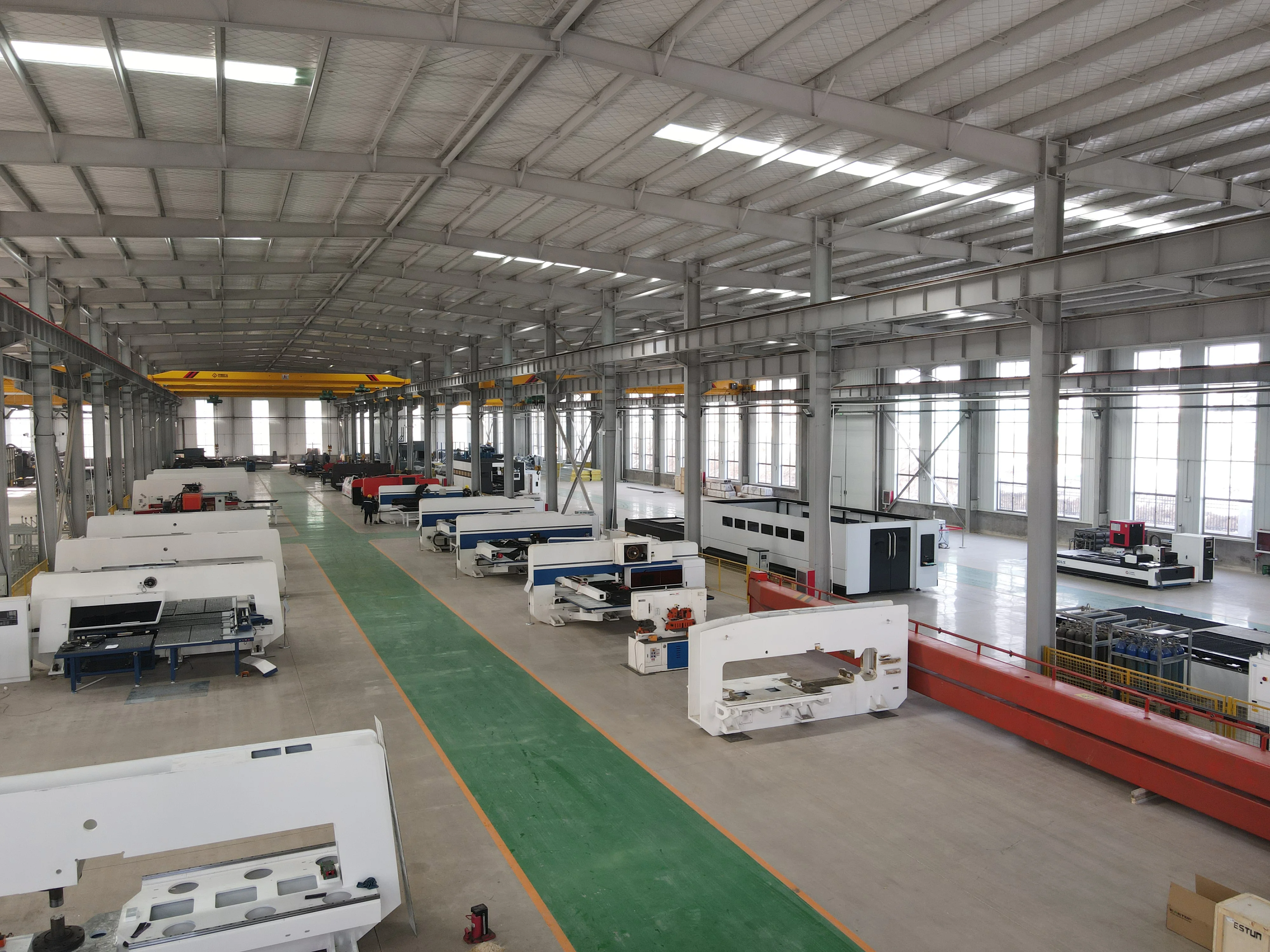

Work shop
Certifications

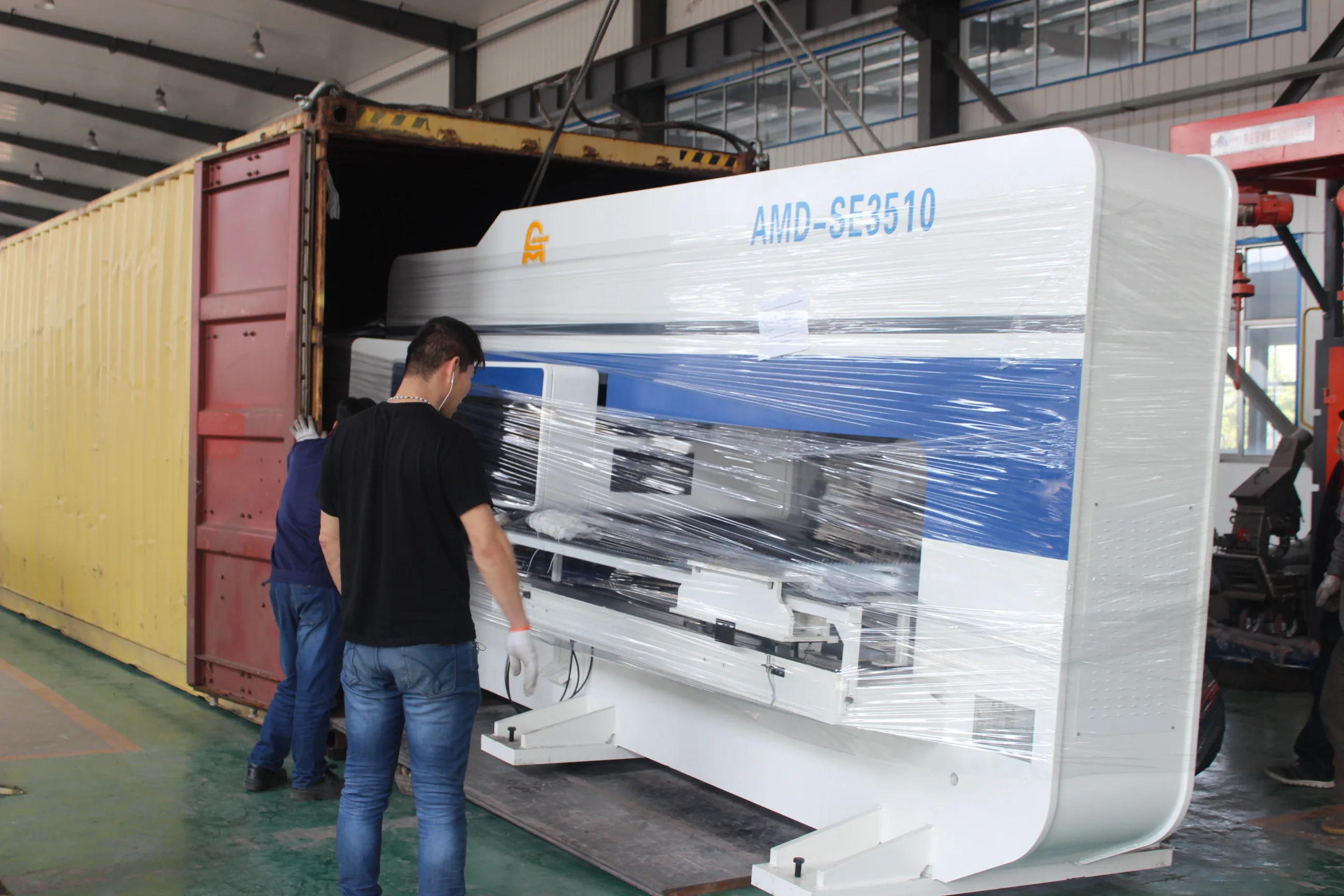

Product Packaging
FAQ
Q:How to operate the machine
A: We will deliver English manual and video with the machine to you. If you still need our help,please contact us.
Q: How can I get the sample to check you quality?
A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q: Does the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:Can you arrange the shipment for me?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
