Проще соединения трубопровода 6 дюймов вентиляция воздуховод
- Категории: Axial Flow Fans >>>
- Поставщик: Shenzhen,Shengshida,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

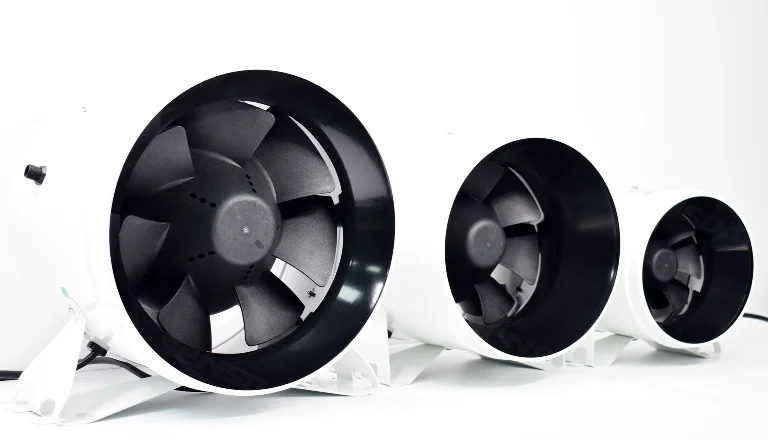

SE-A150Z mixed flow in-line fan is a truly compact unit with easier duct connections on both sides.The fan is built with cold-rolled steel housing and jet-engine design double impellers,and equipped with the cutting-edge brushless EC motor.Thanks to its up-to-date design in the industry,it can work on much lower consumption and deliver greater air volume and static air pressure.
Main Feature
Easier Duct Connections
Blade Fire Proofing Grade UL94V- 0Detachable 0%-100% Speed Control
6-Poles Brushless Motor with Sine Wave
Double Heavy Duty NMB Bearing
Locked Motor Protection; Soft-Start Motor; Over-voltage Lockout Protection
Customized Feature:PWM/Control by 0-10V/Tacho Output
Max.IP68 Water-proof Level Available
6-Poles Brushless Motor with Sine Wave
Double Heavy Duty NMB Bearing
Locked Motor Protection; Soft-Start Motor; Over-voltage Lockout Protection
Customized Feature:PWM/Control by 0-10V/Tacho Output
Max.IP68 Water-proof Level Available

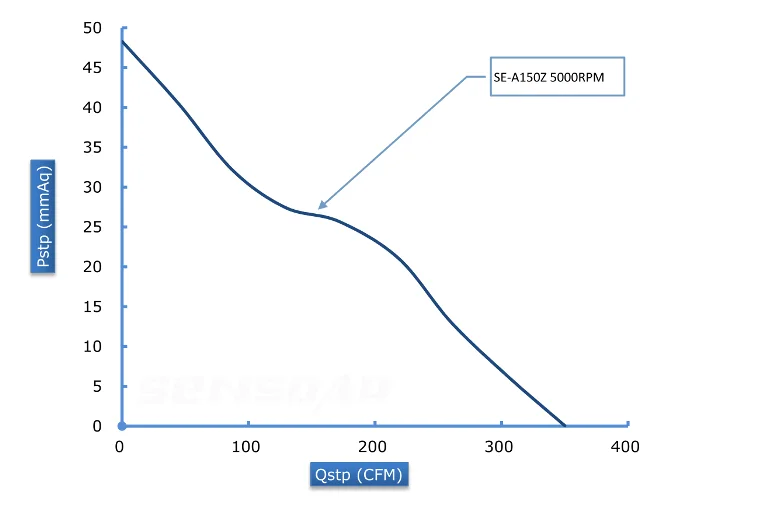

Specification
Model | SE-A150Z | SE-A200Z | SE-A250Z |
Fan Size | 6inch/150mm | 8inch/200mm | 10inch/250mm |
Max Power C | 40W | 75W | 150W |
Rated Voltage | 110V-120V,220V-240V | 110V-120V,220V-240V | 110V-120V,220V-240V |
Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Max Speed | 5000RPM | 3800RPM | 3200RPM |
Max Airflow | 350CFM | 710CFM | 1065CFM |
Static Pressure | 500Pa | 520Pa | 510Pa |
Noise Level | 60dBA | 61.6dBA | 65dBA |
Housing Material | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel |
Impeller Design | Mixed Flow | Mixed Flow | Mixed Flow |
Motor Type | EC Motor | EC Motor | EC Motor |
Net Weight | 1.6KG | 2.5KG | 3.0KG |
IP Rating | IPX4 | IPX4 | IPX4 |
Dimensions

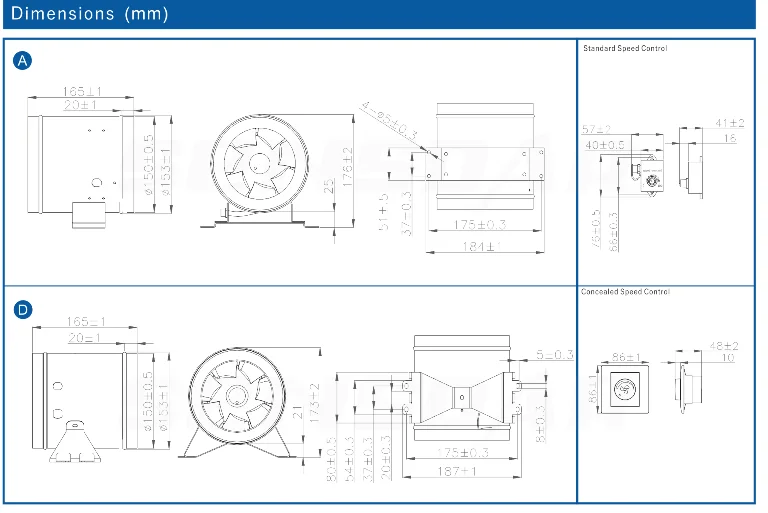

Dimensions of the SE-A150Z
Packing & Delivery
How we packing the 6 Inch EC inline fan?
1. Each hydroponic fan will packed by independent carton.
2. Expandable Polystyrene protective material will set up and down the fan,keep 100% safe when shipping.
3. Each fan will packed with a product manual,and attention of the fan
4. Screw are pack with a pp bag,avoiding missing lead an unhappy fixing.
1. Each hydroponic fan will packed by independent carton.
2. Expandable Polystyrene protective material will set up and down the fan,keep 100% safe when shipping.
3. Each fan will packed with a product manual,and attention of the fan
4. Screw are pack with a pp bag,avoiding missing lead an unhappy fixing.
Company Profile
Certifications
FAQ
Q1. Can I have a sample order for inline duct fan?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limited for inline duct fan order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes a week to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for Inline duct fan?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo lable?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q7: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and every fan will proceed a 24 hours pre-working before packing.
Secondly, during the guarantee period, quality problem happens,we will replace new fan with new order for small quantity.
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limited for inline duct fan order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes a week to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for Inline duct fan?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo lable?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q7: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and every fan will proceed a 24 hours pre-working before packing.
Secondly, during the guarantee period, quality problem happens,we will replace new fan with new order for small quantity.
