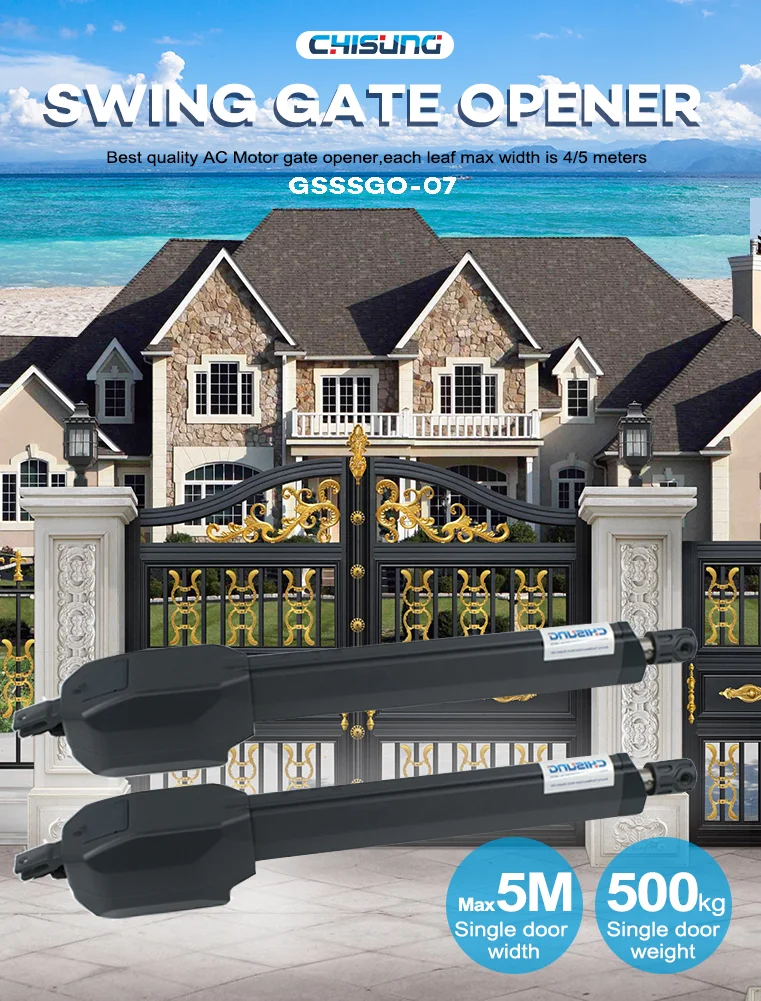

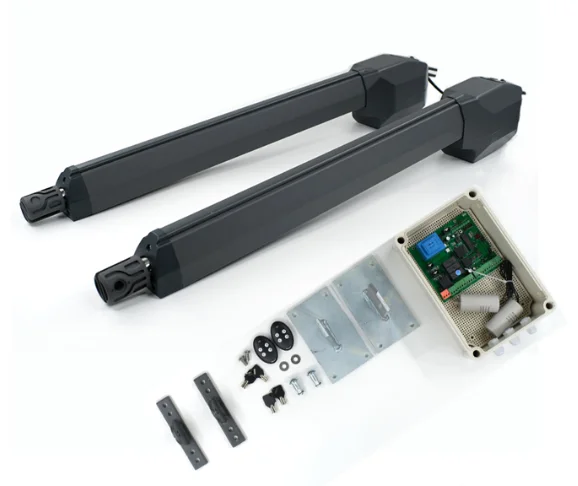

Reliable Automatic Aluminum Motor Housing Gate Operator AC 230V Swing Gate Opener
Poster
Product Description
| Model | CSSGO-07-400mm-AC |
| Power Supply | AC220V±10V 50HZ,AC110V±10V, 60Hz |
| Electric motor | AC220/110V |
| Current | 1.5A |
| Absorbeb power of motor | 320w |
| Max leaf length | 4.0m |
| Max gate weight | 500kg |
| Motor speed | 1.6cm/s |
| Rotational speed | 1450RPM/min |
| Thrust | 3000N |
| Running time protection | Adjustable |
| Rod's max travel | 400mm |
| Auto closing delay time | programmable (from 0 to 99 seconds) |
| Gate move speed | 12S/90degrees |
| Operating Temperature | -20°C~+70°C |
| Relative Humidity | ≤95%, No Condensation |
| Protection class | IP45 |
| Application | home automation |
| limit switch | with limit switch |
| condenser | 8μF |
| Door opening angle | 90°,100°,110°,120° |
| Packing | 36kg, one carton: 930*320*280mm |

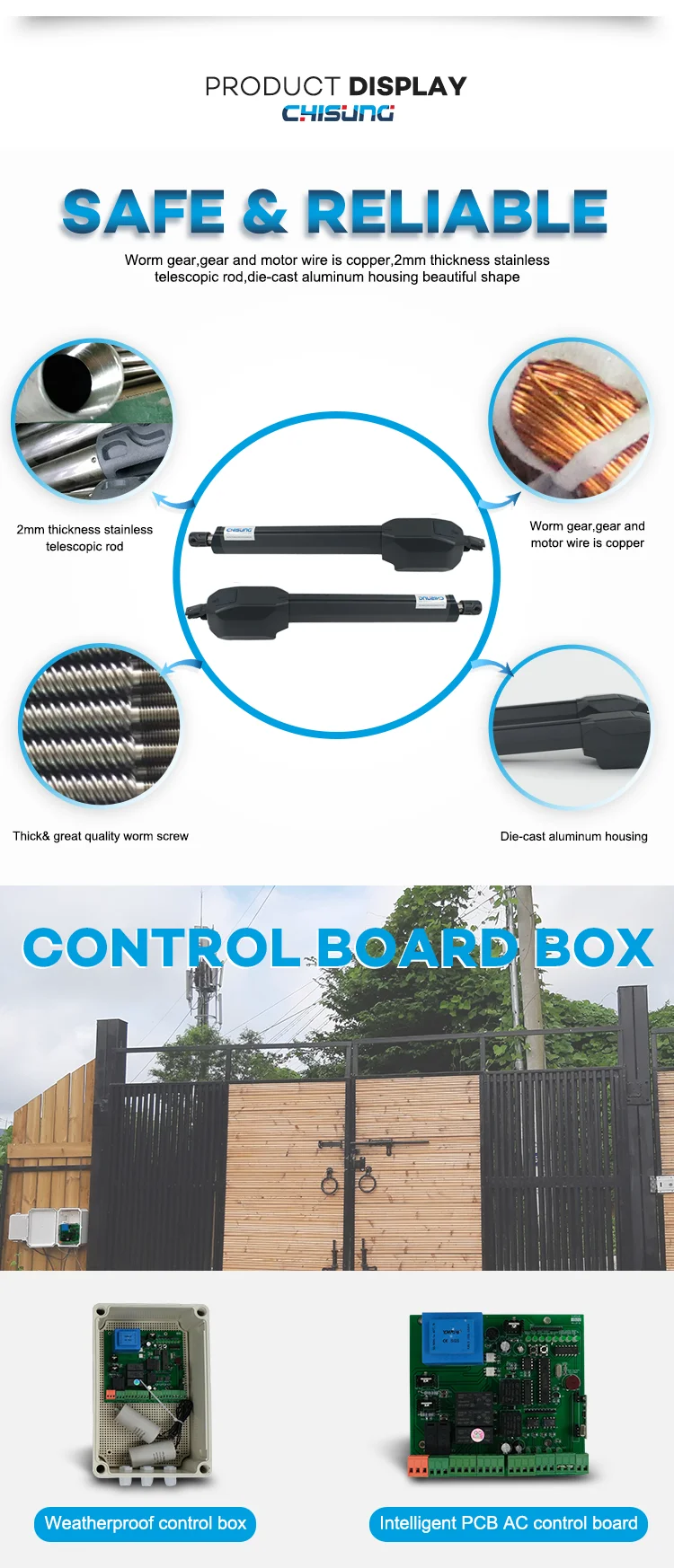

Product Details
Application

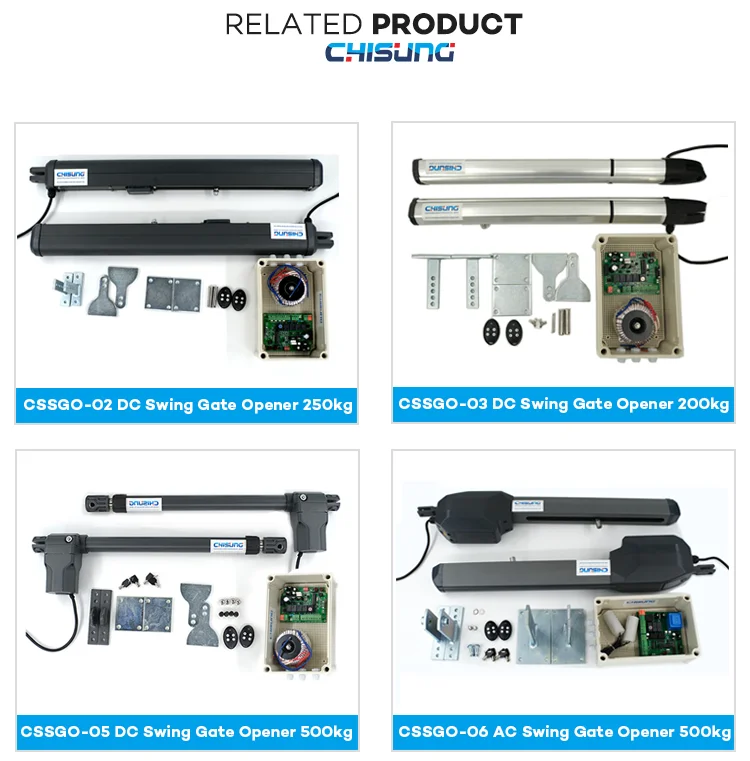

Related Products
Company Information

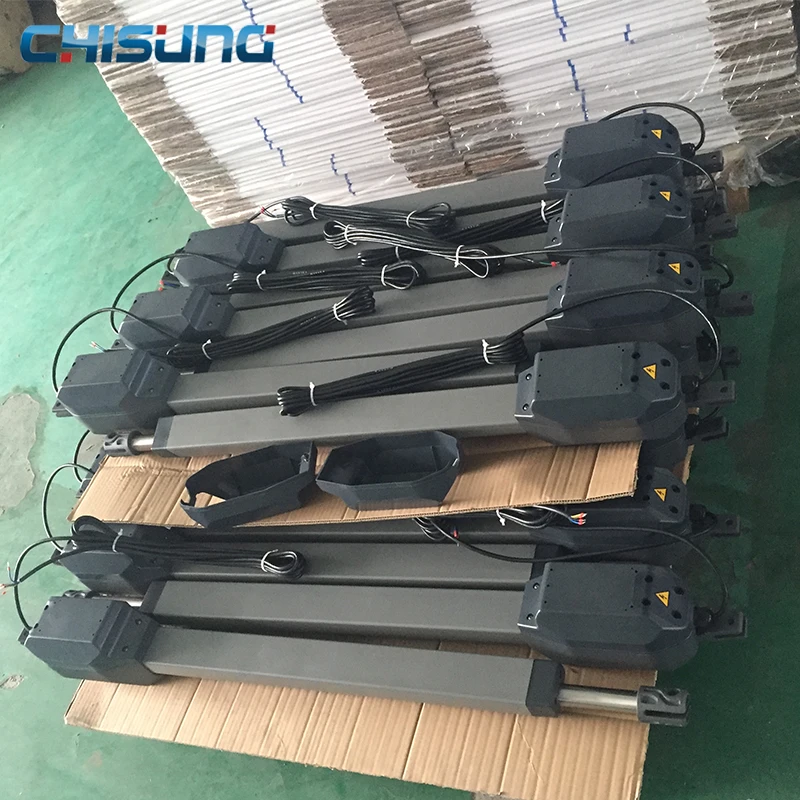

Packaging & Shipping
FAQ
Q1:What is material this product made of ?
A1: It is die-cast aluminum housing,gear is copper,stainless telescopic rod,the
motor wires is copper .
Q2:Can it be used outside ?
A2: Yes,our dual swing gate opener could be used inside and outside of gate.
Q3:What is the frequncy of your remote control ?
A3: It is 433Hz.
Q4:What is the longest time for opening and closing the gates ?
A4: It is about 12s.It could be set up depending on your demand.
Q5:What's you warranty?
A5: 1 year time warranty.
Q6:. Are you manufacturer or Trade Company?
A6:We are professional and leading gate opener manufacturer, Our gate motors technology originates from 1991.We have more than 30 models different gate motors .
