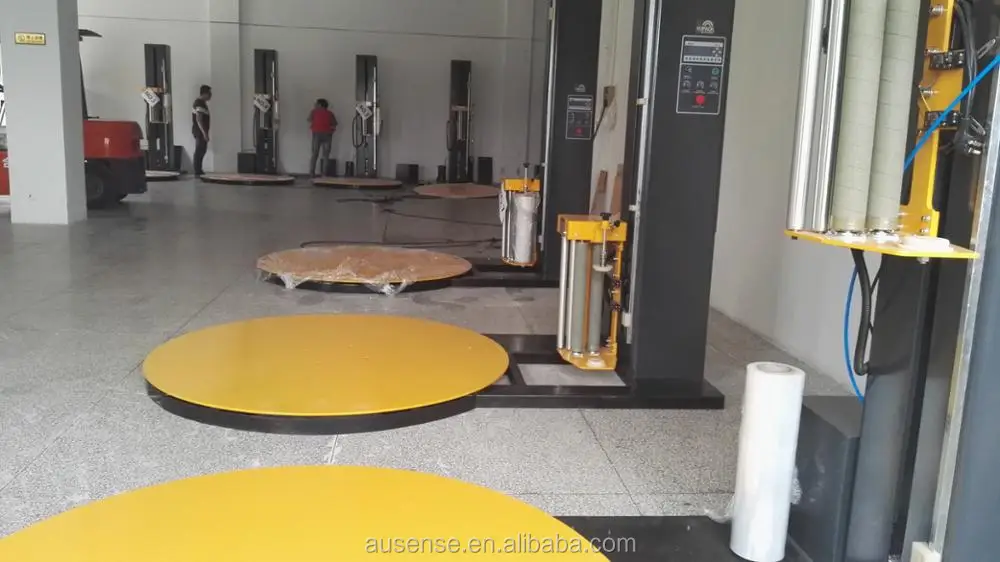

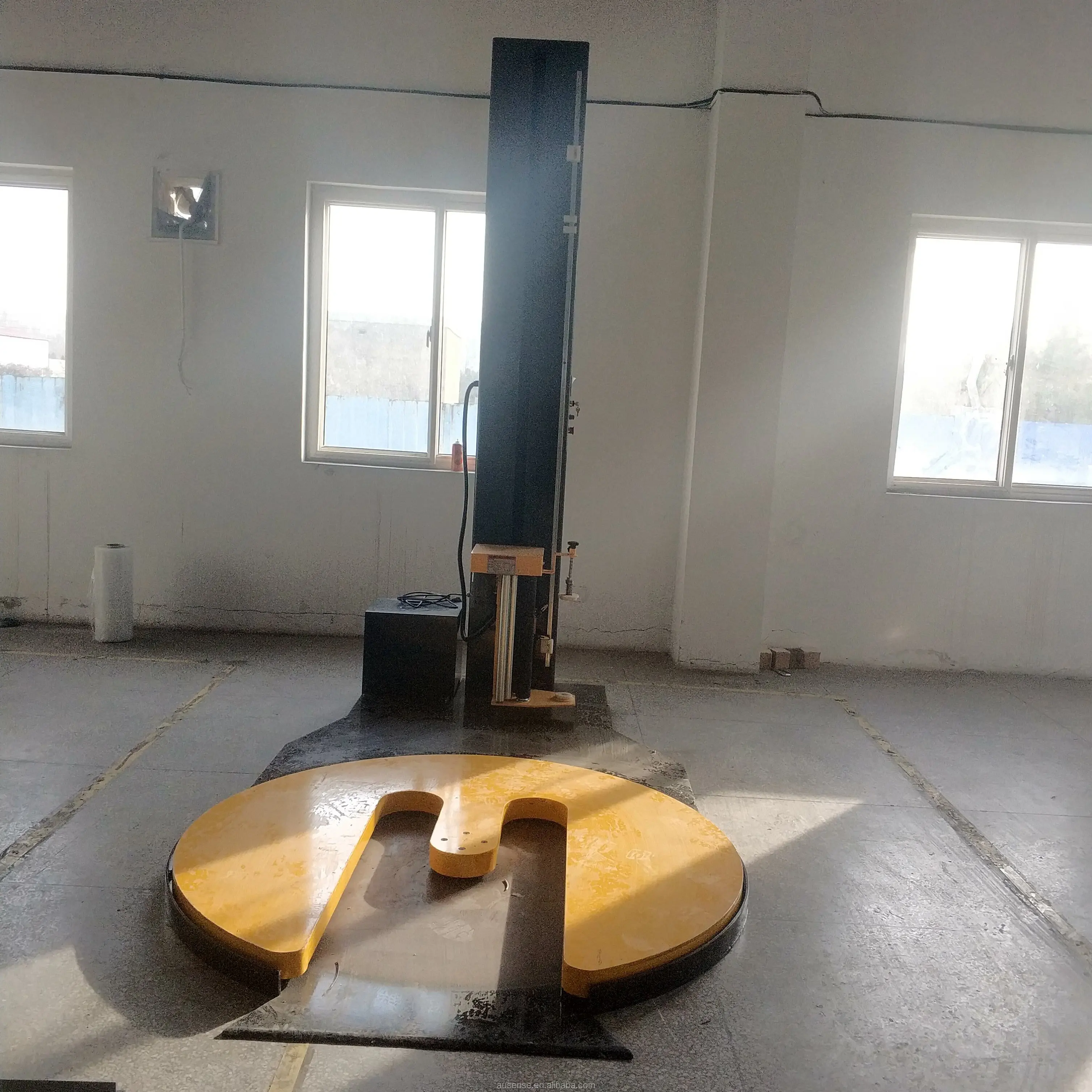

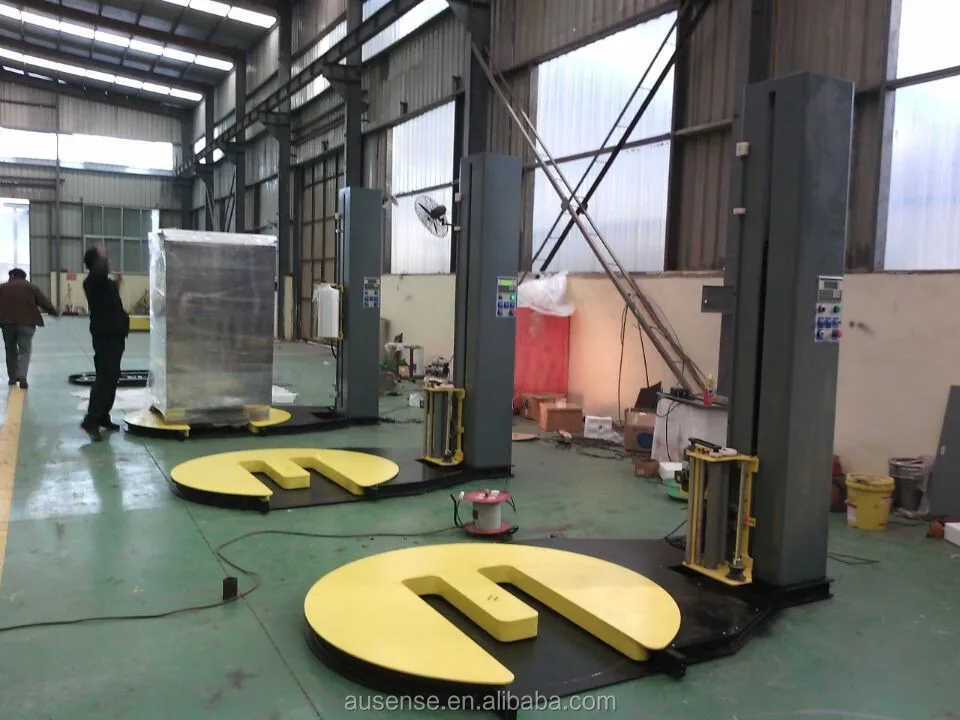

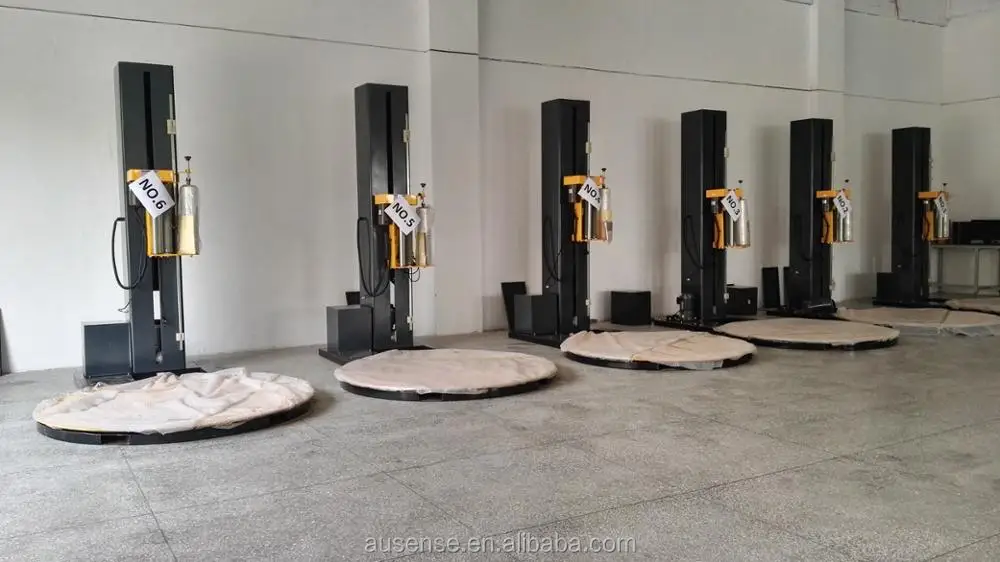

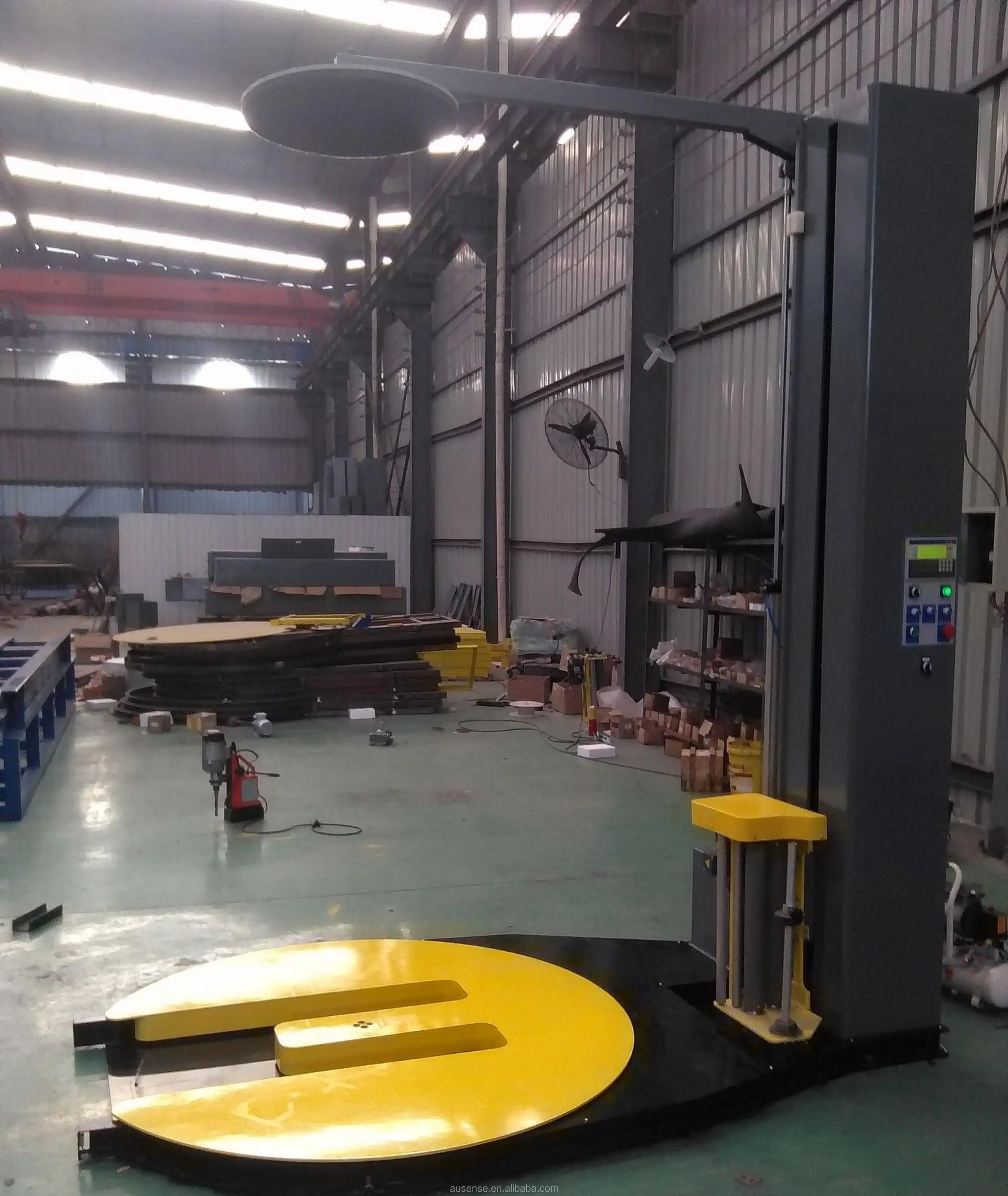

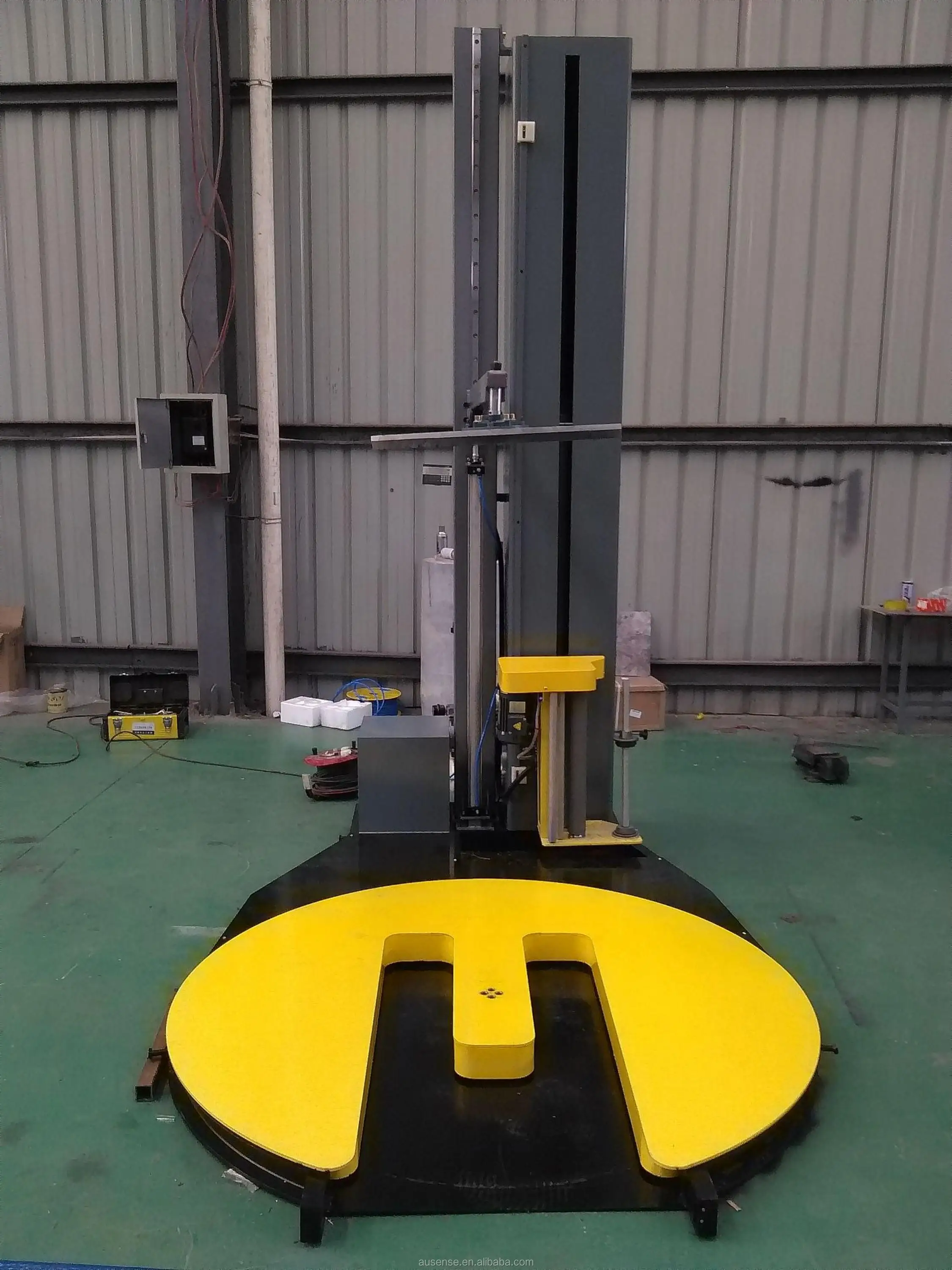

E type pallet stretch wrapping machine

E type pallet stretch wrapping machine for palletis used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storage to protect them from tip, spill from being damaged. Additionally, wrapping loads can easily be separated and identified. Stretch pallet wrapping machine is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.

1.PLC programmable control the machine running, layer number of twisting and number 0-9 layer is adjustable.

2.The top and bottom layer number of twisting can be set separately.

3.Single strengthen control button, can be at any position of local reinforcement.

4.International panel icon, operation more convenient and simple.

5.Photoelectric switch from dynamic measuring the height of the goods, the top 0-9 seconds time can be set.

6.Automatic/manual switch, reset button and ensure the equipment not misoperation, affect the equipment performance;  Protect the security of the operating personnel.

7.Mechanical and photoelectric switch function, the free convenient manipulation of the equipment, to achieve the double  insurance, guarantee the equipment under the condition of small fault, the machine does not stop working.

8.Membrane body up and down automatically, realize the roll of film only need to put the goods and start, do not need to  plug membrane, time, efficiency is higher. Can be equipped with remote control, convenient operation.

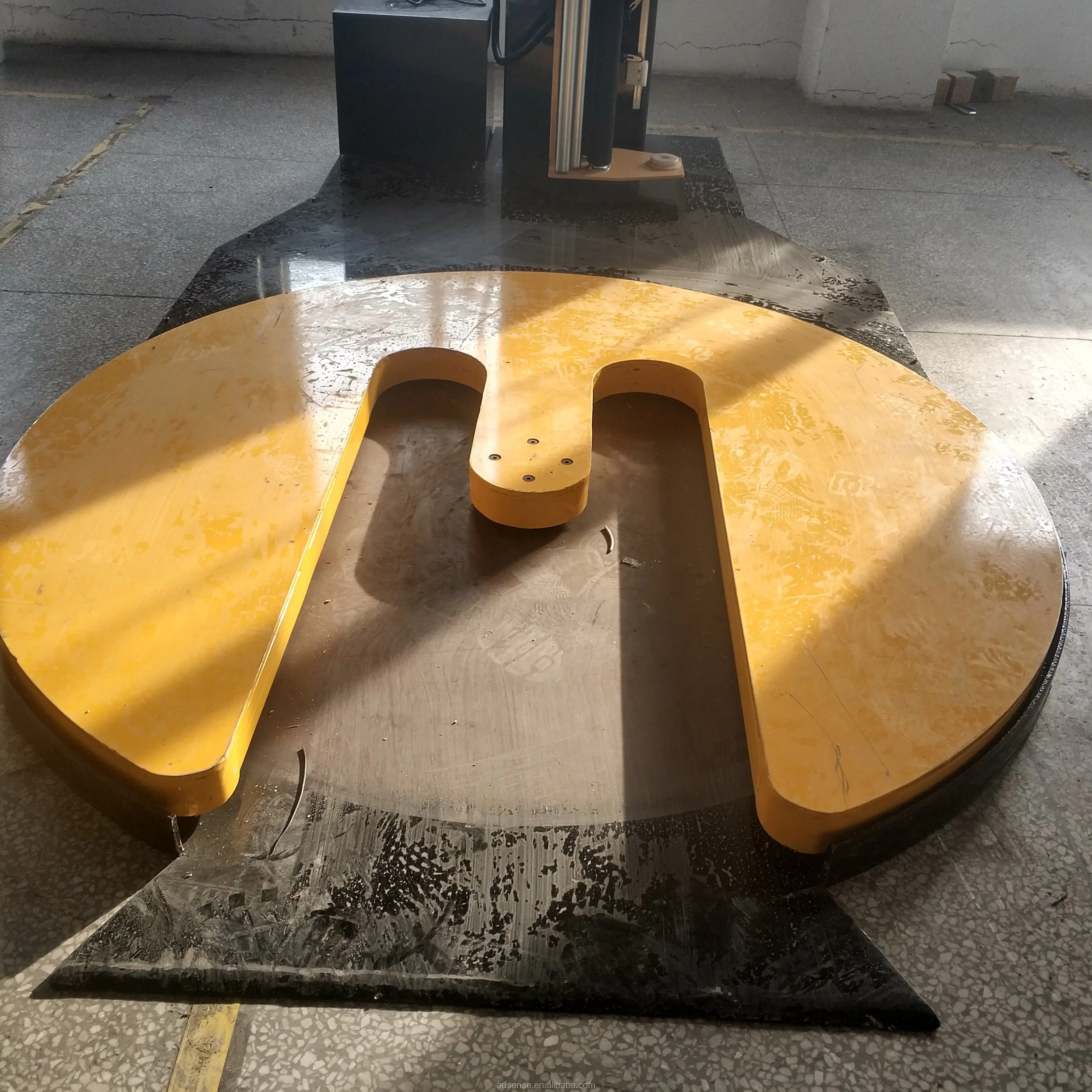

Table drive

1.Wear brand new nylon roller support, low noise operation.

2.Rotary frequency control of motor speed, slow stop automatic reset.

3.Operation panel single origin reset button.

Membrane system

1.Free swing arm, responsive, automatic power pretensioning for membrane (draw ratio 250), the film easy pull; Save two-thirds of consumables.

2.Film guide roller made from seamless steel tube finishing, wear-resisting durable; frequency conversion of pretension rubber roller adopts automatic self-aligning bearing, no noise, stable and reliable running.

3.Adopt double chain structure, membrane frame rate of rise and fall, respectively is adjustable, film feeding speed is adjustable.

Optional parts

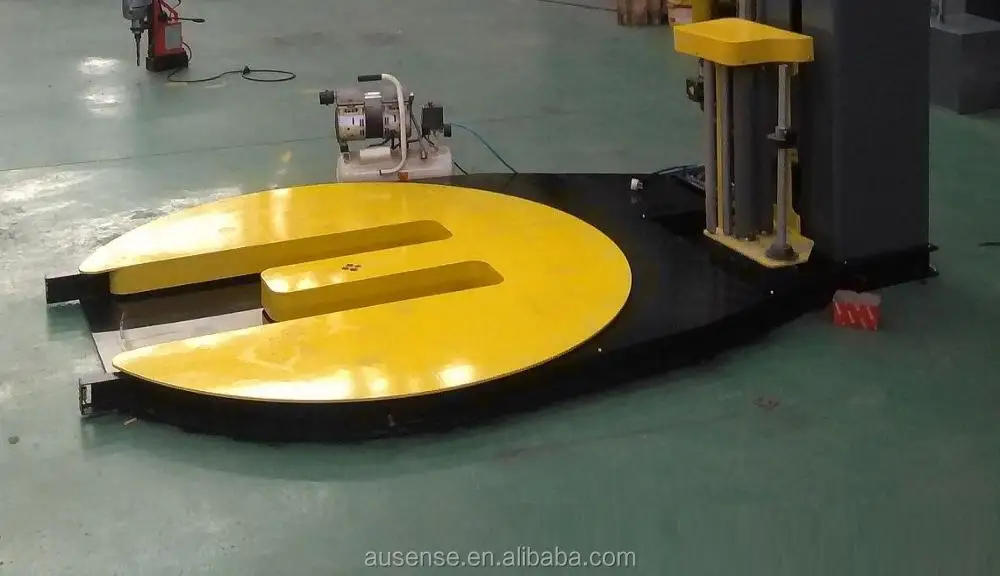

♦Ramp

♦Electromagnetic clutch

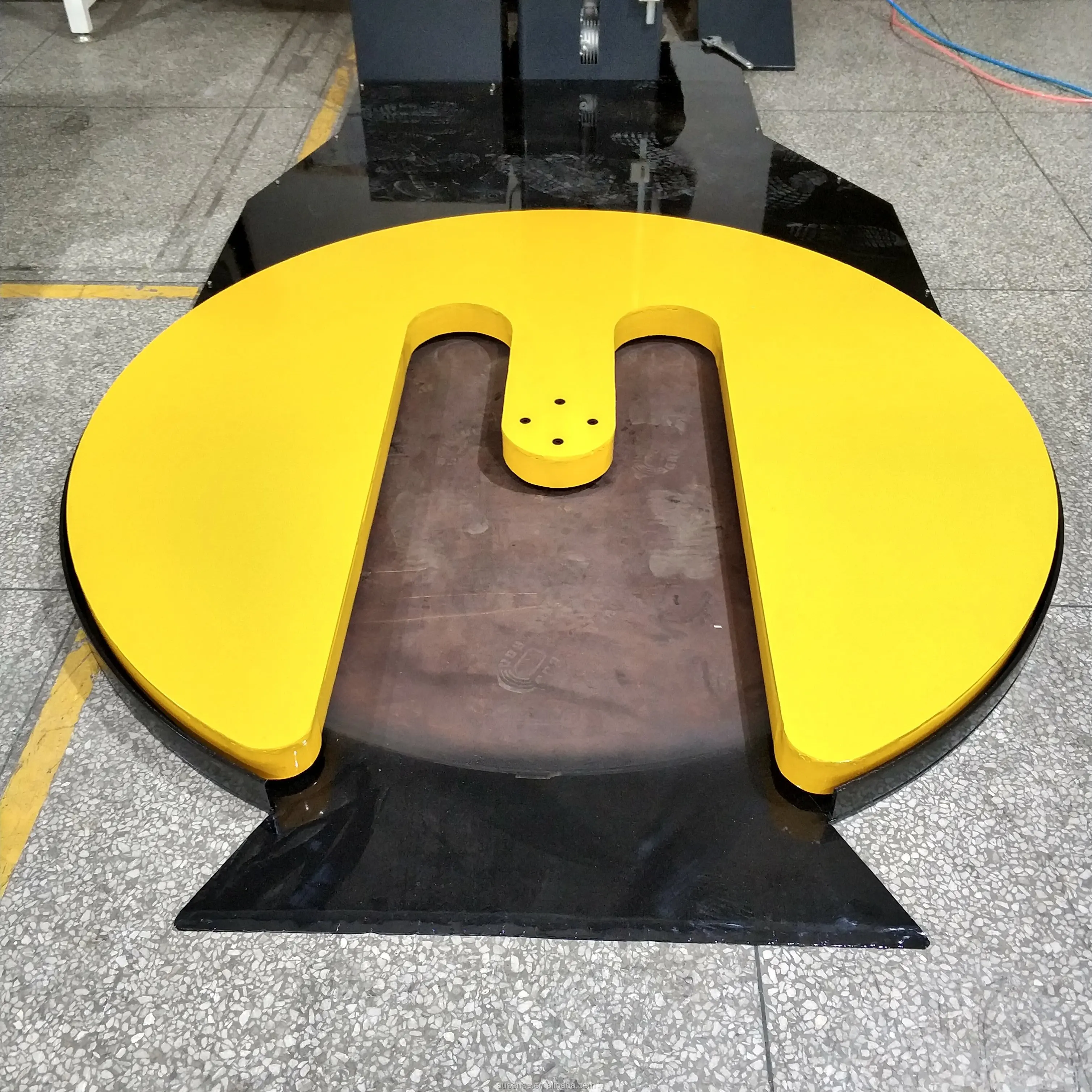

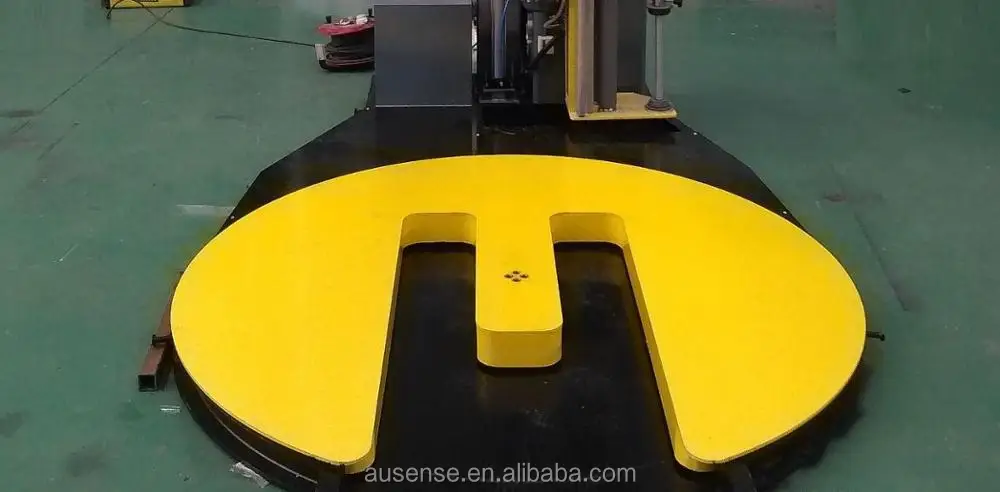

♦Turntable diameter1500mm/1800mm/2000mm

♦Turntable capacity2500kg/3000kg

Model	T1650FM
Min.Packing Size	L500mm*W500mm
Max.Packing Size	L1200mm*W1200mm
Max.load height	2000mm(option2800mm/3000mm)
Max.loading weight	2000kg(option2500kg/3000kg)
Film Carriage
Carriage	Power pre-stretch film carriage,stretch ratio up to 300%
Machine Specification
Grab film unit	Pneumatic
Cut&wipe film tail unit	Pneumatic
Turntable rotation speed	12-15rpm/min(adjustable)
Turntable diameter	1650mm
Turntable height	80mm
Carriage up&down speed	adjustable
Voltage	220V/380V 1Ph/3Ph
Power	1.5KW 50HZ/60HZ
Efficiency	20-40loads/hour
Forklifting	Front&Rear
Machine dimension	L2745mm*W1650mm*H2860mm(Standard)
Machine	700kg
Stretch film
Max.external diameter	230mm
Internal diameter	76mm
Width	500mm
Thickness	17-35um
Option
♦Ramp
♦Top platen
♦Cut film unit
♦Packing height 2800mm
♦Turntable diameter 1500mm,1800mm,2000mm
♦Turntable capacity 2500kg,3000kg
