Introduction

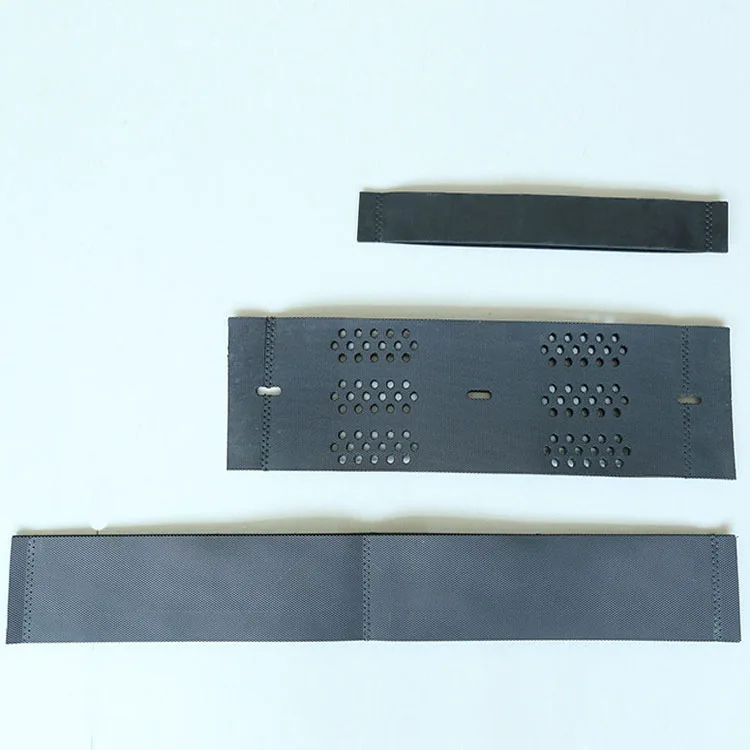

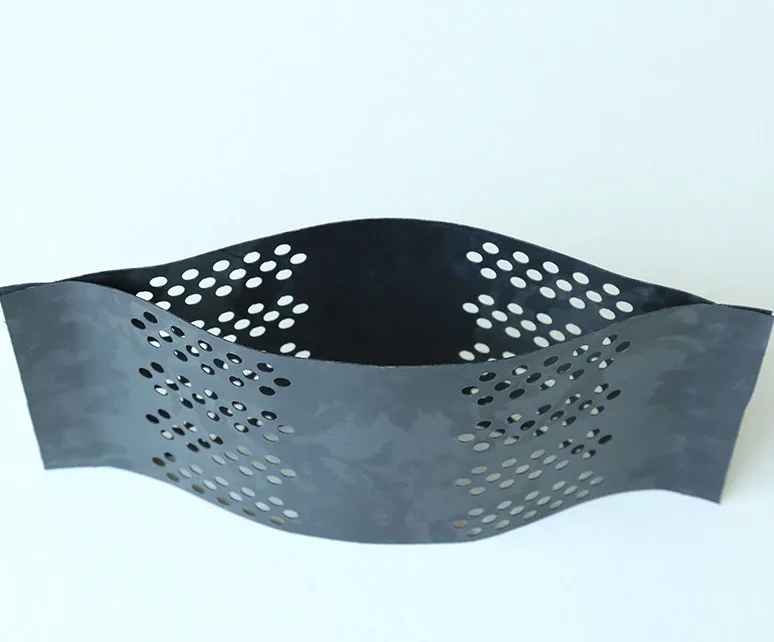

Erosion Control Honeycomb Gravel Geocell Price
h density polyethylene and jointly welded by ultrasonic technique.It is flexible to fold during the transport and installation on construction site.The geocell nets will be filled with soils,granular,cements or other on-site infill materials when stretched into web structures,which has powerful and rigid confinement in the lateral and vertical sides.




1.Basic details:
1.Cell depth: 50mm,100mm,150mm,200mm,250mm
2. Welding space: 330mm~1600mm
3. Thickness:
(1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell

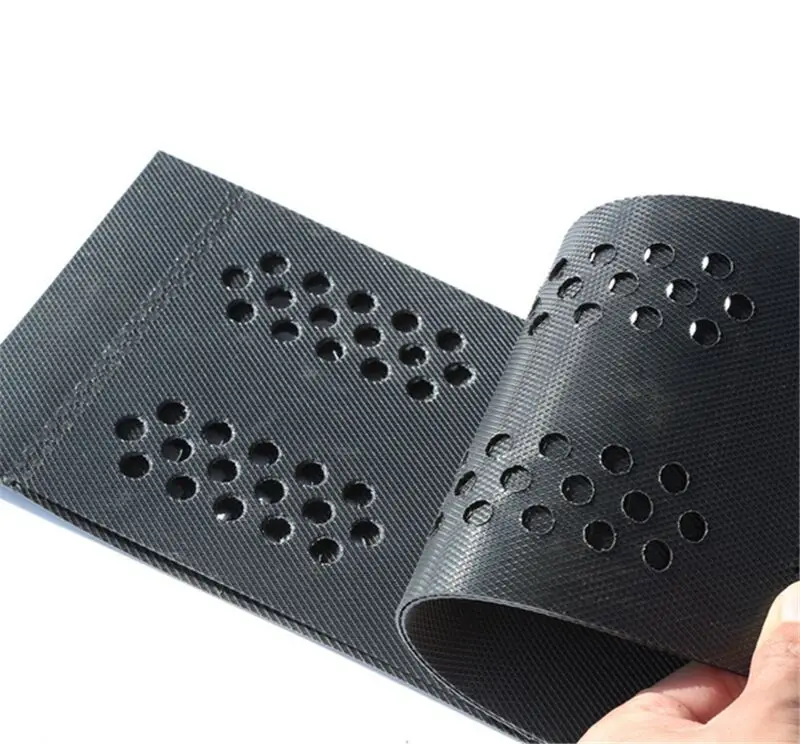

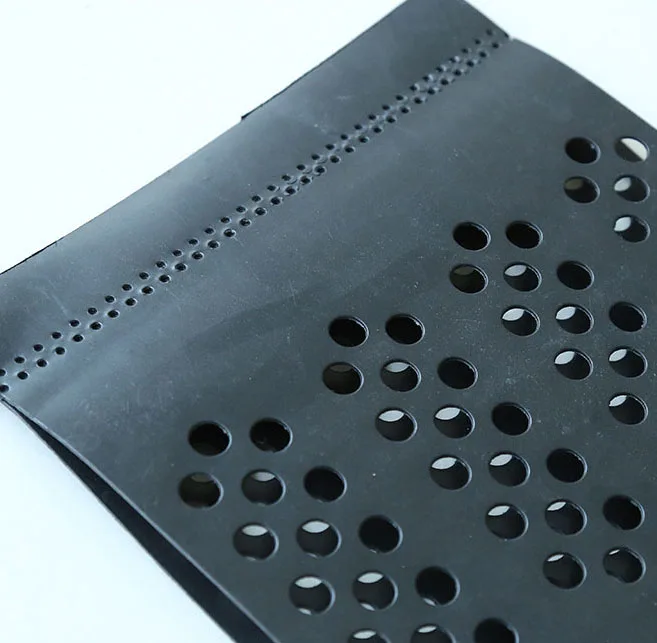

4.Appearance:smooth or textured




2.Features:
1.Ligh material, resistant to ware,stable in chemical properties,anti-aging,resistant to acids and alkalis,applicable to different soil and desert and other geological conditions.
2.High limit on lateral direction,anti-skidding,anti-deformation, effectively enhance the supporting ability and scattered load function of road.
3.High carrying capacity and good dynamic performance and high erosion ability.
4.The geometry volume,convenient joint,speed construction.
5.Retractable amd small loading volume,convenient joint,speed construction.
6.Local material can be used during construction,reduce the construction cost,easy to be transported after folding together.Gravel grid geocell erosion control for road construction




3.Technical Parameters:


Material Properties
Unit
Test Method
Cell Depth
mm
75
100
150
200

Welding Distance
mm
330, 400, 440, 500, 600, 660, 800, 1000

Polymer Density
g/cm3
0.935-0.965
ASTM D 1505
Environmental Stress Crack Resistance
Hours
>400
ASTM D 5397
Environmental Stress Crack Resistance
Hours
6000
ASTM D 1693
Carbon Black Content
%
1.5% - 2.0%
ASTM D 1603
Nominal Sheet Thickness Before Texturing
mm
1.27 -5%,+10%
ASTM D 5199
Nominal Sheet Thickness After Texturing
mm
1.52-5%,+10%
ASTM D 5199
Strip Puncture Resistance
N
450
ASTM D 4833
Seam Peel Strength
N
1065
1420
2130
2840
EN ISO13426-1B
Seam Efficiency
%
100
GRI-GS13
Nominal Expanded Cell Size (width x length)
mm
320x287,475x508 etc

Nominal Expanded Panel Size (width x length)
m
2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


application


Road construction
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course.

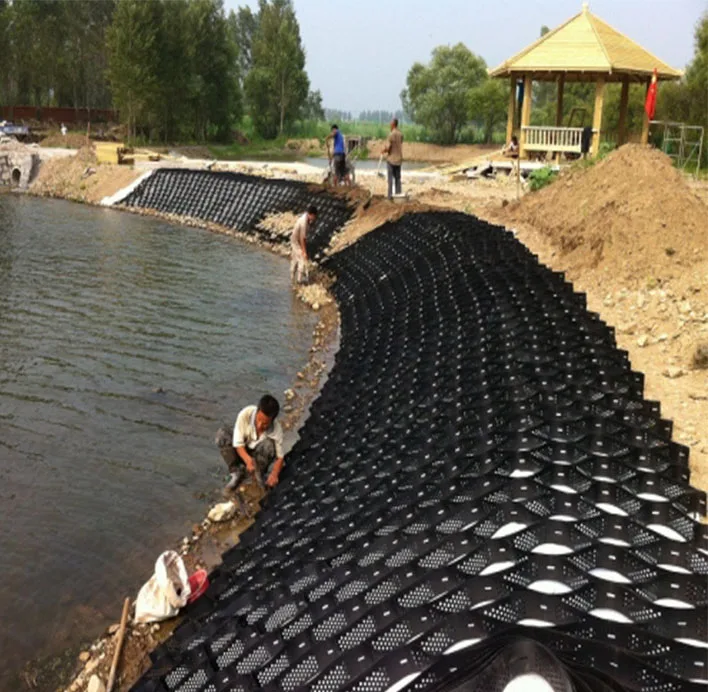

Slope protection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing.


Ground Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced
walls) for steep faces, walls and irregular topography

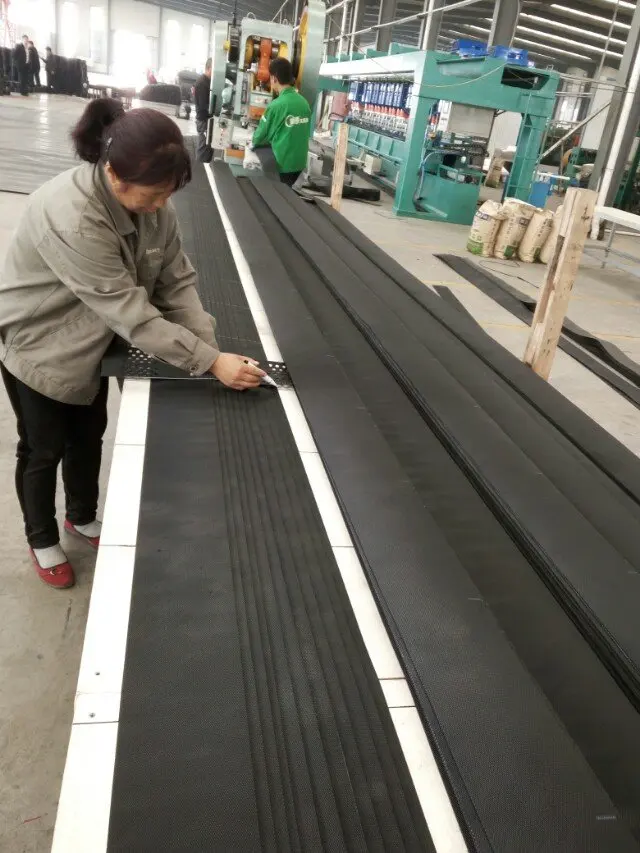

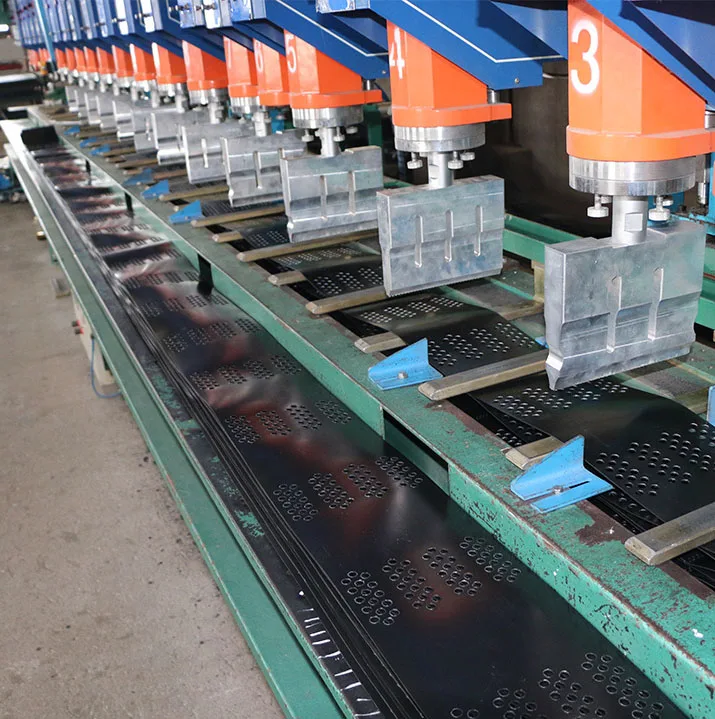

Production and packing

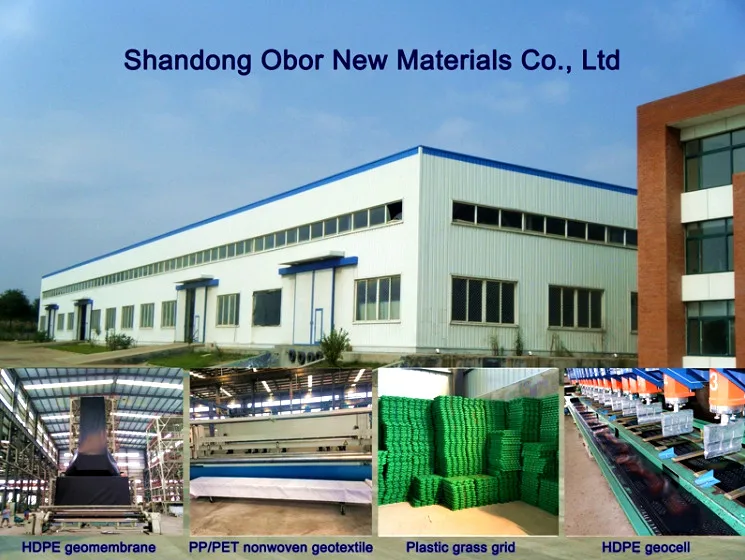

Company Profile




OBOR is a professional geosynthetic products manufacturing company with registered capital more than $ 3 million, covers an area of 100,000 square meters. The main products are HDPE / LDPE Geomembrane,Plastic Grass Grids, Woven/nonwoven Geotextile, Drainage Board,Composite Membrane and Textile,Plastic netting, 3D Planting Geomat, and other geosynthetic products.
OBOR Company has altogether 26 production liners including HDPE/LDPE Geomembrane liners, Plastic Grass Grids liners, Nonwoven Geotextile liners, Woven Geotextile liners, Drainage Board liners, PlasticNetting liners from Germany, and variety testing machines.
We are specialized in providing professional geosynthetics solutions for Road, Highway, Railway, Airport, Tunnel, Mine Supporting and Protecting, Hydro, Reinforced Steep Slopes, Reinforced Retaining Wall, Reinforced Embankments, Landfill, Containment, water conservancy facilities, soft foundation treatment and other related projects.
Our target is to supply professional products with the most reasonable prices to our customers around all the world, expect to build long term relationship with you.







1.Service:
A.OEM/ODM orders are warmly welcome.
B.All of our products have proceeded testing before shipment and we guaranteed the good quality.
2.Quality control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality carried out at OBOR,but regular testing and analyzing of out product performance is implemented by authoritative testing organizations in Europe and the United State.Erosion Control Honeycomb Gravel Geocell Price


Customer visit




Our target is to supply professional products with the most reasonable prices to our customers around all the world, expect to build long term relationship with you.
