Product Information
Electric Foil Heating Mat Easily Cut and Turn
The Aluminium Foil Heating Mat is an ultra thin electric radiant floor heating system designed for use under laminate, cork, engineered wood and other floating floors.
It can be conveniently installed under the floor finish in both dry and wet areas without the need for additional earth grids.

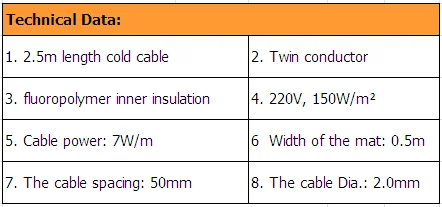

Features:
-- Single point connection
-- Emits zero EMF (electromagnetic fields)
-- Twin conductor cable
-- Flexible installation
-- Durable construction
-- 15-year limited warranty against manufacturing defects
-- The ANT-AFMAT floor warming system includes a fluoropolymer insulated heating cable woven into a specially for laminate floor and under-carpet heating
-- Reinforced aluminum foil that allows for simple roll-out installation without worrying about heating cable spacing.

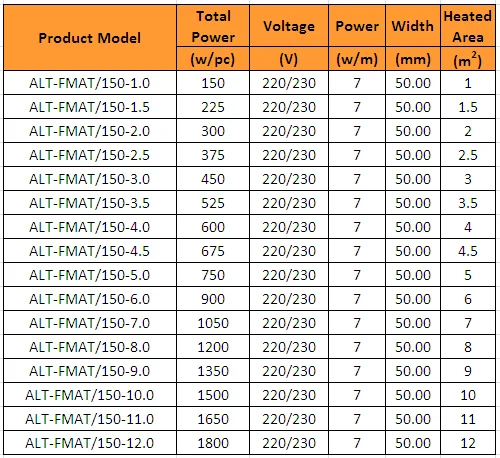

Product Models
Installation map
TemperatureControler
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
THERMOSTAT / TEMPERATURE CONTROLLER FOR ELECTRIC UNDERFLOOR HEATING SYSTEM
NEWLY-RELEASED WIFI Thermostats
ALTR7 - with slider |
ALTR9 - touch key |
Basic Description
|

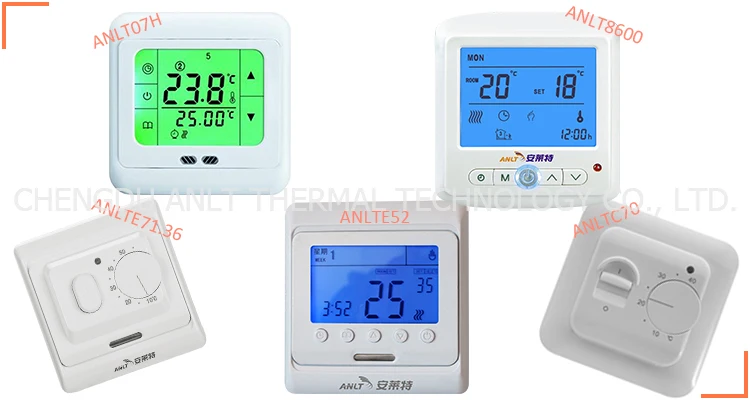

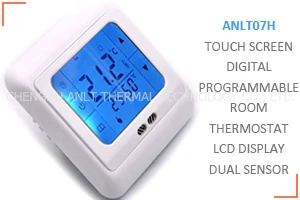

ANLT07H - Touch Screen Programmable Room Thermostat
|
Power Supply: 85-250VAC Display resolution: 0.1℃ Setting Unit: 0.5℃/step Internal sensor measurement range: 0 - 40℃. Setting range: 5 - 35℃ (default: 25℃) Inside sensor: NTC B=3380 10k @25degrees Celsius Max. switch power: 3A/16A/30A External sensor measurement range: 0 - 99℃. Setting range: 5 - 95℃ (default: 50℃) Extra sensor: NTC B=3380 10k @25 degrees Celsius, length=3 meters Display type: LCD Display area: 60 x 45 mm |
|
|
ANLTE52 - Programmable Digital Room Thermostat with LCD Display Voltage: 220±10%VAC, 50/60Hz External limitation: 20℃~90℃ (factory setting 65℃) Sensor type: NTC Color: white ivory Mounting: mounts directly onto wall or wall-box Relative humidity: <85% (23℃) Size of display: 58 mm X 35mm (H/W) |
|
|

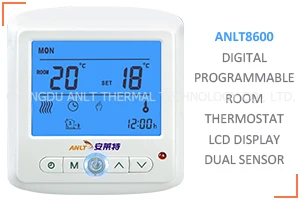

ANLT8600 - Programmable Digital Floor Heating Room Thermostat Power Supply: 100-240VAC 50/60Hz |
|
|

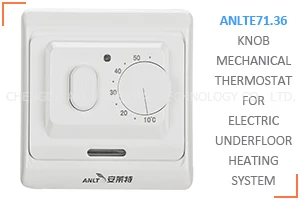

ANLT71.36 - Knob / Manual Mechanical Thermostat Voltage: 220AVC+/-15% 50/60Hz |
|
|

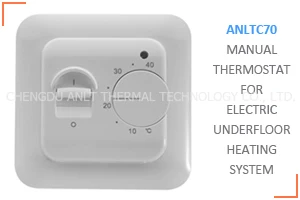

ANLTC70 - Manual Temperature Controller for Electric Underfloor Heating System Power supply: 230 V 50 Hz Power consumption: 5 W Differential per. temp. : 0.5°C Degree of protection: IP20 |
Contact Us
More products for your choices
 |
 |
 |
| Electric Floor Heating Mat | Electric Floor Heating Cable | Digital Thermostat |
For more information, please contact with us freely. The most suitable solutions will be offered to you asap. Thank you.
