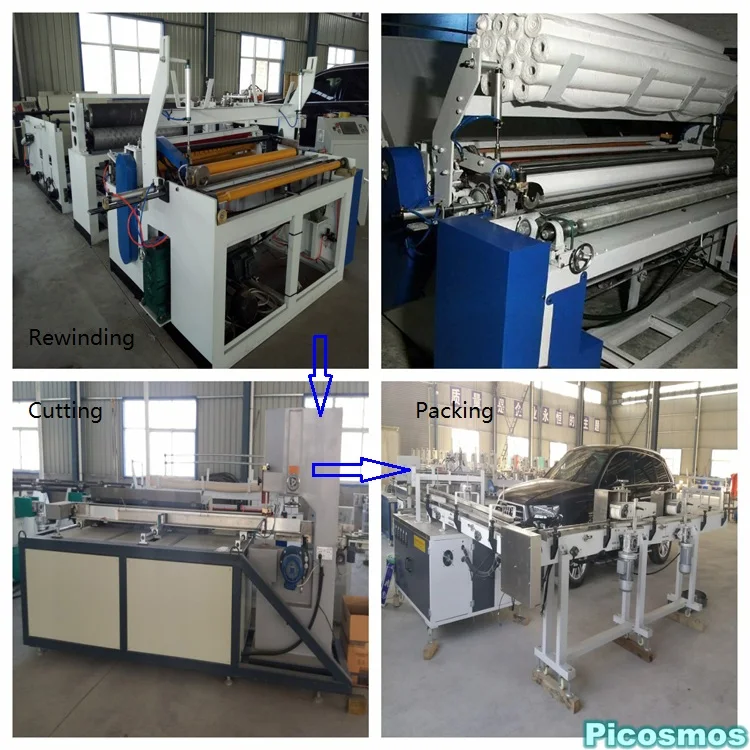

Toilet roll making

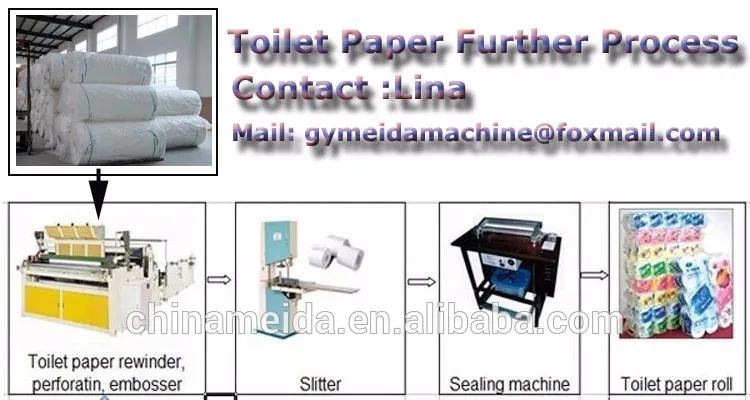

1.Big roll single layer paper→ Small toilet paper roll (Multi-layer)
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine

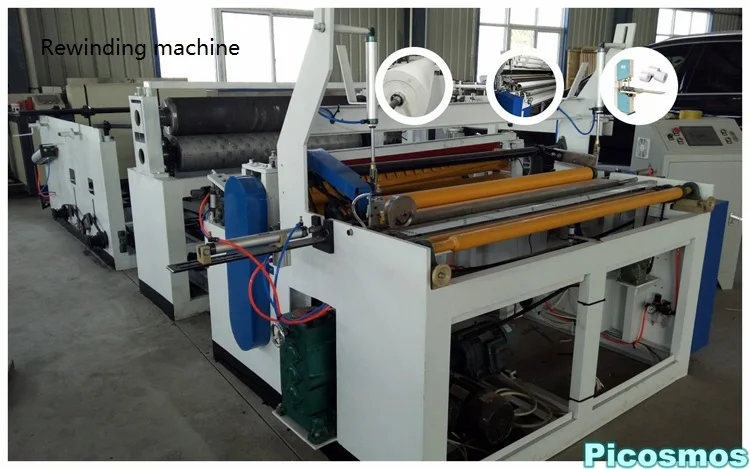

2.Tissue toilet paper rewinding machine
Adopts new international PLC programming technology,variable frequency speed regulation, electronic brake.Touch type man-machine interface surface operating system,the core of the roll forming system,Application PLC program wind column forming technology to achieve faster rewinding,more beautiful appearance.
Product features:rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine
1.PLC used in automatic rewinding,automatically send finished product,immediately reset rewinding,automatic trimming,spraying,sealing one complete synchronization.
2.PLC applied to the finished product in the rewinding process after first tight,solve paper core loose phenomenon in long time storage.
3.Automatic stop off paper to ensure normal operation of the machine at high speed. reduce the resulting loss beacuse of broken paper.
Parameter of tissue toilet paper rewinding machine
Model
1092
1575
1760
1880
Paper width
1092mm
1575mm
1760mm
1880mm
Base paper roll diameter
1200mm (Please specify)
Jumbo roll core diameter
76mm (Please specify)
Product diameter
40-200mm
Paper backing
1-4 layer,general chain feed or continuously varible transmission feed paper
Punch
2-4 knife,spiral cutter line
Hole pitch
positioning of belt and chain wheel
Control syetem
PLC control,variable frequency speed control,touch screen operation
Product range
core paper ,non core rool paper
Drop tube
manual and automatic (optional)
Non core roll paper
automatic core pulling
Working speed
150-280 m/min
Spray cut rewind
Automatic
Finished product launch
Automatic
Point moving mode
Before and after ,the point moving
Power
380V 50HZ
Required air pressure
0.5Mps
Embossing
Single embossing,double embossing(steel roller to wool roller,steel roller. optional
Blank holder
Airbag control,cylinder control,steel to steel structure
Outline dimension
6200-7500mm * 2600-3200mm * 1750mm
Machine weight
2900-3800 kg
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine
3.Automatic toilet rewinding cutting packing machine line
Automatic toilet paper roll cutter
1.Computer touch screen, simple operation and high security 2.Used for cutting roll paper and facial tissue, adjustable cutting length 3. Can set the number and length of cutting, automatic paper feeding, automatic adjustment, no waste of raw materials
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine
Parameter of Automatic paper roll cutter
Name
Automatic paper roll cutter
Material length
0-300mm (can be customized)
Raw material diameter
65-130mm
Paper size
To be set
Product dimension error
±1mm
Control system
PLC,servo drive,touch screen operation
Cutting swing structure
Cam structure
Production speed
50-100 cut/min
Power
380V 50HZ
Required air pressue
0.5 Mpa (customer owned)
Machine weight
1100 kg
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine

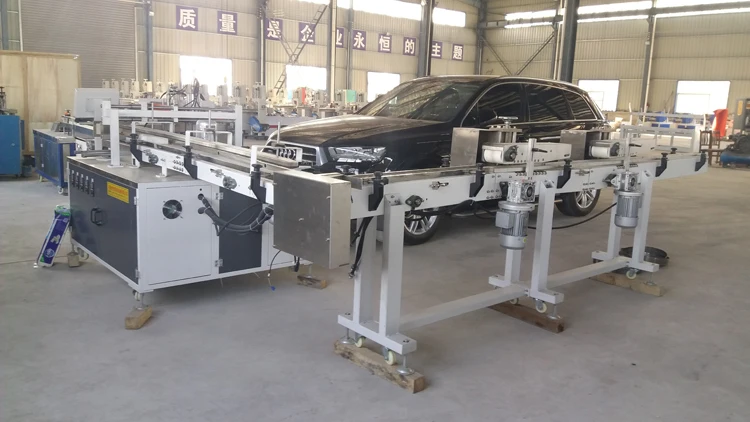

Automatic toilet paper roll packing machine
1.PLC control Squashing,bagging,sealing,belt conveyor
2.Capacity:10-20 bags per minute
Parameter rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine
Bagging method
Push palm type
Air pressure
0.6Mpa
Voltage
380V 50HZ
Packing speed
10-20mention/min
Diameter packing size
Single diameter 70-120mm
High packing size
Single height 100-120mm
Total power
2 kw
Outline dimension
5000*1000*1500 mm
Weight
1000 kg
4.Semi-automatic toilet rewinding cutting packing machine line

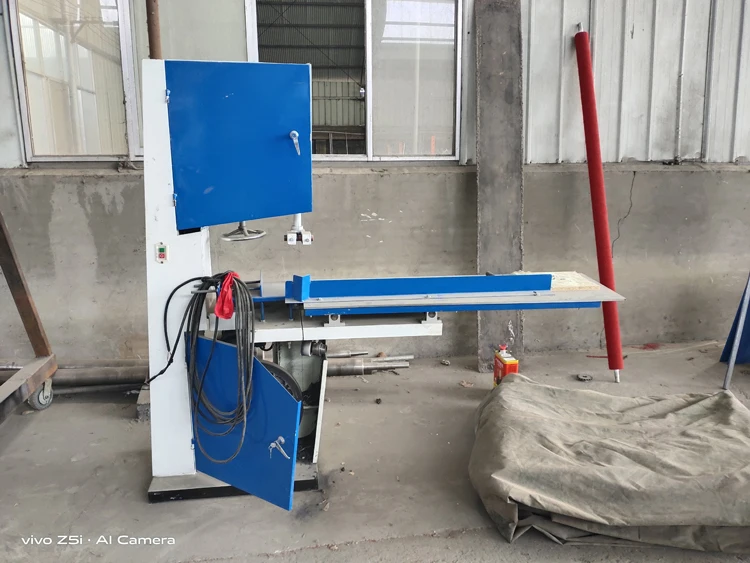

Semi-automatic cutting machine
Manual band saw paper cutting machine is used together with rewinding machine and facial tissue machine. It can adjust the cutting length and width of paper, automatically sharpen the knife, and automatically roll down. Linear bearing is used for track sliding technology to make the cut more smooth
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine
Name
Manual belt saw paper cutter
Finished paper roll
Adjustable length
Size of paper
<1300*3500mm
Power
1.5 kw
Outline dimension
1330*800*1800mm
Weight
500kg
rewinding and cutting equipment small toilet tissue paper making machine price toilet roll machine

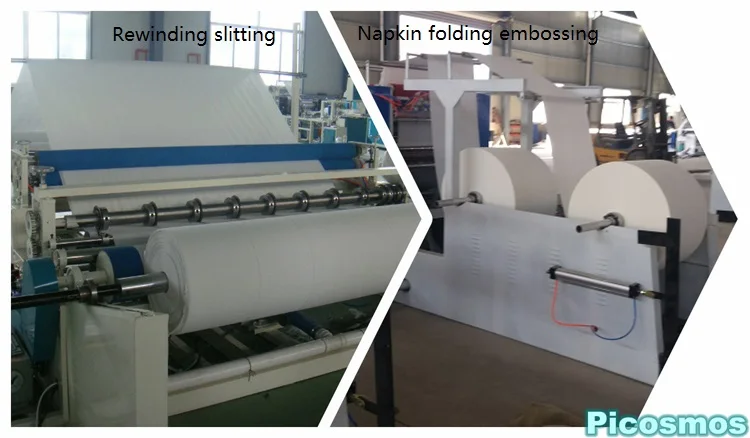

Napkin making line

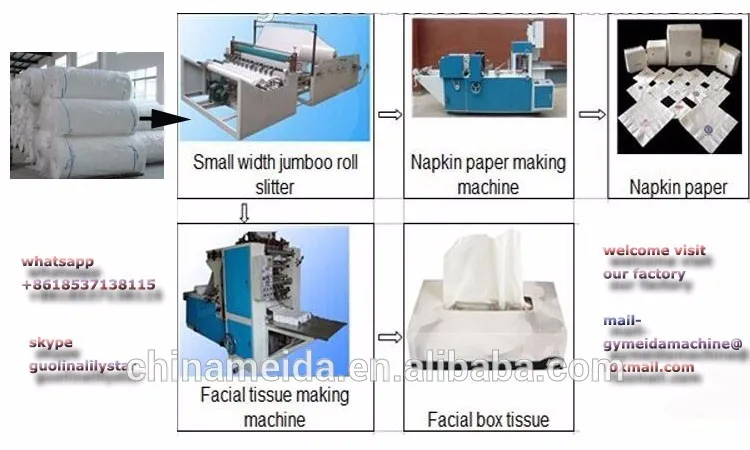

1. Big roll single layer paper→ Napkin paper and Facial tissue paper (Multi-layer)
Big roll paper → rewinding and cutting machine → Napkin folding embossing machine

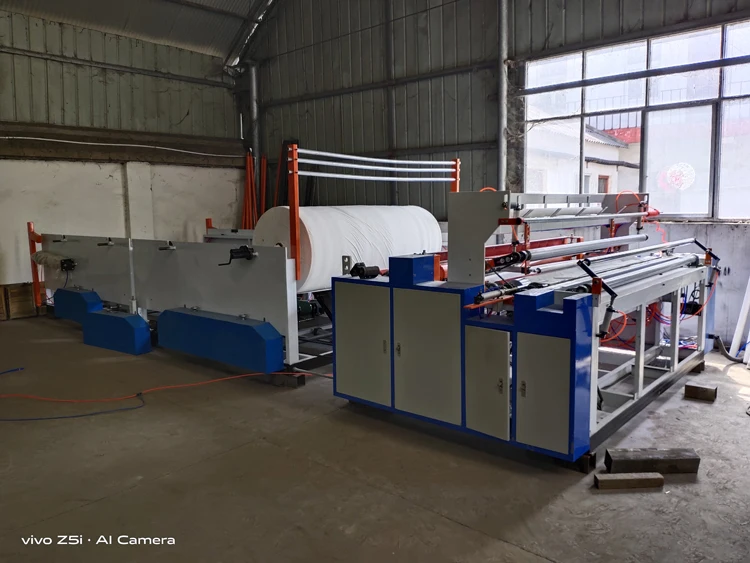

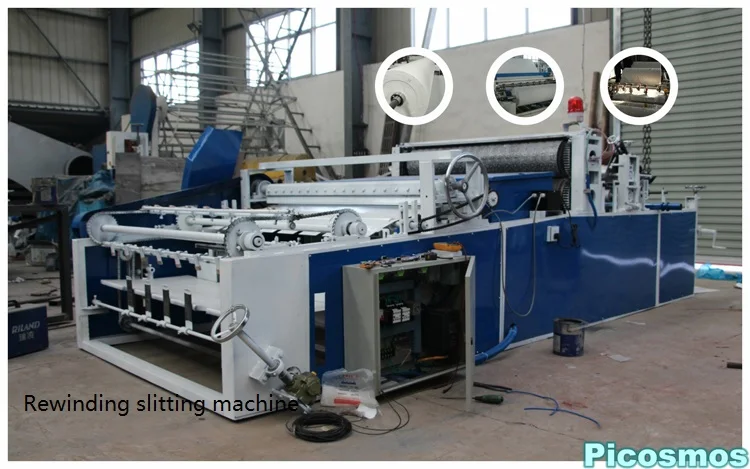

2.Toilet paper slitting and rewinding machine
1.Adopt the air shaft to wind up to make the paper tube accurate positioning
2.Edge system: Adopting steel-to-steel blank holder and independent cylinder adjustment to achieve no layering on each layer of paper
