16mm Double Universal Joint for Automatic Packing

Категории: Универсальные шарниры >>>
Поставщик: Hangzhou,Chuanglian,Hardware,&,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Product Name	16mm Double Universal Joint for Automatic Packing Machines
Materials Available	Stainless steel 304/316, carbon steel, mild steel, aluminum, brass, copper etc
Application	Food packing machines, RC Cars, aquaculture, sewage water treatment equipment, 3D printer, sweeper, forklift, excavator, transport tape, multi-head drilling machine, industrial equipment, wood-working equipment, printing machines, some transmission system etc.
Quality Control	100% inspection before delivery Inspection report can be provided if customer request Pictures and videos can be sent to customer for inspection
Equipment	CNC lathes, milling machine, drilling machine, welders, general lathes, stamping machine, laser cutting machine, bending machine, etc
Features	* High grade material standards * Standard operating angles up to 45° * Wide choice of hub configurations * Broad selection of stainless steel, steel and specialty metals * Help design the good to match customer's product * All the subcomponents are precisely assembled * Both sides incorporate the pinch bolt design * Be notched for pinch bolt clearance

Pin and Block structure

U-joints work at slower speeds but transmit greater torque

Assembly of pin and block

Pin and block consists of two small pins(one thorough hole and another thread hole), one bigger pin with a thorough hole and milled flat in the middle, one screw connecting the two small pins. Before assembly, thread-locking adhesive will be used.

Special design to avoid any twisting plays.

When assembly, we will weld outside the yoke for reinforcement.

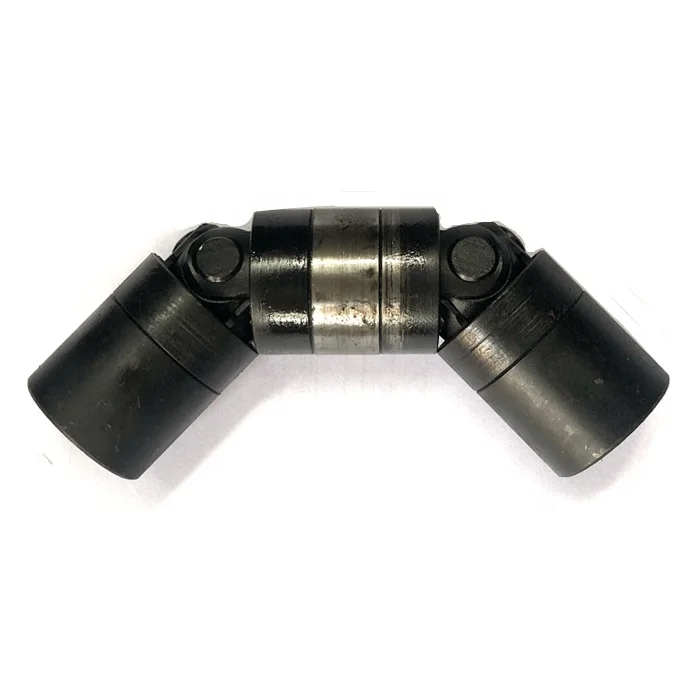

90 deg Double universal joint

We specially designed a double u joint. Each end can rotate at 45 degree to achieve 90 degree.

Product packaging

Packing Details: Plastic bag, carton, plywood case, pallets or as per customer's demands.

Delivery Time: 20-35 days
