Дешевая цена электрическая автоматическая сверлильная и нарезная
- Категории: Drilling Machines >>>
- Поставщик: Rsm,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
M6-M30 Electric Tapping Machine | ||
Customized | Yes | |
Power Type | The ac power | |
Rated Power | 1200 W | |
Supply Voltage | 220v | |
The spindle Rated Speed | 200 r/min | |
Bearing Scope of Thread | M6-M30 | |
Weight | 45kg | |
Tapping Capacity | Steel: M6-M30 Aluminum: M6-M33 Stainless Steel: M6-M30 | |
Rotation Speed | 200r/min 550r/min(Stepless Speed Rerulation ) | |
Working Area | Horizontal:1200mm Vertical:400mm adjustable | |
Standard Total 9pcs collect size | M6-8, M10, M12, M14, M16, M18-20,M22, M24, M27-30 | |
Standard Accessories | Tapping Arm(one set), Servo Motor And Reducer(one set),Tap Holder M3-M36（one set) | |

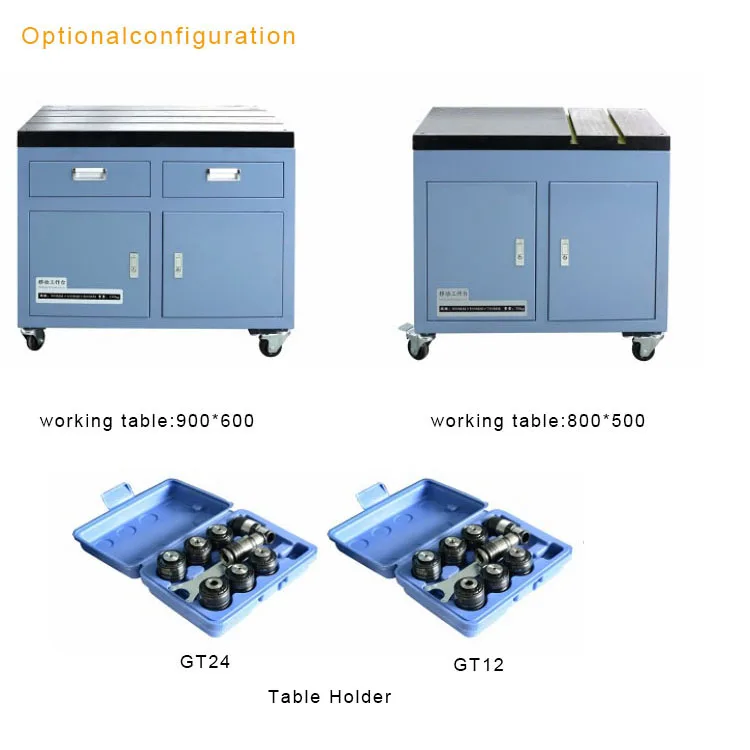

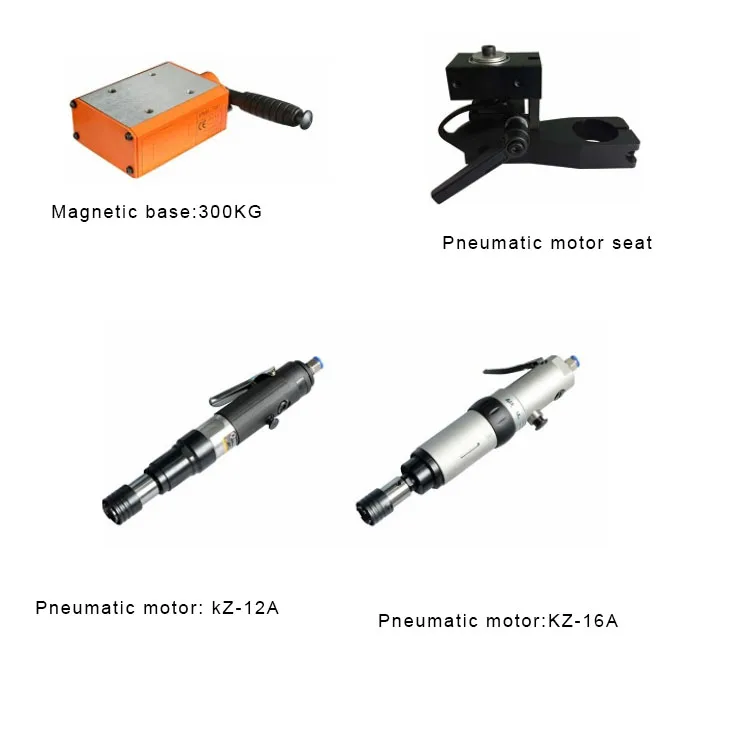

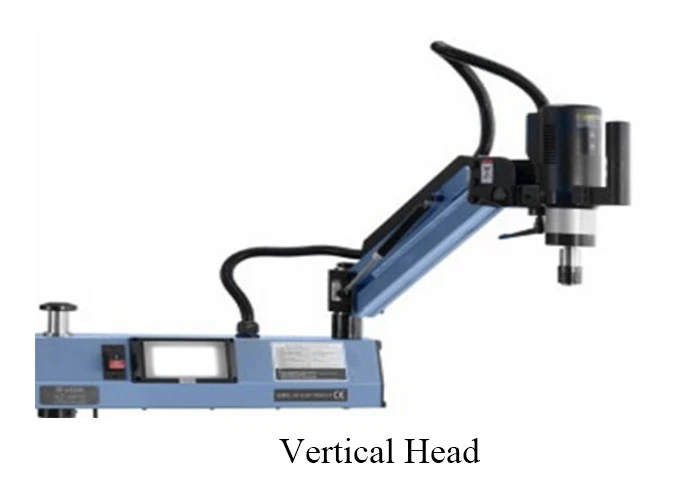

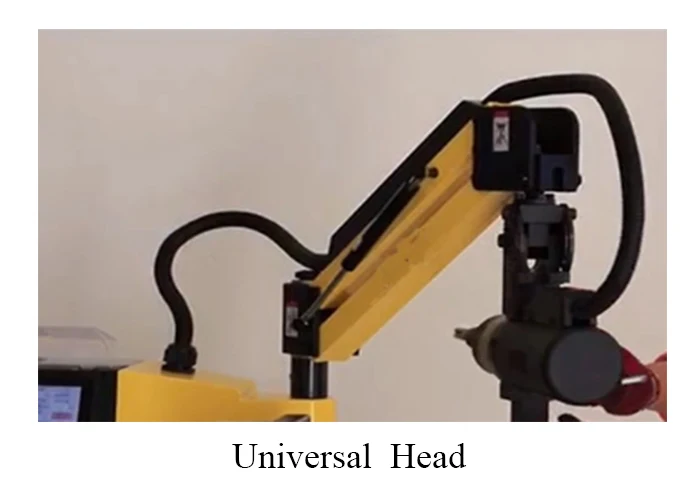

Option Accessories | Universal Joint(Tapping For a Vertica/Horizontal),Magnetic Base300KG(tapping an anbritrary range), Moving Workbench(mobile tapping machine) | |
Model Classification
Detailed Images

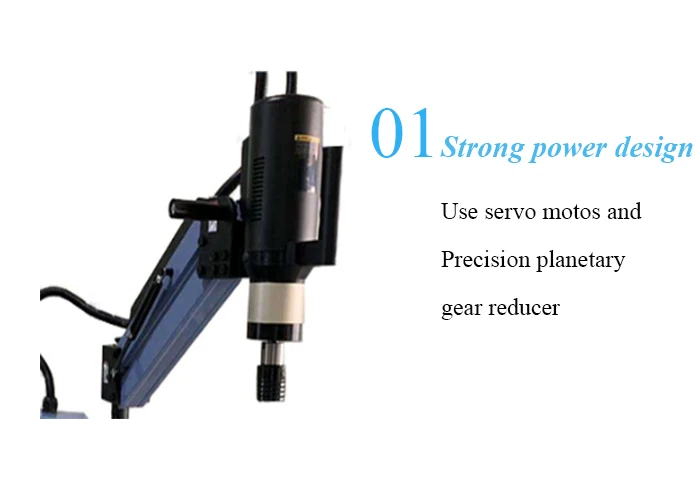

Strong torque output, no need of experience and strength to be proficient in operation

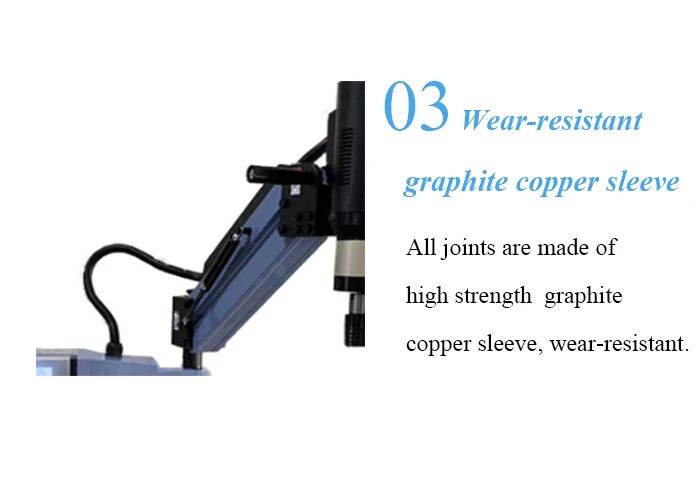

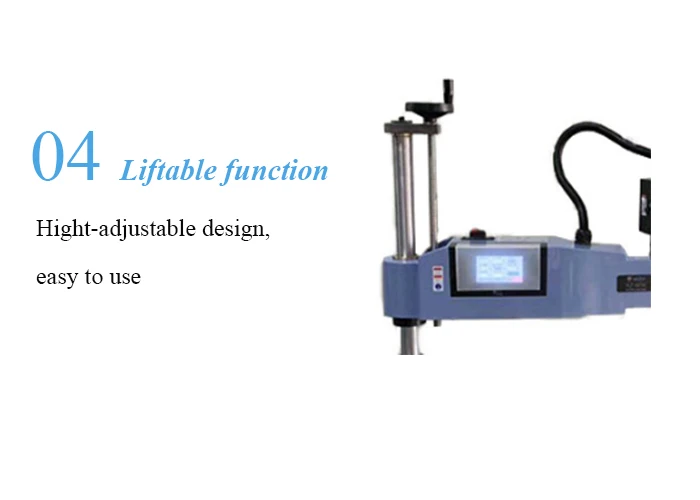

Aluminum alloy Swing arm bracket

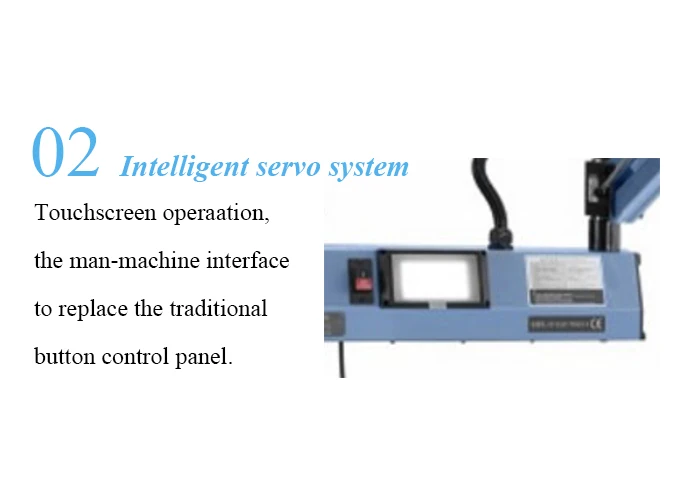

LCD Touch screen control Unit
Quickly change tapping chuck
LCD Touch screen control Unit
Quickly change tapping chuck
Standard Accessories:
Tapping Arm(one set), Servo Motor And Reducer(one set),Tap Holder M6-M30（one set)
Applications
Packing
Related Products
Company Introduction
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder, etc.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped to deliver timely and reliable solutions for customers wherever and whenever required.
