Product Description
DOHRE CNC Ceramic Carbide Tools Coated Carbide Inserts CNMG120404 For CNC Milling Lathe CNMG120408 turning insert
Model | Apllication | Suitable |
DPF | Finishing | Steel |
DPM | Semi-Finishing | Steel |
DPR | Roughing | Steel |
DTM | Semi-Finishing | Stainless Steel |
DPMK | Semi-Finishing | Steel |
DMA | Semi-Finishing | Steel, Stainless Steel |
TM | Semi-Finishing | Special For Steel |
DGH | Semi-Finishing | Cast Iron General type |

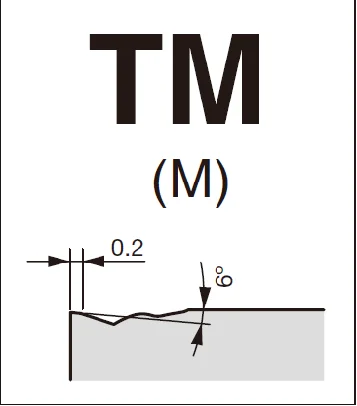

TM model is designed special for steel .Its variable front Angle, variable cutting depth and large range of width,suitable for steel hard cutting
Negative chamfer designation gives inserts good strength .The blade intensity and impact-resistance are increased ,it can efficiently break chip and extend chip breaker filed.
DPMK Negative insert chipbreaker,the special three-dimensional groove design of double rake angle and variable edge width makes
the cutting force small, the chip breaking range is wide, and the edge edge is sharper than epmk. Therefore,even when cutting
alloy steel with high viscosity, it can obtain good surface quality; it also has good performance in the case of uneven processing
of blank.
the cutting force small, the chip breaking range is wide, and the edge edge is sharper than epmk. Therefore,even when cutting
alloy steel with high viscosity, it can obtain good surface quality; it also has good performance in the case of uneven processing
of blank.
DTM Special chip breaker design to keep both sharp cutting edge and good impact resistance, which can efficiently avoid
accumulated and suited for semi-finishing ISO M meterial.
accumulated and suited for semi-finishing ISO M meterial.
DGH Suitable for semi-finishing,excellent with interrupted cutting,margin and negative chamfer design ,good for high feed cutting.
Detailed Images
Size Information
Size Details
P Steel CVD | P10 | DH1210 | M Stainless steel PVD | M10 | DP3210 | DH4100 |
P Steel CVD | P20 | DH1220D | M20 | DH4200 | DP3220 | |
P30 | DH1220 | M30 | DP3120 | DH4130 | ||
P40 | DH1230 |
K10 | DO2110 | N(nonferrous metal) | |||
K20 | DO2220 | N20 | AK10 | ||
K30 | DO2120 |
Size | Model | DH1110P | DH1120P | DH1210 | DH1220 | DP3120 | DP3220 |
CNMG120404 | DMA | P10 Gold Yellow | P20 Gold Yellow | P10 Black | P20 Black | M20 Grey | M20/P20 Purple |
CNMG120404 | TM | P10 Gold Yellow | P10 Gold Yellow | P10 Black | P20 Black | M20 Grey | M20 Grey |
CNMG120404 | DPM | \\ | P10 Gold Yellow | P10 Black | P10 Black | \\ | \\ |
CNMG160608 | DMA | P10 Gold Yellow | P10 Gold Yellow | P10 Black | P20 Black | M20 Grey | M20 Grey |
CNMG160612 | TM | P10 Gold Yellow | P10 Gold Yellow | P10 Black | P20 Black | M20 Grey | M20 Grey |
CNMG160608 | DPM | \\ | P10 Gold Yellow | P10 Black | P10 Black | \\ | \\ |
