380 в кВт мощный Электрический Гидроусилитель рулевого управления с инвертором для электрического
- Категории: Руль для грузовиков >>>
- Поставщик: Shanghai,OE,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
380v 5.0kw power Electric Power Steering Pump with inverter for electric bus truck
Electric power steering pump parameter
ITEM | 5KW (PMSM motor) |
Displacement ml/R | 25 |
Rated speed r/min | 1200 |
Max speed r/min | 1500 |
Flow L/min | 21 |
Max Flow L/min | 27±2L/min |
Rated Voltage | 380v |
Rated frequency | 73Hz |
Rated Speed | 1200r/min |
Insulation class | H Grade |
Protection class | IP67 |
Inverter parameters
Output Voltage. Frequency | Three-phase 380VAC.50Hz |
Power(kW) | 5.5KW |
Rated current (A) | 13A |
Peak current (A)60s | 26A |
Overcurret protection (A) | 42.3A |
Undervoltage protection (VDC) | 200V |
Overvoltage protection (VDC) | 780V |
Overtemperatu re protection (℃) | 90℃ |
temperature check | PT100 |
Advantages
1. Safer:Three-in-one, including ECU, Motor, Hydraulic pump2. Speed changeable , very good hand-feeling. Low speed: light, High
2.speed: heavy and steady.3. Energy saving: pump speed changes according to car speed, it can save 50% energy.Dual power electric
2.speed: heavy and steady.3. Energy saving: pump speed changes according to car speed, it can save 50% energy.Dual power electric
CASE
steering pump assembly, powered by high-voltage power battery pack (DC540V) and low-voltage (DC24V) battery at the same time,
in case of high-voltage sudden disconnection, the low-voltage power supply system works to achieve seamless switching and ensure
that the high-voltage suddenly during driving When disconnected, the electric power steering system for new energy vehicles works

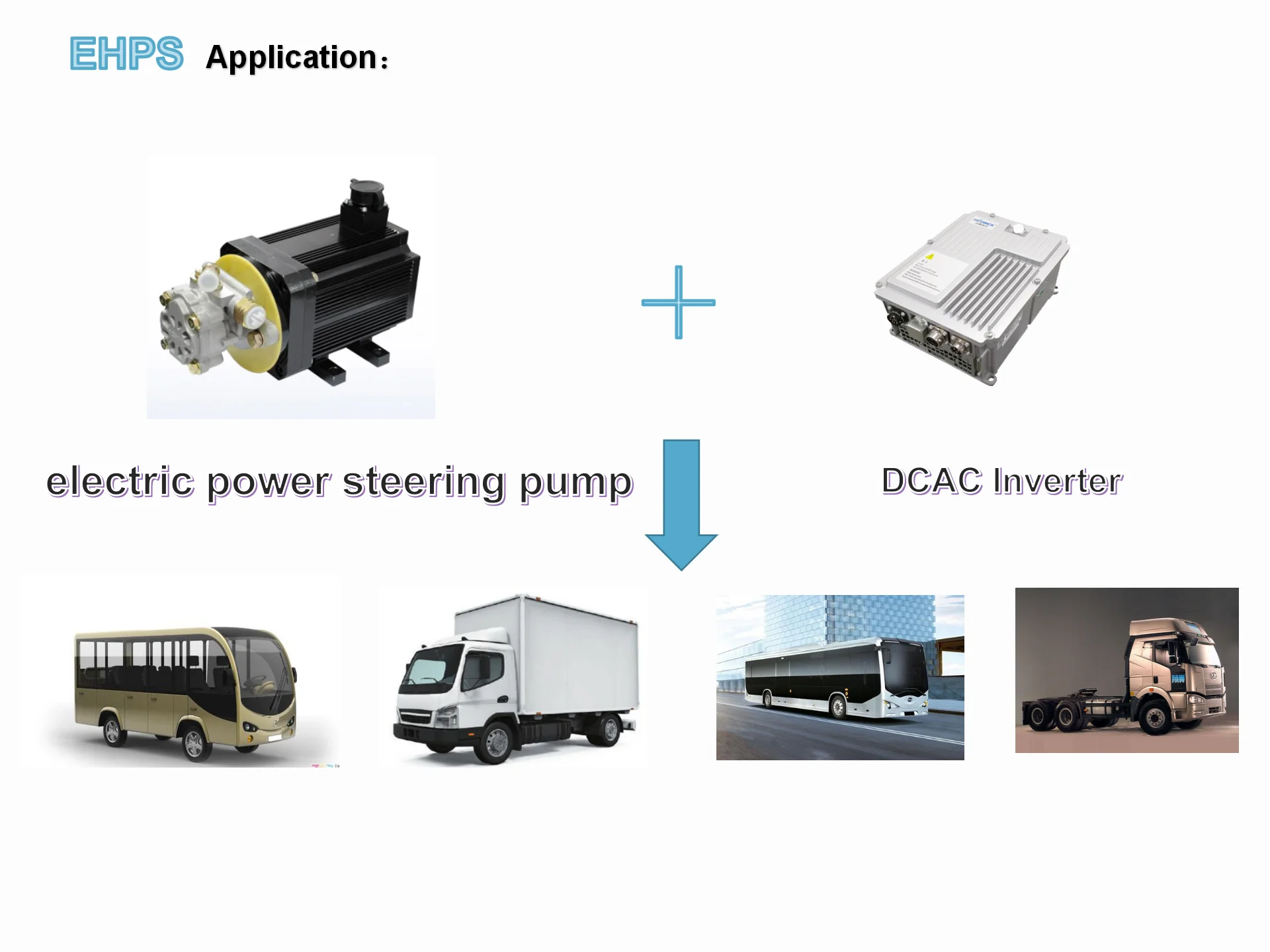

normally. Applicable New Energy bus,truck Model12-14M bus, motor bus load of front axle 5.5-8 Tons etc.
in case of high-voltage sudden disconnection, the low-voltage power supply system works to achieve seamless switching and ensure
that the high-voltage suddenly during driving When disconnected, the electric power steering system for new energy vehicles works
normally. Applicable New Energy bus,truck Model12-14M bus, motor bus load of front axle 5.5-8 Tons etc.

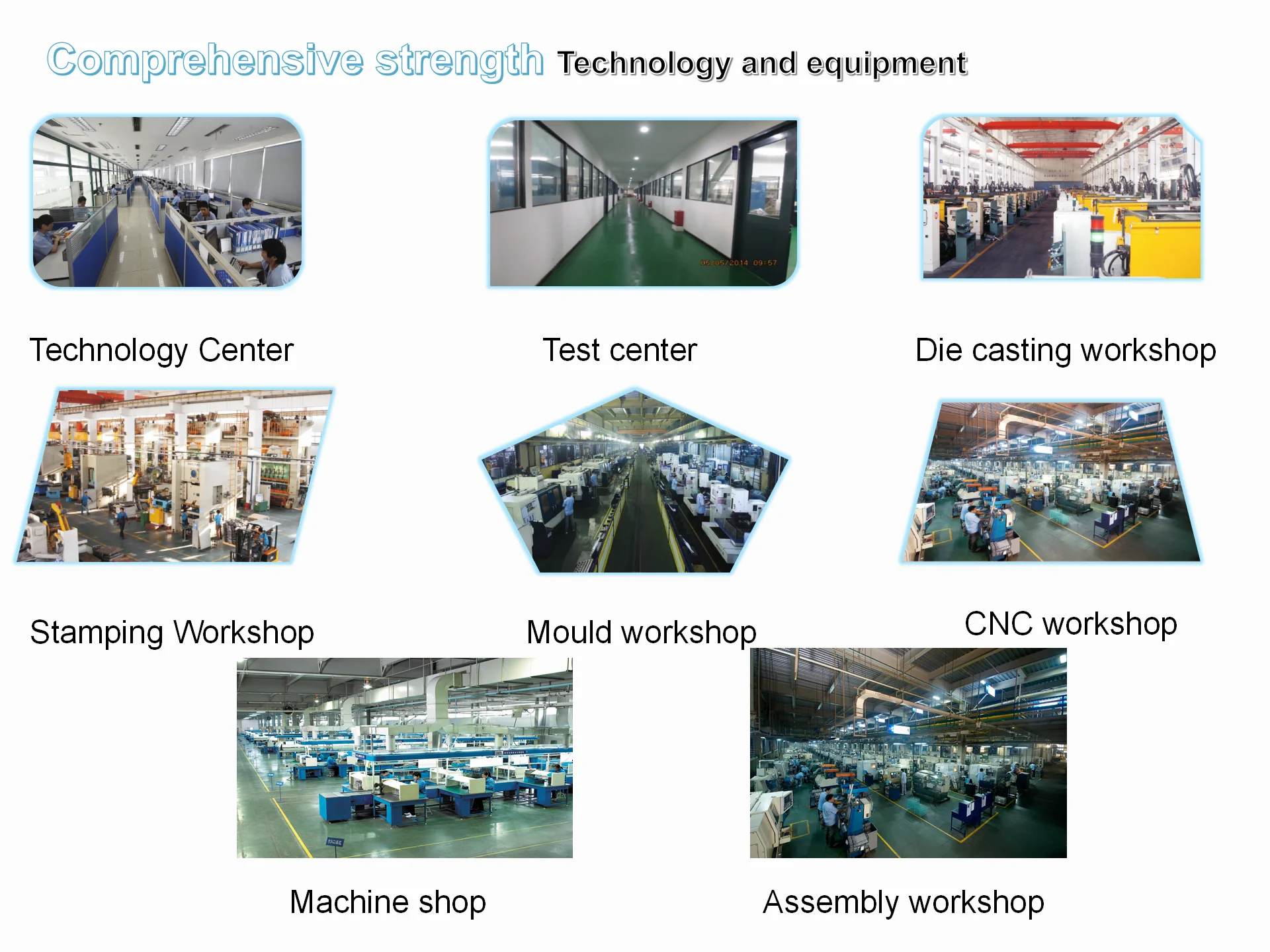

Manufacturing Technique
Certifications
Related Products
Is this a factory, an agent or a trading company?
Shanghai Oiridium Industrial Co., Ltd. is committed to providing system solutions for the new energy industry, and providing new energy vehicle accessories including motors, electric controls, batteries, electronic steering, electric air conditioners, air compressors, chargers and so on.Products are manufactured by our own factory or the factory of strategic partners.
Which models are the motors used in?
Our motor is used in 1. Electric Vehicle 2. Electric Truck 3. Electric Bus 4.Electric ship 5. Electric construction machinery 6. Electric tractors 7. Industrial field
What accessories do you mainly sell for new energy vehicles?
Trucks, buses, boats: motors, electric controls, batteries, OBC, water pumps, air conditioning systems, steering pumps, air compressors.
Car: All above except battery.
Electric Charging station
Electric bus chassis and bus parts as a whole. Used cars, used electric cars
What is the difference between an AC motor and a DC motor?
The biggest difference: their power source is a direct current, one is alternating current
Shanghai Oiridium Industrial Co., Ltd. is committed to providing system solutions for the new energy industry, and providing new energy vehicle accessories including motors, electric controls, batteries, electronic steering, electric air conditioners, air compressors, chargers and so on.Products are manufactured by our own factory or the factory of strategic partners.
Which models are the motors used in?
Our motor is used in 1. Electric Vehicle 2. Electric Truck 3. Electric Bus 4.Electric ship 5. Electric construction machinery 6. Electric tractors 7. Industrial field
What accessories do you mainly sell for new energy vehicles?
Trucks, buses, boats: motors, electric controls, batteries, OBC, water pumps, air conditioning systems, steering pumps, air compressors.
Car: All above except battery.
Electric Charging station
Electric bus chassis and bus parts as a whole. Used cars, used electric cars
What is the difference between an AC motor and a DC motor?
The biggest difference: their power source is a direct current, one is alternating current
