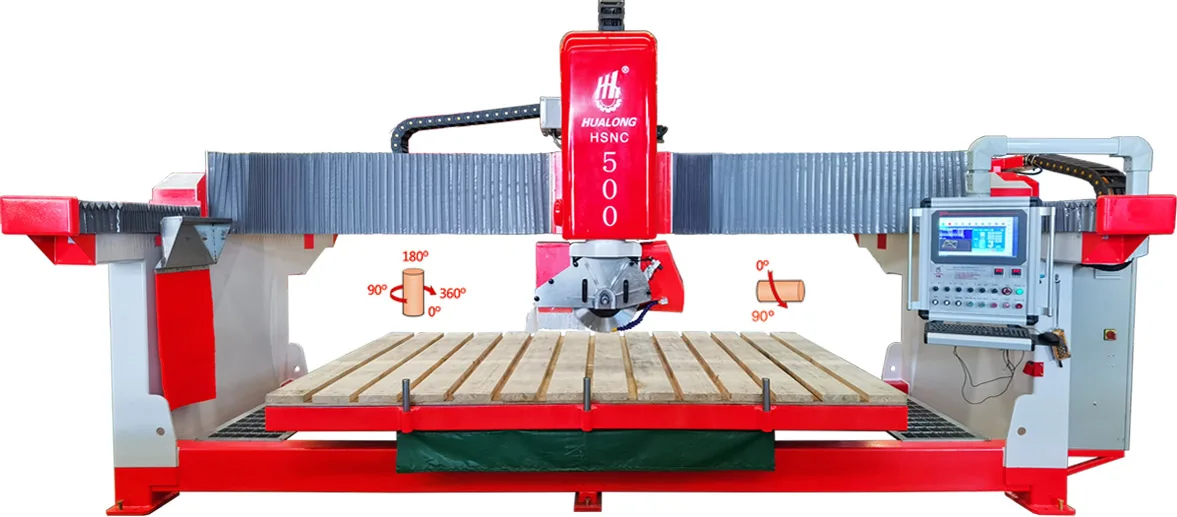

3 axis CNC Bridge Stone Cutting Machine HSNC-500
An updated bridge cutting machine, equipped with Italy CNC system ESA and 3 axis interpolation, is applicable for cutting all kind of stone slabs to size, such as granite, marble, quartzite and artifical stone slab etc., especailly suitable for processing stone countertop with sink. Relief processing is workable too.
Main Features
1) Controlled by Itay CNC system, operated expediently, accurately and stably.
2) One-button automatic vertical and horizontal cutting.
3) Cutting head available to rotate 0°-360° and positioning automatically. Blade can tilt 0-90° and do chamfering automatically.

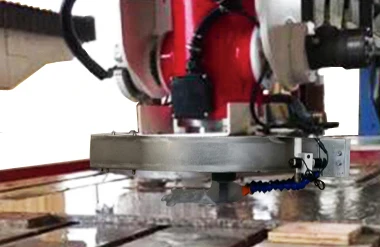

4) With drilling & milling functions, make round sink processing easier and faster.

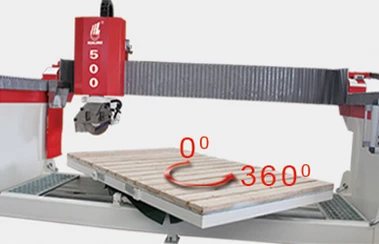

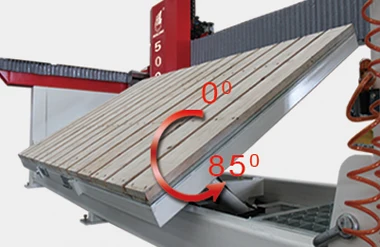

5) Working platform can rotate 0-360°，positioning at any angle, and tilt 85° for easy feeding.
6) Mono-block machine, easy for container loading and machine installation.

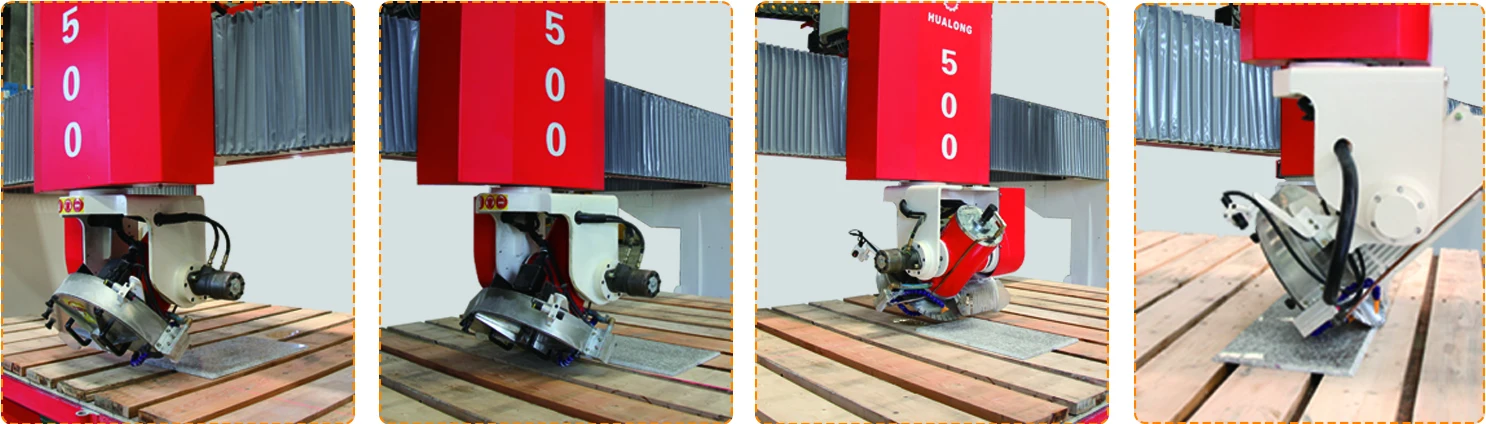

0°-360° automatic positioning and chamfering at any degree
TECHNICAL DATA FOR HSNC-500 | ||||
Diameter of saw blade | ø400-ø500 | mm | ||
Dimension of working platform | 330x200 | cm | ||
Max. cutting length | 330 | cm | ||
Max. cutting thickness | 140 | mm | ||
Max. lifting stroke | 250 | mm | ||
Power of main motor | 11 | kw | ||
Power of cutter frame reciprocating motor | 1.5 | kw | ||
Power of crossbeam shifting motor | 1.5 | kw | ||
Power of hydraulic station motor | 2.2 | kw | ||
Power of lifting motor | 1.5 | kw | ||
Gross power | 17.7 | kw | ||
Water consumption | 2 | m3/h | ||
Gross weight | 5400 | kg | ||
Dimensions (L x W x H) | 570x326x277 | cm | ||
Details Images

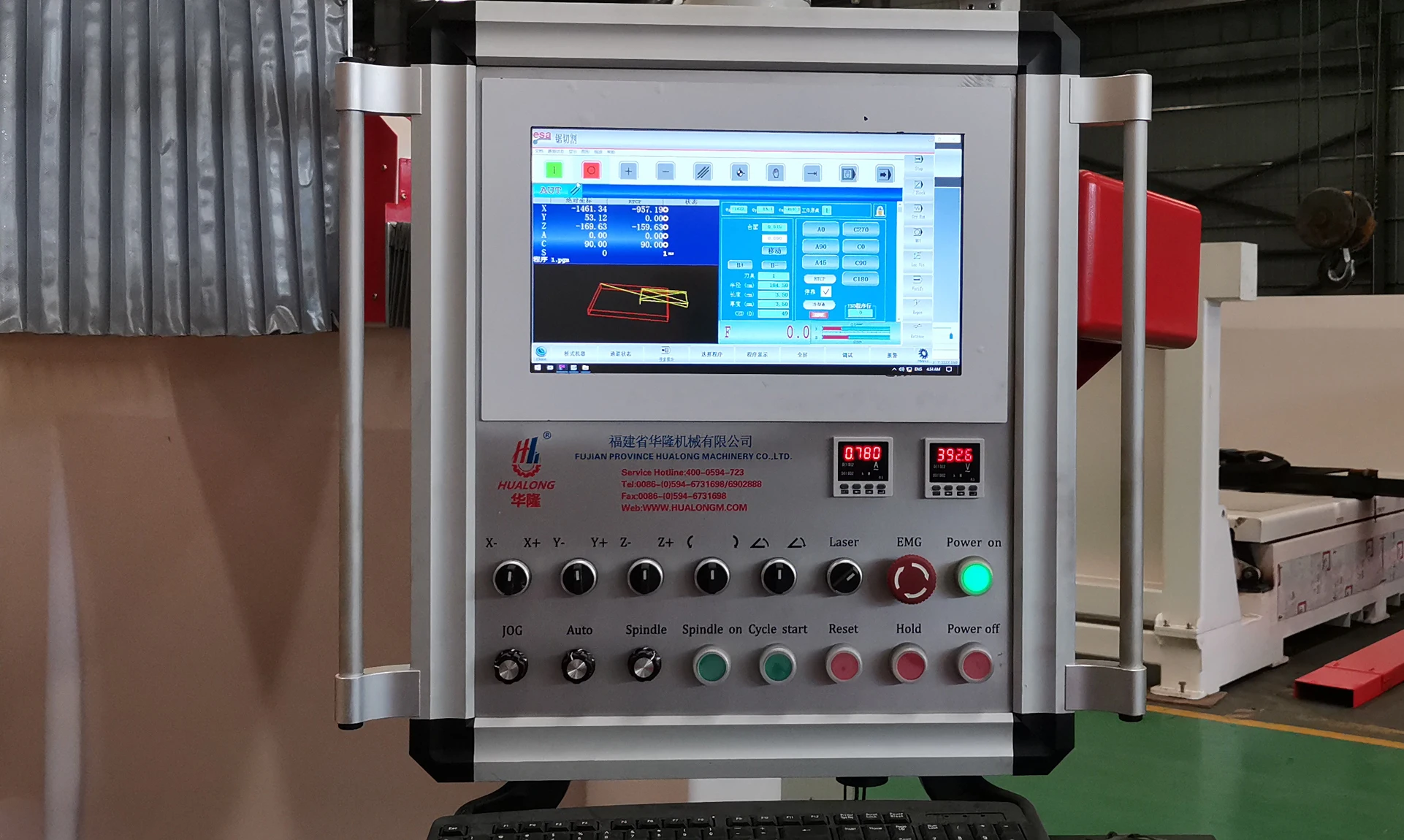

Operating Control System
A) Italy CNC system with touch screen for easy setting and automatic processing.
B) Mechanical buttons for main functions operating manually and easily.

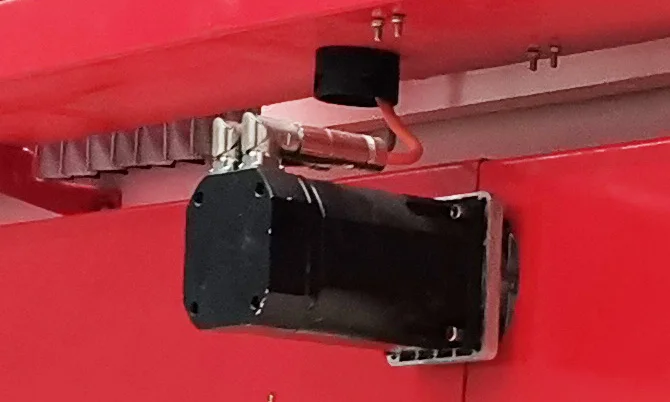

Digital Servomotor
Brand: ESA
Original: Italy
a permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y and Z axises
Original: Italy
a permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y and Z axises

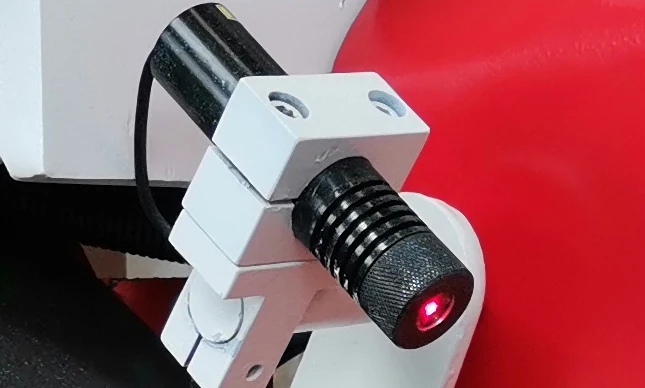

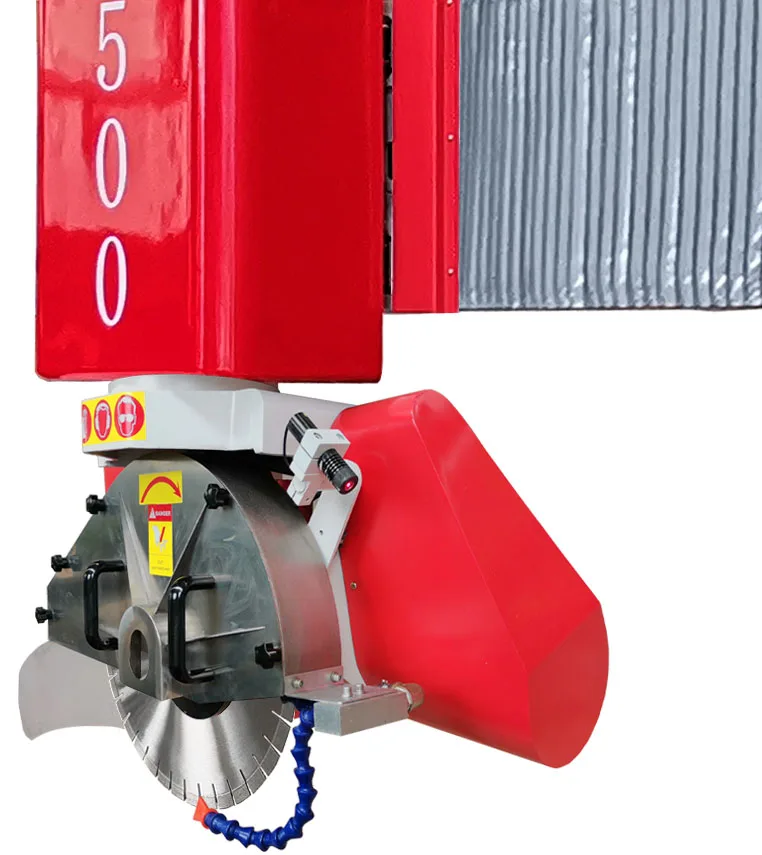

Laser Reticule Apparatus
Origin: China
Used to aid for accurate alignment in processing.

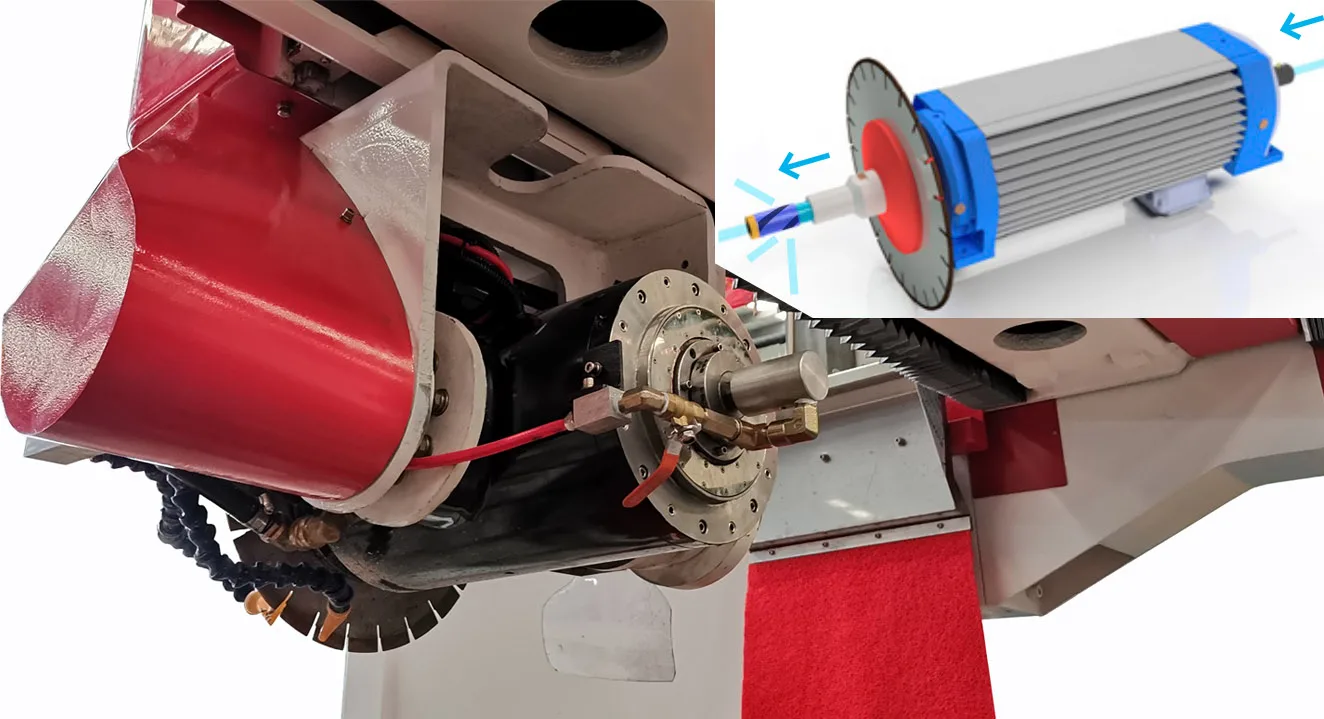

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.

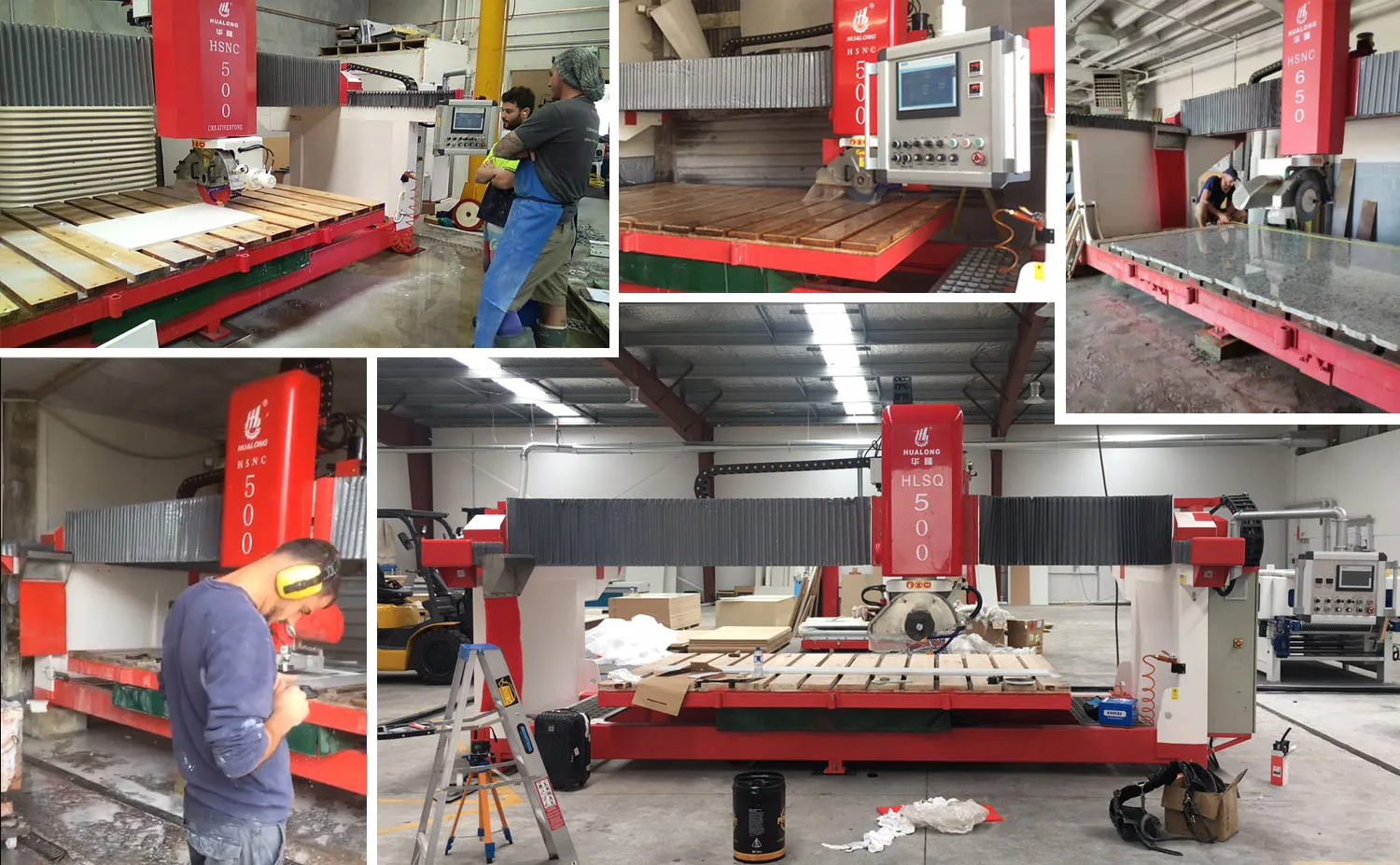

Product Presentation
Packaging | ||
Size | 570 x 326 x 277cm | |
Weight | 5400kgs | |
Packing details | 1) All parts covered by plastic film. 2) Spare and accessary parts packed in plywood cartons. 3) With steel ropes to fix in container, anti slip suitable for shipment. | |
