Product Description

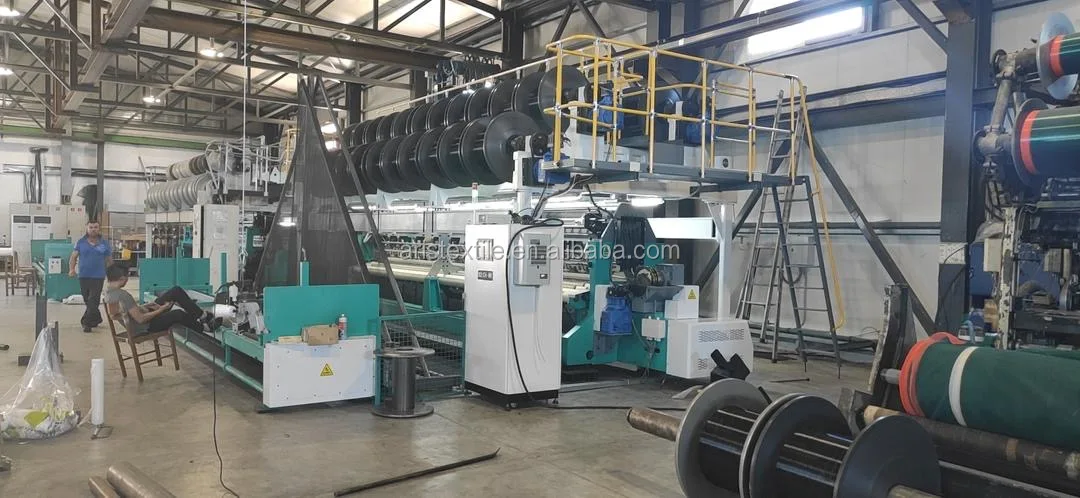

AS-RS4N-F RASCHEL MACHINE is used for knitting various kinds of agricultural, protecting and shade nets, such as knotless fishing net, chemical fiber net fabric, automobile louver curtain, safety net for construction, olive net, mosquito net, sports net and so on.
Technical Parameters | Width | |
Model | AS-RS4N-F | |
Working width | 170"/260"/290" | |
Gauge | E9/E6/E12 | |
Bars | 3/4 | |
Pattern drive | Discs or EL | |
Let-off way and take-up | EBA and Electronic take-up | |
Power of Main Motor | 18.25 KW | |
Control type of Main Motor | Inverter Control | |
Dimension of the machine | 6604x5615x2876mm | |
Working Speed | 1000 RPM | |
Main configuration | ||
Main Motor | SIEMENS OF GERMANY | |
Inverter | Mitsubishi of Japan | |
Bearings | SKF and INA of Germany | |
All needles on the machine | GROZ BECKERT | |
Needle bars/Core needle bars/Stitch comb bars/Comb bars materials | IRON | |
Test components | AUTONICS OF SOUTH KOREA and KOYO OF JAPAN | |
Touch screen | MCGS OF CHINA | |
Operating components | SCHNEIDER OF FRANCE | |
Terminal components | PHOENIXCONTACT OF GERMANY | |
All machined parts | Manufactured by Tianyi company themselves based karlamyer experience. | |
More information
Working width can be max 290", other machine guages will be provided as required.
Wide work width, other machine gauges will be provided as required.
Guide bar/stitch forming parts:Needle bar with independently inserted compound needle, tongue bar, compound sinker, two ground guide bar, (one pile bar).
Beam stand for 2(3) sets let off system equipped with 30" beams
Touch screen /operation interface-terminal
Single-speed motion control system is used to control basic functions
Optional: yarn laser scanning auto-stop device
Warp let-off device:
Every set of yarn let-off device is controlled by EBA system.
Fabric take-up device:
4-roller take-up is controlled by EWA system, maximum width reaches 218"
Winding device:
Winding controlled by the same one motion control as EWA.
Pattern device:
N-type pattern device is composed of 2-3 pattern discs, and motion change toothed wheels.
Electronic equipment:
Speed control main motor, power-off protection, slow-speed transmission function, total capacity of machine
Oil supply:
Heating device,through air circulating heat exchange device to cool down, pressure lubrication feeding and oil spray, equipped
with anti-dirty alarm filter.
Optional:
Water processing heat exchange device to replace air heat exchange device.
Wide work width, other machine gauges will be provided as required.
Guide bar/stitch forming parts:Needle bar with independently inserted compound needle, tongue bar, compound sinker, two ground guide bar, (one pile bar).
Beam stand for 2(3) sets let off system equipped with 30" beams
Touch screen /operation interface-terminal
Single-speed motion control system is used to control basic functions
Optional: yarn laser scanning auto-stop device
Warp let-off device:
Every set of yarn let-off device is controlled by EBA system.
Fabric take-up device:
4-roller take-up is controlled by EWA system, maximum width reaches 218"
Winding device:
Winding controlled by the same one motion control as EWA.
Pattern device:
N-type pattern device is composed of 2-3 pattern discs, and motion change toothed wheels.
Electronic equipment:
Speed control main motor, power-off protection, slow-speed transmission function, total capacity of machine
Oil supply:
Heating device,through air circulating heat exchange device to cool down, pressure lubrication feeding and oil spray, equipped
with anti-dirty alarm filter.
Optional:
Water processing heat exchange device to replace air heat exchange device.
Packing&Shipping
The machine and spare parts will be packed into vacuum iron pallet
