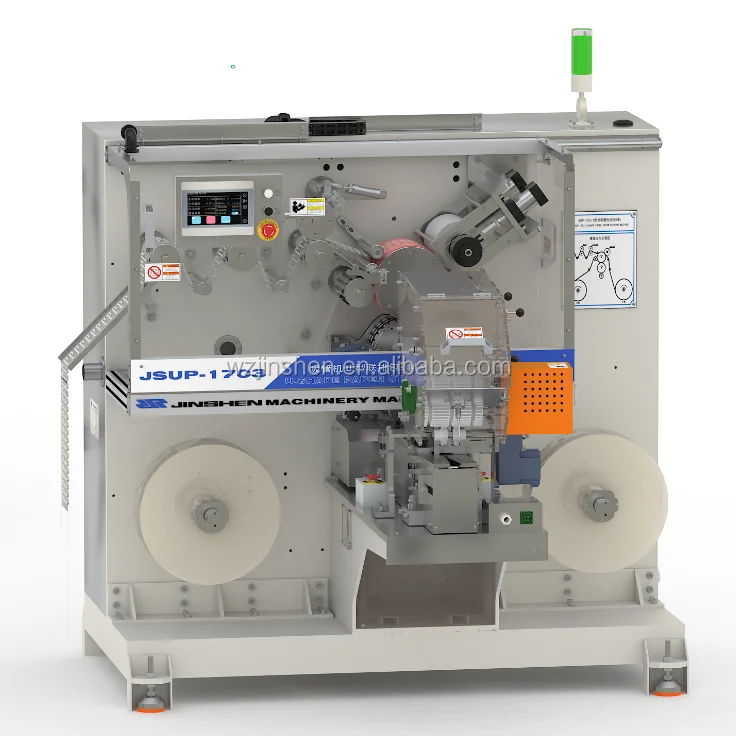

Автоматическая упаковочная машина для бумажных соломинок в форме буквы
- Категории: Другие упаковочные машины >>>
- Поставщик: Zhejiang,Jinshen,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1. Compact structure, high degree of automation and high production efficiency
2. The heat sealing device is equipped with vacuum adsorption, and the film releasing device is provided with a constant tension
mechanism,
3. Adopting the power supply heating of the bus ring, the temperature rises quickly
4. has a variety of functions: bending, cutting oblique, single package, cutting margin, punching, suction, recycling, counting (or winding), batch alarm, maintenance^
5. It adopts frequency conversion speed regulation, power saving, stable and reliable operation, uniform speed change and automatic shutdown of overload
6. With automatic tube missing and membrane missing detection functions
7. with online operation of UV ozone disinfection
2. The heat sealing device is equipped with vacuum adsorption, and the film releasing device is provided with a constant tension
mechanism,
3. Adopting the power supply heating of the bus ring, the temperature rises quickly
4. has a variety of functions: bending, cutting oblique, single package, cutting margin, punching, suction, recycling, counting (or winding), batch alarm, maintenance^
5. It adopts frequency conversion speed regulation, power saving, stable and reliable operation, uniform speed change and automatic shutdown of overload
6. With automatic tube missing and membrane missing detection functions
7. with online operation of UV ozone disinfection
This machine is the supporting equipment of the beverage straw manufacturing unit. It is automatically bent into a U-shaped straw, and the U-shaped straw is individually packaged into a crawler-type continuous
strip with a BOPP film. This machine also has the functions of automatic cutting oblique edge, trimming edge, punching and tearing, counting (or winding finished product), sucking waste, collecting margin, etc., and also has a repairing table to make the finished product 100% satisfy the beverage (dairy products)) Paper packaging line is used.
strip with a BOPP film. This machine also has the functions of automatic cutting oblique edge, trimming edge, punching and tearing, counting (or winding finished product), sucking waste, collecting margin, etc., and also has a repairing table to make the finished product 100% satisfy the beverage (dairy products)) Paper packaging line is used.
PRODUCT SPECIFICATIONS
Driving Motor | 2.2 kw control by frequency converter | Packing shape | 22mm(p)×100~140m(w) |
Capacity | 250~300 pcs/min (paper straws) | Straw Diameter | ID: Ø 3.8mm(can customized) |
packing method | four sides sealing | straw length after bending | 85-125mm(machine equips with 3 vacuum hub slots,the slot length is128,105,90mm for choosing) |
packing material | can be hot sealed such as Bopp | suction end length | <62mm(including curved arc) |
material Shape | Roll | oblique angle | 45º or 30º |
material roll diameter | 500mm | Length of U-shape model | According to customer's drawing |
Internal diameter of material roll | 3'' | Size (L×W×H) | 2150 × 1630×1450mm |
Width of BOPP film | Max:180mm | Weight | 870kg |
Thickness of BOPP film | 20μ-30μ |
