Professional spray drone agriculture



1. Description

Drones are becoming a critical tool for farmers. Many farmers are already benefitting from drone (UAV) technology.



 Precision Agriculture  or  smart farming  is based on the use of advanced technology in the management of crops to increase output without compromising quality. The need to maintain the balance between cost and quality has made drones particularly attractive for smart farming. Drones are affordable and don’t require a whole lot of training to pilot.

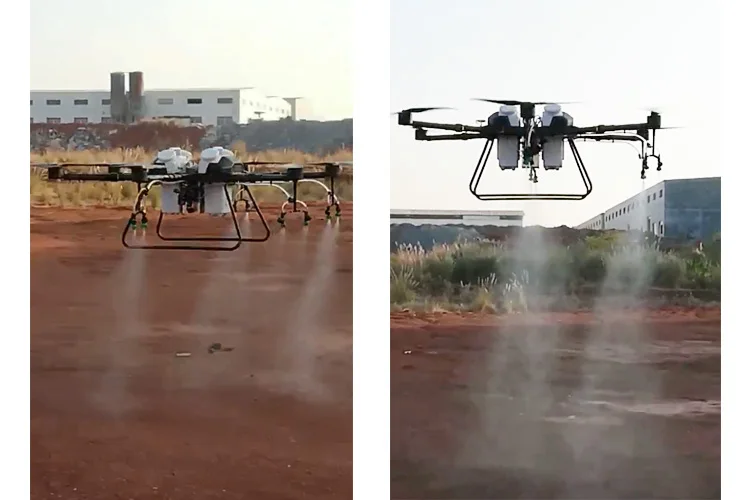

In Agriculture, an important use for drones is watering. Users can use Professional spray drone agriculture to water the crops. It's high efficiency , irrigation uniformity  than artificial irrigation.



2. Parameter

Wheelbase (mm)	1450mm(mm)
Specification (mm)	Expand: 1016×1026mm×558mm(without propeller)
Operating voltage	24v(12s) (2x16000mah)
Weight (excluding battery)	13kg
8210 motor	100kv 4ps
Load	10L
Wind resistance coefficient	Class 6 - 7 winds
Propeller	30 inches
Flight speed	0-10m/s
Spray amplitude	4-5m
Maximum takeoff weight	>23kg
Effective Load/Flight time	Flight time 8KG/15min;4—5KG/22-25min
Ground control system	Pc
Flight control system	K++
Dotter power system	Tu-10010 Electric adjustment: 80a
Sprinkler system	Pressure sprinkler system, 4 pressure sprinklers
Maximum pressure	5mpa
Spraying flow	0.8 5.0L/min adjustable (with pressure cone nozzle)
Operating efficiency	6.6km² / time
Characteristic function	Microwave fixed-height radar, fixed-height and stable, supporting ground-like flight
	Android mobile phone ground station, easy to use / PC ground station, full voice
	Broadcast data real-time display, voice broadcast, flight status control at any time
	To support route planning, fully autonomous flight operations
	Ceramic nozzles, spraying speed can be adjusted, spraying uniform
	Continuous spray at break point, drug-free, low-power return
	Drug quantity detection, can set no medicine automatic record breakpoint return
	Electricity detection, can set low power automatic record breakpoint return
	To support irregular block route planning, up to 340 flight points
	Support setting obstacle points, Planning routes to avoid obstacle areas
	RTK interface to support upgrading and installation of RTK





Remarks: If you have special requirement, send us online message or inquiry, we can customize for you.





3. Configuration list



Flight control*1pc	Remore control*1pc
Battery(12S-16000mAh)*2pcs	Charger*1pc
Drone arms(40*36*475mm)*4pcs	Fogger arms(20*16*150)*4pcs
Pressure sprinkler*4pcs	Holder*1pc
Top carbon board*1pc	Middle carbon board*1pc
Bottom carbon board*1pc	PCBA*1pc
Outside case*1pc	Spray tank*1pc
Water pump*1pc
