ASTM U channel U beam Steel channel Hot rolled material channel
Product Description
Channel steel is the long shape steel that with cross section of groove shape. Channel steel belongs to the building use and mechanical use carbon structural steel, is a complex section steel, its section shape is slotted.
Channel steel is mainly used for building structure, curtain wall engineering, mechanical equipment and vehicles manufacturing, etc.
Finished product channel steel delivery by thermal forming and normalizing or hot rolling state.
Product name | Hot rolled steel channel bar |
Steel type | Carbon steel, alloy steel or as requested |
Standard | JIS, GB, ASTM, DIN, BS |
Material grade | Q195-Q420 Series, SS400-SS540 Series, S235JR-S355JR Series, ST Series, A36-A992 Series, Gr50 Series |
Surface | Mild steel plain finish |
Packing | Bundle with strong steel strips or steel wires, special packings please discuss with us. |
Certificate | SGS, BV, etc |
Capacity | 5000ton/month, for non-standard customized products please discuss with us. |
Place of Origin | Shandong, China (Mainland) |
Sample | Available |
Delivery term | FOB, CFR, CIF, or discuss with us for other terms |
Delivery time | 15-30 days after deposit received or L/C receive in our bank |
Application | Wildely used in a variety of architectural and engineering structures, such as: |
1. Metal constructions such as buildings, bridges, ships. | |
2. Transmission tower, reaction tower. | |
3. Lifting transportation machinery. | |
4. Industrial furnace. | |
5. Container frame, warehouse goods shelves, etc. | |
Our advantages | 1) Small quantity is welcome |
2) Non-standard products can be ordered | |
3) A strong production capacity and a large inventory guarantee the quick delivery | |
4) We have our own steel mill, so business without a third-party |
EN STANDARD CHANNEL | ||||
SIZE | DIMENSION(mm) | UNIT WEIGHT(kg/m) | ||
UPN 50 | 50X25X5X6.0 | 3.86 | ||
UPN 80 | 80X45X6X8.0 | 8.65 | ||
UPN 100 | 100X50X6X8.5 | 10.6 | ||
UPN 120 | 120X55X7X9.0 | 13.4 | ||
UPN140 | 140X60X7X10.0 | 16.0 | ||
UPN 160 | 160X65X7.5X10.5 | 18.8 | ||
UPN 180 | 180X70X8X11.0 | 22.0 | ||
UPN 200 | 200X75X8.5X11.5 | 25.3 | ||
EUROPEAN ECONOMICAL CHANNELS | ||||
SIZE | DIMENSION(mm) | UNIT WEIGHT(kg/m) | ||
UPE 80 | 80X40X4.5X7.4 | 7.05 | ||
UPE 100 | 100X46X4.5X7.6 | 8.59 | ||
UPE 120 | 120X52X4.8X7.8 | 10.4 | ||
UPE140 | 140X58X4.9X8.1 | 12.3 | ||
UPE 160 | 160X64X5.0X8.4 | 14.2 | ||
UPE 180 | 180X80X5.1X8.7 | 16.3 | ||
UPE 200 | 200X76X5.2X9.0 | 18.4 | ||
JIS STANDARD CHANNEL | ||||||
DIMENSIONS | UNIT WEIGHT(kg/m) | DIMENSIONS | UNIT WEIGHT(kg/m) | |||
50*25*(3.0-5.0)*6.0 | 2.37-3.46 | 125*65*5.5*8.0 | 12.91 | |||
75*40*3.8*7.0 | 5.3 | 125*65*6.0*8.0 | 13.4 | |||
75*40*4.0*7.0 | 5.6 | 150*75*5.5*7.3 | 14.66 | |||
75*40*4.5*7.0 | 5.85 | 150*75*5.7*10.0 | 16.71 | |||
75*40*5.0*7.0 | 6.92 | 150*75*6.0*7.3 | 17.9 | |||
100*50*3.8*6.0 | 7.3 | 150*75*6.5*7.3 | 18.6 | |||
100*50*4.2*6.0 | 8.03 | 150*75*9*12.50 | 24 | |||
100*50*4.5*7.5 | 8.97 | 200*80*7.5*11.0 | 24.6 | |||
100*50*5.0*7.5 | 9.36 | 200*90*8.0*13.5 | 30.3 | |||
125*65*5.2*6.8 | 11.66 | 250*90*9.0*13.0 | 34.6 | |||
125*65*5.3*6.8 | 12.17 | 300*90*9.0*13.0 | 38.1 | |||

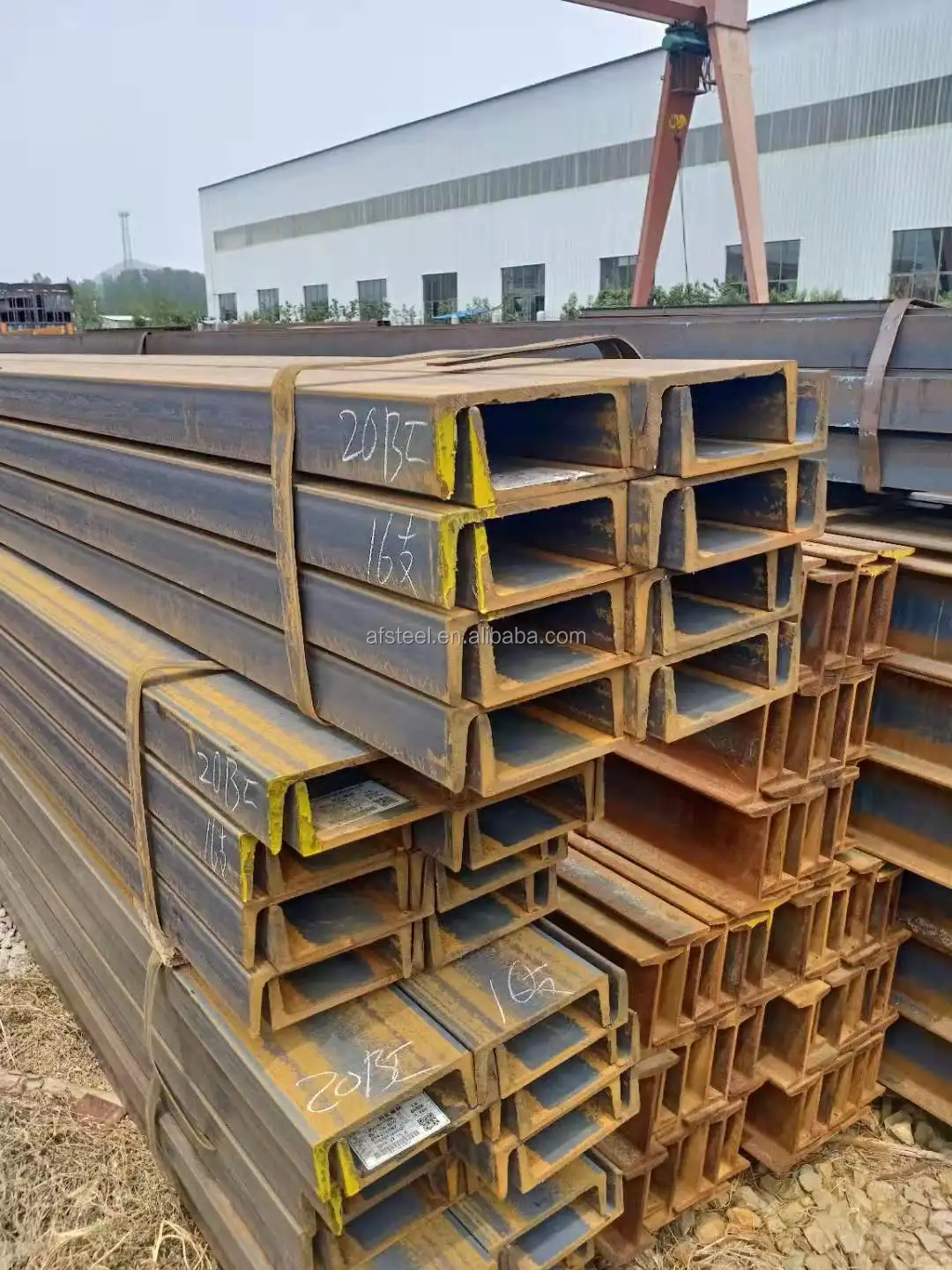

Detailed Images
Products Application
Wildely used in a variety of architectural and engineering structures, such as:
1. Metal constructions such as buildings, bridges, ships.
2. Transmission tower, reaction tower.
3. Lifting transportation machinery.
4. Industrial furnace.
5. Container frame, warehouse goods shelves, etc.
Packing & Delivery
1,Packing:
Reinforcement of the goods in five circles per bundle for 6M goods;
Reinforcement of the goods in eight circles per bundle for 12M goods.
2.Shipping
1.Delivery: Within 30-45 days after the conformation of the order.
1.Delivery: Within 30-45 days after the conformation of the order.
2.Transport cargo to port by truck and will covered on the road and also covered at port.
3.shipping by bulk or container
Company Profile
Our Advantages
1. High quality with reasonable price. Wide excellent experiences with after-sale service.
2. Every process will be checked by responsible QC which insures every product's quality.
3. Professional packing teams which keep every packing safely.
4. Trial order can be done in one week.
5. Free Samples can be provided as your requirements.
2. Every process will be checked by responsible QC which insures every product's quality.
3. Professional packing teams which keep every packing safely.
4. Trial order can be done in one week.
5. Free Samples can be provided as your requirements.
FAQ
1.A :Are you manufacturer or trader?
Q : Yes,we are manufacturer, and if you need other special product, we will do ourbest to
help you, so that we can build a long-term business relationship.
2.A :Can i order the product with special size?
Q : Of course you can, and meanwhile according to your detail requests.
3.A :Why your best choice?
Q : We are manufacturers, having three domestic first-class production lines, two of which are
angle steel rolling production lines, the other one is channel steel rolling production line.
4.A :How long is your delivery time?
Q : Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in
stock, it is according to quantity.
5.A :How to order?
Q : Please send us your purchase order by email or fax. Or your can ask us to send a proforma
invoice for your order. We need to know the following inforation for your order.
