Мини лабораторный фармацевтический Осциллирующий порошок гранулятор

Описание и отзывы

Характеристики

Product Description

Product Parameters



Product model	YK-60	YK-90	YK-160
Roller diameter	60mm	90mm	90mm
Production capacity	20-30kg/h	50-100kg/h	200-300kg/h
Swing range	>360°	>360°	>360°
Rolling sway	46tims/min	50tims/min	55times/min
Motor Power	0.55kw	1.1kw	2.2kw
weight	65kg	150kg	360kg
Dimensions	460*550*570mm	460*750*840mm	970*560*1240mm



Maintenance:

"After one use of the machine, the rotating drum and screen should be taken out to clean and brush the remaining powder in the bucket, and then installed and ready for the next use.

The machine should be placed in a dry and clean room, and the parts should be inspected regularly. The defects should be repaired in time and should not be used forcibly.

Working principle:

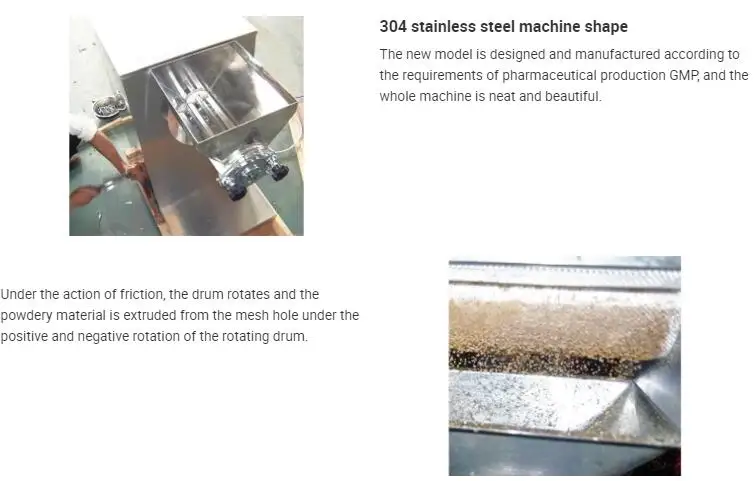

The machine is driven by mechanical force. Under the action of frictional force, the drum rotates, and the powdery material is extruded from the mesh hole under the action of the rotating drum under the positive and negative rotation, and sent out of the machine.

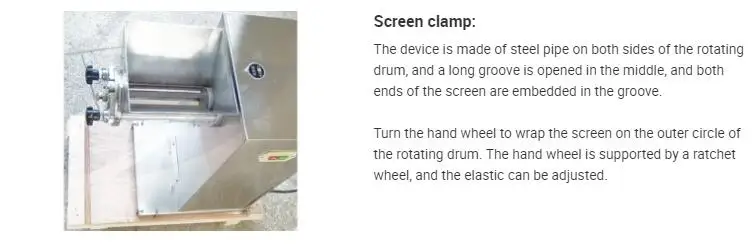

Adjusting the tightness of the screen and the rotation speed of the drum can control the particle size and density of the particles to some extent.

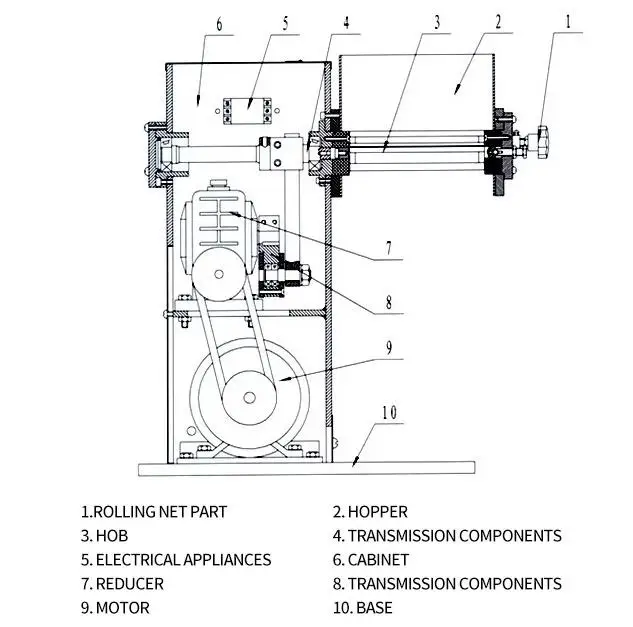

Structure principle:

The fuselage is an independent rectangular parallelepiped, consisting of three parts: the bearing frame, the reduction gear box and the machine base.



The feeding powder bucket is connected with the bearing frame and extends out of the machine. The front end of the feeding base is designed to extend and land widely and smoothly, so it does not need to be installed and can be placed indoors.



Precautions:

1. If the powder does not stop in the powder bucket, do not use your hand to shovel, so as not to cause injury, use a bamboo shovel or suspend work.

2, such as crushing block material, should be gradually added, not suitable to fill, to avoid excessive pressure, and make the screen vulnerable.



Operation skills:

1. When the material is dry powder, it can be directly sprayed on the water, and the material can be prepared by stirring a little.

2, when a small amount of material has too much moisture, the surface of the material can be dried and the mechanism can be directly used.

3. When the material appears blocky, it is not necessary to crush or other processing the block material, and the mechanism can be directly used.

4. Before the machine is turned on, refuel all the oil meters of the machine's cabinet to improve the service life of the machine.

5. The oil stored in the worm gear box is renewed every three months to improve the service life of the machine.

6. If you do not know the mesh size of the particles to be granulated, you can use the sieve to manually granulate.

Features



The surface of the particles is smooth and the hardness is moderate, which is convenient for sealing and storage.

Powder packaging, capsule making, tablet making, etc.

The machine is granulated at room temperature and molded at one time.

The energy consumption is low, the life is long, and the granulation rate can be as high as 95%.

Application



The machine has simple structure and wide adaptability, and is widely used in granulation of powder raw materials in medicine, food, health care products, chemical industry, fertilizer, building materials, smelting and other industries.

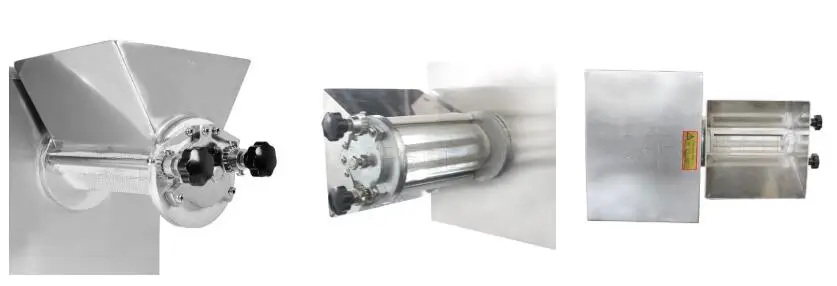

Detailed Images

Packing & Delivery

About Us
