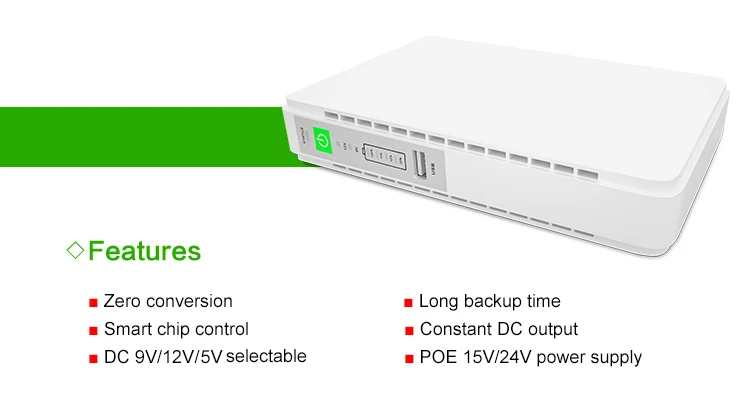

•With Li battery 8800mAH
•DC 5v and 9v/12v selectable
•POE 15v/24v selectable
•Input Voltage :100V - 240V AC

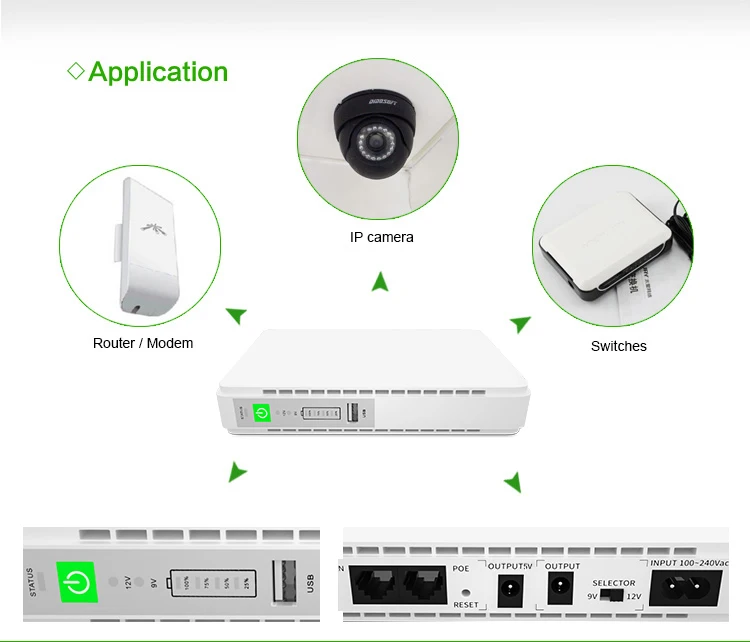

•Small DC communication equipment, network peripherals such as: Modem, routers ,IP camera etc.
•Constant DC output, long backup time, smart chip control, zero transition.
Model | POE-431P | ||
Input voltage | 100~240Vac/50-60Hz | ||
Maximum Output Poewr | 17W | ||
Transfer time | 0ms | ||
Output | POE interface | DC interface1 | DC interface2 |
Output voltage(Optional) | 15,24Vdc | 5V | 9,12Vdc |
Output polarity | 4,5pins 7,8pins | ![]() | |
Output power & current (in common) | 15v 1.5A/24v 1A | 5V 2.5A | 9V 1.8A/12V 1.32A |
USB Output | 5V/2.5A | ||
Battey Type | Lithium battery | ||
QTY.&capacity of battery | 2000mAhx4 | ||
Storage Temperature | 15~45℃ | ||
Operating Temperature | 0~40℃ | ||
Unit dimension(mm) | 110x160x27mm | ||
Net weight(kg) | 0.38kg |
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
