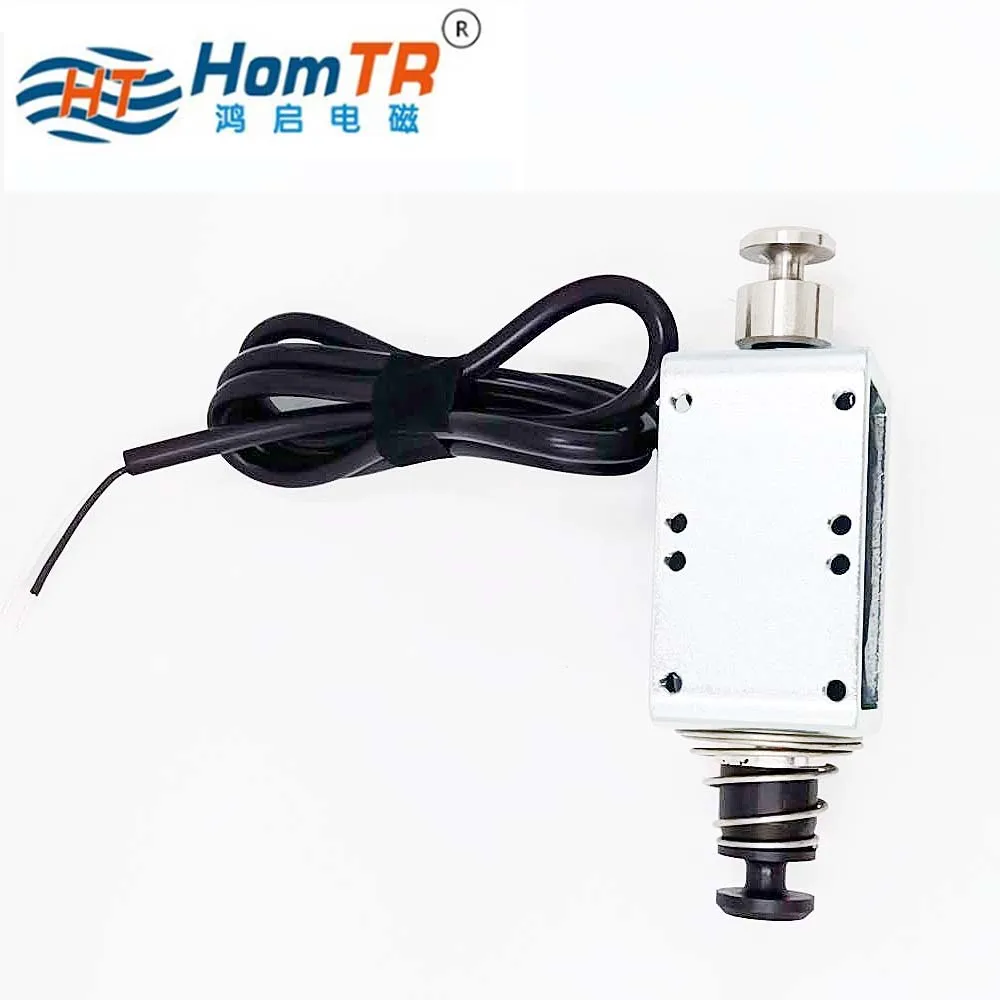

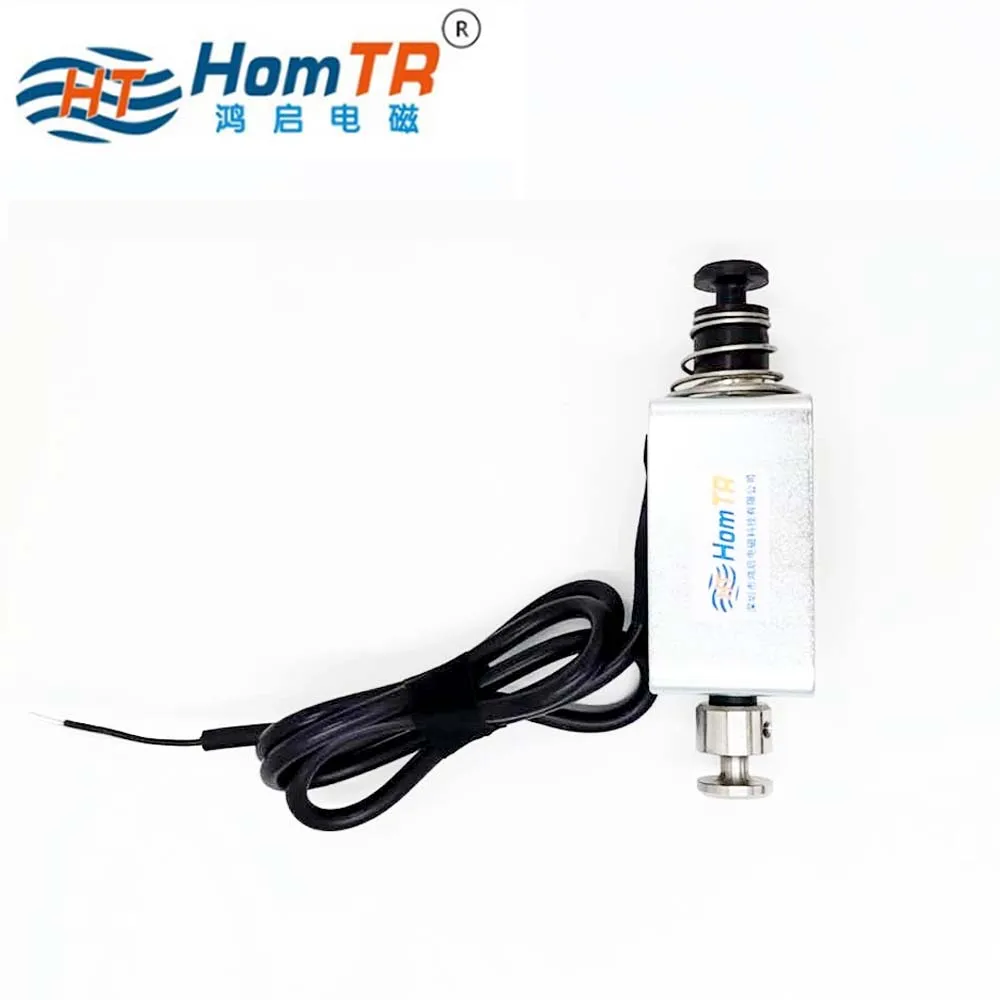

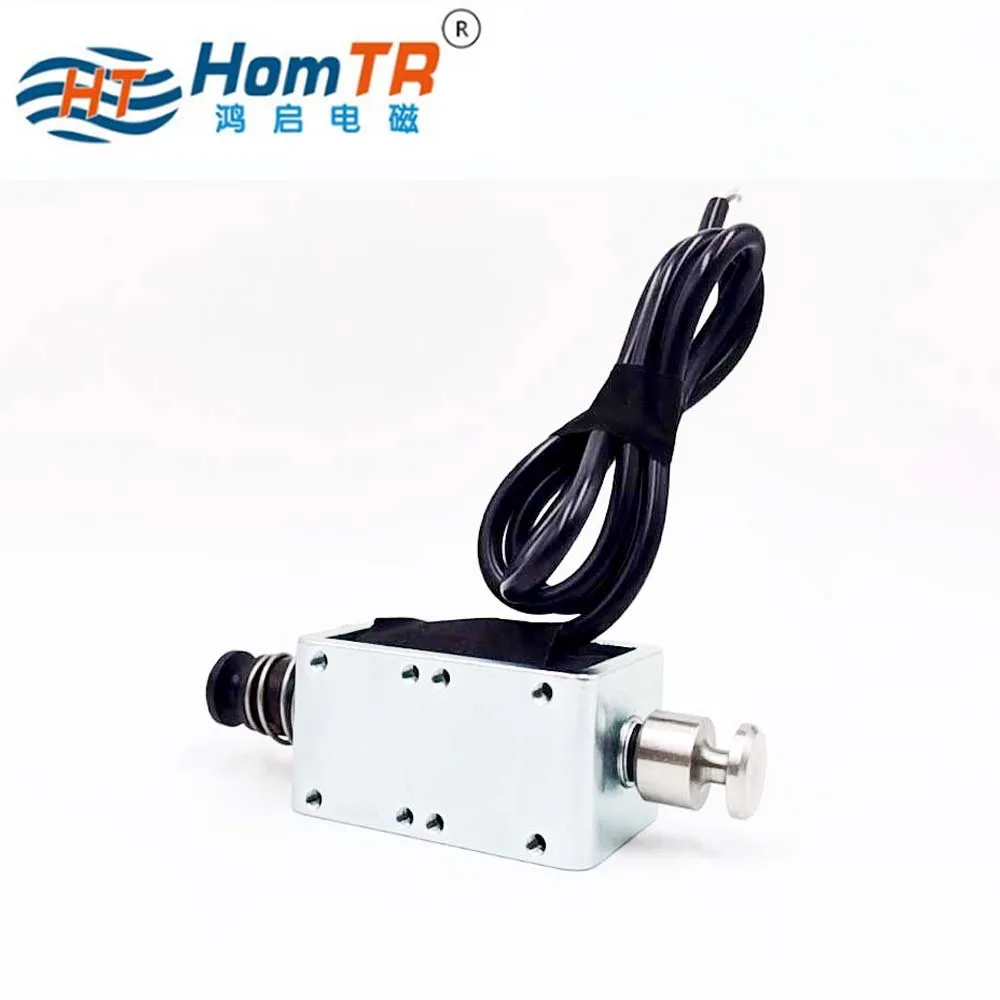

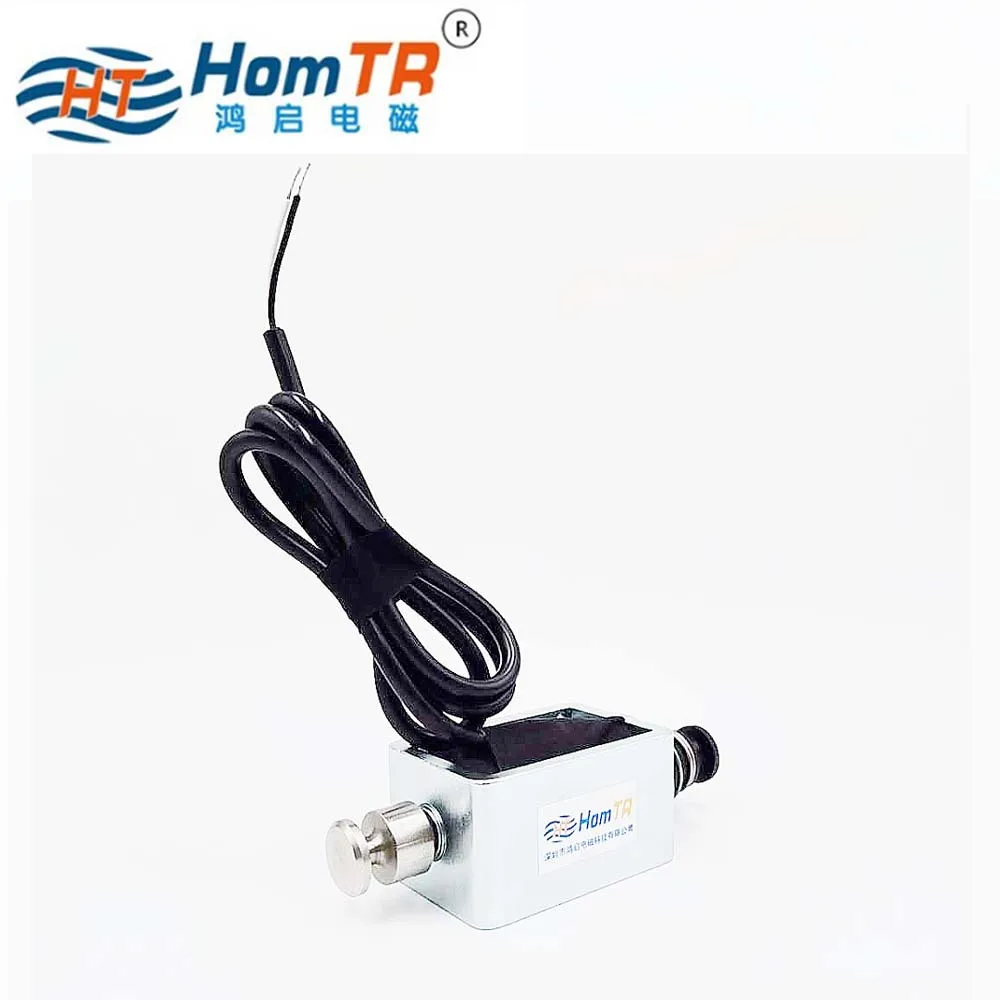

Homtr небольшой DC 12V 24V Электромагнит открытая рамка пуш-ап электромагнитный линейный привод
- Категории: Other Electronic Accessories >>>
- Поставщик: Shenzhen,Hongqi,Electromagnetic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
ROHS, REACH, CE, ISO9001:2008 compliant
Application: medical device and home appliances like head message, message chair, coffee machine,tourniquet, vacuum juice blender
Specification

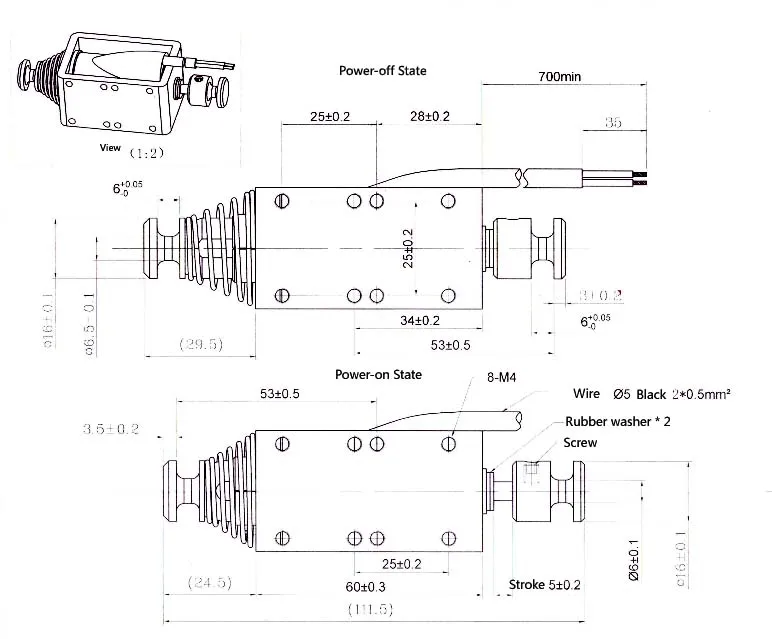

Model | HTO-1660HAB |
Voltage | DC24V Stroke 5mm 1kgf min |
Resistance | 61.94Ω±10% at20℃ |
Ampere | 0.387A |
Watts | 9.3W |
Insulation withstand voltage | 1200VAC/1Sec |
Insulation resistance | 500VDC/100MΩ |
Duty Cycle | 100% (continuous energization ) |
Insulation Class | Class F (155℃） |
We can according to your spec to make it and support custom connectors and wires !
Details
Packing & Delivery
According your order quantity oem package .
Each order G.W & N.W. have a diifference .
Company Profie
HOMTR SOLENOID VALVE is the High quality China solenoid manufacturer for innovative electromagnetic actuators to fulfil the specific requirements and needs of our customers in a variety of different industries.
Speed of response to our customers is one of the key factors to our success. This is true in all aspects of our business including prototype development, pre-series and series production. Our lean organisation ensures fast un-bureaucratic decision making, short processing times and highly flexible manufacturing.
Speed of response to our customers is one of the key factors to our success. This is true in all aspects of our business including prototype development, pre-series and series production. Our lean organisation ensures fast un-bureaucratic decision making, short processing times and highly flexible manufacturing.
We providing both ODM/OEM services for our customers. We would be happy to discuss with you and provide more details for your inquiry upon your confirmation. More......
ODM/OEM Order Notes
1. Voltage/current required for solenoid valve ?
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance
6 Appearance of salt spray test required or not (regular 24 hours)
7 Solenoid valve seal pressure, valve opening size and controlled substances (water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance
6 Appearance of salt spray test required or not (regular 24 hours)
7 Solenoid valve seal pressure, valve opening size and controlled substances (water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
