Brushless dc motor driver board,Brushless motor can be used.Can independently set start-up parameters and detect running speed .Complete protection function, high stability.

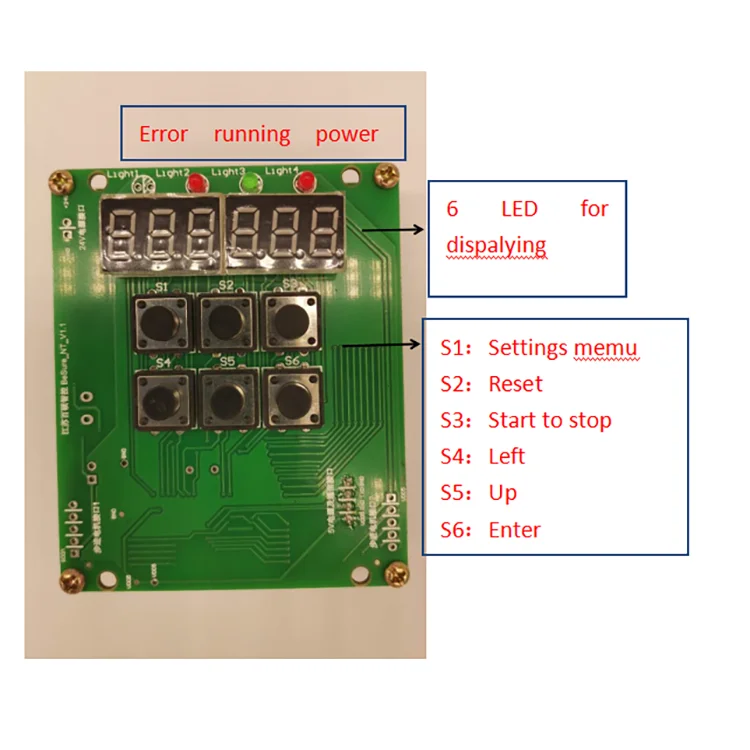

Function:
1. Two adjust methods for the user to choose:Internal Settings for running speed and
External RS485 input adjustment
2. Motor operate/stop control (EN)
3. Free stop and active braking(BK)
4. Drive failure protection
6. RS485 multi-axis control
7. Motor speed swing control
Terminal connection
1
485+
RS485 input
2
485-
RS485 input
3
485+
RS485 output
4
485-
RS485 output
5
5V
LED light
6
LED
LED light
7
ON/OFF
Switch
8
GND
Switch
9
SIGNAL
External signal input
10
12V
External signal input
11
GND
External signal input
12
U
U phase
13
V
V phase
14
W
W phase
15
POWER-
GND input
16
POWER+
12-24VDC input
Connection Diagram of motor and driver
Product Description
Brushless motor can be used.Suitable for a group of the same motor need to drive, driver and motor one - to - one correspondence, easy maintenance.The goldfinger base board shall be used in conjunction with the goldfinger drive board.Complete protection function, high stability.
Function:
1. The running speed is controlled by the program,and the switching signal and speed are controlled by RS485.
2. Motor operate/stop control (EN)
3. Motor temperature monitoring protection
4. Break the motor to stop ( BK )
5. Drive failure protection
6. RS485 multi-axis control
Terminal connection
1
485+
RS485 INPUT
2
485-
RS485 INPUT
3
485+
RS485 OUTPUT
4
485-
RS485 OUTPUT
5
T1
Temperature Detection
6
T2
Temperature Detection
7
U
U phase
8
V
V phase
9
W
W phase
10
POWER+
12-48VDC INPUT
11
POWER-
GND INPUT
Connection Diagram of motor and driver
Packaging & Shipping
Brushless dc motor driver board Product size:88*71*40mm
Standard export carton, 50pc per PP bag per white box, 50pcs per carton,
1. Customized design is available, OEM &ODM are welcomed.
2. One year warranty after products shipped from original port
3. 24-hours online service support
4. Paypal, Western Union, T/T,L/C payment are acceptable
Company Information
Production Process
FAQ
1. What can I get the price? A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
2. What about the lead time for the mass production? A Honestly, it depends on the order quantity and the season you place the order.
3. Can I get a discount? Yes, for the order quantity more than 100 pcs, please contact us to get the best price.
4. We have other functional requirements for the driver. Can we do custom development? Yes ,we can.Our brushless and sensorless driver already has temperature control, RS485 communication, start-stop control and other functions, while reserving the development interface.Please inform us of your requirements in detail and we will act accordingly.
5. How can I get the sample to check your quality? A After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
6.What is your after-sales services? 1.Free maintenance within 12 months guarantee, lifetime consultant 2. Professional solutions in installation and maintence
7.How much is the freight and what is the mode of transportation? The freight is based on the weight of order and the distance of shipment. For single order , the goods will be deliveried by EMS, DHL, FedEx, TNT and so on. Please inform us advance if you have special packing and shipment requirement.
