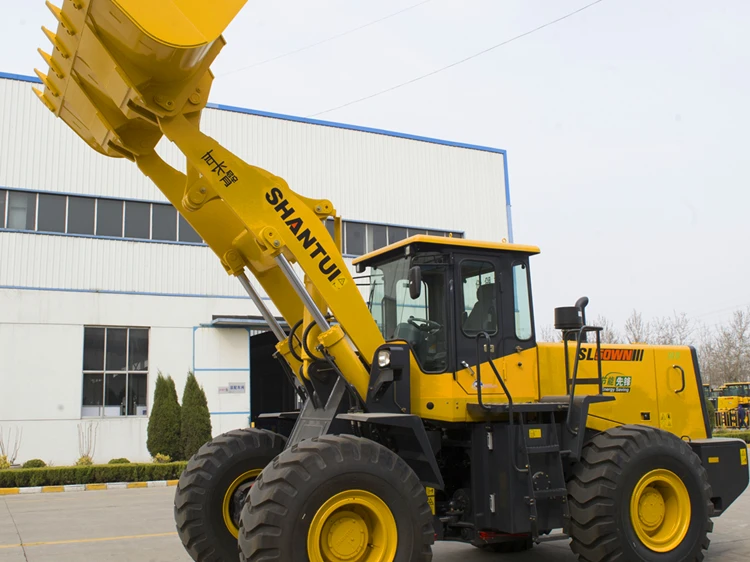

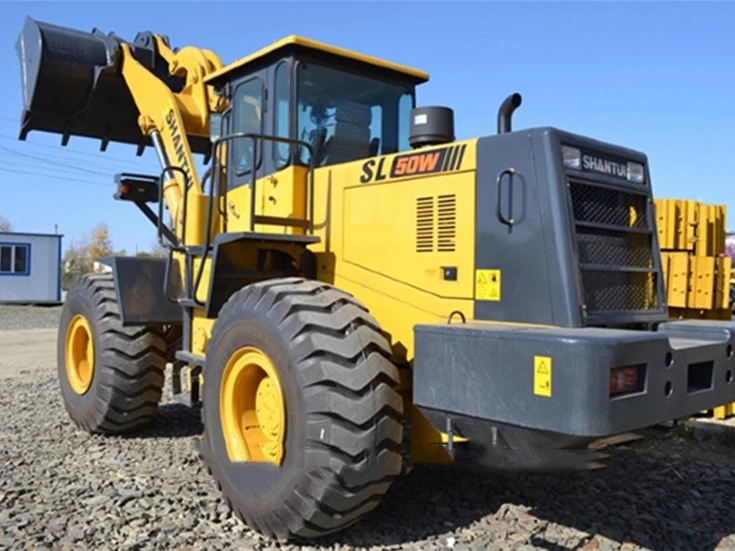

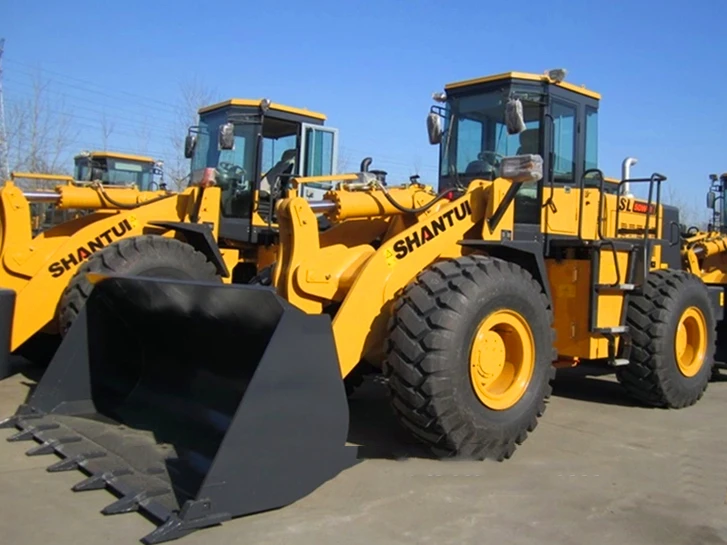

High Efficiency China Famous Brand 5 Ton Four Wheel Loader SL50WN at Competitive Price
Product Description
Convenient maintenances
The upturning engine hood side door features large opening and convenient services and maintenances.
The externally directed lubrication for both front and rear frames achieves easier maintenances and the grease nozzles are installed with dust caps to realize higher cleanliness.
De-noising
The low-speed engine and new cab are applied and the engine hood is installed with additional sound-insulating material to further reduce the engine noise to 85dB, which is far lower than the current noise standard (89dB) and is superior to the 86dB requirement of the national mandatory standard implemented in 2015.
Moderate Wheelbase
It guarantees outstanding site adaptability and flexibility and strong operating stability and can handle common heavy-load operations with ease.
Transmission system
’s self-made twin-turbine torque converter, planetary transmission, and drive axle feature good power match, high drive efficiency, strong overload capacity, high quality, and long life. The new high-capacity blade-grid twin-turbine torque converter YJSW315-8A and the planetary transmission ZL50D-2 guarantee high drive efficiency. The all-new working device design improves the boom hinge points and the working device mechanism and increase the boom lifting force by 7%, featuring excellent horizontal movement performance and automatic leveling performance and more reasonable dumping height and reach.
Power System
Weichai new generation Blue Engine II energy-saving engine WD10G220E23 conforms to China-II emission regulation and reduces the failure rate by 30% and saves the fuel by >10%.
parameter
| Parameter name | SL50WN |
| Performance parameters | |
| Operating weight (Kg) | 17100 |
| Maximum dumping height (mm) | 3330 (Extended boom)3700 (Long Boom) |
| Dumping reach (mm) | 1230 (Extended boom)1270 (Long Boom) |
| Maximum breakout force (kN) | ≥185 |
| Total cycle time (s) | 10.6 |
| Engine | |
| Engine model | WD10 |
| Rated power/rated speed (kW/rpm) | 162/2000 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 8025*3026*3410 |
| Driving performance | |
| Forward speed (km/h) | F1:0-13,F2:0-38 |
| Reversing speed (km/h) | R1:0-17 |
| Chassis System | |
| Wheelbase (mm) | 3250 |
| Tank capacity | |
| Fuel tank (L) | 220 |
| Working device | |
| Rated bucket capacity (m³) | 3 |
| Rated loading capacity (t) | 5 |
