40w tri-proof light 36w 12m 130lmw ip65 led emergency triproof batten for parking lot
Model Name | Macro Series | ||
Model Number | HNX-TM65-20W2F | HNX-TM65-40W4F | HNX-TM65-60W5F |

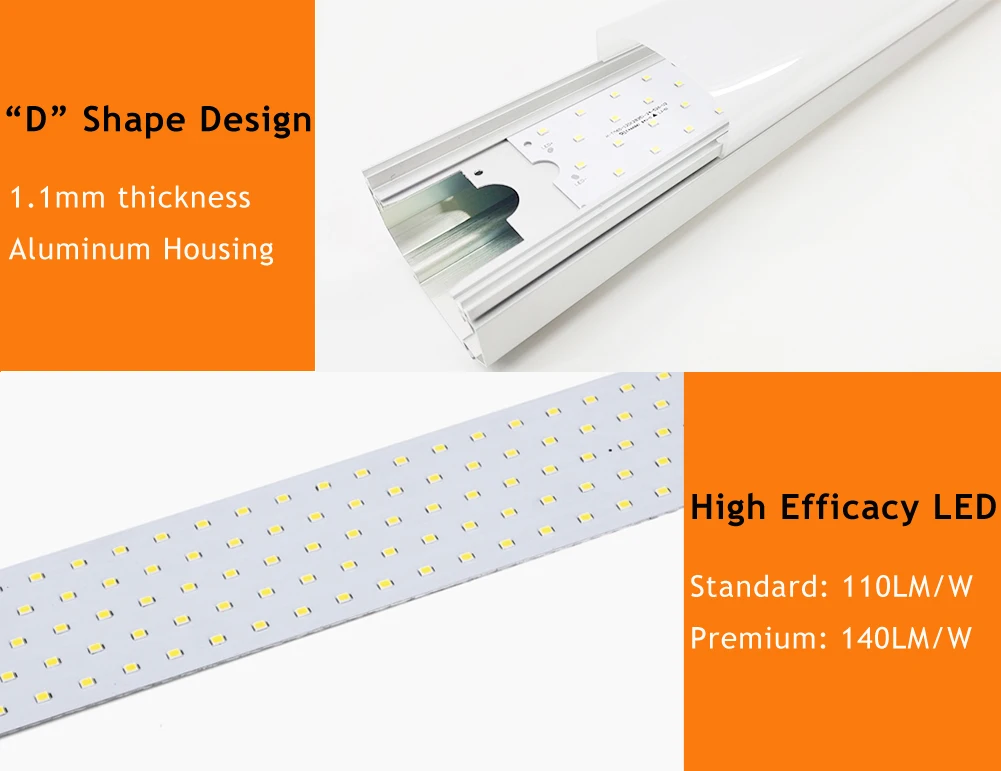

Material | Aluminum Housing + PC Diffuser | ||
Power | 20 Watt | 40 Watt | 60 Watt |
Length | 600mm / 2ft / 24 inch | 1200mm / 4ft / 48 inch | 1500mm / 5ft / 60 inch |
Beam Angle | 120 degree | ||
CRI | > 83ra | ||
Power Factor | >0.95 | ||
Lumen Efficacy | 90-140lm/w | ||

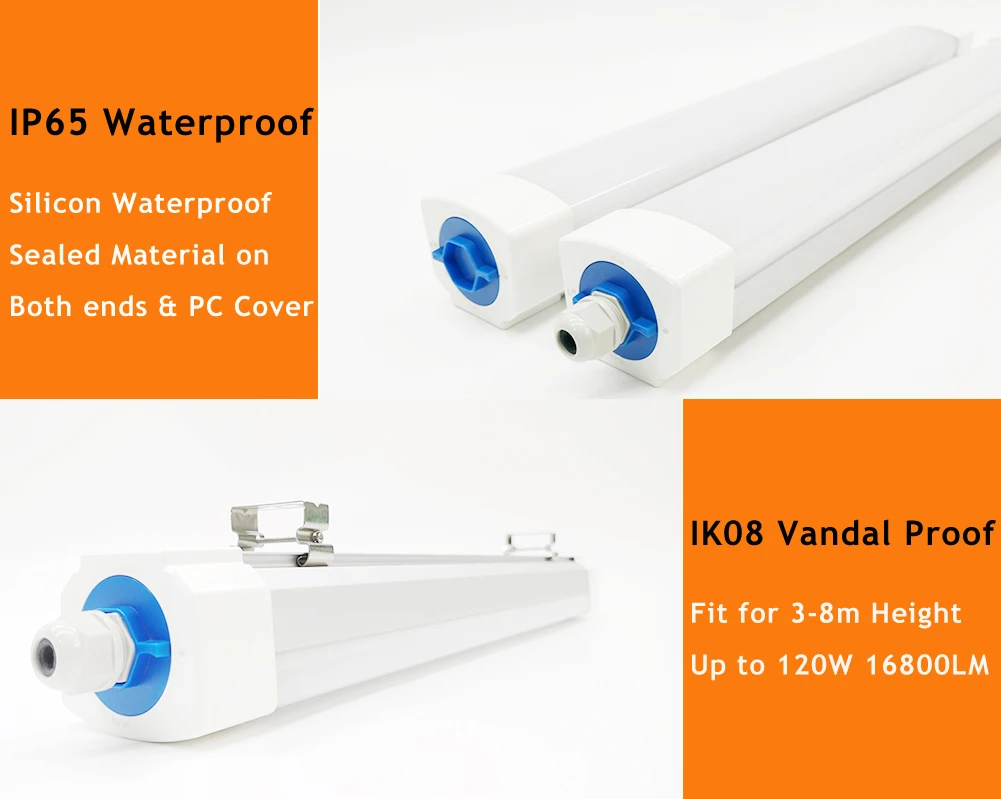

IP Rate | IP65 | ||
IK Rate | IK08 | ||
Working Temperature | -25~+45℃ | ||
Storage Temperature | -40~+70℃ | ||
Microwave Motion Sensor | Optional | Optional | Optional |
1-10V Dimmable | Optional | Optional | Optional |
Emergency (Built-in) | Optional | Optional | Optional |

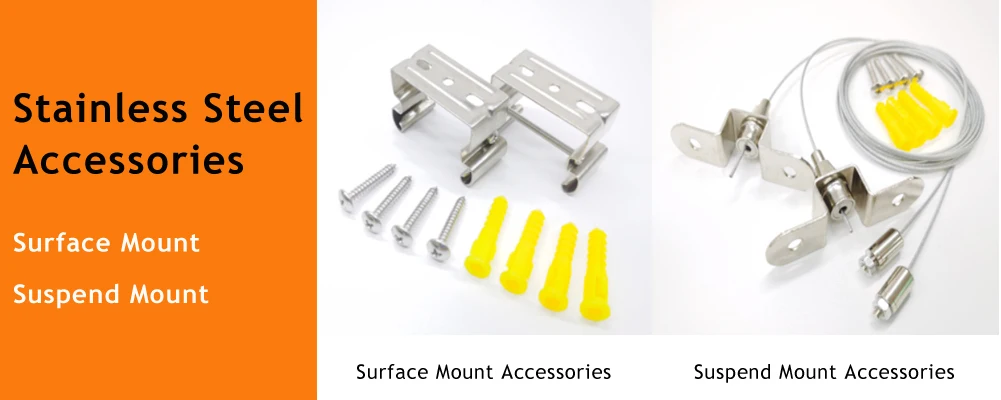

Installation | Ceiling Mounted or Suspened Mounted | ||

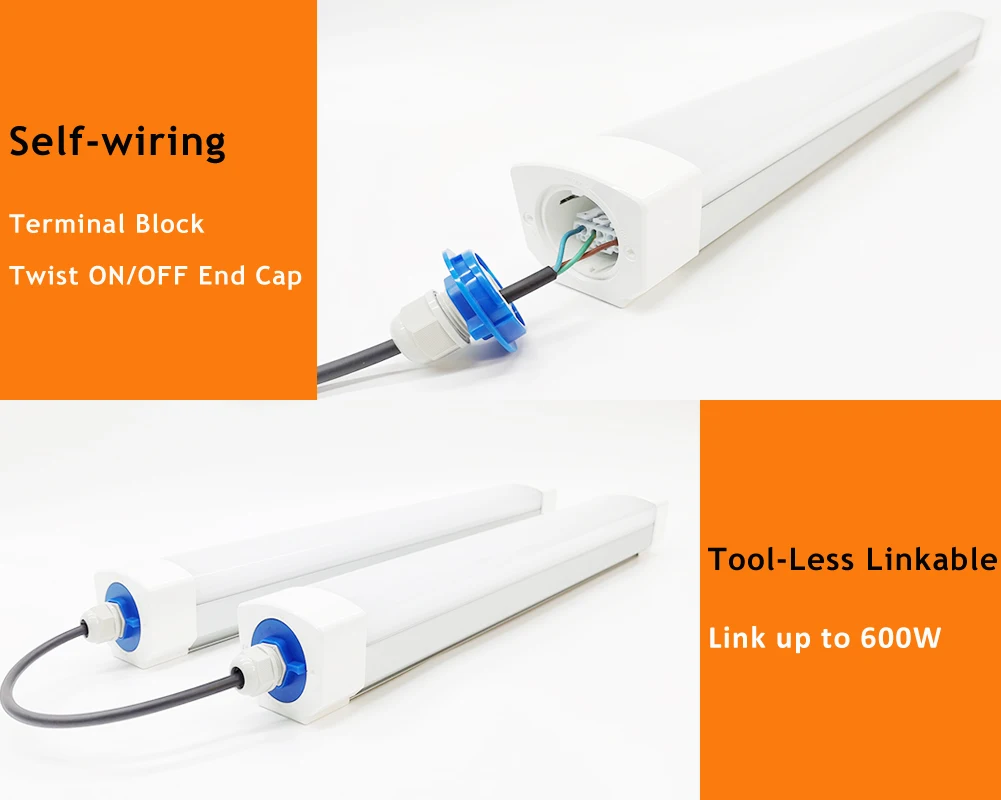

Power Supply | Single end power wiring or Double end power wiring (linkable) | ||
Certificate | CE ROHS LVD EMC ETL CETL DLC FCC |
\t\t\t\t
\t\t\t\t
Standard export carton packing.
3-20 days after confirming order, detail delivery date should be decided according to
production season and order quantity.
\t\t\t\t
\t\t\t\t
Q1. Where is your main market for Triproof?
A: The main market: EU and North America.
Q2. What about the lead time for Triproof?
A: Generally samples lead time around 2-5 working days, mass production time needs 1-3 weeks for different bulk order quantity.
Q3. Do you have any MOQ limit for this Triproof order?
A: In our initial stage, we don’t set MOQ for your service.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, which normally takes 3-5 days for delivery. Airline and sea shipping ways for bulk order are also optional, and delivery time is different based on different destination.
Q5. How to proceed an order for Triproof?
A: Step 1, Let us know your requirements or application
Step 2, We quote according to your requirements or our suggestion
Step 3, Customer confirms the samples and places deposit for formal order
Step 4, We arrange the production.
Q6. Do you offer guarantee for Triproof?
A: Yes, we offer 5-7 years warranty to our products.
Q7: Is it OK to print my logo on this 4ft 5ft 6ft 8ft warehouse led lamps ip65 vapor aluminum body triproof light?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: How to deal with the faulty of Triproof?
A: Step 1, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Step 2, During the guarantee period, we will send new lights with new order for small quantity.
Step 3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
Q9: What is your led chips? light efficiency? CRI? CCT? SDCM?
A: Our chips are Epistar SMD2835, CRI>83, CCT: 3000k/4000k/5000k/6000k, SDCM<4, light efficency: 90-140lm/w
Q10: How should I contact you to start business?
A: You can send enquiry to us, pls click "Send" now. Thank you very much.
Q11: Can we chat directly?
A: Sure. Phone/Whatsapp/Wechat: +86 15919405861 Email: bonnie(at)hongnaxin.com
