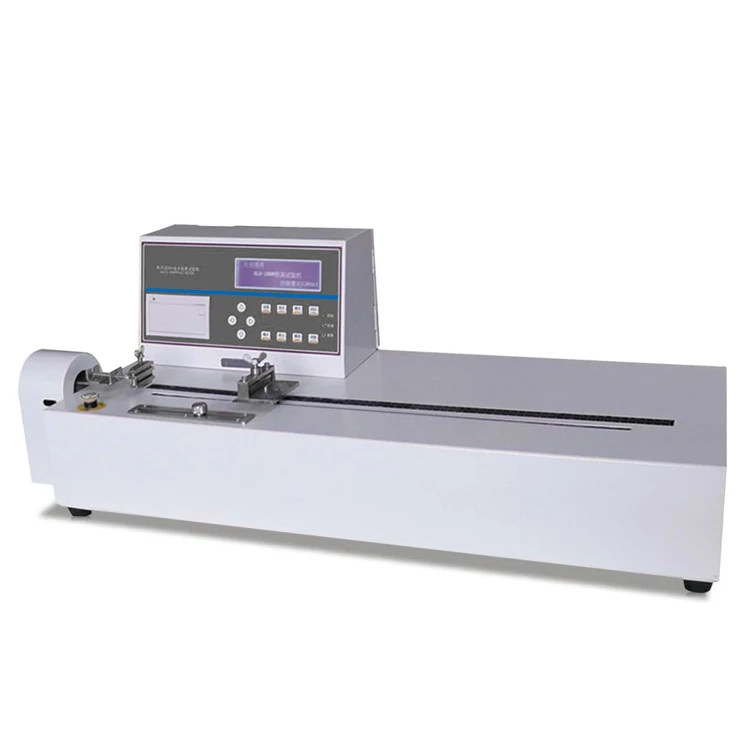

BLD-200N Electronic Peeling Tester

BLD-200N Electronic peeling tester is suitable for peeling, shearing and breaking of adhesives, adhesive tapes, non-drying adhesives, composite films, artificial leather, woven bags, films, paper, electronic carriers and other related products.



Professional technology

l Microcomputer control, LCD screen display, real-time test curve drawing synchronously, professional measurement and control software support.

l The screw drive system greatly improves the accuracy of transmission displacement and realizes stepless speed regulation function.

l Intelligent operation has three test functions: maximum value, average value and real-time value.

l Type in the test parameters, and the test results can be output by group statistical analysis.

l The system has overload protection, emergency power failure protection, and zero fault of manual operation.

l It is equipped with a miniature mute printer, USB interface, computer connection, and can print out test data.

l N,KN\\m,lbf,g Multi-unit selection, automatic printing unit data after the end of the test.

l Compatible with international standards such as ISO, JIS, ASTM, DIN, etc.



Application



BLD-200N Electronic peeling tester has abundant applications, with more than 100 different sample fixtures for users to choose, which can meet the test requirements of more than 1000 kinds of materials; according to the different materials of users, it also provides customized services to meet the test needs of different users.

Some examples of application:



Basic application	Extended application (Need special accessories or restructuring)
Tensile Strength and Deformation Rate	Tear resistance	Shear properties	Heat sealing property	Low-speed unwinding force
Breaking force	Peeling force of stripping paper	Cap Removal Force	Adhesion Strength Test (Soft)	Adhesion Strength Test (Hard)





Testing principle

The machine adheres the sample to the stainless steel plate of the instrument, rolls it with a standard roller, clamps one end of the test plate on the stripper, and clamps the free end of the adhesive tape with another fixture of the test machine at an angle of 180 degrees with the stainless steel to open the adhesive tape at a specified rate. The peeling force needed to peel the adhesive tape was measured by the force continuously returned from the sensor, and the peeling strength was converted into peeling strength.

Testing standard

The instrument meets many national and international standards:GB 4850,GB 7754,GB 8808,GB 13022,GB 7753,GB/T 17200,GB/T 2790,GB/T 2791,GB/T 2792,YYT 0507, QB/T 2358,JIS-Z-0237,YYT0148,HGT 2406-2002



Technical index



Model Item	BLD-200N Electronic peeling tester
Range	0~200 N(Optional configuration 30N, 50N or 100N)
Accuracy class	1
Resolution	0.01 N
Test speed	50, 100, 150, 200, 250, 300, 500 mm/min
Specimen width	≤30 mm
Test stroke	500mm
Power	220 V/50Hz
Size	1000 mm (L) × 370 mm (W) × 400 mm (H)
Net weight	27 kg



Product configuration



Standard configuration	Main engine, Micro-printer, Professional Software, Communication Cable, Test Board, Standard Press Roller
Optional configuration	Optional Sensors, non-standard fixtures, sampling knives



Wooden packing





FAQ

1. Are you a manufacturer or a trading company ?

A: We are a professional manufacturer of test instruments. And we have our own subsidiary company for trading. All the import and export business will be handled by our own trading company.

2. Where is your factory located ? How can I visit there ?

A: Our factory is located in Jinan City, Shandong Province, about 1.5 hours by train from Beijing.

3. How to support me if i don't know how to use it?

A: Free training within the warranty by tel and mail or skype. And we have professional operation manual and operation video. We also can let our technician to customer’s company to provide training and support if customer request.

4. If machines wearing parts need changing, what should we do?

A:We can offer the wearing parts all the time, and offer video to show how to change it.
