Product Description
The portable CNC plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal with plasma cutting; can configurate according to your requirements, thus it is widely applied in industries, such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) The formation of advertising word processing line. Dozens of times higher than that of traditional craft processing effciency.
Portable numerical control flame/plasma cutting machines can be programmed to cut any plane shape parts composed of beeline and arc, which are the same as large gantry cutting machines. It is equipped with a 5.7 inch LED with dynamic and static graphical display. It is directly perceived and very easy to learn. It can be programmed to cut parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducting it via U hardware. The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.
Detailed Images
CNC Control System F2100B
Shanghai Fangling brand Control system
with 7inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.
with 7inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.

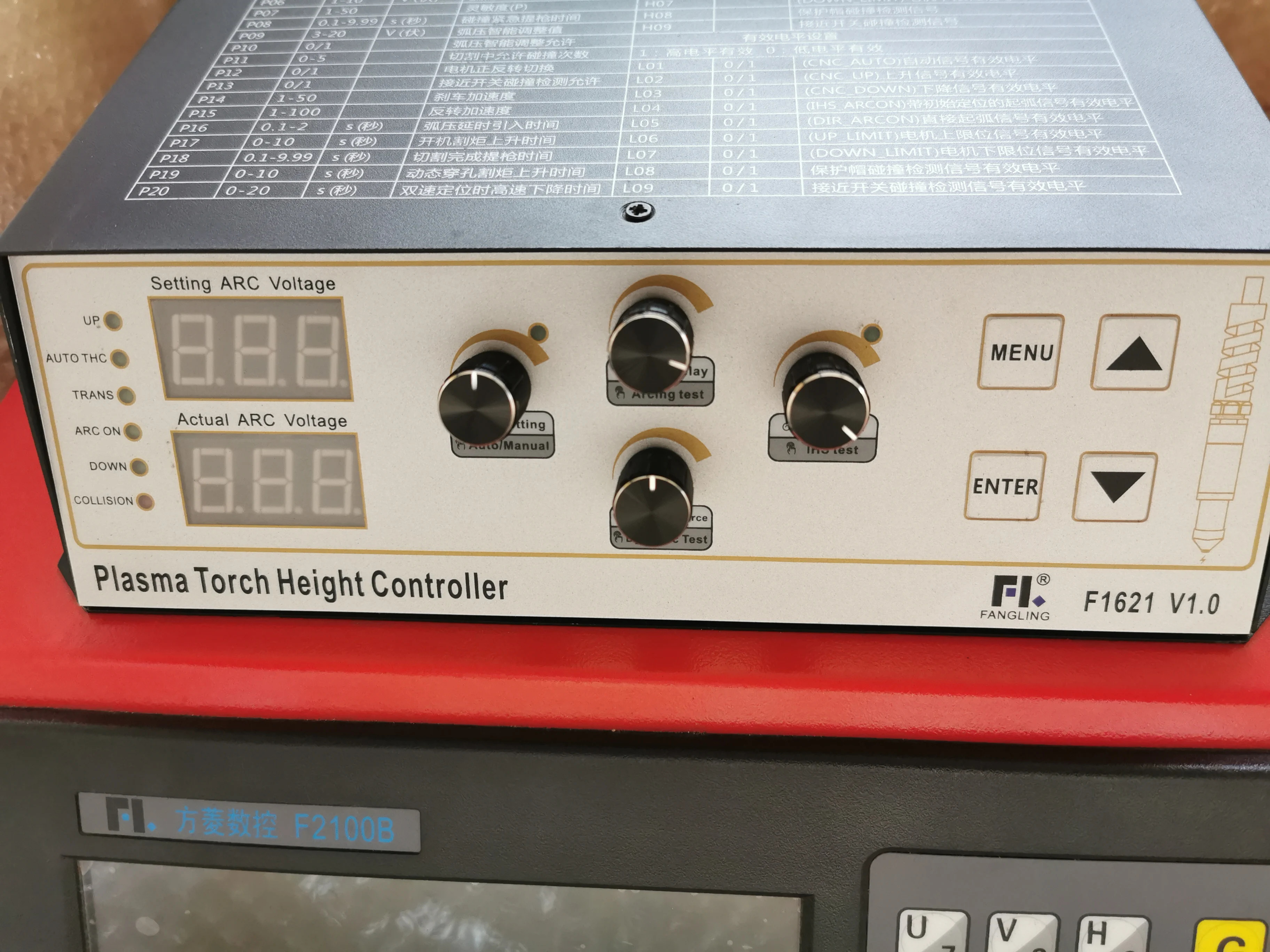

- Shanghai Fangling brand F16201 THC (torch height control)
If metal sheets are rugged, should use
THC to adjust distance from torch to metal
surface.
THC to adjust distance from torch to metal
surface.

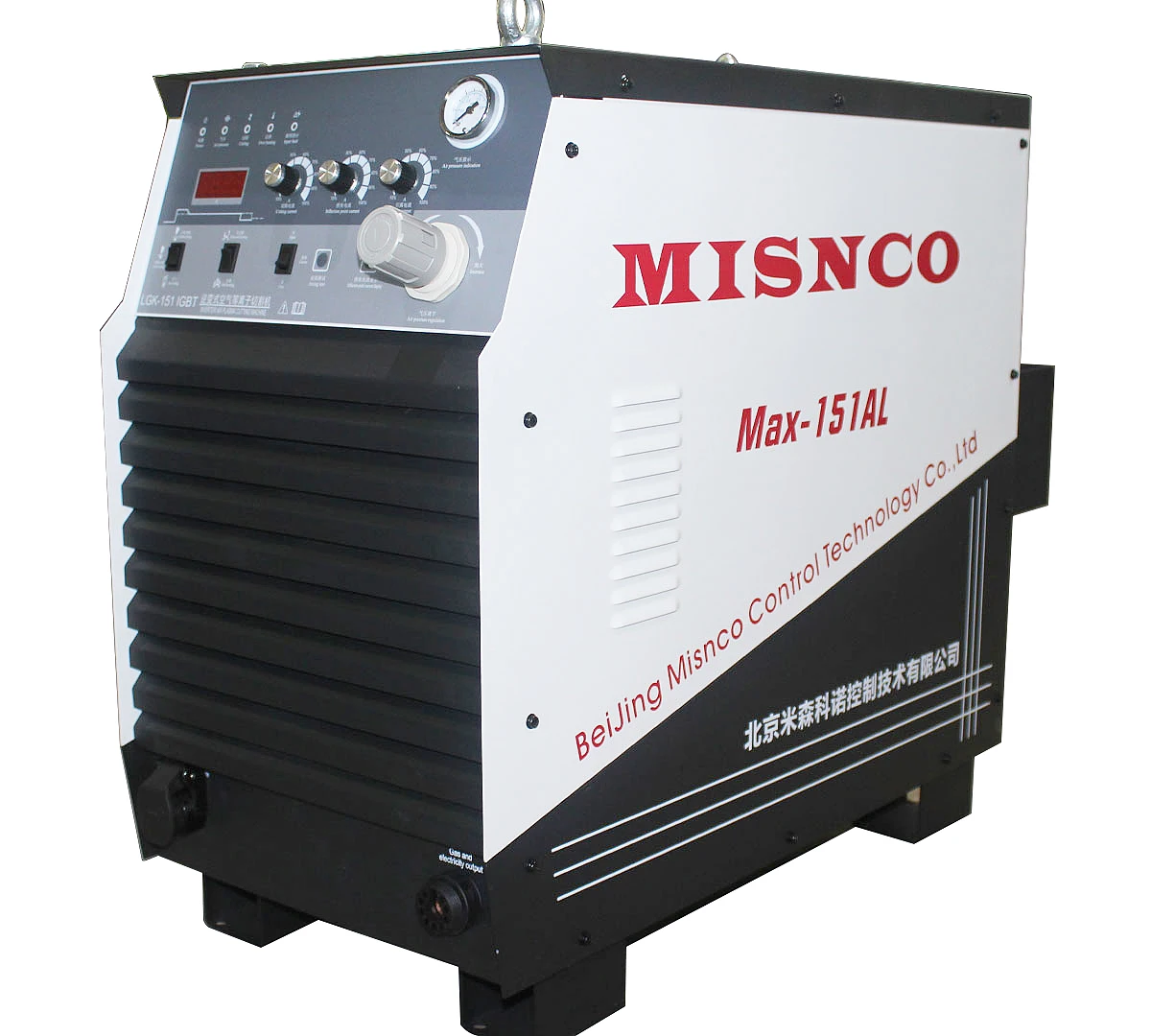

Chinese best brand plasma power source;
151A
151A
Use soft switch inverter technology, to make cutting current very stable;
Cutting current rise slowly, reduce consumption of cutting parts;
Has a wide adaptability to grid voltage;
Unique dust-proof design, high reliability;
Compact structure, small volume, light weight, can be installed on many kinds CNC machines;
Cutting current rise slowly, reduce consumption of cutting parts;
Has a wide adaptability to grid voltage;
Unique dust-proof design, high reliability;
Compact structure, small volume, light weight, can be installed on many kinds CNC machines;

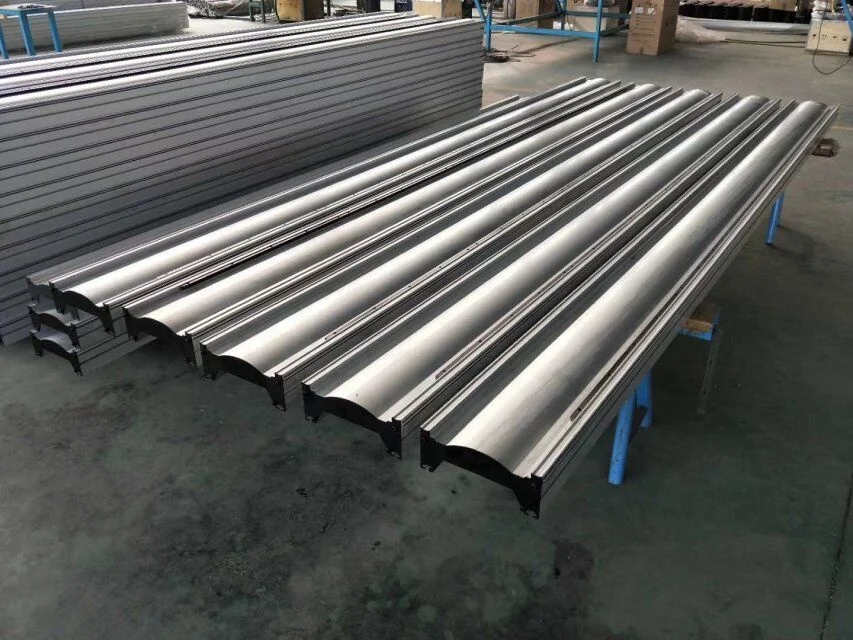

- Big size Track
use high precision linear guide, and light weight alloy-aluminum horizontal rail, not easy become deformation.
Cutting torch
Flame cutting torch is fixed, plasma cutting torch is mobile type.
Flame torch and plasma torch could be changed very easily.
Flame torch and plasma torch could be changed very easily.
Size Information
Technucal Parameters
1 | Model | JX-1530 |
2 | Power source | AC 220/380±10%VAC 50/60Hz |
3 | Cutting mode | O2/C3H8 or C2H2 |
4 | Effective cutting range(mm) | 1500*3000 |
5 | Input Voltage | 220V, 50HZ |
6 | Cutting speed(mm/min) | 0-8000mm/min |
7 | Cutting thickness(Flame) | 6-160 mm (O2/C3H8 or C2H2) |
8 | Cutting thickness(Plasma) | According to plasma power source |
9 | Move precision | ±0.2mm/m |
10 | Plasma THC | YES |
11 | Processing thickness(mm) | 0.3-32mm |
12 | Cutting system | Shanghai Fangling F2100B control system |
13 | Host weight(kg) | 19 |
14 | Gas pressure(Mpa) | Max.0.1 |
15 | Oxygen pressure(Mpa) | Max.0.7 |
16 | Type of gas | C3H8 C2H2 |
17 | Emergency stop | Yes |
18 | Working temperature | -5~45℃ |
19 | Plasma power | Chinese brand IGBT Plasma sources; 200A |
20 | ARC | Untouched arc striking |
21 | Processing Materials | Iron, stainless steel, carbon steel, copper sheets; aluminum sheets, galvanized sheets, Titanium plates and other kinds metal |

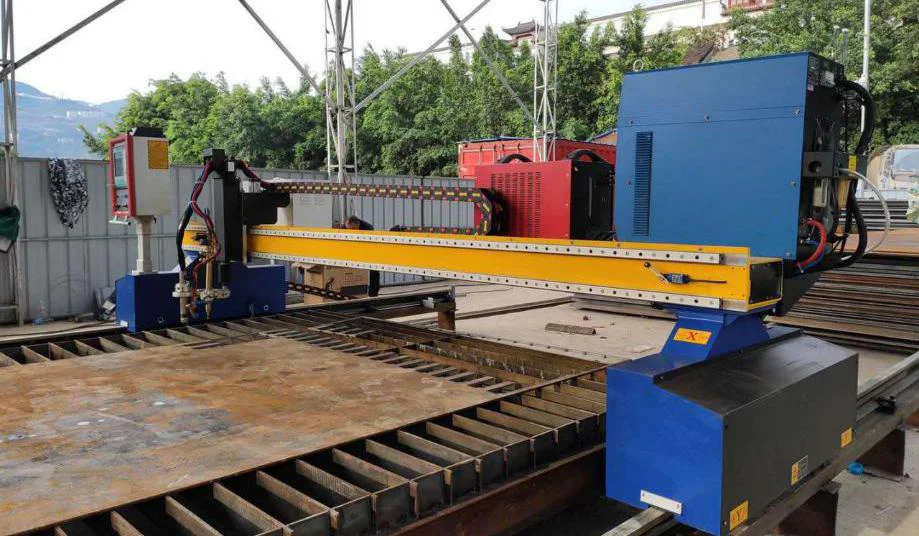

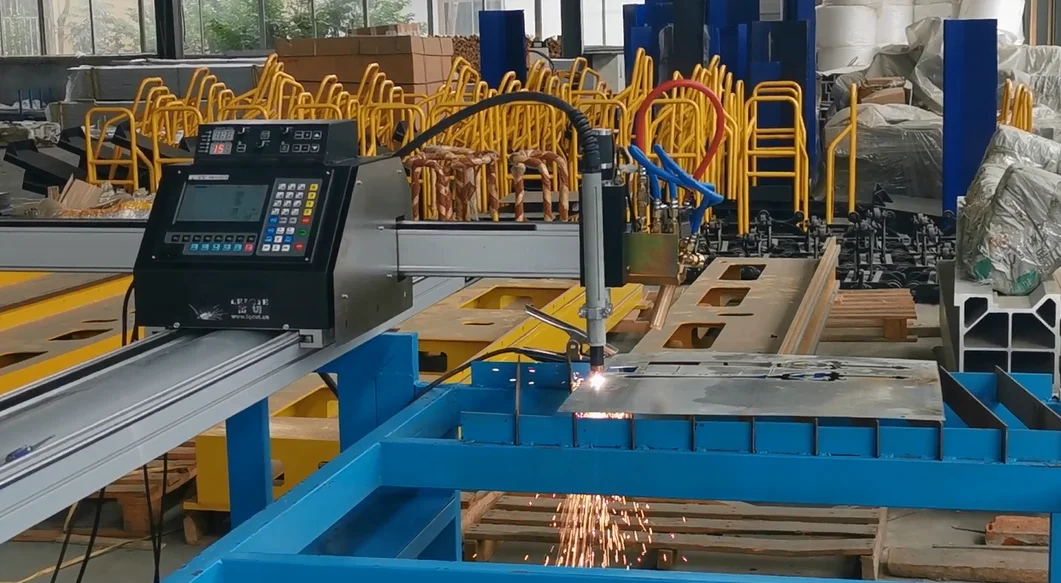

Working pictures
JX-1325, JX-1530, JX-1560 used to cut 0mm to 160mm metal sheets, the metal sheet could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.
Related Products
Packing&Shipping
One machine picked in 2 or 3 wooden cases. Shipped by sea by LCL, or by truck, by air.

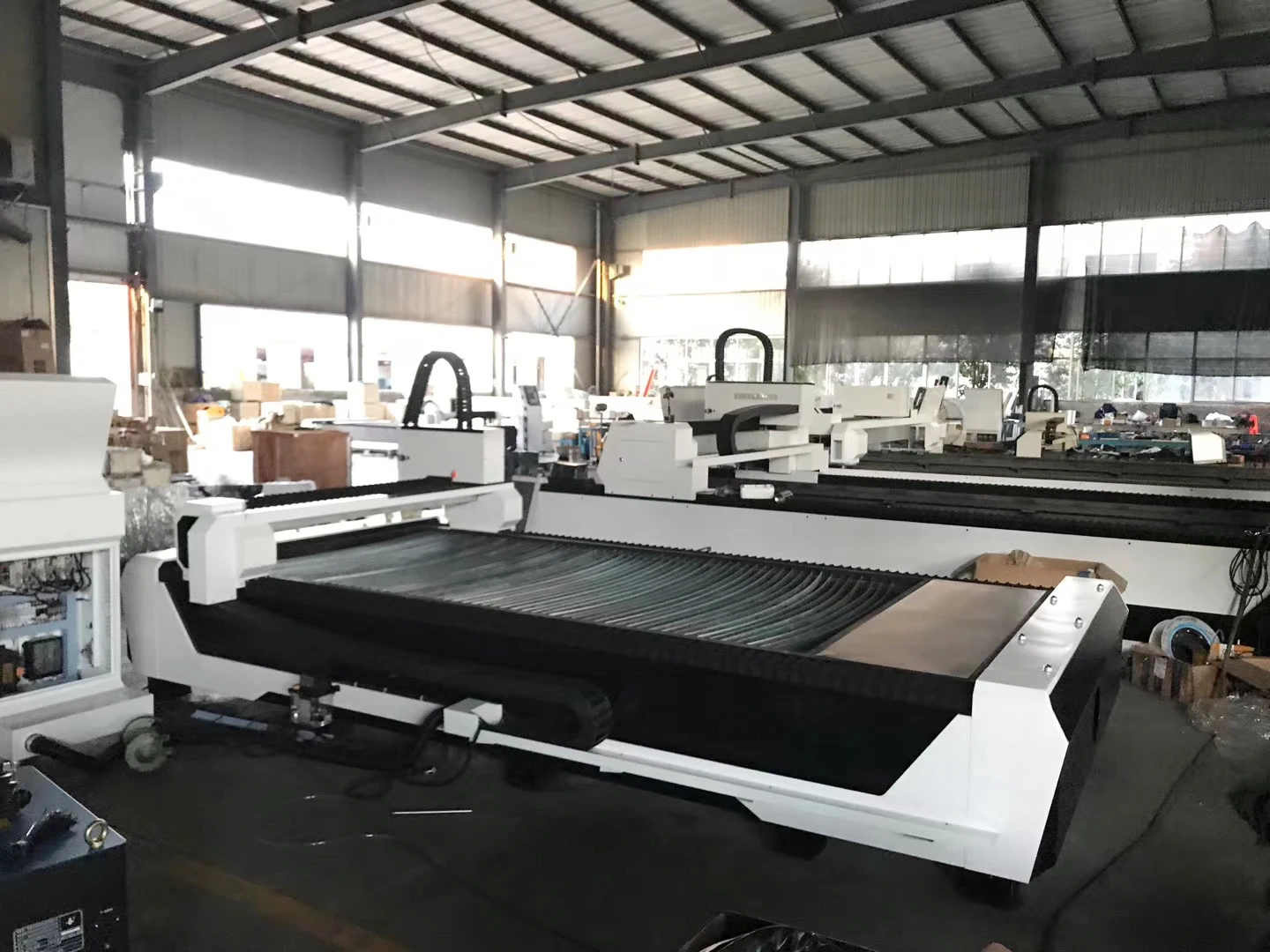

Company Introduction
