Product Description
The series self aligned tank turning roll is absorbing advantages of similar products at home and abroad, designed and
manufactured by us according to the operation requirements of several pressure vessel factories. According with mechanical standard JB/T 9187-1999, it is the device for special purpose adopted to weld metal cylinder especially pressure vessel. It has advantages of advanced technology, reliable quality and simple operation.
manufactured by us according to the operation requirements of several pressure vessel factories. According with mechanical standard JB/T 9187-1999, it is the device for special purpose adopted to weld metal cylinder especially pressure vessel. It has advantages of advanced technology, reliable quality and simple operation.

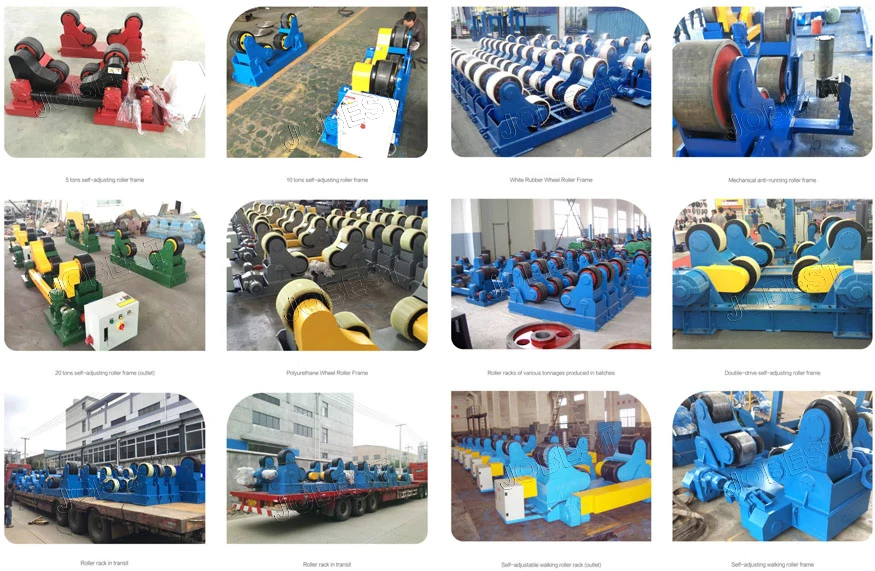

The tank turning roll series includes the self-aligned, the adjustable, the vehicle, the tilting and the anti-drift types. This
self aligned tank turning roll is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. It
can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear
velocity is displayed by the digital. It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range. We also can design and customize various types of the tank turning roll in accordance with the customers requirement.
self aligned tank turning roll is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. It
can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear
velocity is displayed by the digital. It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range. We also can design and customize various types of the tank turning roll in accordance with the customers requirement.
Reasonable price self-align welding rotator table wheel roller stand
Model | Max Load Capacity(t) | Vessel Diameter Range(mm) | Diameter Width of Roller(mm) | Motor Power (kw) | Roller Speed(m/min) |
HGZ5 | 5 | 250-2300 | 250×100 | 0.75 | 0.1-1 Variable Frequence Drive |
HGZ10 | 10 | 320-2800 | 300×120 | 1.1 | |
HGZ20 | 20 | 500-3500 | 350×120 | 1.5 | |
HGZ40 | 40 | 600-4200 | 400×120 | 3 | |
HGZ60 | 60 | 750-4800 | 450×120 | 4 | |
HGZ80 | 80 | 850-5000 | 500×120 | 4 |
Direction for use

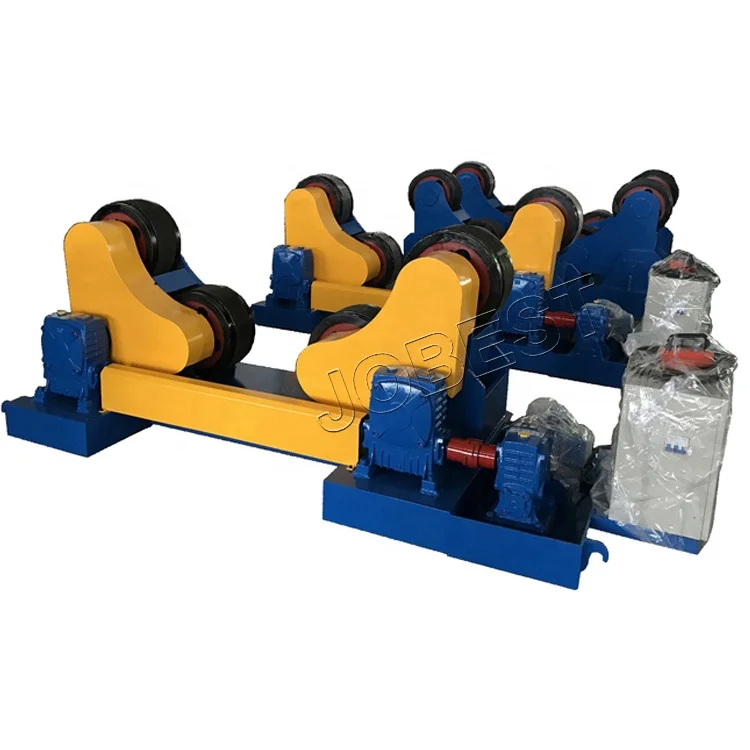

Self aligned tank turning roll mainly consist of power unit, idler unit, electric control box and hand control panel.
Self aligned tank turning roll are used for the inside and outside circumferential and longitudinal welding.
20% overweight design, could making the rotator focus more.
Each motors and Reducers have cover, careful design, ensure the SAFETY.
All the parts using well-known brands in China or other countries. Quality is reliable.
Speed control: Variable Frequency Drive (VFD)
Self aligned tank turning roll are used for the inside and outside circumferential and longitudinal welding.
20% overweight design, could making the rotator focus more.
Each motors and Reducers have cover, careful design, ensure the SAFETY.
All the parts using well-known brands in China or other countries. Quality is reliable.
Speed control: Variable Frequency Drive (VFD)
Description of application effect

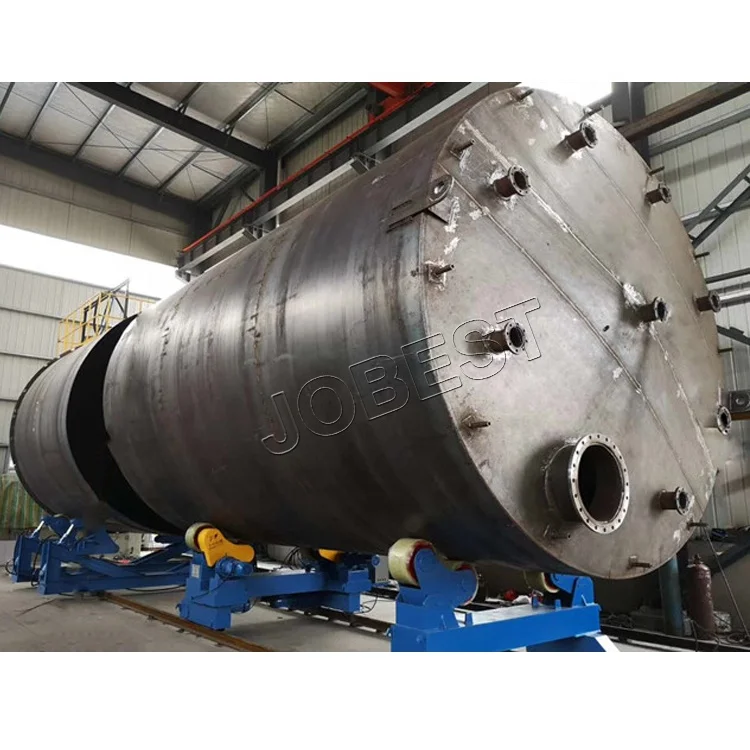

It is mainly used in switching position of cylinder work piece, to get the ideal welding position and speed. It usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system. It also can be used in manual welding, assembling, polishing and crack-defection, etc.
Related Products
Product packaging
Company Profile
FAQ
What JOBEST can do for JOBEST customers:
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
Customization - Can your machine or other products be customized?
JOBEST: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.
Transportation-What about the transportation?
JOBEST: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
JOBEST: We provide 24month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
Customization - Can your machine or other products be customized?
JOBEST: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.
Transportation-What about the transportation?
JOBEST: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
JOBEST: We provide 24month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
