Parameter of WDS-650 automatic bga rework station:

Power	AC 220V±10% 50/60Hz  5.4k VA
Total Power	Max 6400W
Heater power	Upper temp.zone 1200w, second temp.zone 1200w, IR  temp.zone 4000w
Temperature  Controlling	K-sensor closed loop control ,independent      temperature control
PCB size	Max:410*380mm  Min:10*10mm
BGA Application	Max 70mm*70mm    Min 1mm*1mm
Alignment system	Optical lens + HD industrial camera
Tip spot mnitoring	Optical external camera to monitor solder ball melting process during welding

 Detailed images

Main Features

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating, IR preheating zone adopts imported infrared gold-plated light tube to heat up quickly, which can heat up at the same time from the top of he component to the bottom of the PCB.

 2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;  automatic bga rework station

 4. temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

 Multi-functional and humanized operation system

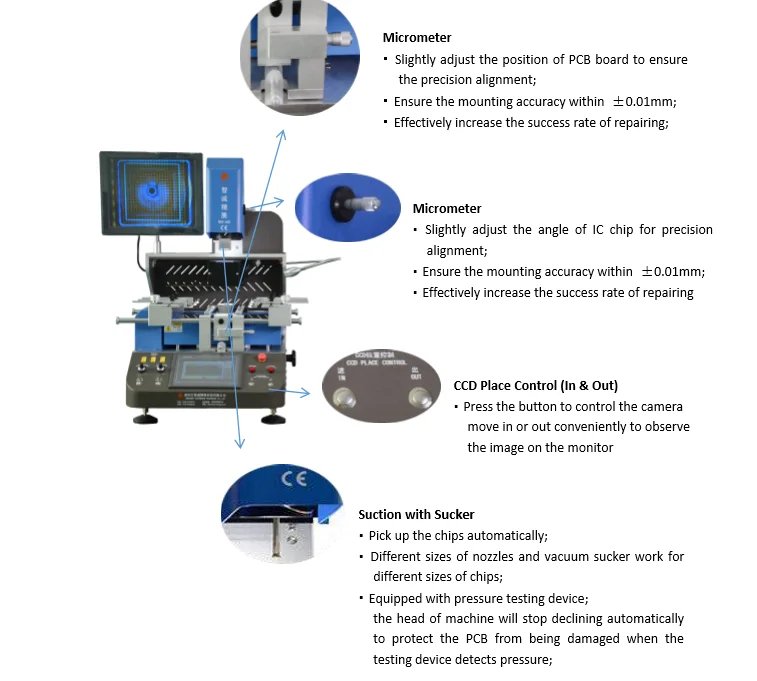

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation  and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

Other types of BGA rework station

1. Manual BGA rework station.  It mainly applies to Mobile and Laptop. The maxmum bga chip can reach 60*60mm.

2. Auto optical alignment system bga rework station. It mainly applies to PS3, PS4, Xbox,  Mobile Laptop and most kind of motherboards

3. High Professional mobile phone chip replacement bga rework station. It is dedicated to repair mobile phone and mini iPad only with optical alignment system

4. Big size Automatic optical alignment system bga rework station.  It mainly applies to TV,Laptop, Mobile and other big size motherboards.
