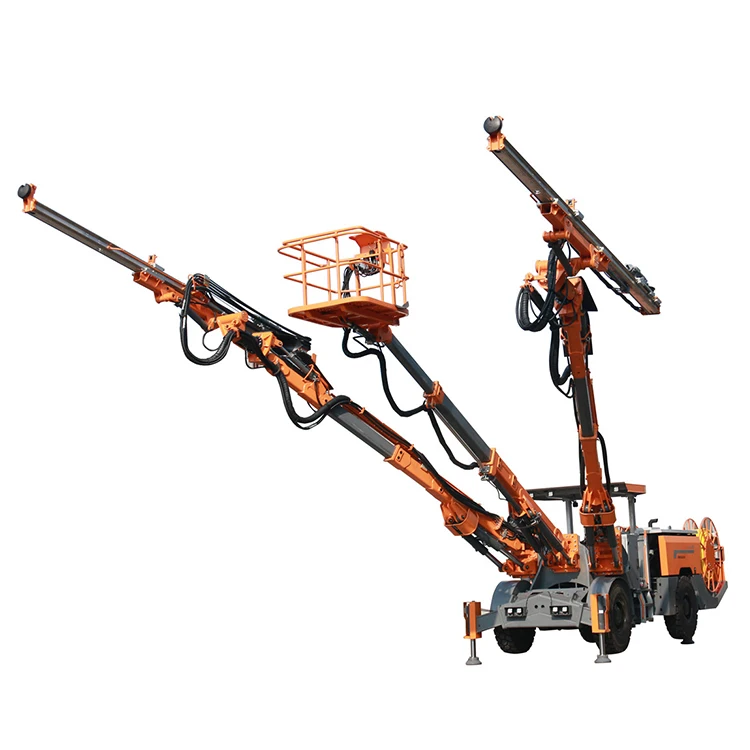

Крупногабаритная буровая установка ZEGA UJ22 с двойной тремя одиночными бурами подземная Kaishan для горных
- Категории: Горное оборудование >>>
- Поставщик: Shanghai,APCOM,Compressor,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

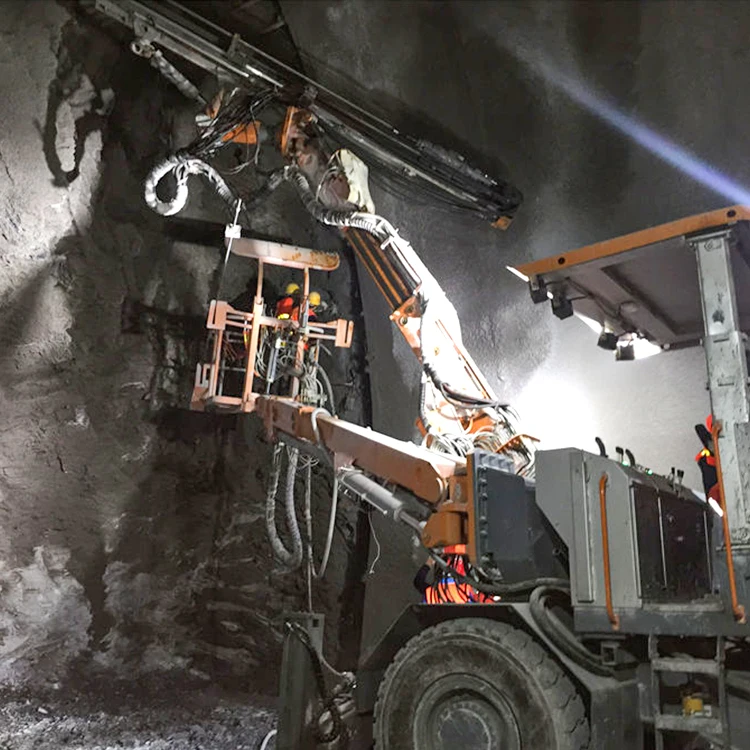

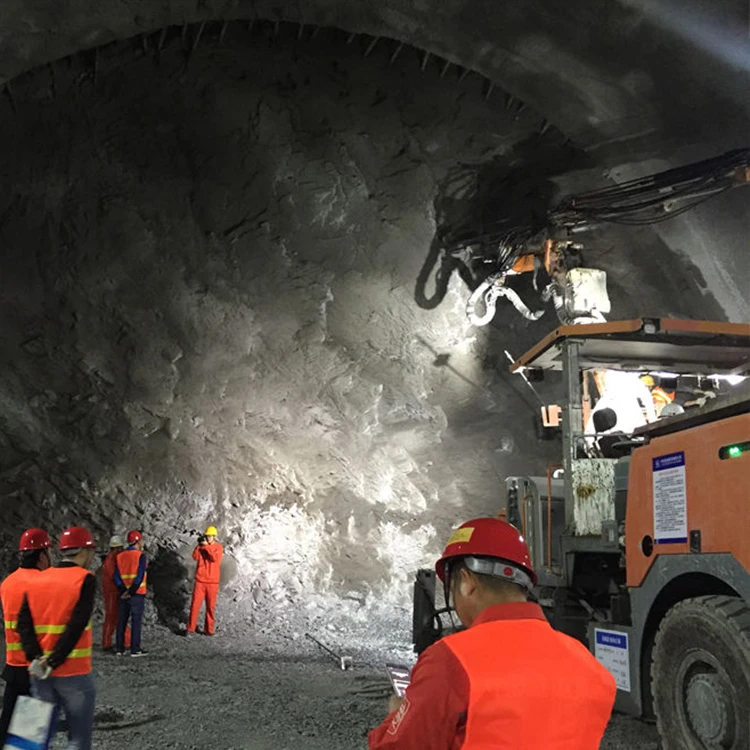

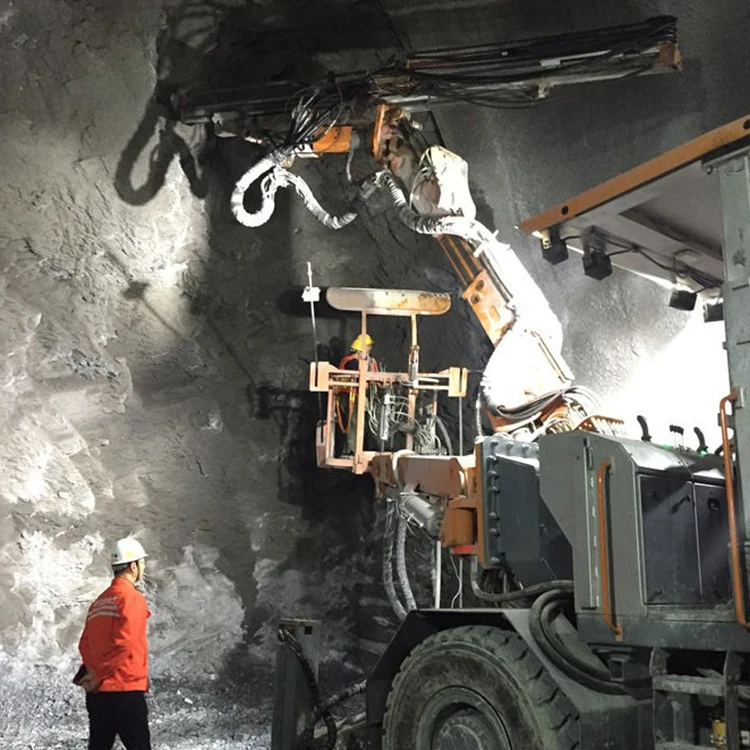

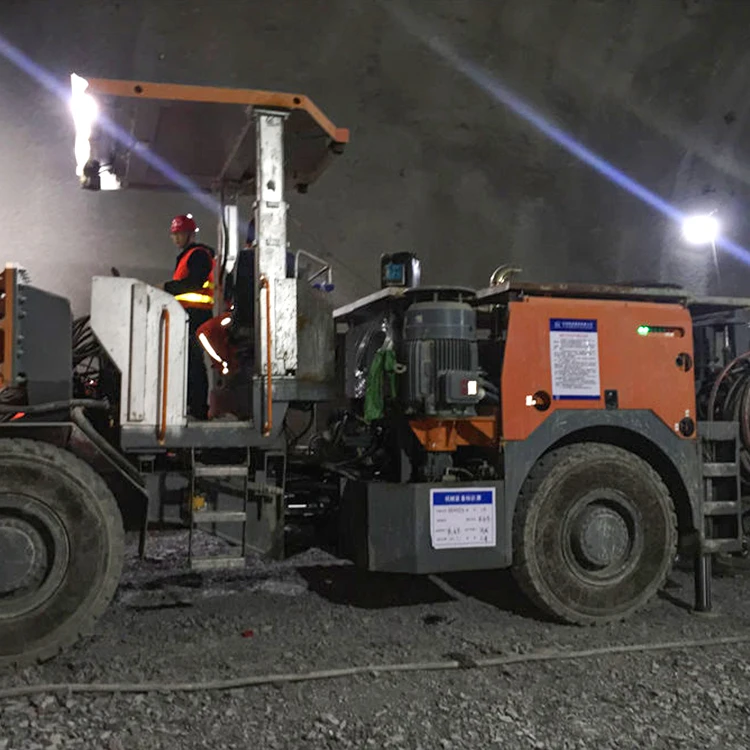

Face Drill Rig
Main Tehnical Specifications | ZEGA UJ22 | ZEGA UJ23 |
Hole Range | 45 - 89 mm | 45 - 89 mm |
Drill rod size | T38-H35-R32/5525 mm | T38-H35-R32/5525 mm |
Drifter model | ZY104M | ZY104M |
Diesel engine | Cummins QSB5.9-C170-30 | Cummins QSB5.9-C170-30 |
Diesel engine power | 125 kW @ 2200 rpm | 125 kW @ 2200 rpm |
Electri moto Power | 55 kW x 2 | 55 kW x 3 |
Water pump pressure & displacement | 15 bar 14 m3/h | 17.5 bar 18 m3/h |
Air compressor pressue & F.A.D | 8 bar 1 m3/h | 8 bar 1 m3/h |
Number of booms | 2 + 1 | 3 + 1 |
Tramming speed | 14.5 / 6.5 / 3.7 km/h | 14.5 / 6.5 / 3.7 km/h |
Climbing ability | 15° | 15° |
Turning radius | Inner R4800 mm Outer R8200 mm | Inner R4800 mm Outer R8200 mm |
Working face dimensions:Width x Height | 13.8 x 9.7 m | 13.8 x 9.7 m |
Max.working area | 110 m2 | 110 m2 |
Dimensions | 16800 x 2500 x 2700 / 3400 mm | 16800 x 2500 x2700 /3400 mm |
Total weight | 36000 kg | 39000 kg |
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 189 6700 9313
WhatsApp: +86 181 6701 6615
Drill Rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) CLICK ON -> Automated hydraulic drilling rig ( Drilling method: Tophammer ),7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) CLICK ON -> Anchor surface drilling rig ( Drilling method: Down-the-hole ), 3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) CLICK ON -> Water well surface drilling rig ( Drilling method: Down-the-hole ), 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
CLICK ON -> 16 products separate drilling rig
CLICK ON -> 4 products integrated drilling rig no cabin
CLICK ON -> 8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
Rock drill
Main Specifications | ZY104M | ZY103 |
Impact Power (kW) | 20 | 15 |
Max Torque (N.m) | 680 | 680 |
Impact Frequency (Hz) | 60 | 40 - 60 |
Hydraulic System Pressure (bar) | 210 | 190 |
Rotation Speed (rpm) | 0 - 340 | 0 - 300 |
Lubrication Air Consumption (at 2 bar) (L/S) | 6 | 6 |
Water Confumption (L / min) | 66 | 66 |
Rotation System | Indpendent | Indpendent |
The Distance From The Top To The Rotation Center (mm) | 88 | 88 |
Shank | R32 / T38 | R32 / T38 |
Weight (kg) | 170 | 150 |
Related Surface Rig
Drill Rig Model | Rig Power | Hole Range | F.A.D | Pressure | Drifter model | Hole Depth |
UP45 | Diesel engine:58 kw Electric moto:55 kw | Φ90-130 mm | 4.5-15 m3/min | 10-25 bar | / | 30 m |
UJ18 | Diesel engine:73.6 kw Electric moto:55 kw | Φ45-89 mm | 0.5 m3/min | 8 bar | ZY104M | / |
UJ21 | Diesel engine:60 kw Electric moto:55 kw | Φ45-89 mm | 0.3 m3/min | 8 bar | ZY104M | / |
UJ21M | Diesel engine:125 kw Electric moto:55 kw | Φ45-89 mm | 1.0 m3/min | 8 bar | ZY104M | / |
UJ22 | Diesel engine:125 kw Electric moto:55 kw x 2 | Φ45-89 mm | 1.0 m3/min | 8 bar | ZY104M | / |
UJ33 | Diesel engine:179 kw Electric moto:55 kw x 3 | Φ45-89 mm | 1.0 m3/min | 8 bar | ZY104M | / |
