HF Welding Steel Pipe Machine ERW Tube Mill

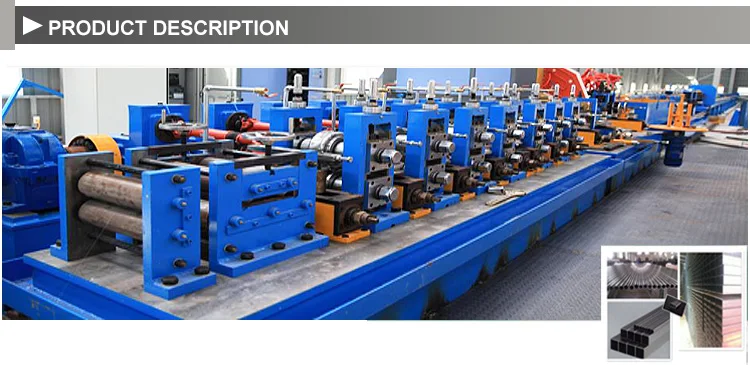

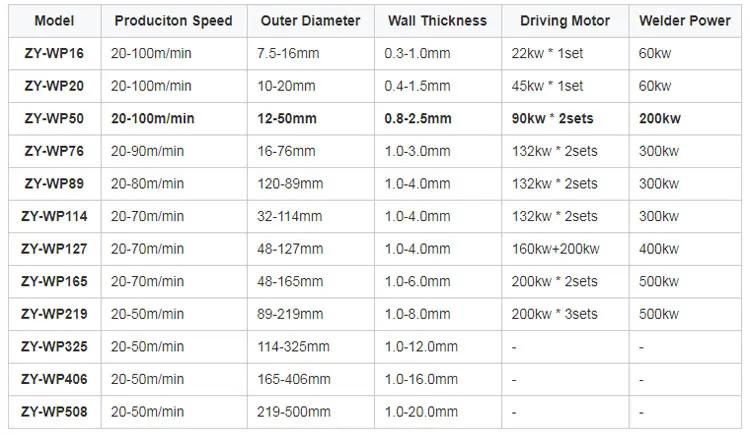

Product Description
Product Display
1. Double heads Decoiler (Hydraulic model)
Configuration: Hydraulic drive
Coil inner dia.: Φ510mm
Coil outer dia.: ≤Φ1650mm
Coil outer dia.: ≤Φ1650mm
2. Shearing & Welder
Pneumatic system: 0.4~0.7 MPa
Welder: argon arc welding
Welding current: 22~315A
Welding current: 22~315A
3. Horizontal accumulator
Out diameter: 4.2m
Width of metal strip: 78~240mm
Thinness of metal strip: 0.5~2.5mm
Thinness of metal strip: 0.5~2.5mm
4. Horizontal & Vertical roll frame
Forming height: Φ160mm
Adjusting of Horizontal roller: Manual / manual sync
Adjusting of Vertical roller: Manual / sync screw adjusting
Adjusting of Vertical roller: Manual / sync screw adjusting
5. Welding section
Type: High frequency welding
Size: GGP-200-0.4-HC
Power: 200Kw
Power: 200Kw
6. Cooling
Cooling way: Spray & soaking
Length of cooling: 3600mm
Quantity: 1 set
Quantity: 1 set
7. Hot frication computer saw
Max running speed: 80m/min
Applicable pipe size: Φ12.7~Φ76mm
Applicable pipe thickness: ≤2.2mm
Applicable pipe thickness: ≤2.2mm
8.Output roller table
Length: 15m
Discharging speed: 130m/min
Driving motor: AC3Kw
Driving motor: AC3Kw

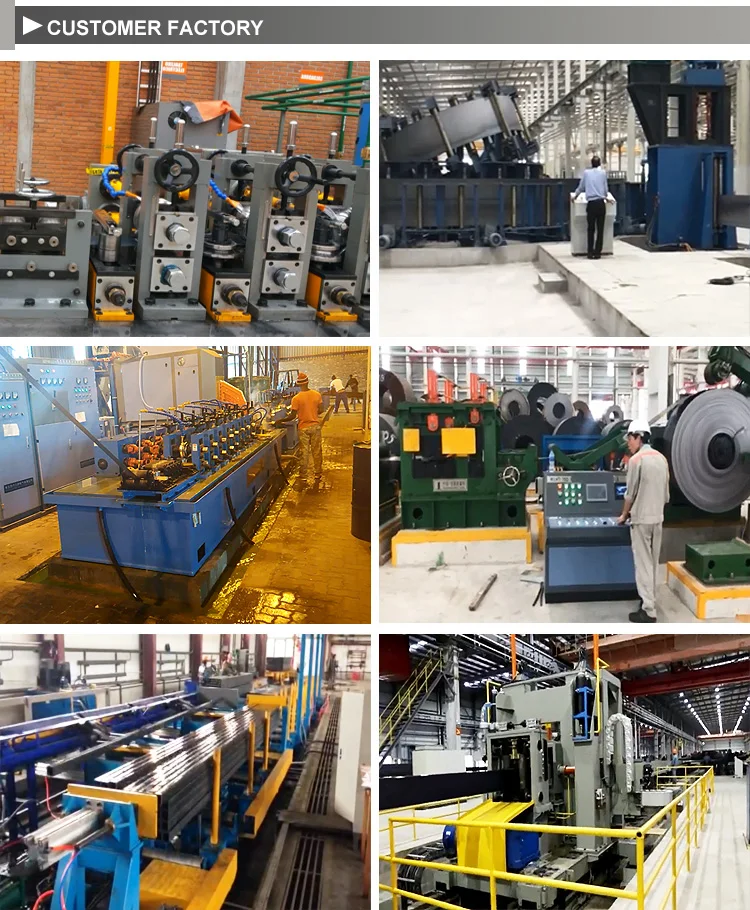

Client's Plant
