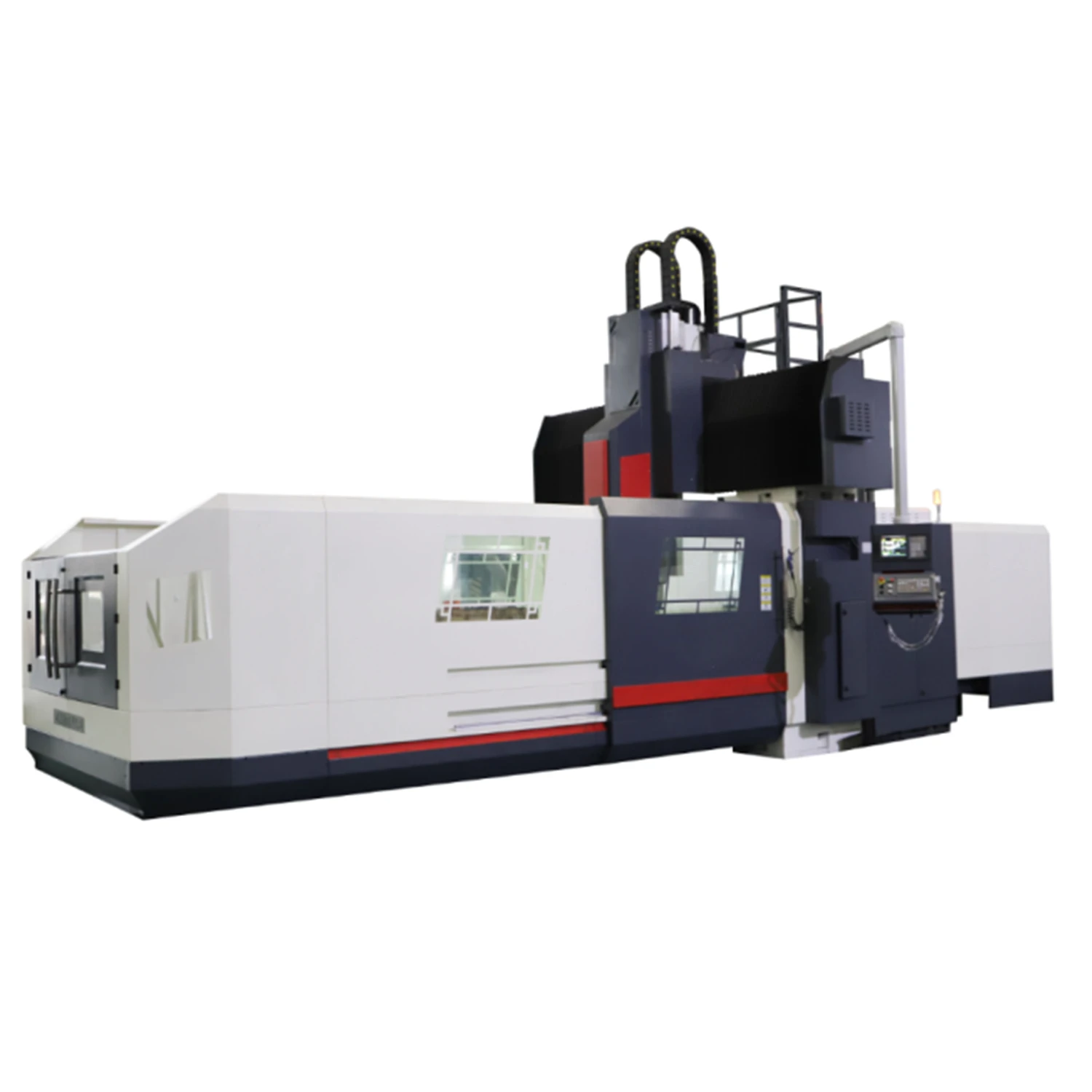

Металлический центр машины точности CNC фрезерный станок портального
- Категории: Электрический трубонарезной станок >>>
- Поставщик: Almaco,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

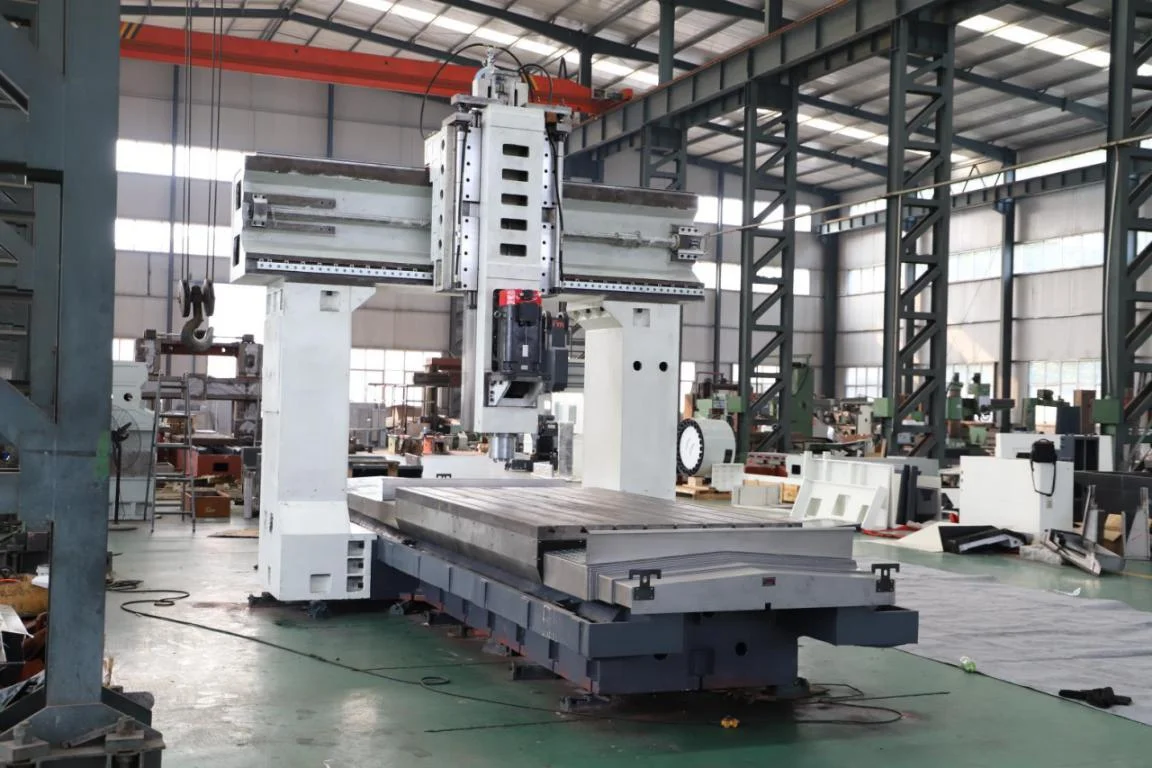

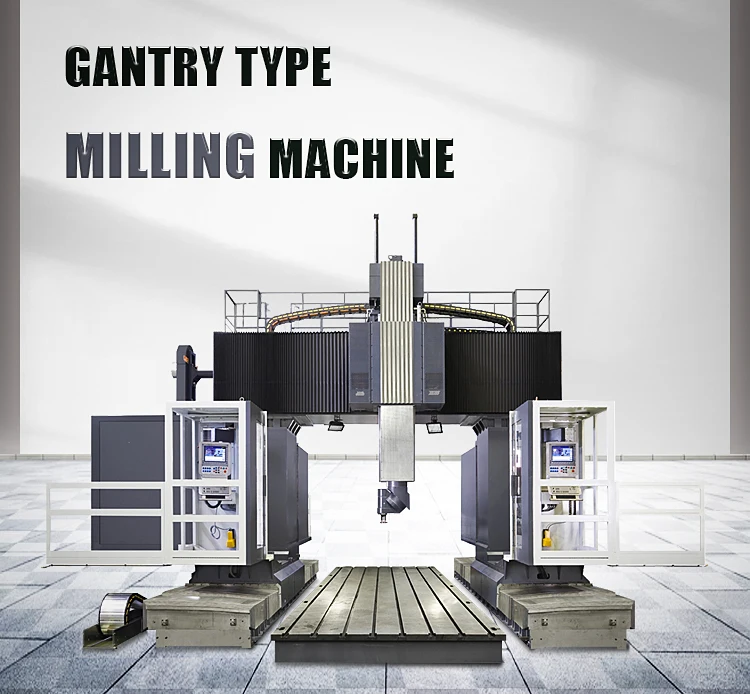

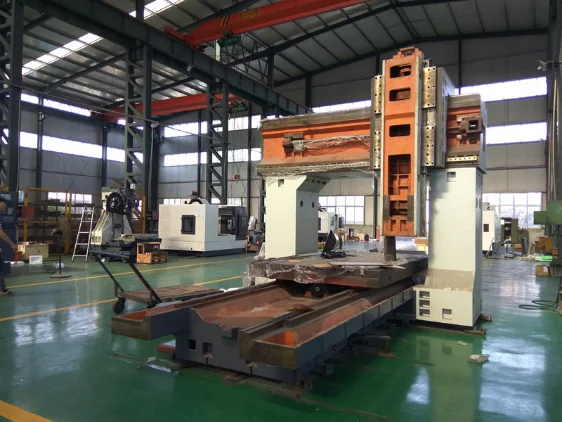

Gantry milling machine is a milling machine with portal frame and horizontal long bed. The gantry milling machine can use multiple milling cutters to process the surface at the same time, with high machining accuracy and production efficiency. It is suitable for processing the plane and inclined plane of large workpieces in batch and mass production. CNC gantry milling machine can also process spatial curved surface and some special parts.
mobile type (also known as bridge type). The characteristics of bridge gantry milling are small floor area, large bearing
capacity, gantry travel up to 20 meters, easy to process long or heavy workpiece.

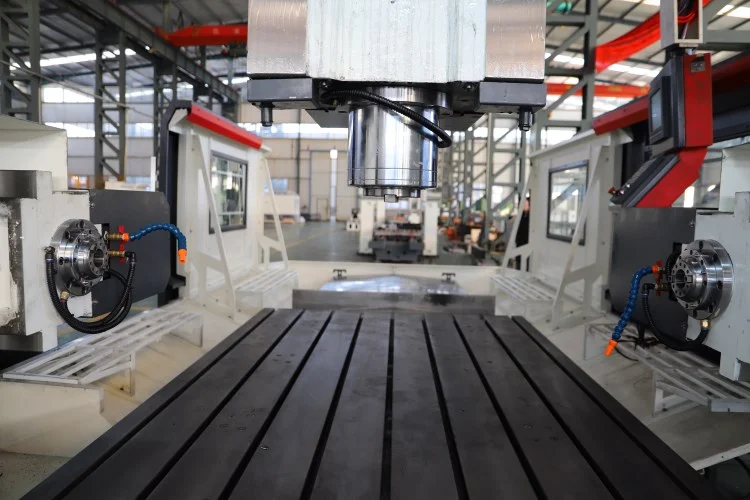

2. The milling head is equipped with ball screw, pneumatic broach device and servo motor drive;
Specification
Machine Type | Unit | GMF3022 |
Worktable (length×width) | mm | 3000×1800 |
Maximun Load of table | kg | 12000 |
T-slot | mm | 9-22×200 |
Gantry width | mm | 2230 |
Travel for X/Y/Z axis | mm | 3200/2200/1000 |
Distance from spindle nose to table surface | mm | 310-1310 ( spindle short nose end ) |
CNC system | FANUC Oi MF | |
Rapid shift of axis of X/Y/Z | m/min | 2012/12/10 |
Maximun cutting feed speed | m/min | 7 |
Standard tool quantity | Piece | BT50/24 |
The larges diameter cutter knife/length | mm | Φ125/300 |
Tool exchanging manner | Pneumatic | |
Maximum tool weight | kg | 18 |
Positioning accuracy | mm | 0.021 |
Accuracy of repeated positioning | mm | 0.02 |
X/Y/Z-axis guide specifications | 2-45（X)/2-45(Y)/Z hard rail | |
Spindle specifications | BT50/Φ200 | |
Belt drive milling head, the maximum speed | r.p.m | 4000 |
Motor power of spindle | kw | 22/26 |
Requirements for air compressing | kg/cm² | ≥6 |
Air pressure flux | m³/min | ≥0.5 |
Integrated weight | kg | 32000 |
Overall dimension (length×width×height) | mm | 7705×4650×5167 |
