ISO9001 2015 точный цилиндр 1020 заточенная стальная труба и

Описание и отзывы

Характеристики

Commodity name: ISO9001 2015 Precision cylinder 1020 Honed Steel Pipe and Tube

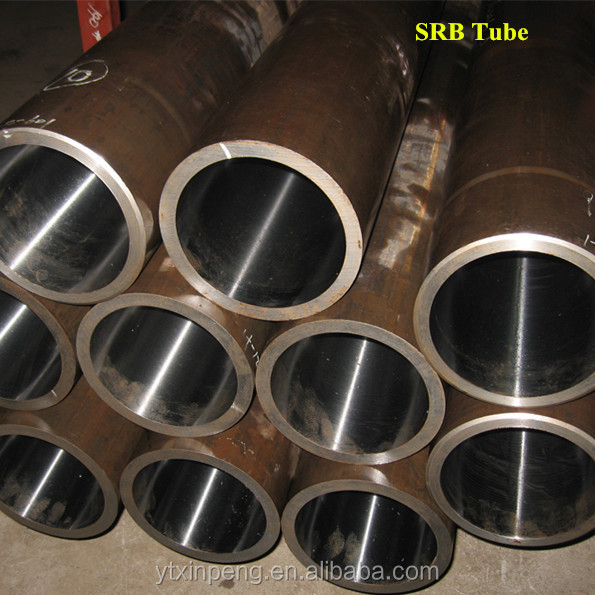

 En stanard SRB Honed Cold finished Hydraulic steel tube made in china  is a kind of after cold rolling processing of a kind of high precison steel tube, full name cold rolled precision seamless steel tube. Precision seamless steel tube wall inside and outside the precision seamless steel pipe seamless steel pipe without oxidation layars, under high pressure without lea, high precision, high finish, cold bending deformation, flaring, flattening without cracks,etc, it is mainly used to produce pneumatic or hydraulic components products, such as a cylinder or cylinder, are made seamless tube. the chemical composition of precision seamless steel tube with carbon sulfur C,Si, Mn, S, P, Cr.



The difference between precision steel pipe and seamless pipe:

1. the seamless steel tube with obvioue difference is that dimensional accuracy, can be up to 0.1mm.

2. high precision steel pipe diameter surface finish, the customer without processing can be used directly and ordinary seamless steel tube to the customer and lather, polishing processing.



Features:

hydraulic cylinder tube st52 din2391  inside and outside the wall without oxidation layer, under high pressure, no leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, surface rust proffing

1. The smaller outer diameter

2. High precision to do small batch production

3. Cold drawn finished products of high precision, good surface quality

4.The steel pipe transverse area is more complex

5. Steel pipe is superior performance, dense metal

Specifiation:

Standard	DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713
Grade	ST35(E235), ST37, ST24(E255), ST52(E355), 10#, 20#, 35#, 45#
O.D.	30MM-400MM
W.T.	2-30mm
Surface Treatment	Polished , cold drawn , cold rolled, honed, anneal, Srb , od polished
Packing	1. bundle packing 2. marking as per customer's requests 3. paint on the pipe as per customer request 4. pipe caps as customer request
Condirion of Delivery	1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, threfore small steel pipe plasticly, the plasticly degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) 5. BKS(+SR) have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again





Size ID*OD (mm) length can be fixed biggest 6M
40*50	90*110	140*170	190*215
40*55	95*110	145*170	190*220
50*60	95*115	150*170	190*225
50*65	100*110	150*175	200*220
55*70	100*114	150*180	200*225
60*70	100*115	155*180	200*230
60*75	100*120	160*175	200*245
60*78	100*125	160*180	200*250
63*73	105*125	160*185	220*250
63*75	110*125	160*190	220*270
63*76	110*130	160*195	225*250
63*78	115*130	165*190	240*273
65*80	115*135	165*205	250*290
70*80	120*140	170*200	250*300
70*82	125*140	180*200	200*213
70*85	125*145	180*205	200*216
70*90	125*150	180*210	250*266
75*90	130*150	180*215	60*45
80*92	130*155	180*220	70*57
80*95	130*160	185*205	90*80
80*100	135*160	185*215	102*90
85*100	140*160	185*220	50*40
90*105	140*165	190*210	55*40

















































































Variety

Processing	Cylinder Diameter	Straightness	Size Accuracy	W.T/mm	Inner Bore Roughess
Cold drawn	ID30-250	0.3	H9-H11	±10%	0.4~1.6um
Honed tube	ID50-250	0.3	H7-H9	±10%	<0.4um



Mechanics performance

Material	Tensile strength	Yield strength	Elongation	Hardness
Ck20/20#/AISI1020	>520 N/ mm2	>375 N/mm2	>15%	>85HB
Ck45/45#/AISI1045	>600 N/ mm2	>520 N/ mm2	>15%	>85HB
ST52/16Mn/Q345D	>600 N/ mm2	>520 N/ mm2	>15%	>85HB
25Mn/STKM 13C-T	>600 N/ mm2	>530 N/ mm2	>15%	>85HB





 Delivey conditions:



• Standard packing with plastic caps and strapped bundles.


• Commercial length 2000~10500mm,custom lengths upon request


• Surface protection

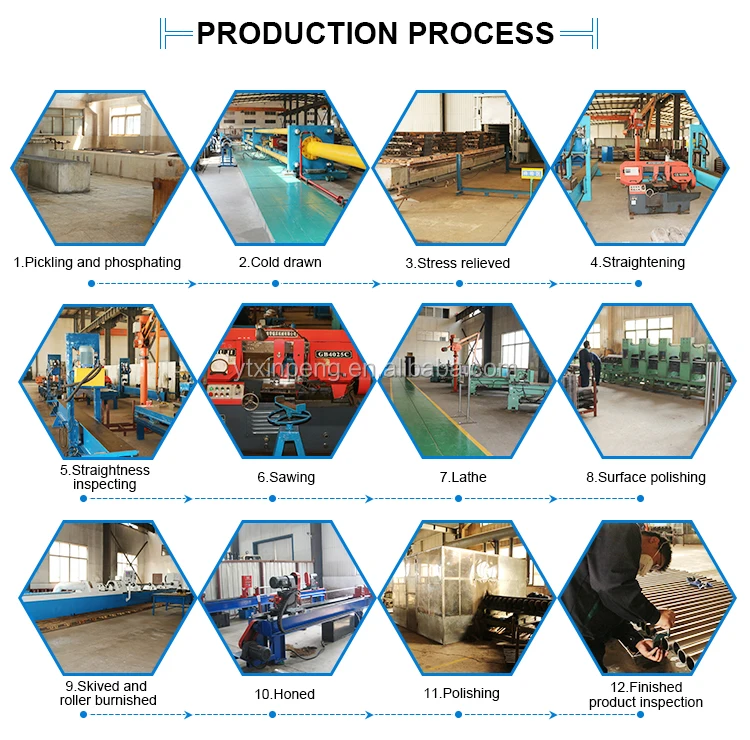

Production Process:





Application:



hydraulic cylinder tube st52 din2391 widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestrymachinery, etc.





About our service:



1. Cargo track service during transporting and feedback service after cargo is loaded on board



2. Flexible terms of payment by



3. Big discount for repeat customers



4. Smooth delivering procedure



5. Payment Terms: T/T , L/C And so on.



If there is any Question, please feel free to send us inquiry.



We will provide the professional Explanation.



We always do our Best!
