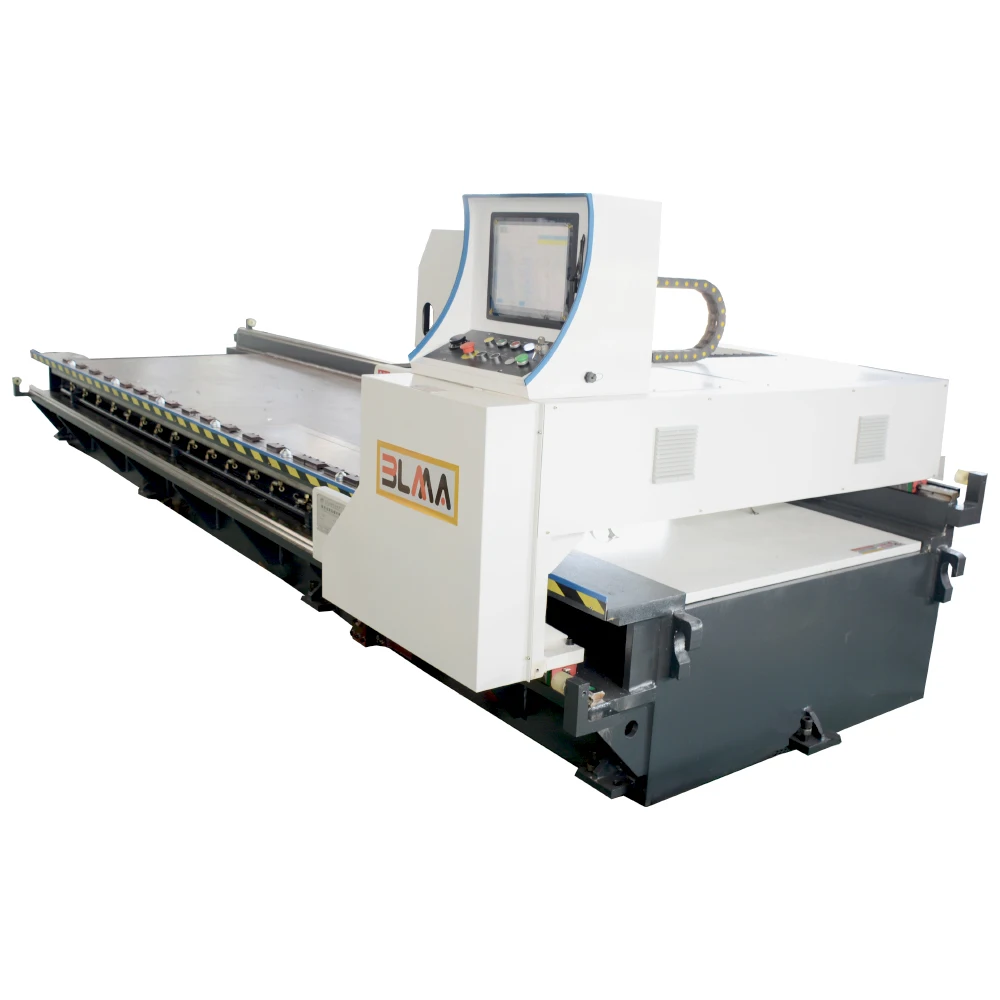

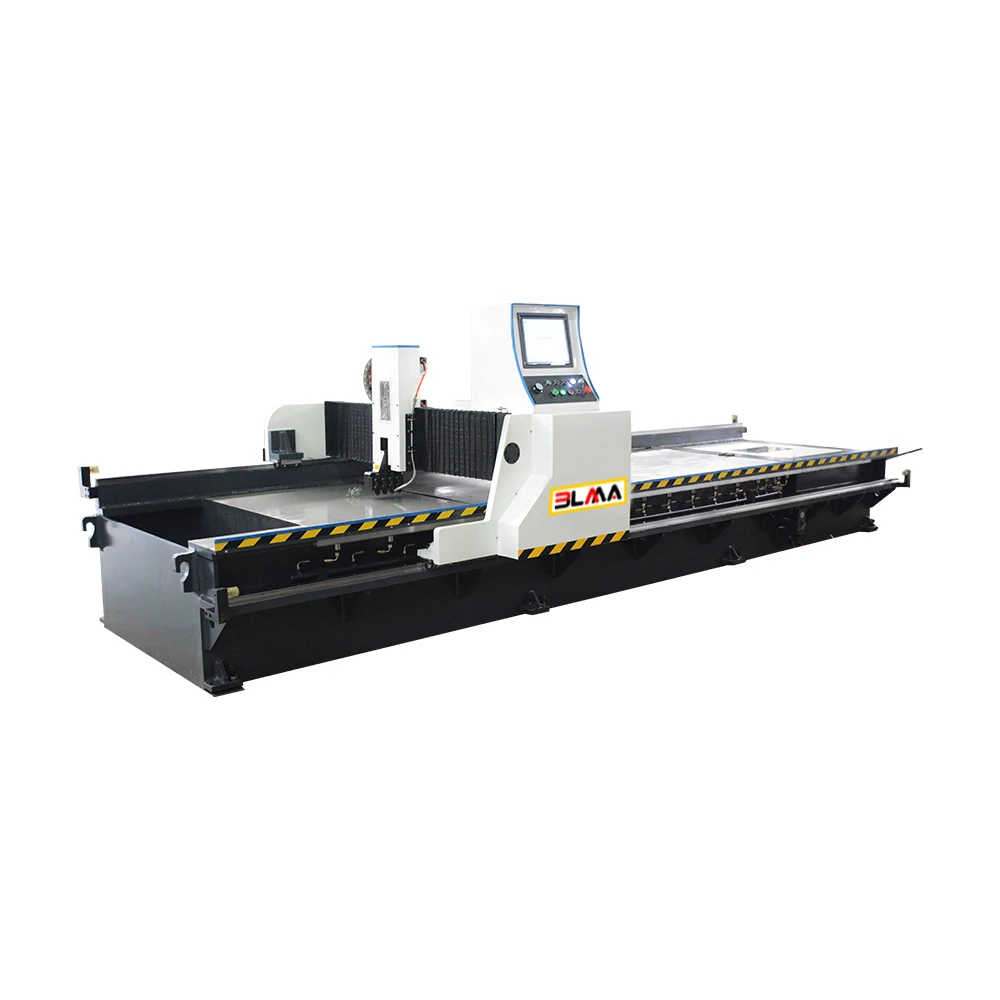

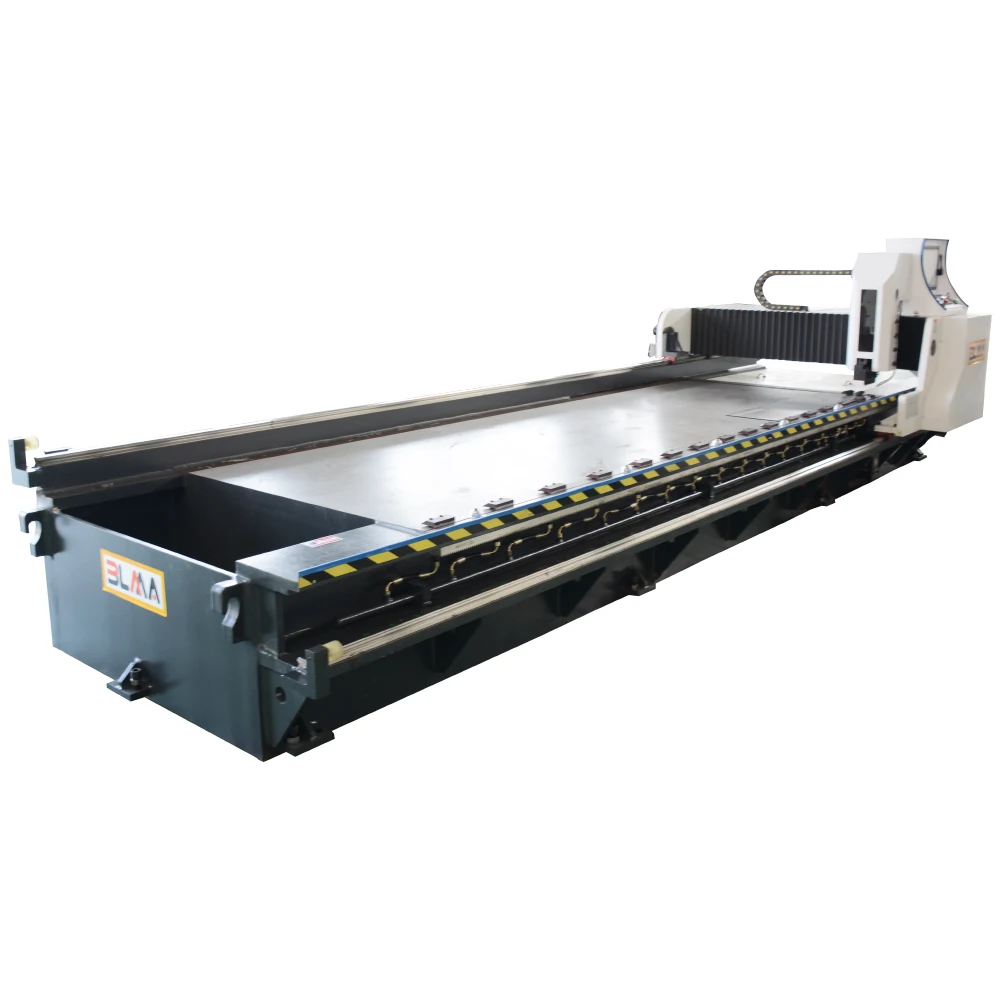

Линия двухсторонняя высокоскоростная рифленая машина алюминиевый лист гидравлическая горизонтальная с ЧПУ
- Категории: Шпунтовочный станок с ЧПУ >>>
- Поставщик: Maanshan,Blma,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

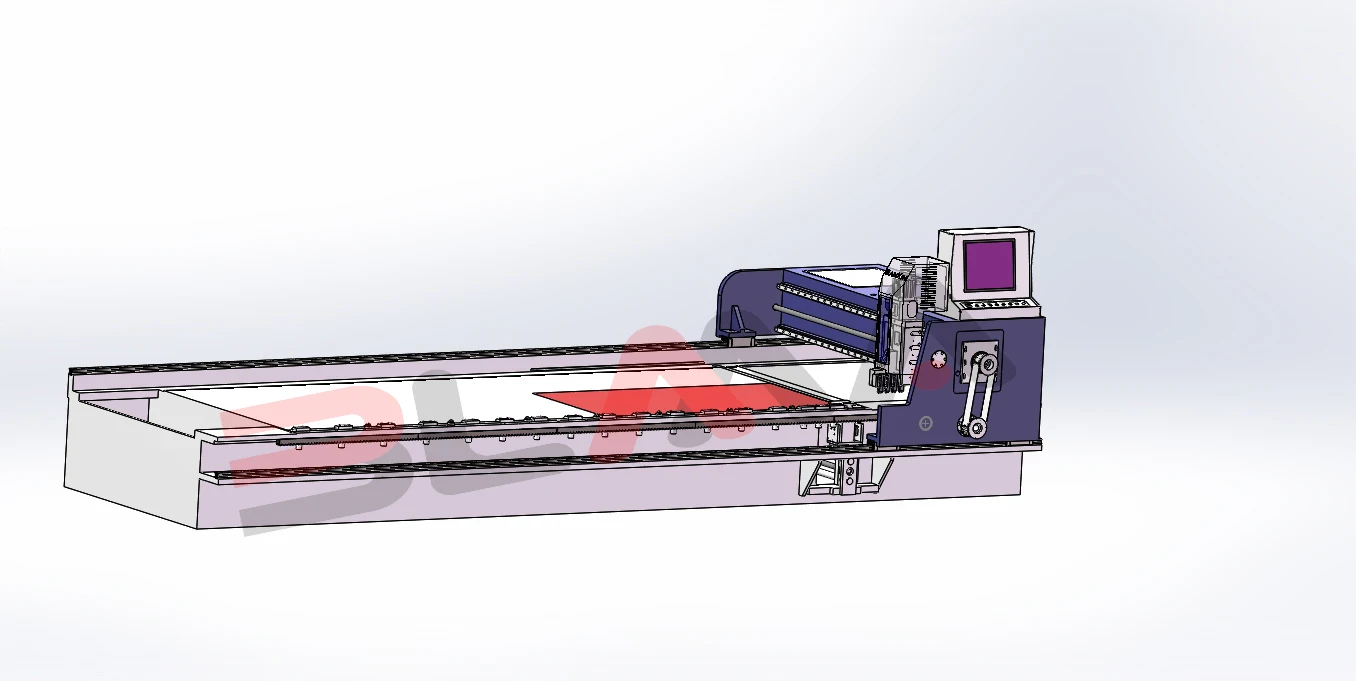

1. The frame and the beam are all box-shaped. After finite element optimization design, the all-steel welding is tempered to eliminate residual stress, and the overall rigidity is good and the precision is good.

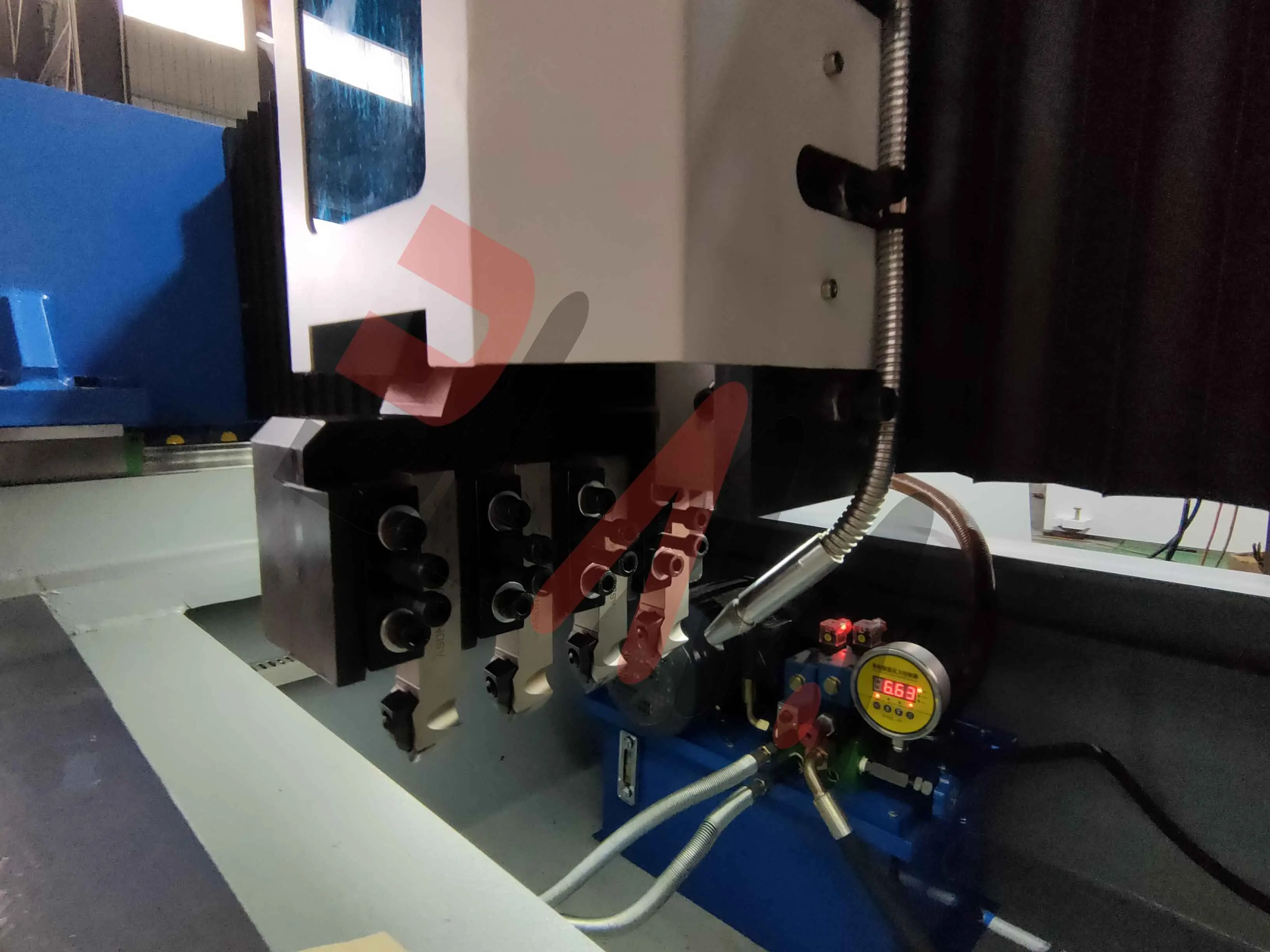

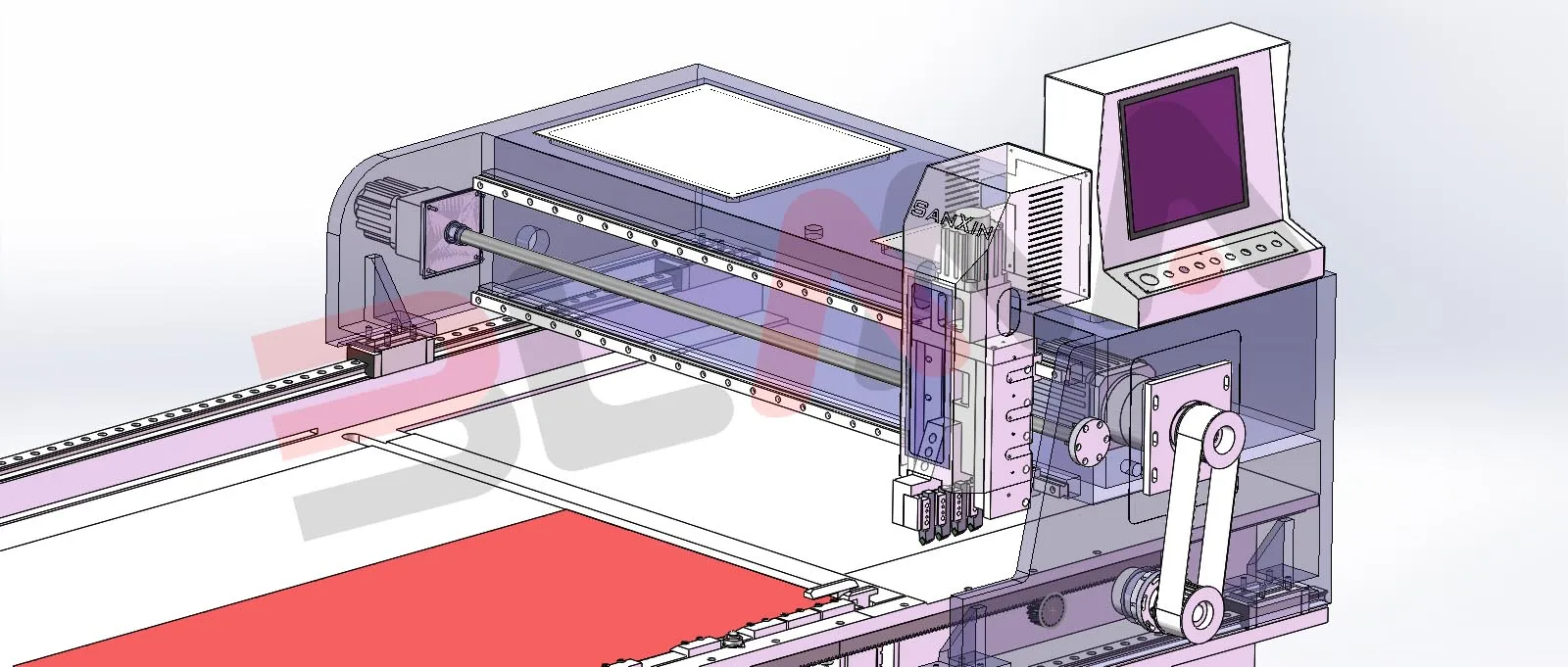

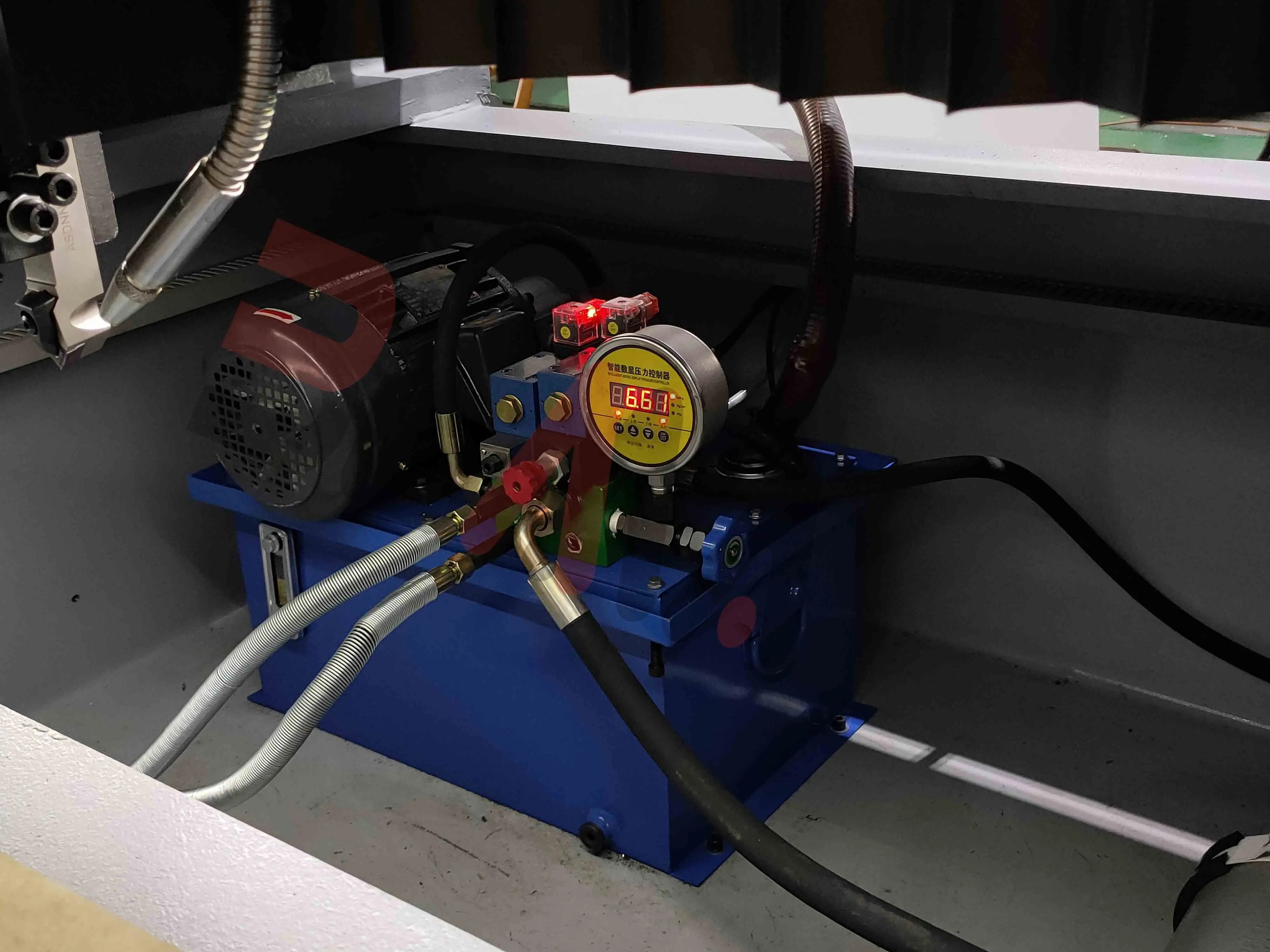

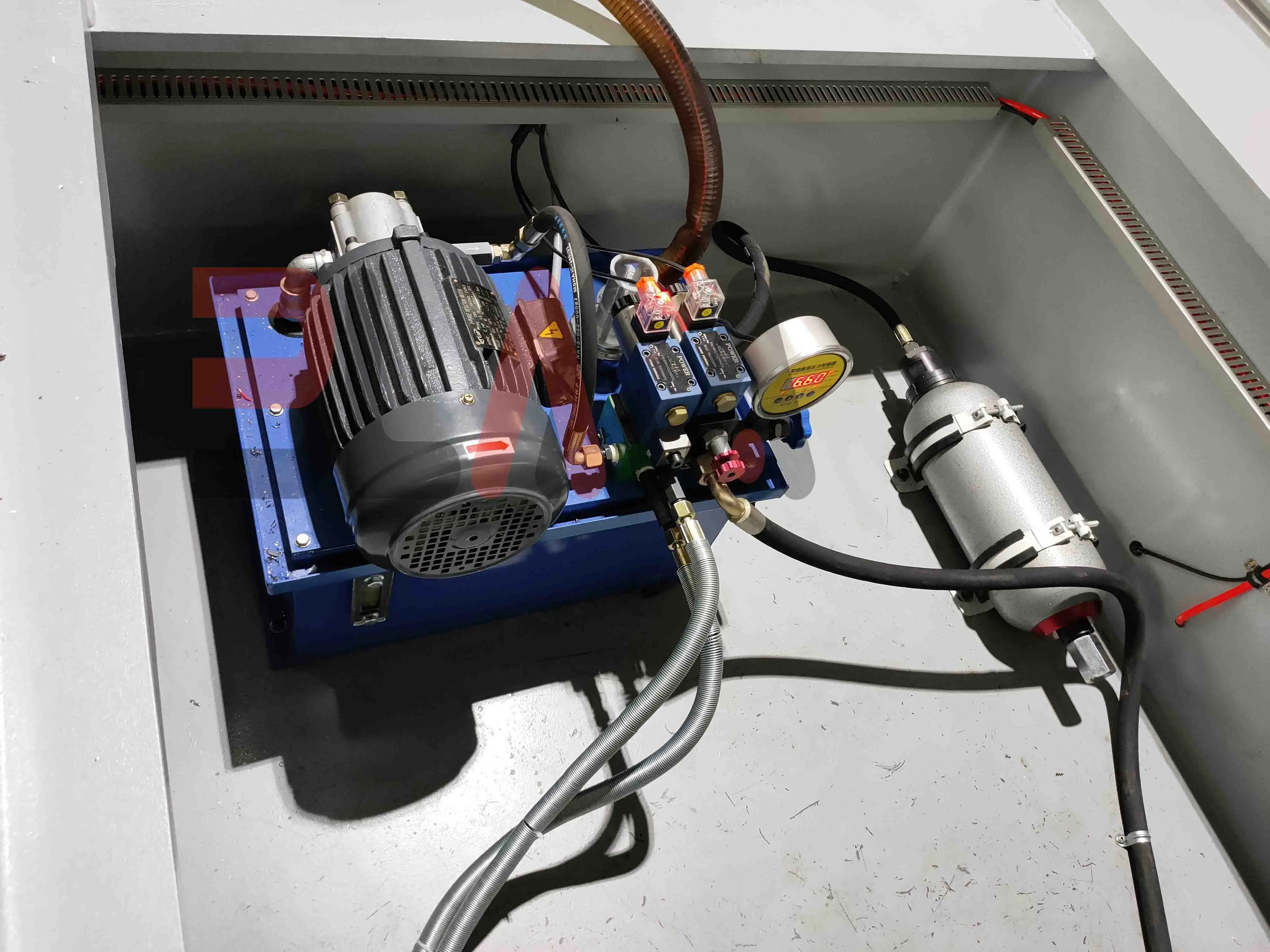

2. With 4 control axes, hydraulic hold-down device, the gantry and tool holder make round-trip move together when working.

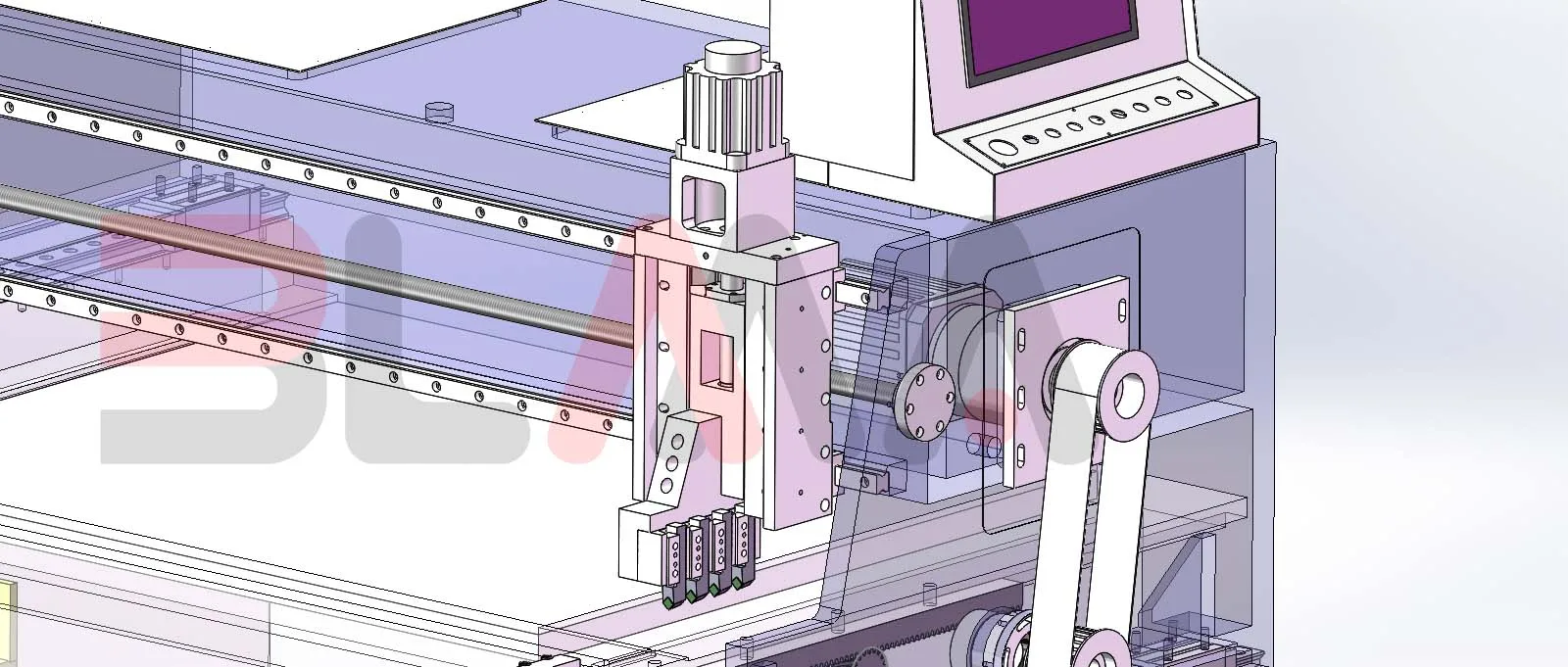

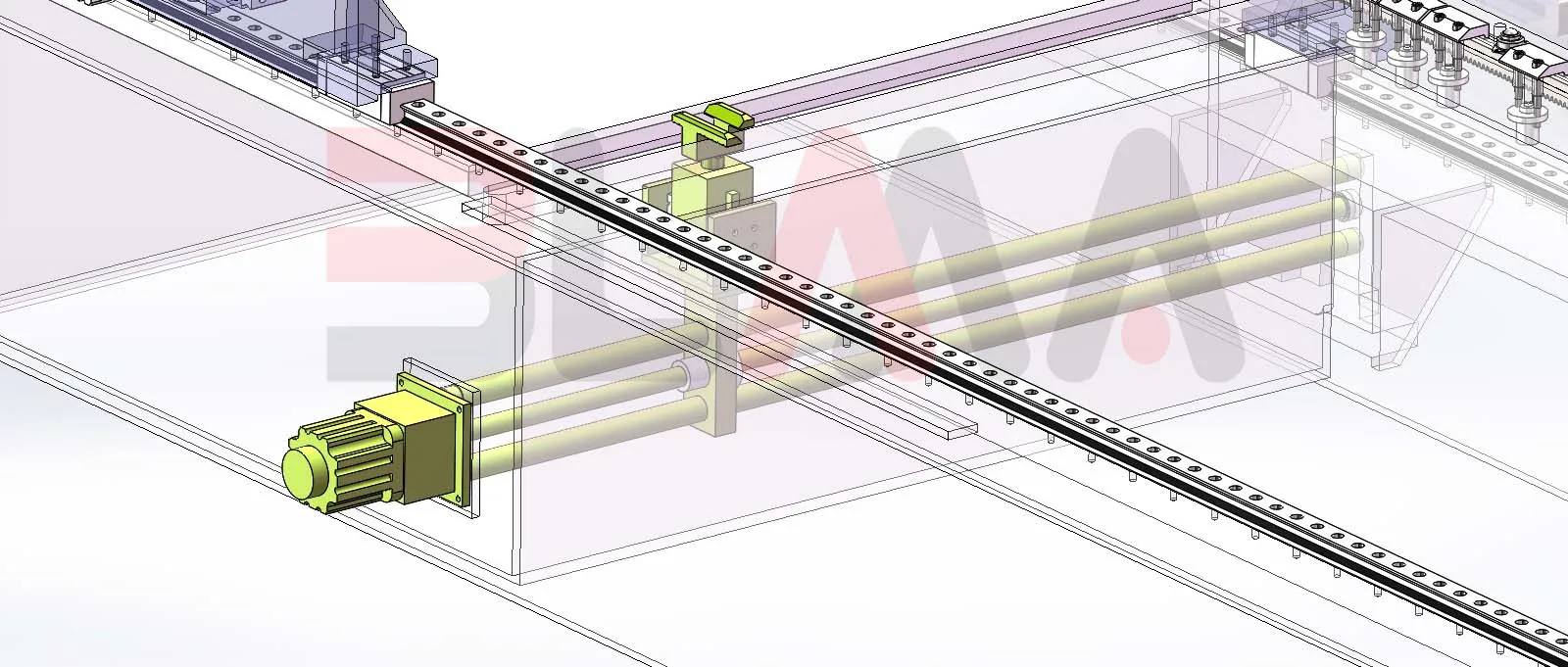

3. Use ball screw & roller heavy-duty guide rail, D1N6-grade precision helical gear, planetary reducer: balance, accurate.

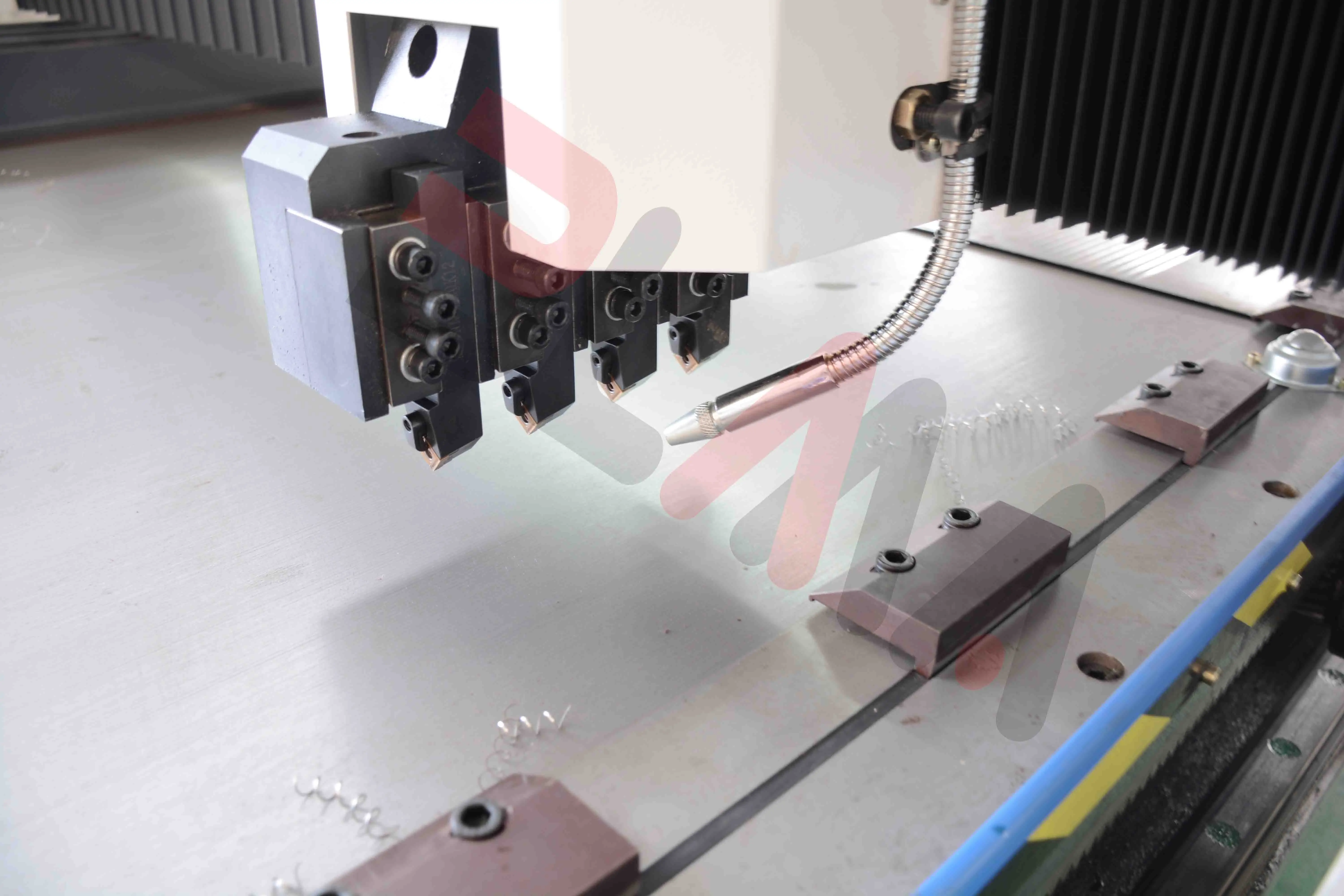

4. CNC open controller, supporting full-automatic operation, 4-blades can run simultaneously significantly improves the grooving efficiency.

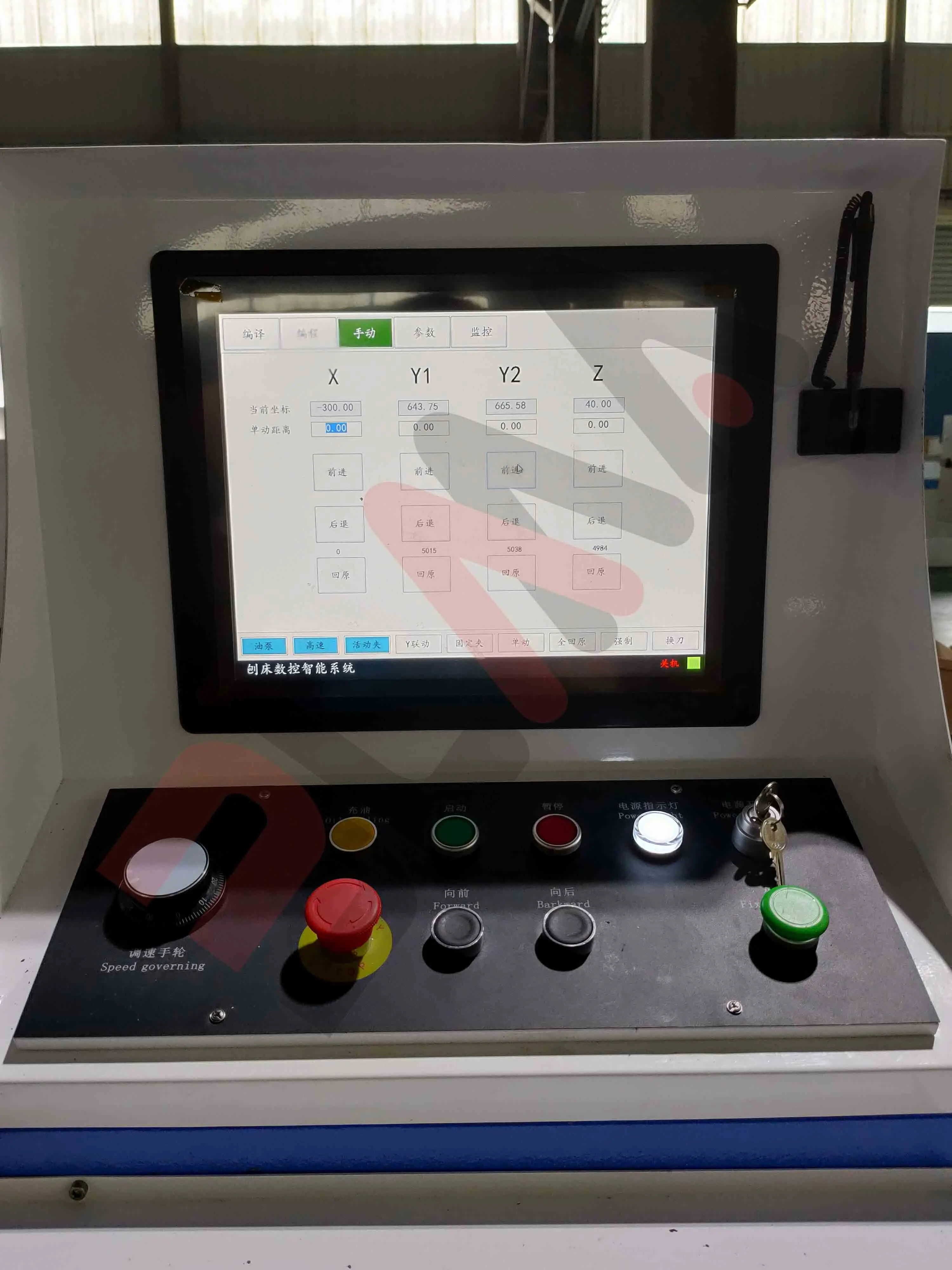

5. Adopt Taiwan industrial-control controller and Japan Panasonic closed-loop servo system: easy, flexible, fast, efficient and low noise.
6. Equipped with automatic lubrication system: low wear, fine processing, ensuring machining accuracy and high dynamic response characteristics.
Product Paramenters
Model | BLMA-1250X4000 |
Max grooving width | 1250mm |
Max grooving length | 4000mm |
Grooving thickness range | 0.6~ 4mm |
Beam moving(forward and backward) speed(X Axis) | ≤60m/min |
Beam moving(left and right) speed(Y1 Axis) | ≤12m/min |
Clamping moving(left and right) speed(Y2 Axis) | ≤12m/min |
Cutter holder(up and down) moving speed(Z Axis) | ≤8m/min |
X Axis motor power | 5.5KW |
Y1/Y2 Axis Servo motor power | 1KW |
Z Axis Servo motor power | 1KW |
Hydraulic motor power | 2.2KW |
Hydraulic pressure | 10MPa |
Air pressure | 0.6MPa |
Details Images
Our Company
Maanshan BLMA Technology Co.,Ltd is a leading manufacturer & exporter of pipe and sheet metal processing machines, such as shearing machine, press brake, rolling machine, laser cutting machine, power punching machine, ironworker and pipe bending machine. We undertake to offer the best and most technologically advanced equipments that are directed to enhancing efficiency and productivity in your operations.
We not only supply the reliable and durable machines but also supply good service/technical support after sales. We will continue to endeavor to present products of international standard; we will never make compromises from what we had offered. If you want to do business with Chinese suppliers, come to us to get the most effective business.
