automatic welded wire mesh fence machine



Mesh welding machine series:

Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine, etc.



Mesh weaving machine series:

Chain link fence machine, barbed wire machine, razor barbed wire machine, wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine, steel fiber making machine, etc.







Fence mesh welding machine

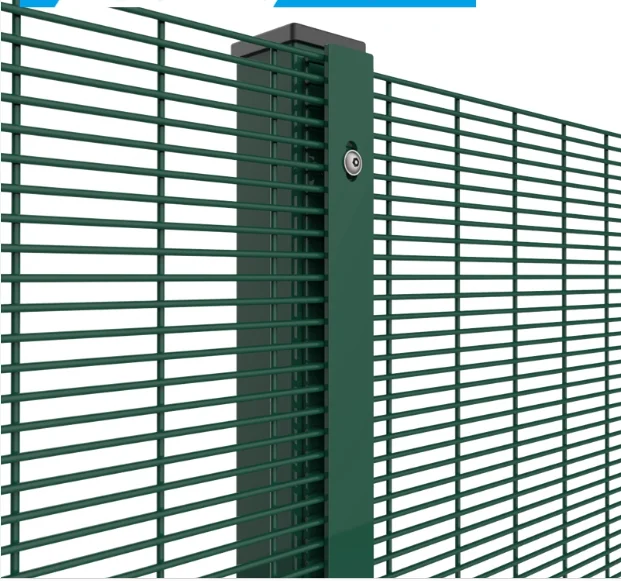

The fence mesh welding machine is also called a fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine.

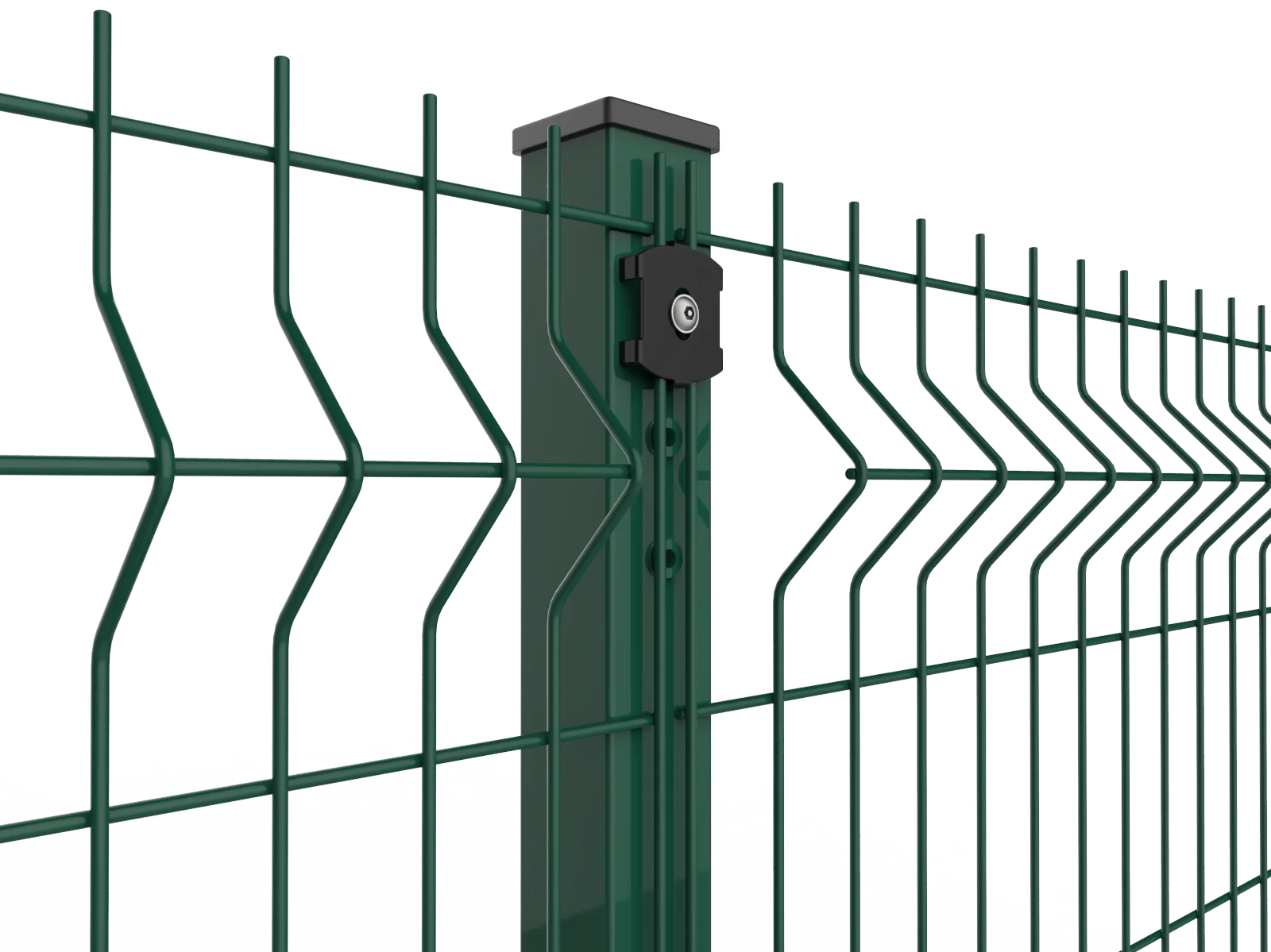

It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.









Model	DP-FP	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Welding torch	48pcs
Cross wire pitch	Min.12.7	Welding speed	Max.80 times/min
Welding width	Max.3m	Welding transformer	150kva*6/10pcs
Mesh length	Max.4m	Mesh type	panel mesh

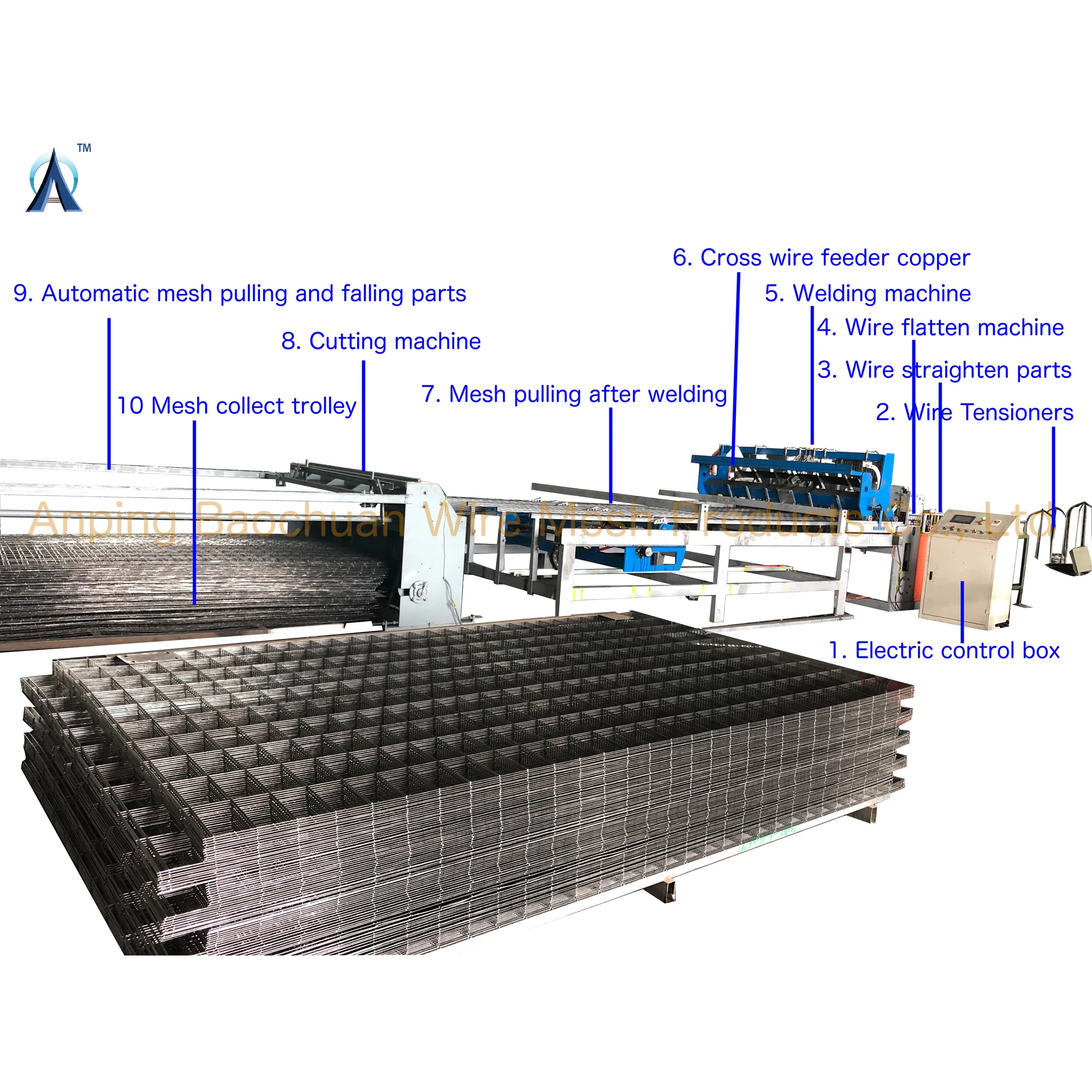

Detail Parts





NO.1

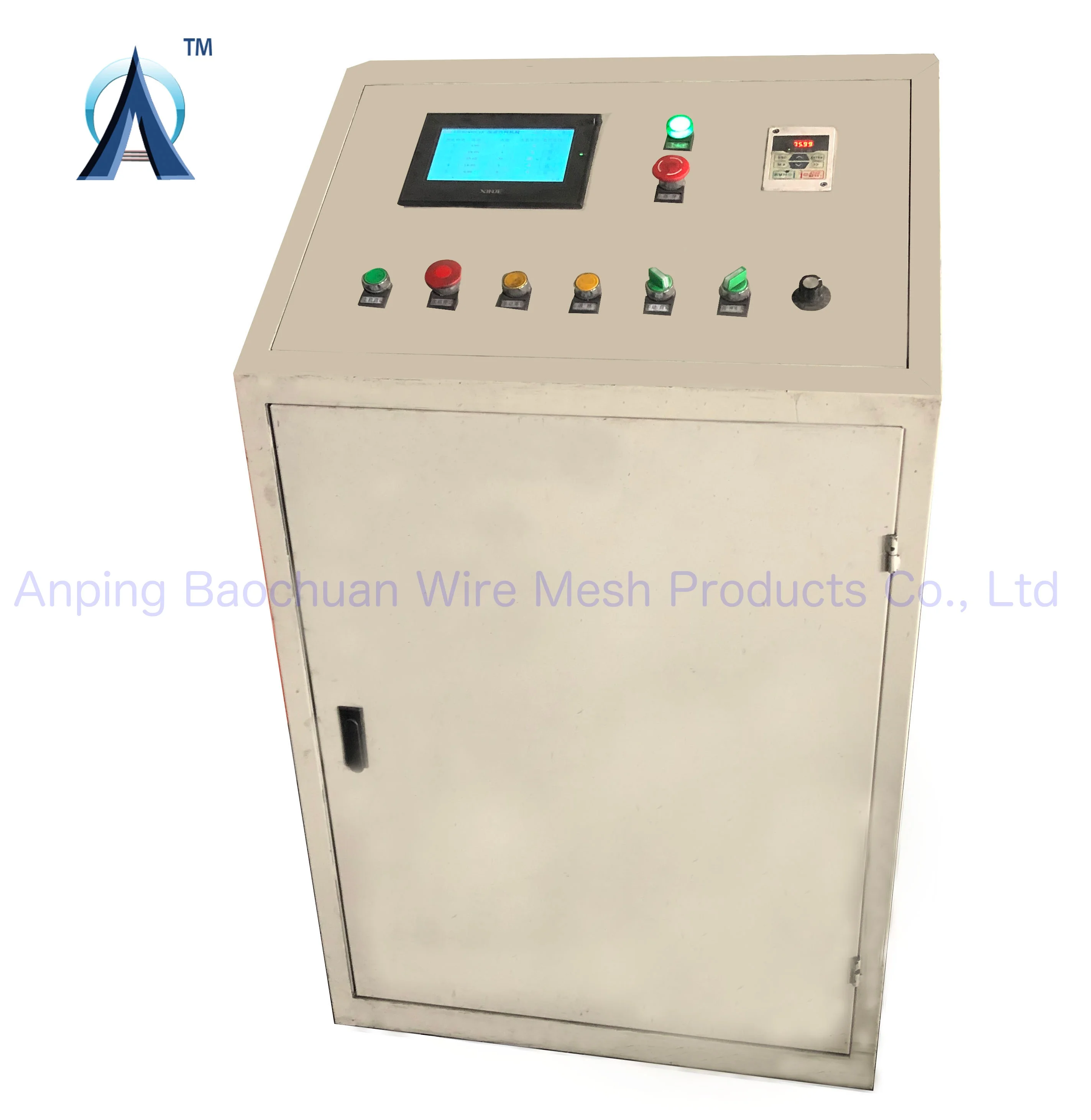

Electro control box



Specially designed by ourselves to suite the high speed welding machine. It can make sure the whole machine keep running 2000-3000 hours no problem









NO.2

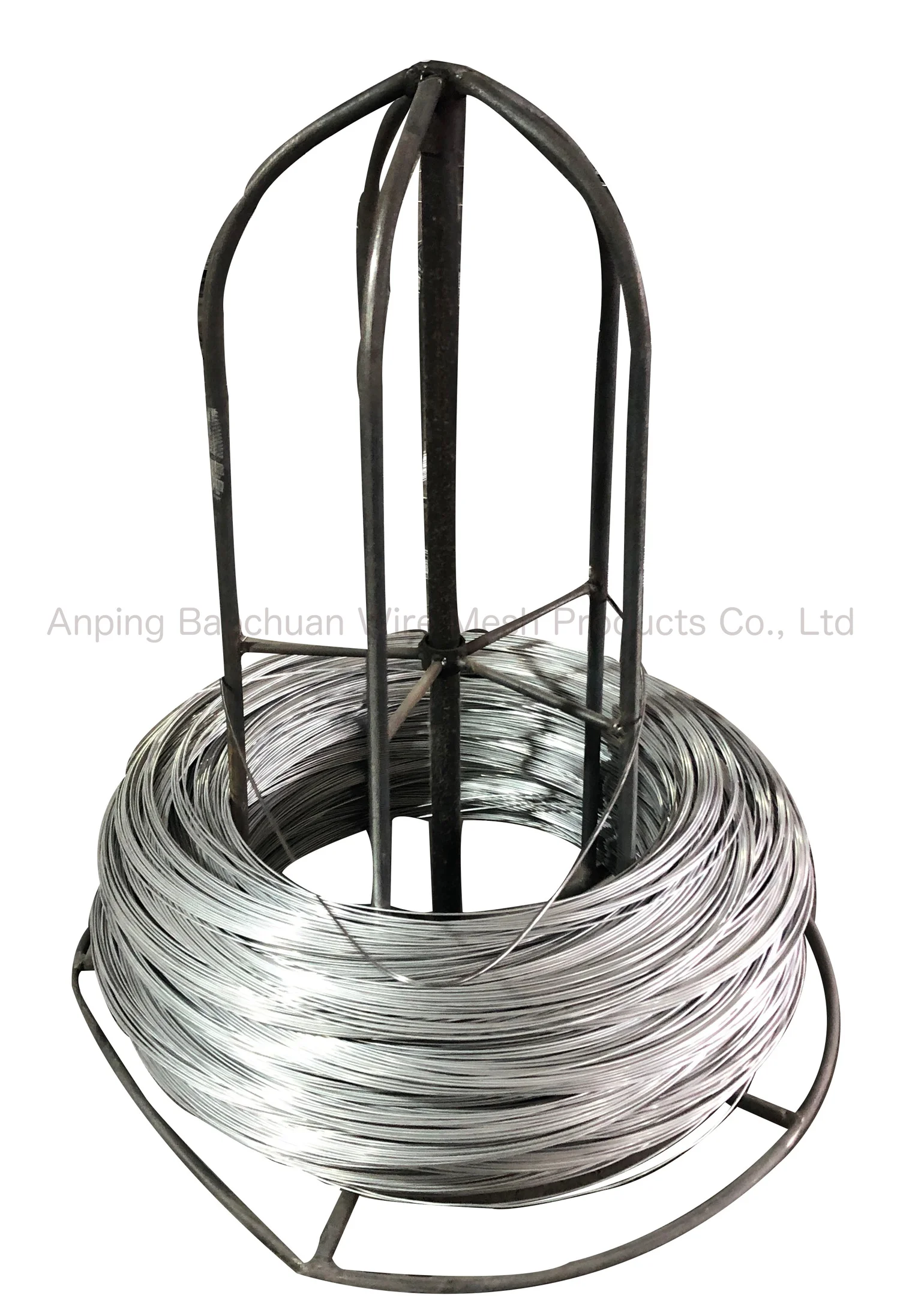

Wire tensioner

The frame wire is made of dia 18mm wire, and It can hold 500kg











NO.3

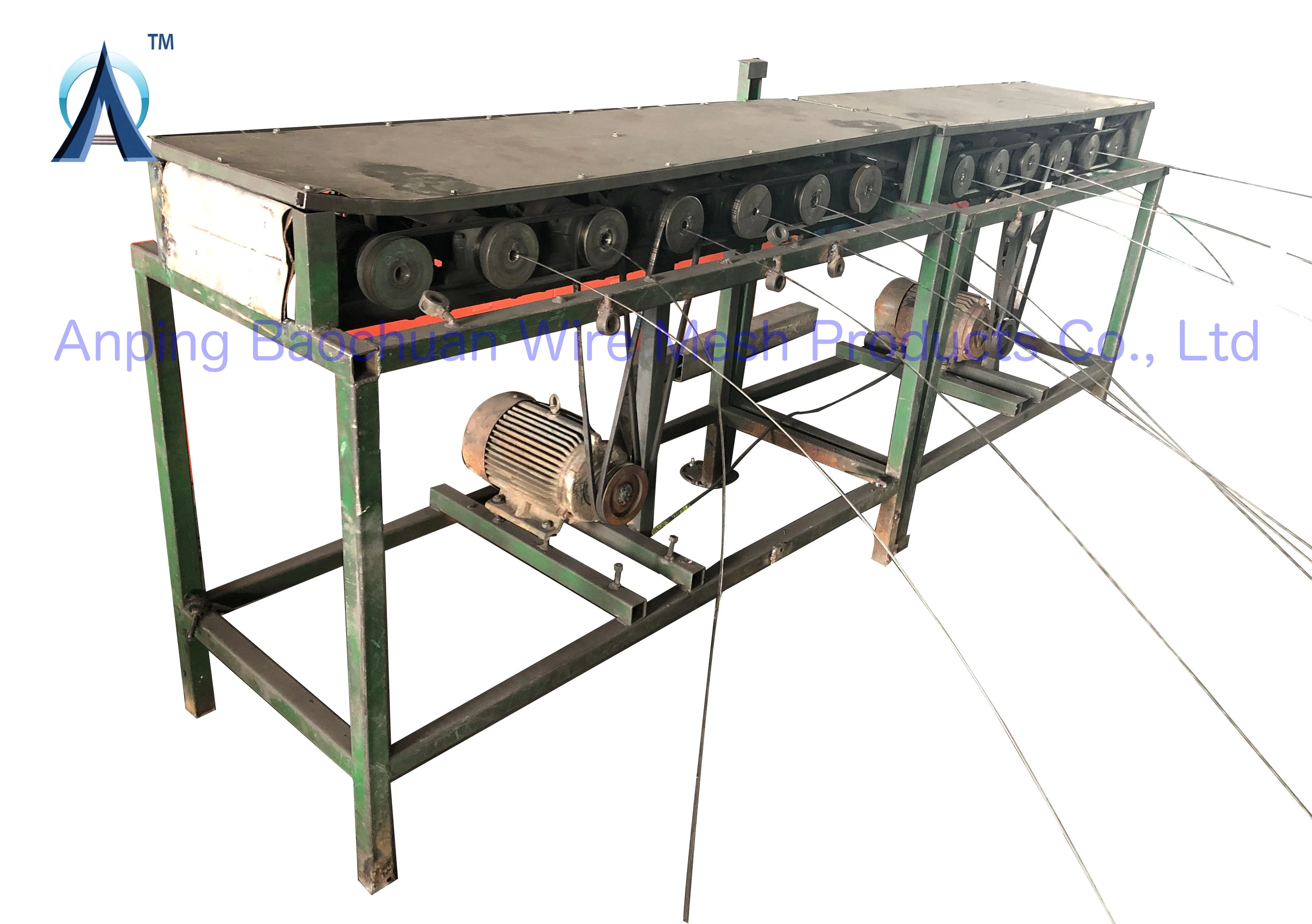

Wire straighten parts
It is used to make the line wire straighten

It is made of high qualtiy straiten unit, it can give you at least 2 years warranty.





NO.4

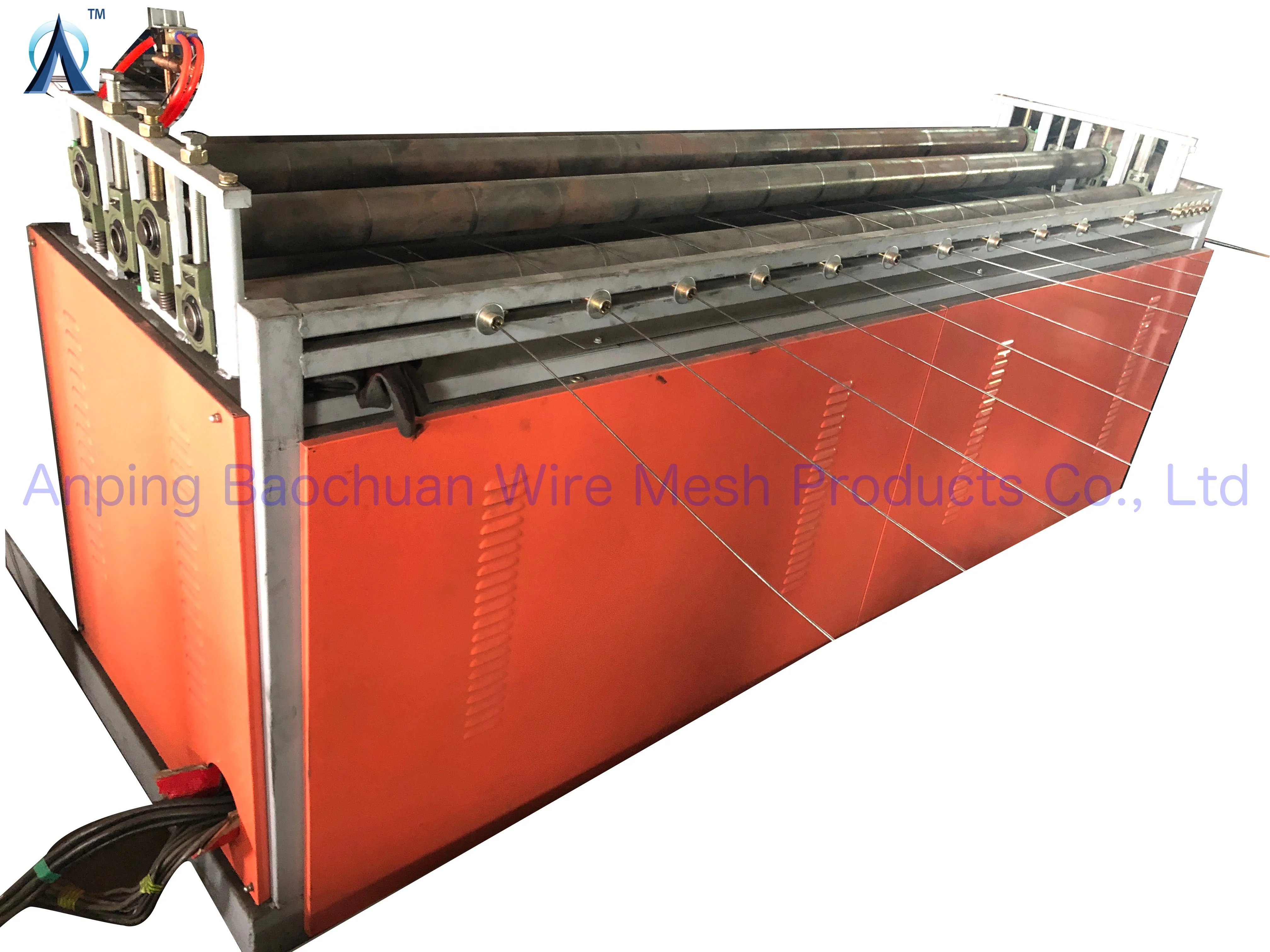

Wire flatten machine
Using this parts can make the welded mesh much more flatten

Exclusive construction to make sure the maximinum flatten of the mesh panels







NO.5

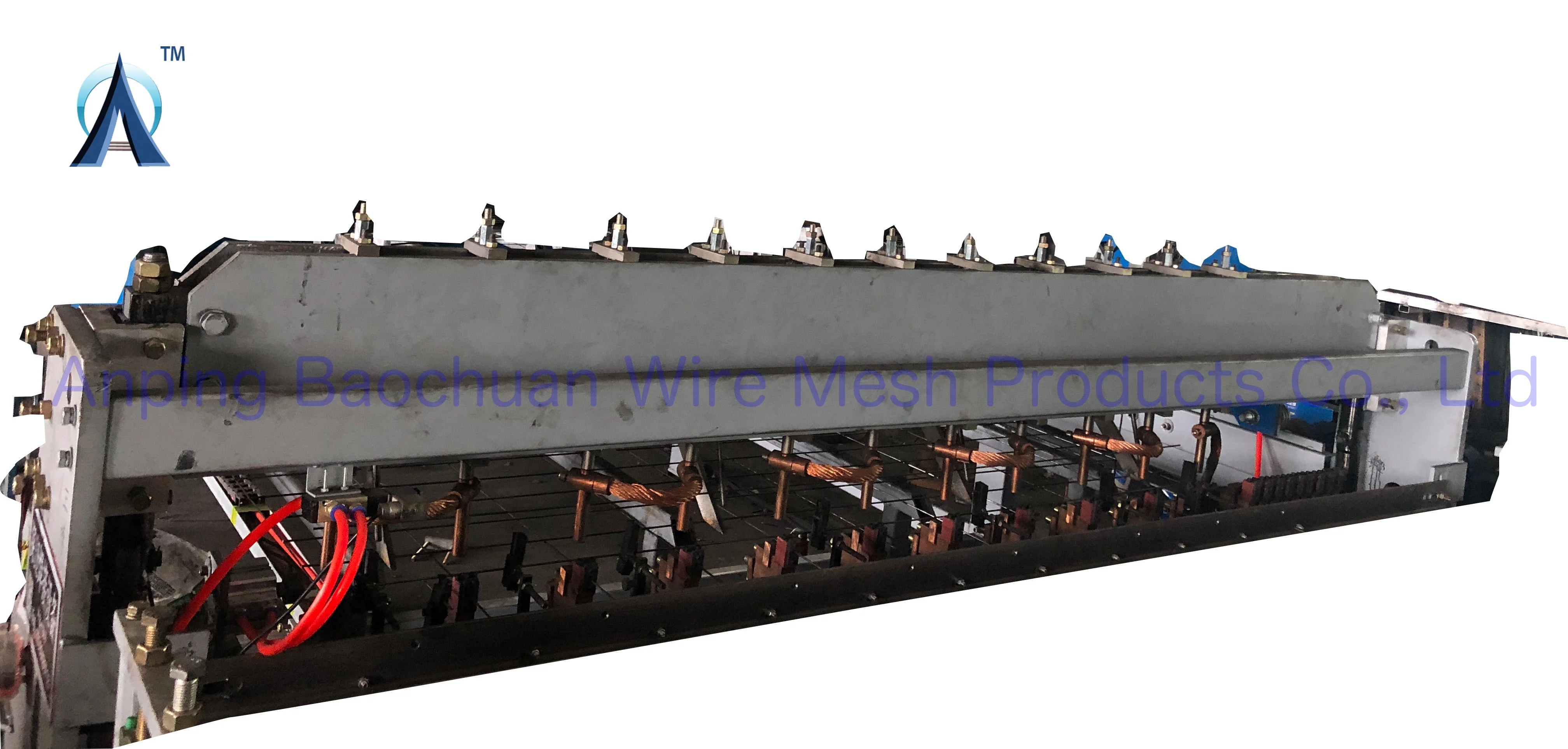

Welding machine

It is made of red copper National Standard T2 material, as a result, the machine can better  conductivity, less spark splatter and weld perfact







NO.6

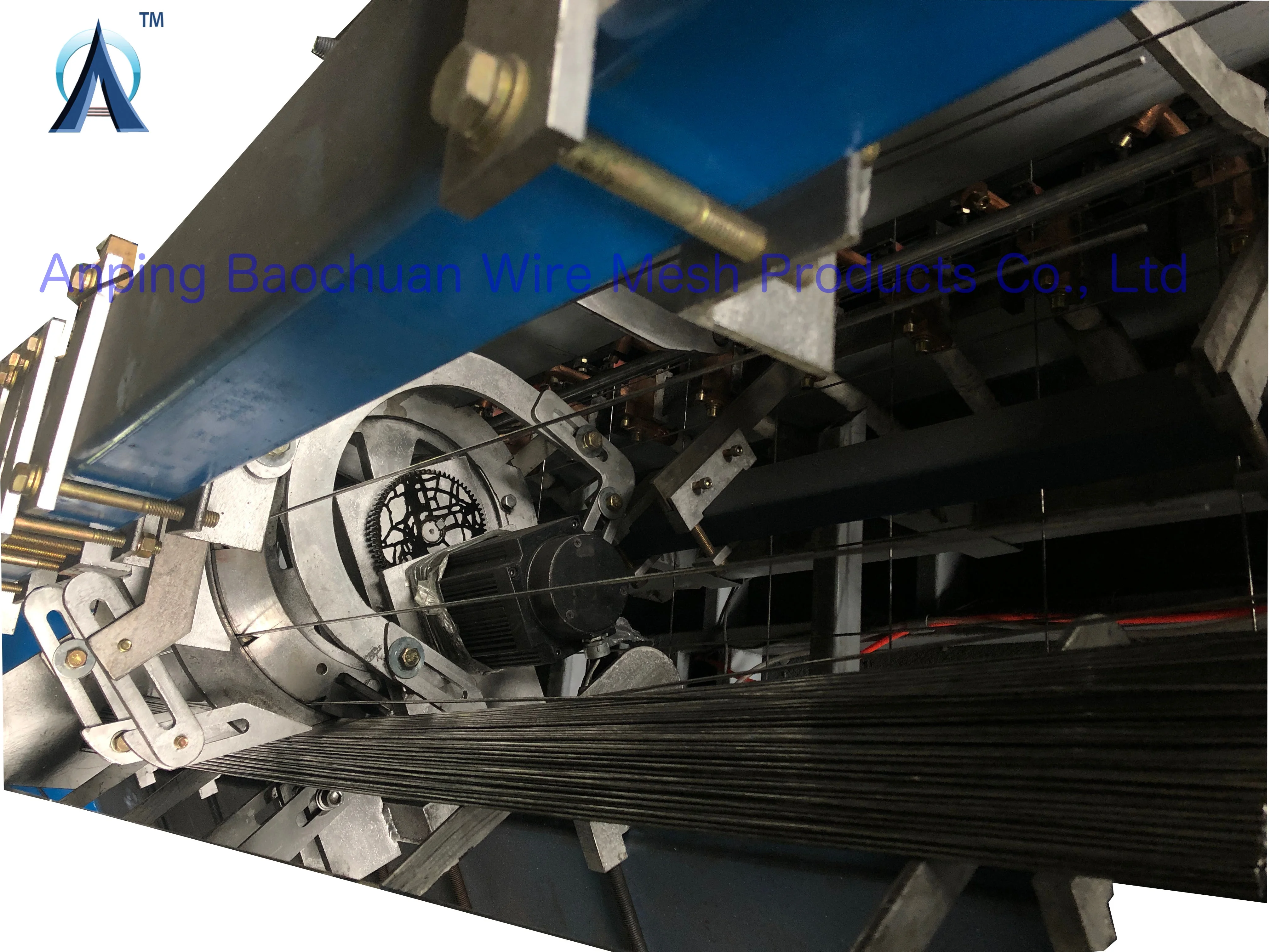

Cross wire feeder copper
This part is used to hold and put the cross wire into the weld machine autmatically

The machine welding speed mainly decided by the feeder copper, our feeder copper is designed by ourselves and got patent protection, the speed can be 120 times/min.(common speed is around 60-80 times/min)





NO.7

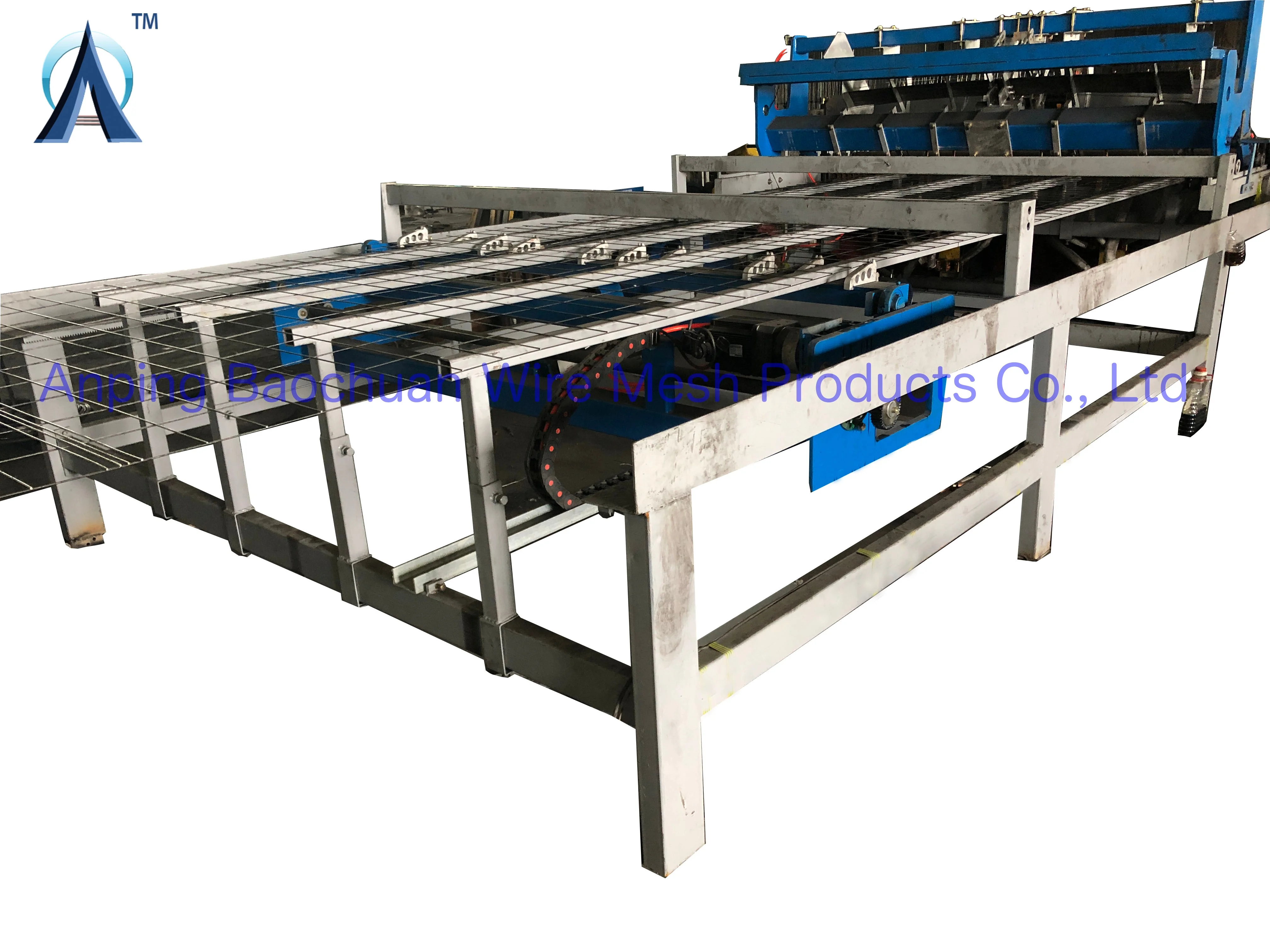

Mesh pulling after welding
This part is used to drag the mesh back

Out mesh pulling device can auto lift, when it toward forward, the device will down a little automatically to keep the machine no failure happened in its wholelife.





NO.8

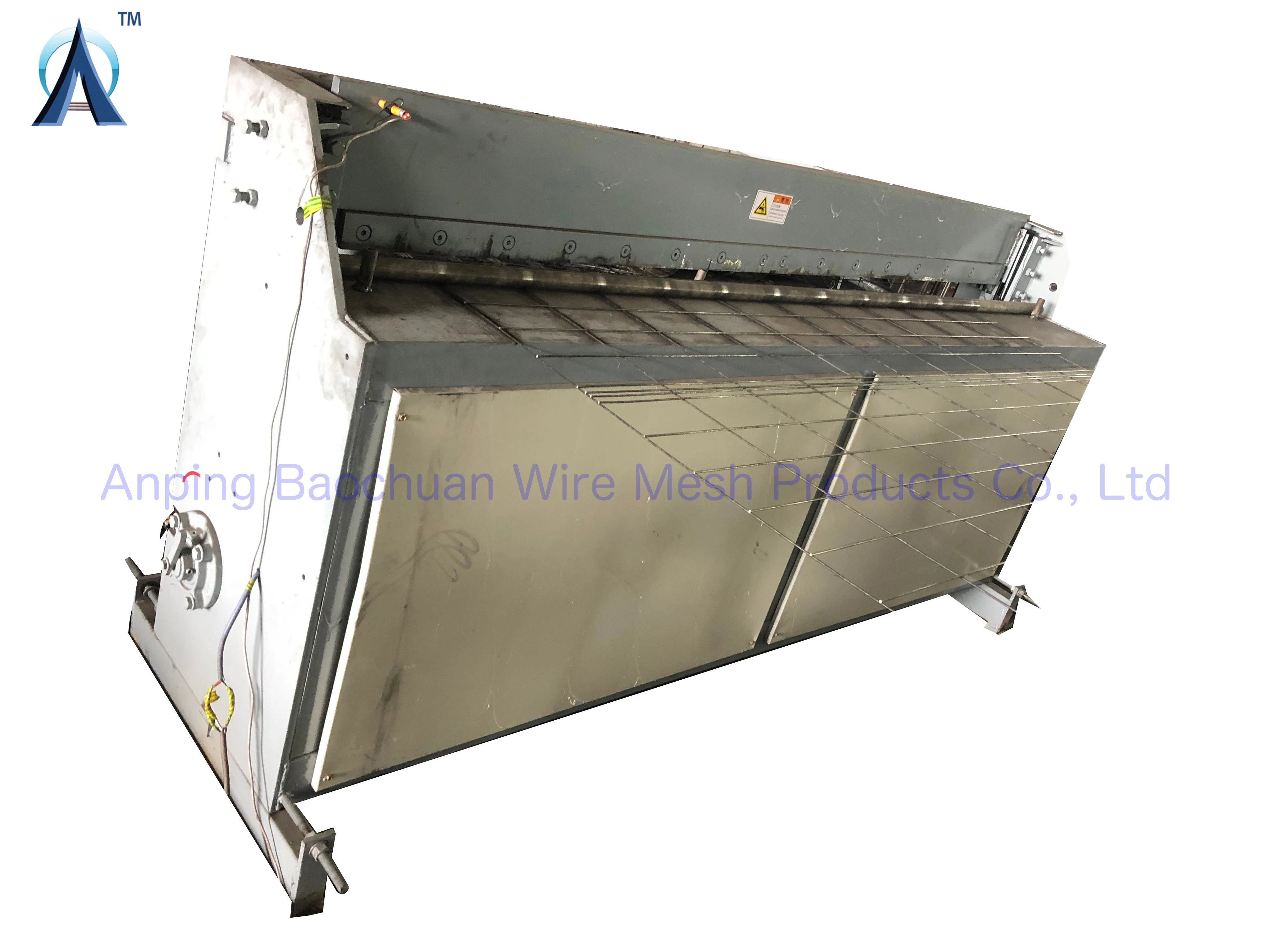

Cutting machine
This part is used to cut the mesh

Top and bottom frame made by thicker panel to give the machine high stability;
Attached with Lubricating oil track to make sure the cutting much more smooth.





NO.9

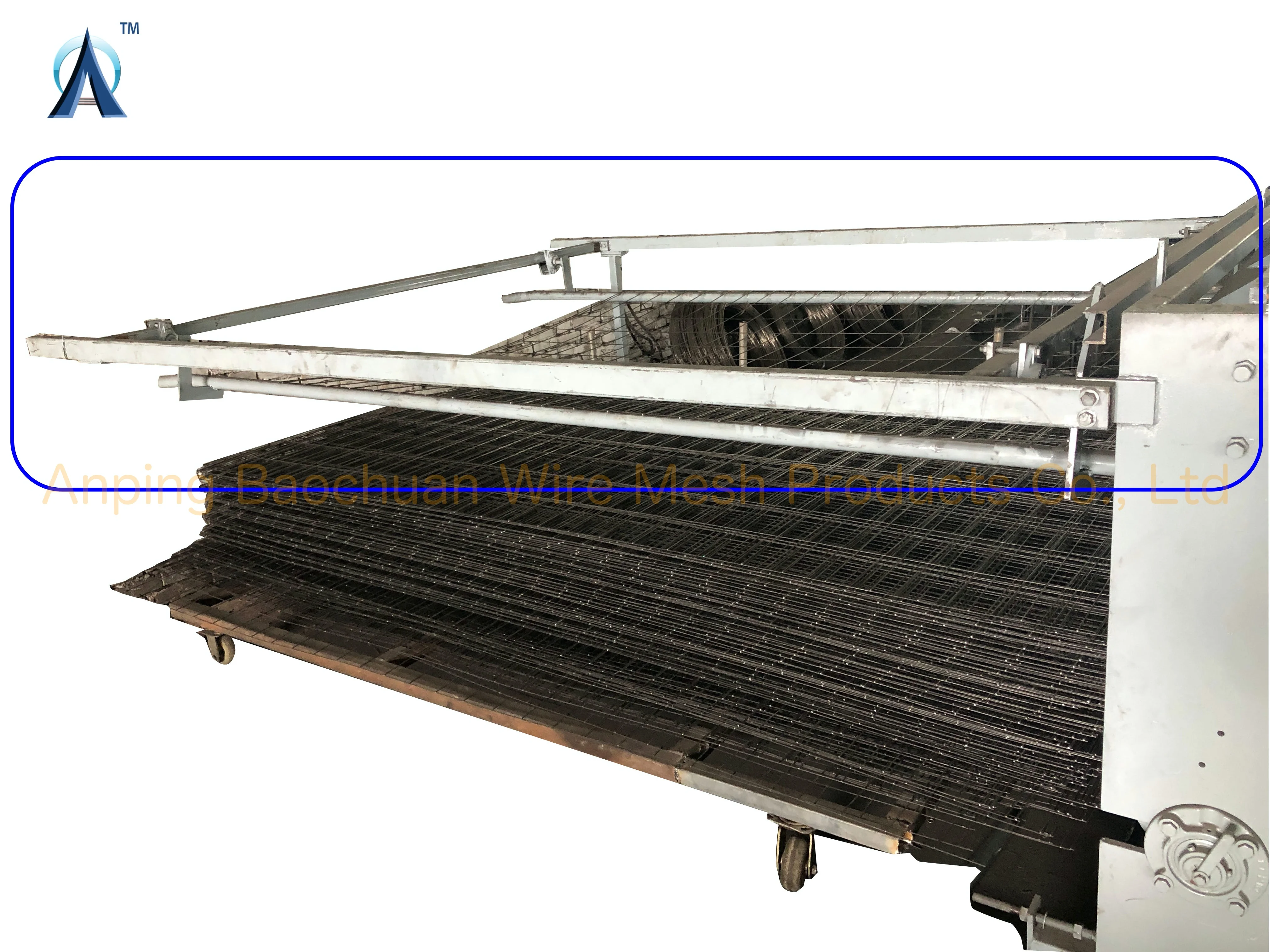

Automatic mesh pulling and falling
This part is used to put the finished mesh panel automatically down
