Product Description

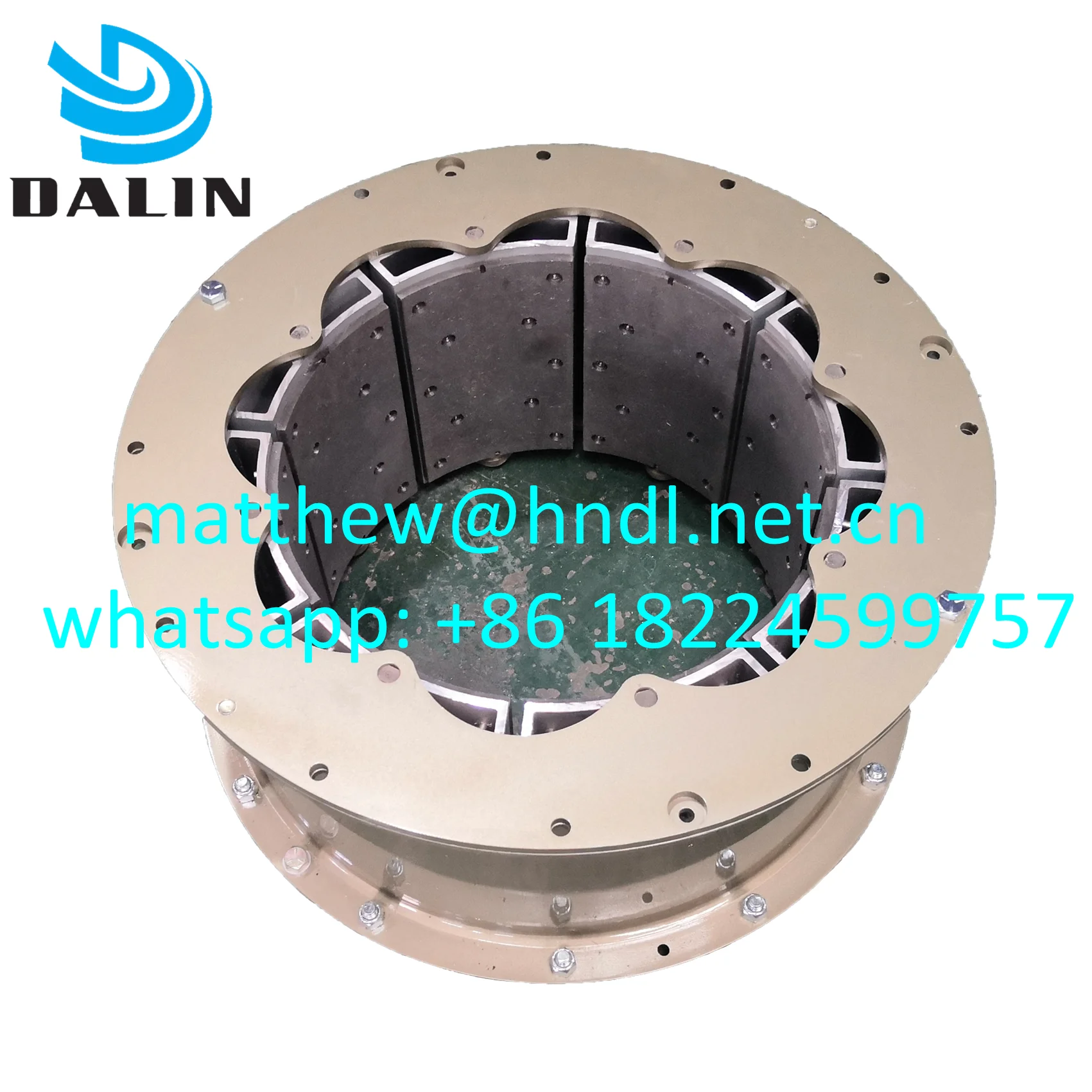

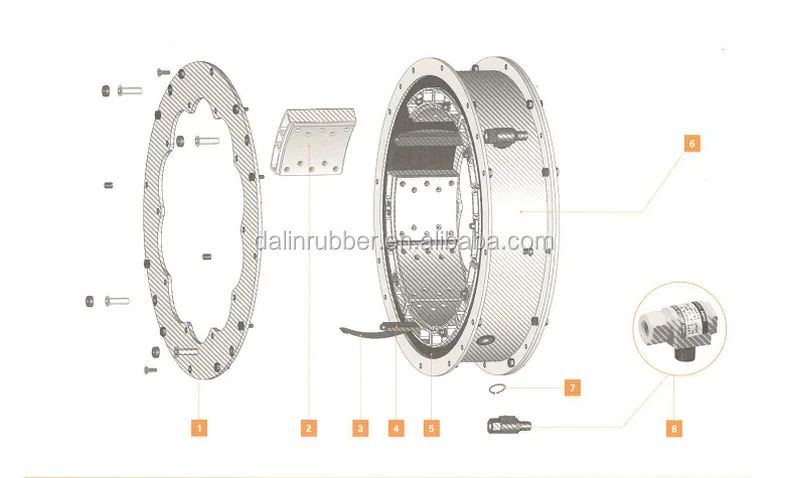

VC clutch is transmitted by torque bars. The loose actuating tube is contained within a housing formed by a rim and two side plates, and is replaceable. The torque bars, which are held in position by the side plates, pass through cavities in the backing plates of the friction shoes. Pressurizing the actuating tube forces the friction shoes to engage around a cylindrical drum. Leaf springs in the torque bar cavities of the backing plates retract the friction shoes when the actuating tube pressure is released.


Application

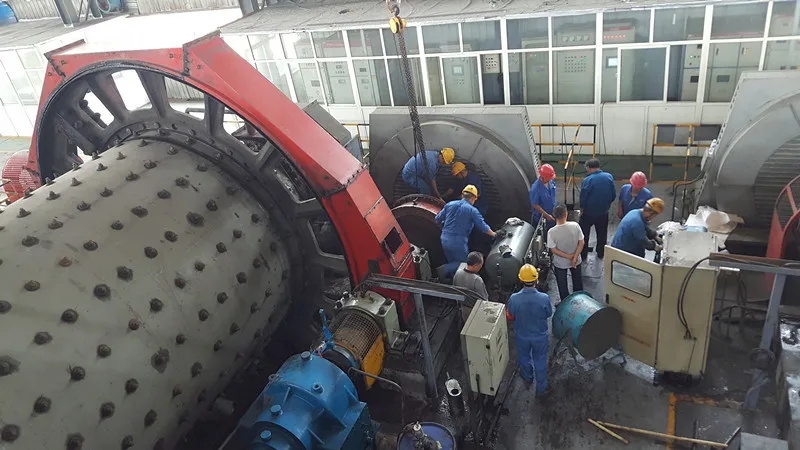

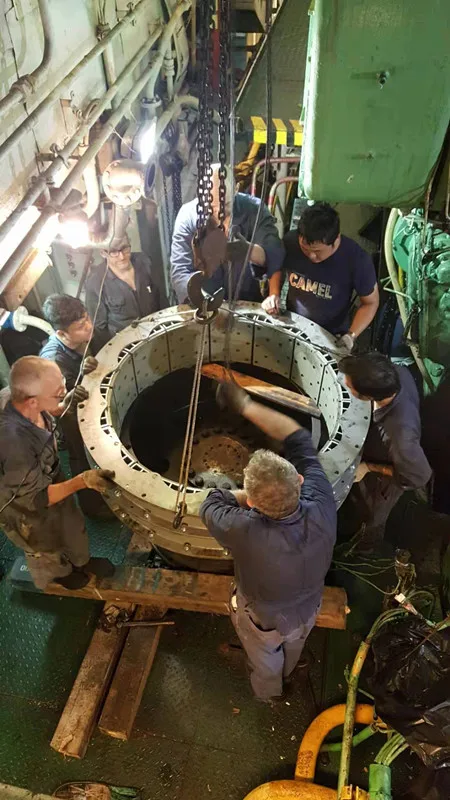

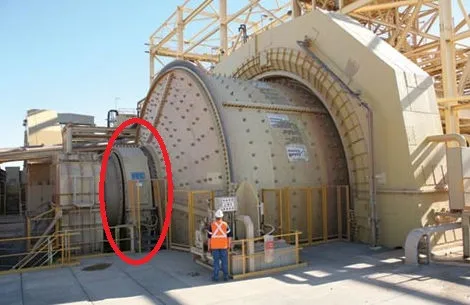

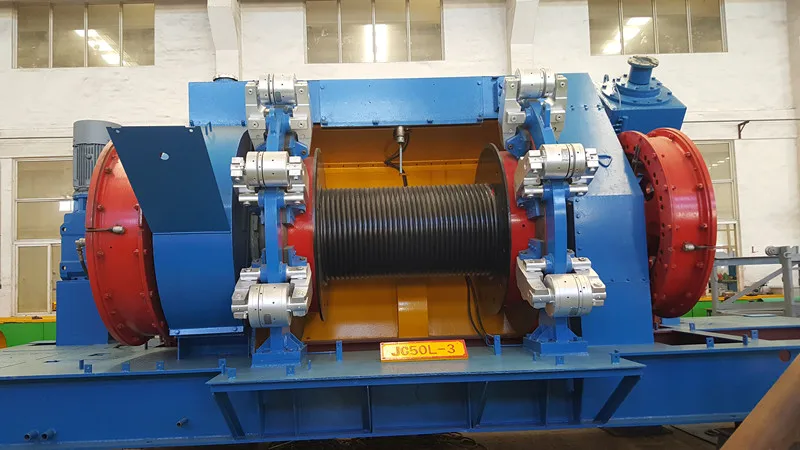

VC products are designed to excel in severe clutching and braking applications on heavy-duty equipment. The threat of large inertia loads and sustained slippage in applications from grinding mills and marine propulsion to metal forming and oil and gas machinery make VC products the ideal choice to improve efficiency and maintain operating life.


VC Clutch Features


Rubber: Integrated nylon ply reinforced neoprene air tube
Ventilated Construction: Promotes air flow across unit for rapid heat dissipation
Rebuild: Every single component is replaceable for rebuild purposes
Configurations: Single, Dual and Split configurations
Friction Material: Standard, Lo-Co, Hi-Co and Cork Friction linings


VC Components






20VC1000 clutch friction lining, PN.414595

20VC1000 clutch and brake friction lining part no is 414595, which are interchangable with eaton airflex, gummi, OSI.
Material is asbestos-free, which is environmental friendly with high friction co.
Our material can ensure safety, when the temperature reach 120 degree, there will appear a film, which cover the friction plate, avoid high temperature's damage, and when temperature goes down, film will disappear and friction plate can work as usual.



20VC1000 clutch toque bar, PN.301831

20VC1000 clutch toque bar part no is 301831, which are interchangable with eaton airflex, gummi, OSI.
Our torque bar material is #45 steel and #20 steel, hardness can reach 40-50, which is suitable for harsh application, like Grinding mills, marine propulsion, metalforming machinery, oil & gas machinery



20VC1000 clutch rubber inflatable tube, PN.406544

20VC1000 clutch rubber inflatable rube, part no is 406544, which are interchangable with eaton airflex, gummi, OSI.
Rubber tube is totally made by hand, composed of outside rubber, inside rubber and cord fabric layer, then forming by vulcanization. Our company have started to manufacture the rubber tube since 1975, have over 45 years in this line, so can ensure you this key clutch part's quality.





20VC1000 clutch aluminum brake shoe

20VC1000 clutch aluminum brake shoe, which are interchangable with eaton airflex, gummi, OSI.
Material is aluminum, which can disspate the heat very fast, protect the tube and the whole clutch.

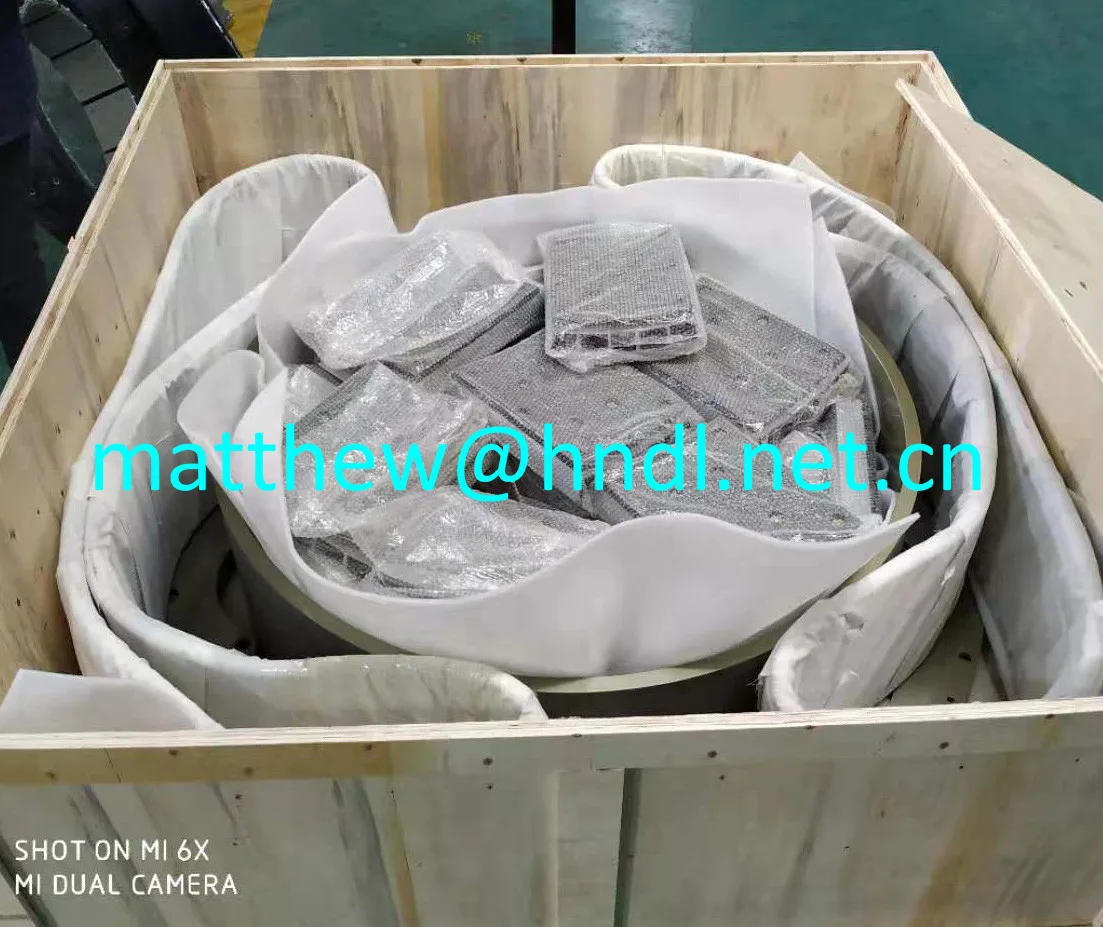

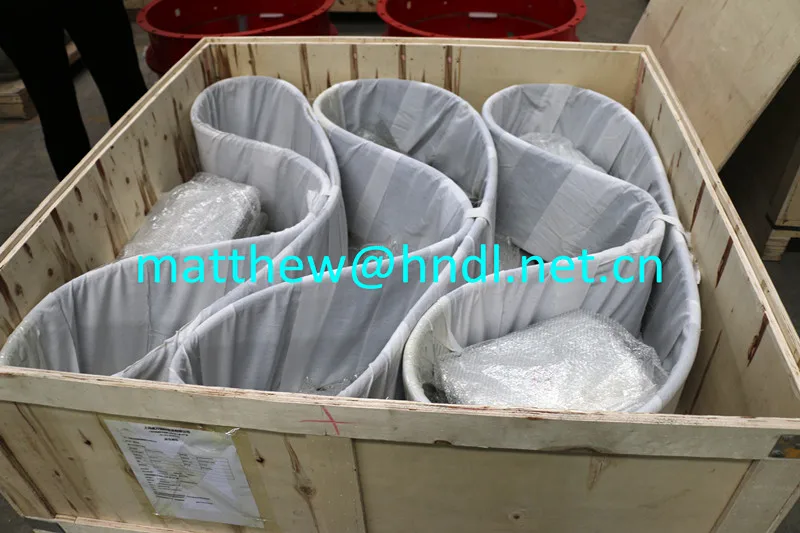

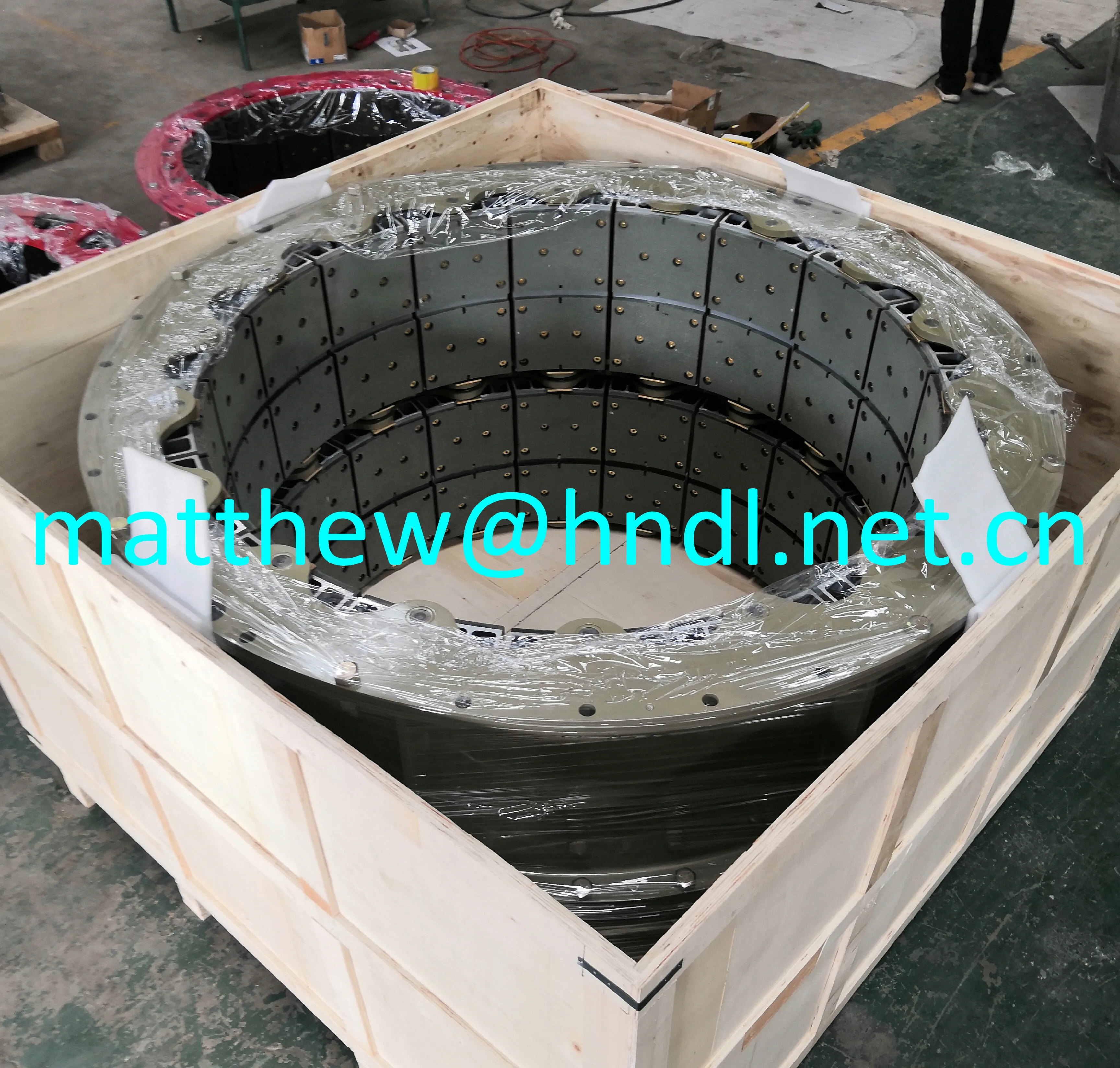

Product packaging




Company Profile




Henan Dain specializes in designing and manufacturing for all kinds of pneumatic clutch
and its accessories. Our products are mainly used on driving or braking devices for kinds of high-power mechanical transmission like mine, metallurgy, oil, steel, chemical industry, cement, vessel, papermaking, universal mechanical, etc.
Main products are:
1. LT seriespneumatic clutch
LT300/100T, LT300/150T, LT500/125T, LT700/200T, LT800/135T LT500/200T, LT500/250T, LT800/250T, LT900/250T, LT965/305T, LT1070/200T, LT1120/300T, LT1170/250T, LT1168/305T, LT 1250/300T
2. CB series
4CB200, 6CB200, 8CB250, 10CB300, 12CB350, 14CB400, 16CB500, 18CB500, 20CB500, 22CB500, 24CB500, 26CB525, 28CB525, 30CB525, 32CB525, 36CB525, 40CB525, 45CB525.
3. ATD series
ATD118, ATD218, ATD318, ATD124, ATD224, ATD324, ATD227, ATD327, ATD230, ATD330
4. WCB series
WCB118, WCB218, WCB318, WCB418, WCB124, WCB224, WCB324, WCB424, WCB136, WCB236, WCB336, WCB436
5. VC series
11.5VC500, 14VC500, 16VC600, 20VC600, 24VC650, 28VC650, 33VC650, 37VC650, 42VC650, 14VC1000, 16VC1000, 20VC1000, 24VC1000, 28VC1000, 32VC1000, 38VC1200, 42VC1200, 46VC1200, 52VC1200, 51VC1600, 60VC1600, 66VC1600.
6. PO series
PO114, PO214, PO314, PO118, PO218, PO318, PO124, PO224, PO324
7. Rubber bladder for mud pump of the oilfield equipment
--BOMCO series: (Honghua HHF, Rongshen RSF, Erji RGF, Rongli RLF): 500HP/ 800HP/1000HP/1300HP/1600HP/1600L/1600HL/2200HL
--3NB Series and F series:3NB1000C/3NB1300C/3NB1600/F1600
