Однолучевой мостовой кран
US $5000-$20000
Двухбалочный Мостовой Электрический
- Категории: Мостовые краны >>>
- Поставщик: Henan,Yuntian,Crane,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Double Girder Overhead Electric Lift Crane
double girder Bridge crane：

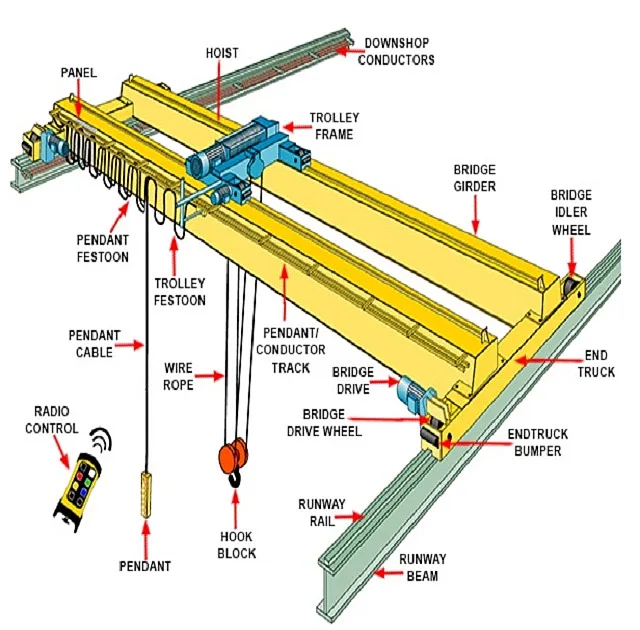

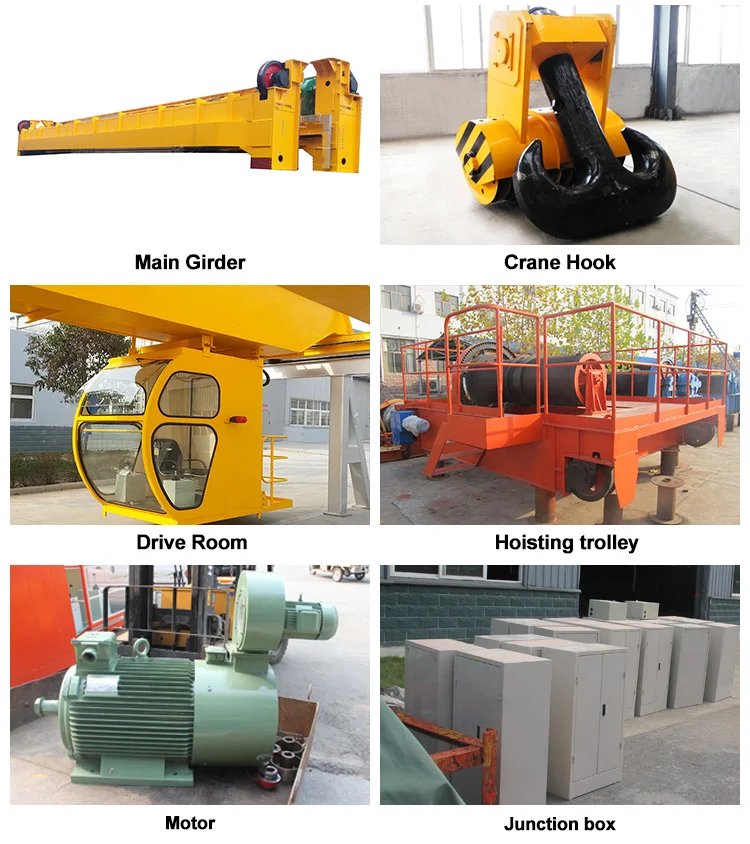

QD double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.
Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.
QD double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.
Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.
Double girder bridge crane Features：
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Span | S(m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |||||||||
Lifting height | m | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |||||||||
Lifting speed | m/min | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | |||||||||
Trolley speed | m/min | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | |||||||||
Crane speed | m/min | 90.7 | 90.7 | 90.7 | 91.9 | 91.9 | 84.7 | 84.7 | 84.7 | |||||||||
Lifting motor | kw | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |||||||||
Trolley motor | kw | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||||||||
Total weight | kg | 13640 | 15520 | 18350 | 20340 | 22750 | 27140 | 30530 | 33620 | |||||||||
Max Wheel Load | KN | 101 | 108 | 117 | 122 | 130 | 140 | 150 | 160 | |||||||||
Track | P43 | P43 | P43 | P43 | P43 | P43 | P43 | P43 | ||||||||||

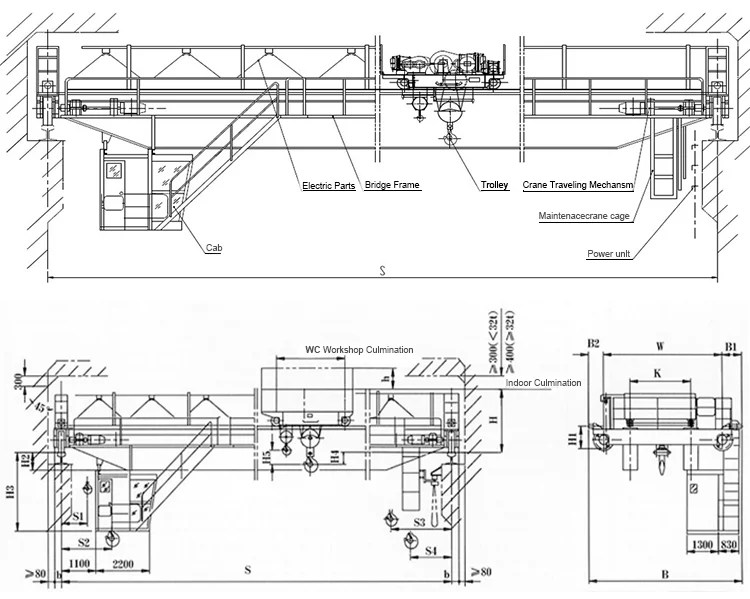

Main dimension | mm | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |||||||||
Rail top to main top | H1 | 1876 | 1876 | 1876 | 1876 | 1876 | 1926 | 1926 | 1926 | |||||||||
Rail top to hook centre | H2 | 602 | 602 | 602 | 602 | 602 | 552 | 552 | 552 | |||||||||
Wheel base | W | 4050 | 4050 | 4050 | 4050 | 4050 | 5000 | 5000 | 5000 | |||||||||
Crane width | B | 5704 | 5704 | 5704 | 5882 | 5882 | 5948 | 5948 | 5948 | |||||||||
Hook left limitation | S1 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | |||||||||
Hook right limitation | S2 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | |||||||||
Trolley gauge | K | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |||||||||
Note: Control mode for cab operation | ||||||||||||||||||
Main Products
YunTian Group products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace,
military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber
tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab
crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of
hydraulic crane technical requirements.
Company Profile
Team And Service
YunTian Group has a team of enthusiastic young people who treat every customer as their friend. Employees mutual help to service
the customers from every detail. So you can get not only high quality products but personalized service.
the customers from every detail. So you can get not only high quality products but personalized service.
Rave Reviews
“YunTian is a supplier worthy of cooperation!”
Oh, do we crack ourselves up?
NO! It's the customers' comments.
Contact Us
Thank you for your interests in YunTian Group. Please feel free to submit your inquiry information to us. We love to talk and are
not afraid to discuss any question about your crane, Hydraulic platform, hoist, winch need. After your inquiry, our sales manager
will contact with you as soon as possible.
