Product Description
Specification

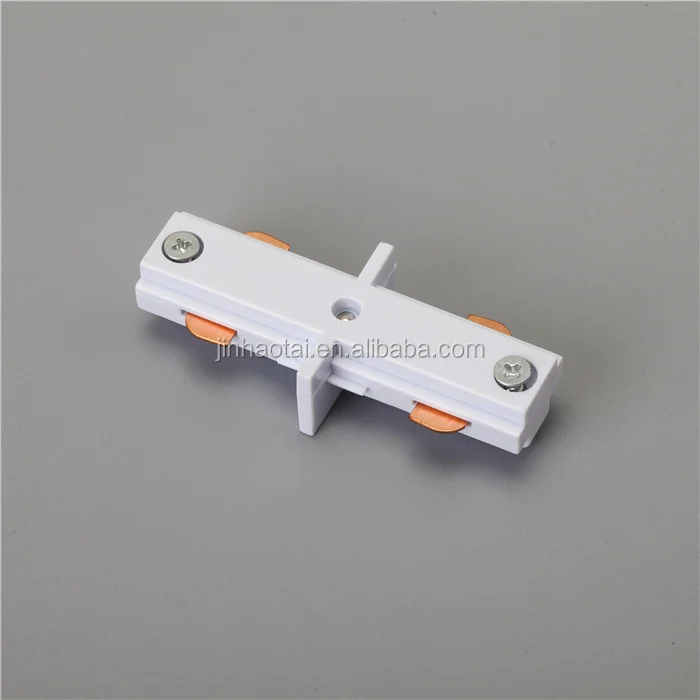

Name | Single Circuit Three Wires Mini Straight Connector |
Product Series | Single Circuit Three Wires Track System |
Material | Pure Copper + PC |
Color | Black / White |

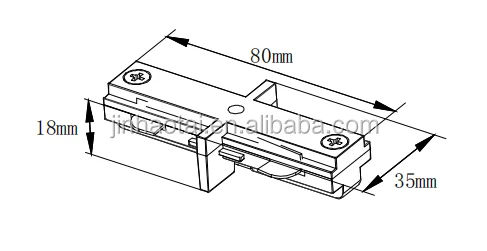

Length | 80x35x18mm |
Safety | IP 20 CLASSI |
Input Voltage(V) | 220V-240V |
Current (A) | 10A |
Certification | CE, ROHS |
Application | Led track system are widely used in indoor environment and commerical places. like: 1. Shopping Mall 2. Museum 3. Restaurant 4. Hotel 5. Office |

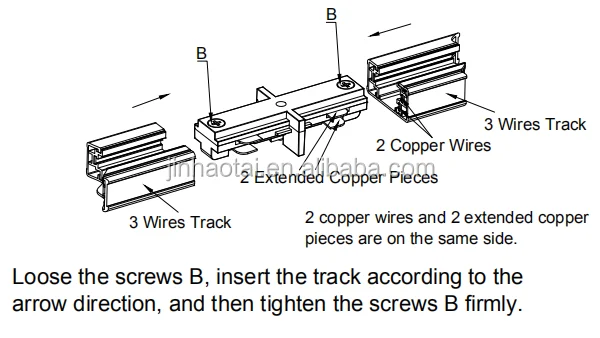

Installation Instructions
When you install the track, you have to choose on which side you wish to have the ridge, the ridge will tell you which accessories to use with,. Have a look at the follow picture where the red line indicates the ridge on the track. If you have only one track. You can choose on which side you connect it and use the corresponding parts.
