1080P 4CH DVR система видеонаблюдения ИК ночного видения Открытый AHD CCTV камеры безопасности комплект системы

The Parameter Of AHD Camera:

Feature:1080P HD resolution, the image is clearer, finer data transmission zero delay, full real-time, high fidelity transmission distance, coaxial transmission up to 500 meters standard coaxial control, back-end call OSD support coaxial upgrade, version upgrade convenient High-efficiency N system P system two-in-one, back-end deployment, easy to switch the price of ordinary simulation, high-definition quality products
Sensor: 1/3.6 inch SC2045 sensor
Video Clarity: PAL/NTSC: AHD-H Definition (TVL) is equivalent to Network HD 1080P Camera
Minimum illumination: "Color: 0.1Lux@(F1.2, AGC ON), 0Lux with IR
Black and white: 0.01Lux@(F1.2, AGC ON), 0Lux with IR"
Photosensitive resistor port: 1 photoresistor interface, support photo resistance input signal and image, IR-CUT, infrared light linkage
Shutter: 1/50 (1/60) seconds to 1/10,000 seconds
Day and night function: Support IR-CUT mechanical switching
Infrared distance: 25m
Lens parameters: C / CS interface, M12 lens optional
Synchronization method: Internal synchronization
Signal to noise ratio: >58dB
Working temperature and humidity: -10 ° C ~ 60 ° C, humidity less than 90% (no condensation)
Power supply: DC12V±10%
Power consumption: <5W
Size: 17mm*7mm*7mm
Weight: 163g

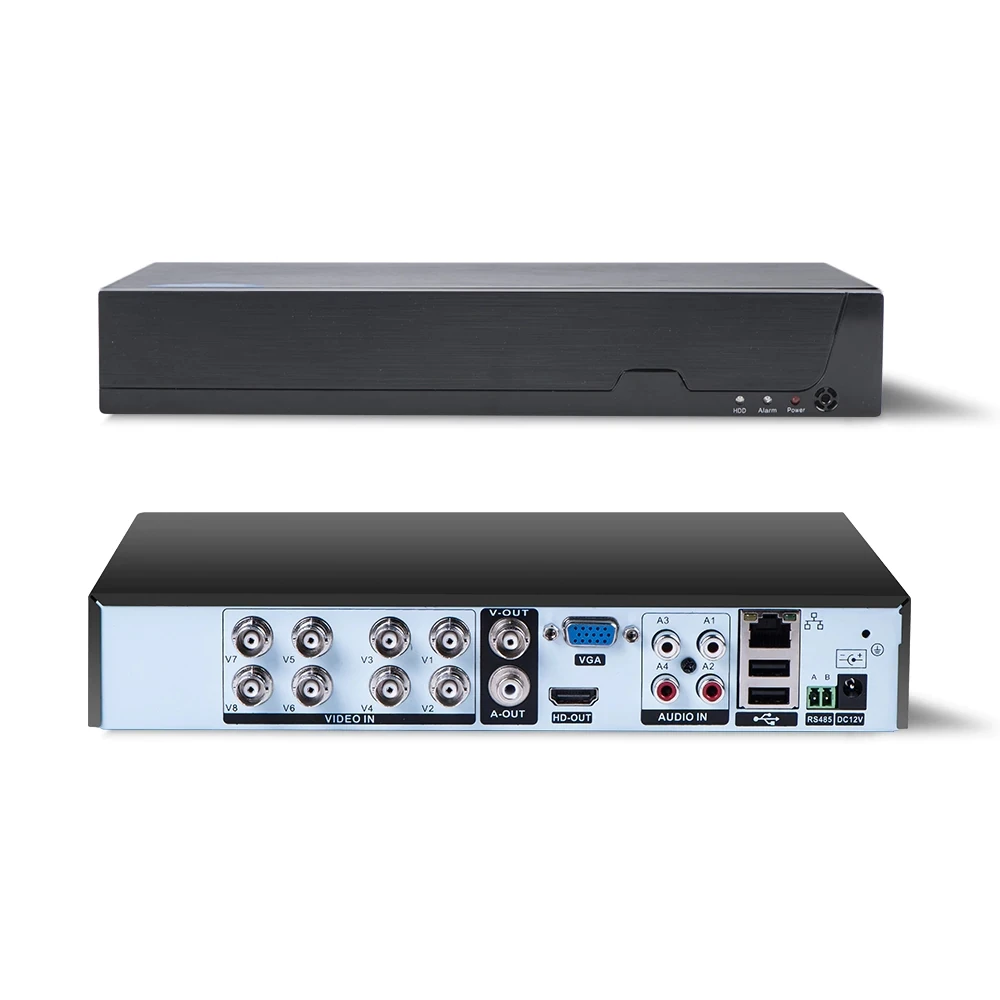

The Parameter Of DVR:

Feature:Support VGA, HDMI full HD output; Support a variety of cloud technologies, network penetration, front-end docking, alarm information pushed to mobile phones, etc.; Support Web, CMS, central platform management software MYEYE; Remote access, own domain name service function (ARSP), remote monitoring one button enabled.
Main processor: Industrial grade embedded chip Hi3520D
Operating System: Embedded LINUX Operating System
System resources: Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation, USB backup
Operation interface: 16-bit true color graphical menu operation interface, support for mouse operation
Screen display: 1/4 screen (in the pure local input mode as an example, other depending on the channel mode)
Image codec: H.264
Monitoring quality: VGA, HDMI HD
Playback quality: 4*1080N@12fps
Coding ability: 4*1080N@12fps
Decoding ability: 4*1080N@12fps
Multi-mode input: pure analog: 4*1080N
Mixed: 2*720P+2*720P (network);
Pure network: 4*1080P; 8*720P;
Motion detection: 192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (local channel only)
Audio compression: G.711A
Intercom: Support
Recording mode: Manual > Alarm > Dynamic Detection > Timing
Local playback: 1
Video query: time point search, calendar search, event search, channel search
Recording save: local hard disk, network
Backup method: network backup, USB mobile hard disk, USB burning, SATA burning
Video input: 4-way BNC
Video output: 1 channel VGA, 1 channel HDMI
Loop-through output: none
Audio input: 1 way RCA
Audio output: 1 way RCA
Alarm input: none
Alarm output: none
Network interface: RJ45 10M/100M adaptive Ethernet port
PTZ control: none
USB interface: 2 USB ports
Hard disk interface: 1 SATA interface (maximum 8T each)
Wireless interface: none
Power: 12V/2A
Power consumption: less than 15W (without hard disk)
Working temperature: 0°C—+55°C
Working humidity: 10% - 90%
Atmospheric pressure: 86kpa—106kpa
Size: 305mm*230mm*60mm
Weight: 881g (single video recorder does not contain hard disk weight)

Package Include:

4*AHD 1080P Cameras
1*Power Supply
1*4CH DVR
4*15M BNC Cable
4*12V/2A power adapter
1*1-to-4 power splitter
1*USB mouse
1*User Manual
1*Connection guide

Ultra Night Vision

With built-in high quality infrared Leds & durable IR-Cut filter & full HD resolution,the guardian hybrid security DVR system provides continuous 24/7 full HD digital video surveillance for your property.

Excellent Night Vision Camera

Great cameras aren't just measured by images in daytime. Security camera stands out for its incredibly excellent images at night. Infrared LEDs enable long night vision distance (up to 15 meters). HD infrared night vision surveillance camera captures crystal clear video evidence of theft and vandalism that occur in low-light conditions where standard security cameras won't work.

Customizable Motion Detection Zones & Alert

You can set motion detection zones and focus on important areas like doors or windows, and get motion clip alerts only when something happens there. Alsocan reduce the number of unnecessary alarms.

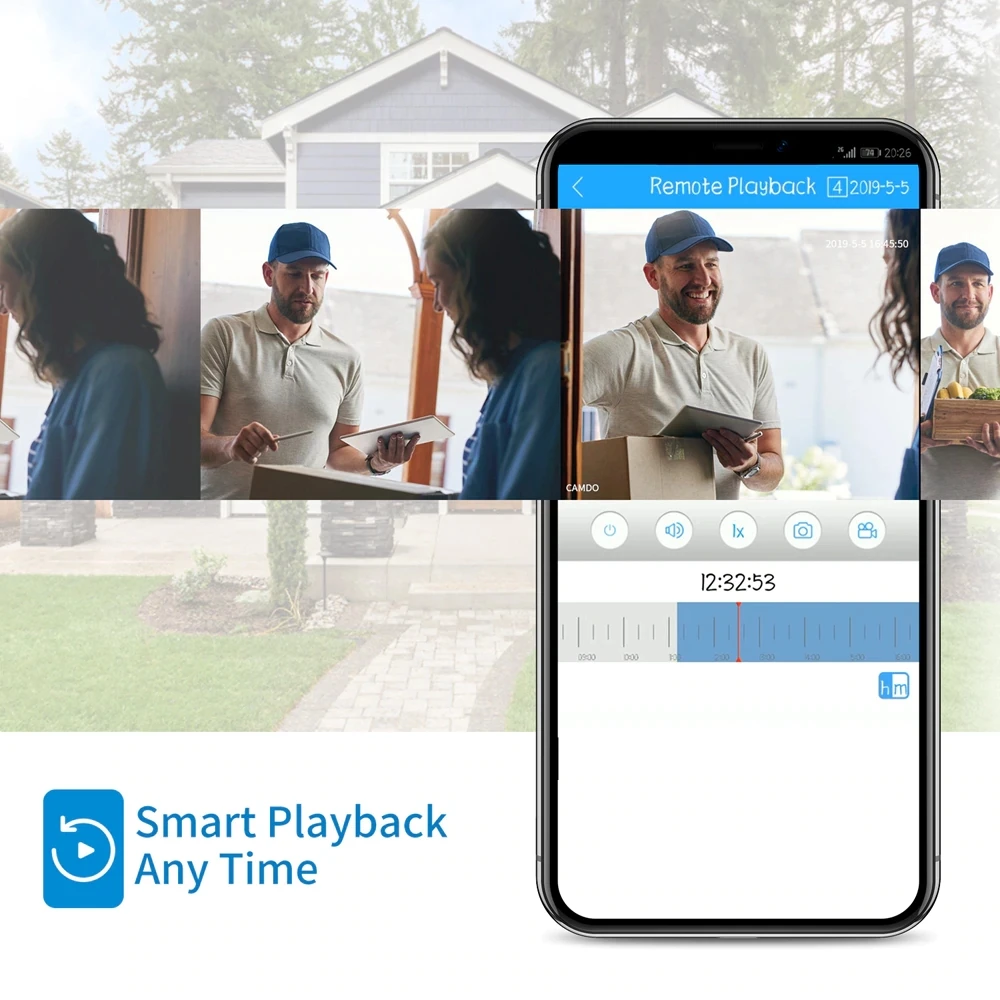

Remote and Local Intelligent Playback

Watch recordings saved on DVR. You can watch them on your mobile devices anytime anywhere,You can using mobile network or WiFi.Playback locally on your large screen HD-TV by using the HDMI port on the DVR.

Remote Access Anytime, Anywhere

Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.

Support iOS and Android Device Access. Scan QR-Code to login. Download free app in Apple App store / Google play.

1.Are you a trade company or a manufacturer?
A: We are a professional manufacturer specialized in CCTV Camera, IP Camera, DVR, NVR and other CCTV Products. Can support visit factory.

2.What is your MOQ?
A: 1PC, OEM 100pcs

3.What is your delivery date?
A:1. Sample orders will be delivered from our factory within 5 working days.
2. General orders will be delivered from our factory within 12 working days.
3. Big orders will be delivered from our factory within 15 working days at most.

4.What is your payment terms?
A: T/T, Western Union and Paypal, 30% deposit in advance and 70% balance before shipment.

5.Can you send free samples?
A: Yes we provide Free Sample. (Pay ahead and refund back on first bulk order).

6. Do you accept OEM/ODM (Customer's own logo) order?
A:Yes, we accept OEM/ODM order.
We can print customer's logo on the products and offer customized design on packing boxes, sticker, etc

7,How about warranty?
A:Two years warranty.
