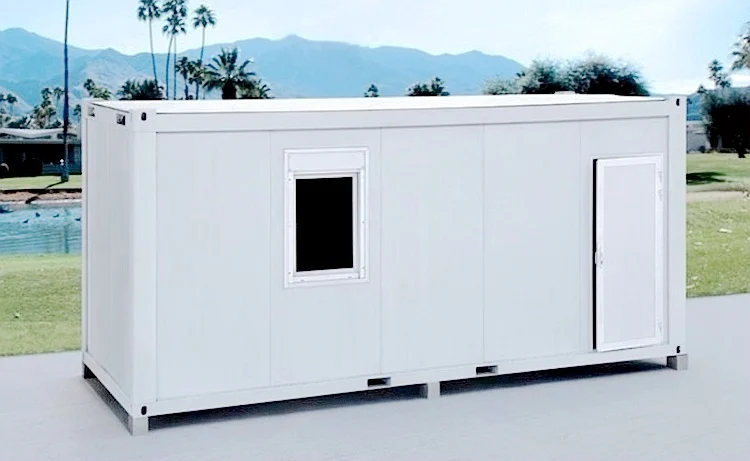

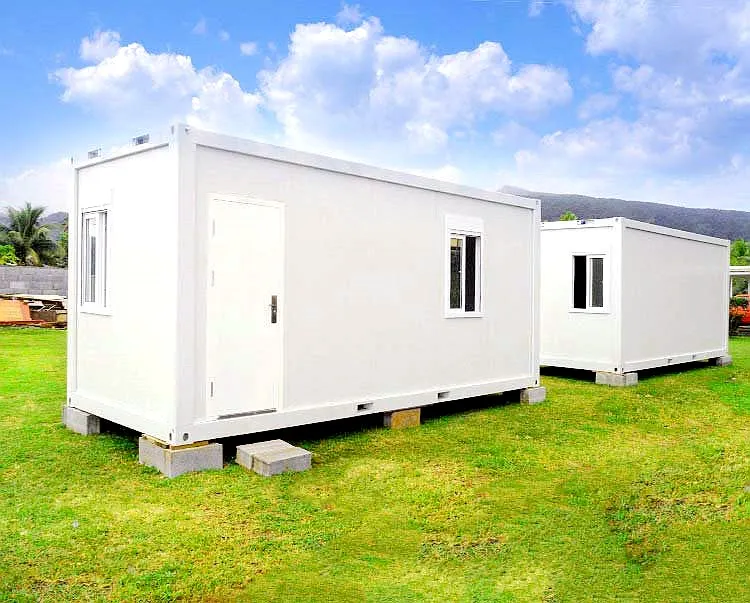

20 футов 40 сборный санитарный контейнер для ванной комнаты туалетный мобильный Модульный туалет
- Категории: Prefab Houses >>>
- Поставщик: Weifang,Huizhi,Steel,Structure,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Customized products, pictures are for reference only,
please consult customer service before placing an order.
General Introduction
Sanitary containers may feature as stand-alone modules or make part of larger sets. We provide sanitary containers with any equipment specified by the Customer. Containers with non-standard sizes are also available.
key words: sanitary container, toilet Containers, prefab Bathroom, public toilet, container Bathroom, WC&shower container, portable toilet, prefab toilet, container WC
Technical data
Wall structure
Walls are made of sandwich panels. Internal layer is made of a smooth galvanized sheet.Insulation
Container walls may be insulated with Styrofoam of 75, 100 or 150 mm, or with 80 or 100 mm polyurethane.
Floor and roof have insulation of 120 and 130 mm respectively.
Floor/fitted carpet
Industrial fitted carpet of class 34/43, laid on water-resistant fibre cement panel（Optional）.
Additional equipment possible

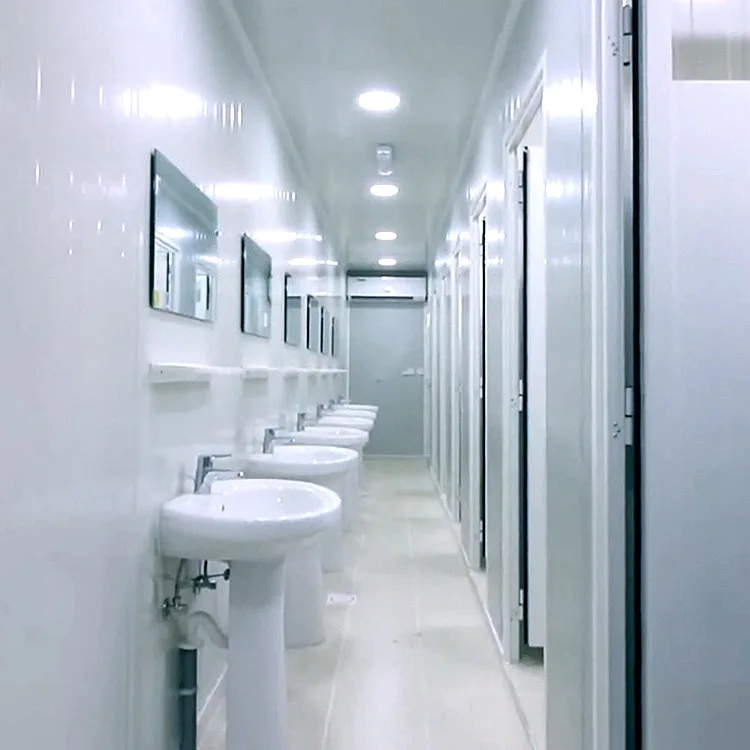

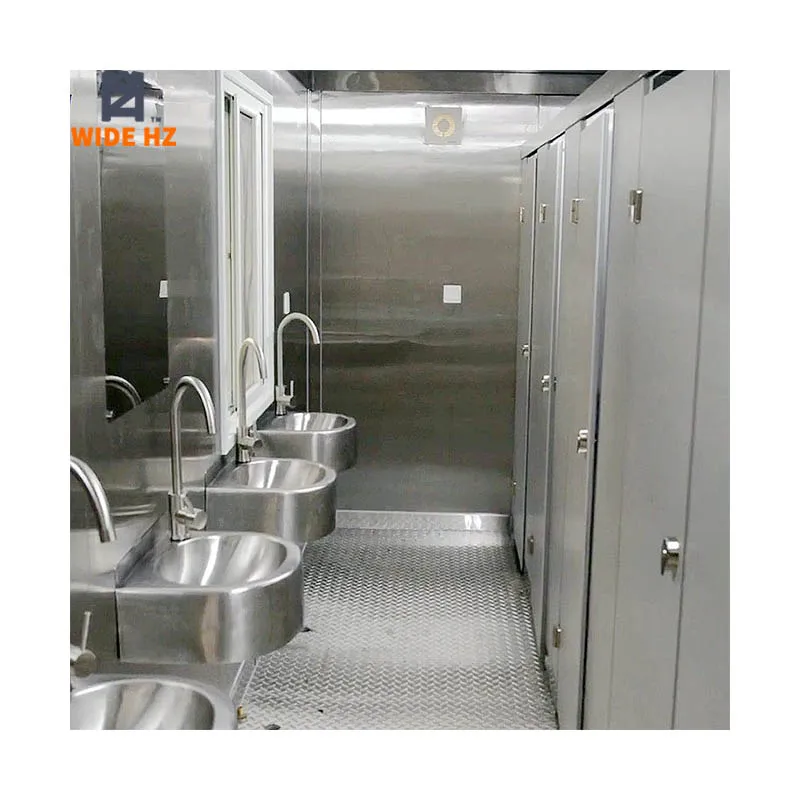

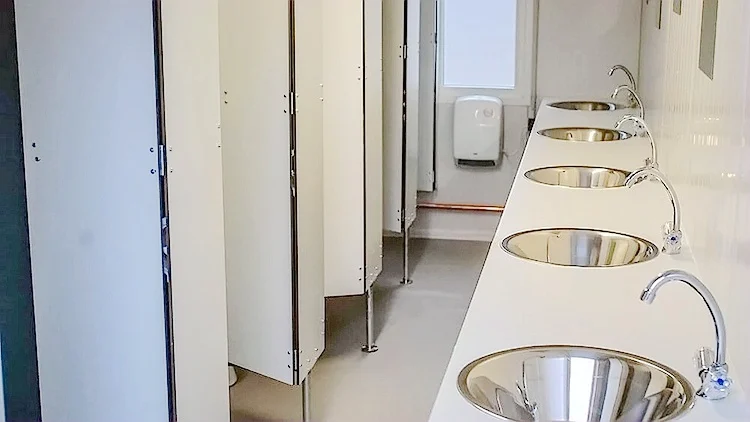

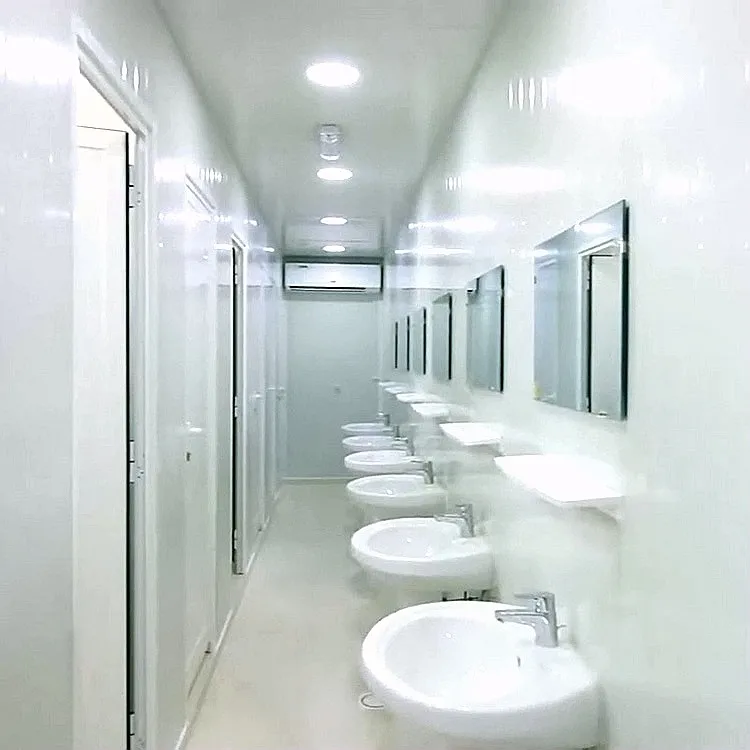

It is possible to equip the containers in any configuration of washbasins, showers, WC, urinals, closers with sinks etc（Optional）.
Electrical equipment
Electrical system, lightning, electrical radiators, electrical water heater（Optional）
To be considered
1.Firm, ground level location required
2.Requires fresh water, sewage and electricity connections
3.In general, a waste water disposal permit is required from the local authorities
1.Firm, ground level location required
2.Requires fresh water, sewage and electricity connections
3.In general, a waste water disposal permit is required from the local authorities

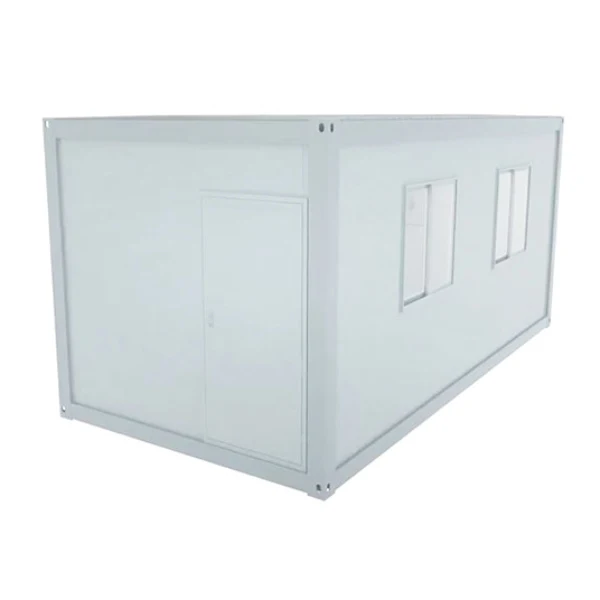

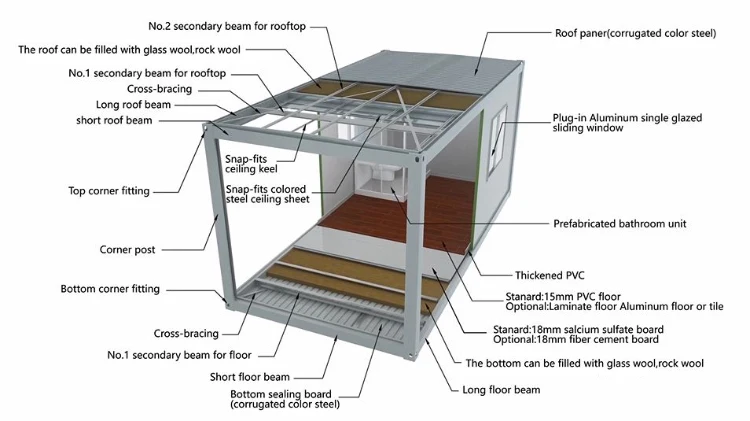

Standard container house 6055*2990*2896mm | ||||
Ordinary product details | ||||
No. | Item | Materials & specifications | ||
1 | Base frame | 2 galvanized beams(5630*160*2.2mm) | ||
2 galvanized beams(2685*160*2.2mm) | ||||
4 bottom corner sections(patented) | ||||
Bottom FG(50*100*1.2mm) | ||||
Thick glass magnesium board(18mm) | ||||
Thick floor leather(1.6mm) | ||||
2 | Top frame | 2 galvanized beams(5630*170*2.2mm) | ||
2 galvanized beams(2685*170*2.2mm) | ||||
4 top corner sections(patented) | ||||
Roof purlin(80*40*1.3mm) | ||||
Glass wool insulation quilt+Tin foil | ||||
Galvanized square tube(20*10*1.0mm) | ||||
Color steel skin board(0.45mm) | ||||
Color steel integrated ceiling(831*0.3mm) | ||||
Ceiling Z-piece | ||||
3 | Column | 4 galvanized columns(2526*210*150*2.2mm) | ||
4 | Steel door | Ordinary steel security door(0.4mm,950*1975mm) | ||
5 | Window | Special plastic steel sliding window (930*1130mm) | ||
6 | Wall panel | Rock wool composite panel(50mm) Double-sided iron sheet(0.3mm) Test weight(50kg/m³) | ||
7 | Auxiliary materials | Drainage pipe(50mm diameter,PVC,Thickened) | ||
Sink | ||||
Cover seal(0.5mm) | ||||
Self-tapping, rivets, hexagon bolts, rubber, etc. | ||||
8 | Circuit accessories | Industrial socket box,industrial socket,power distribution box (1 leakage protection, 1 circuit breaker),4 ordinary sockets,1 air conditioning socket,2 sets of LED tri-proof lights | ||
Safe and Comfort
The materials used in the container house have reached the relevant national requirements. High safety performance, large living space, bright, breathable, soundproof and thermal insulation inside the cabinet.

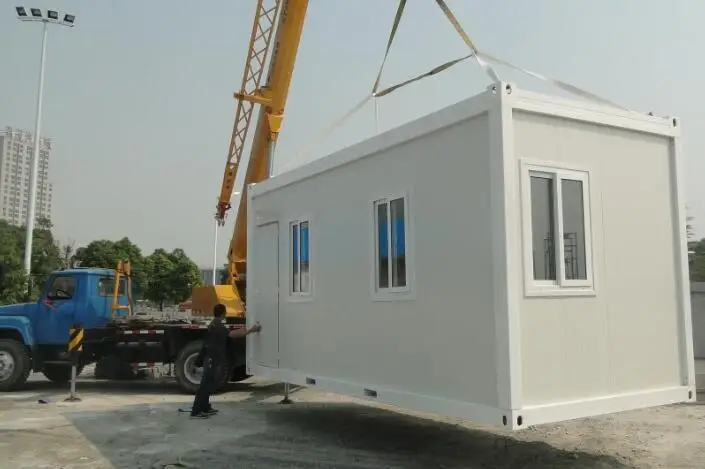

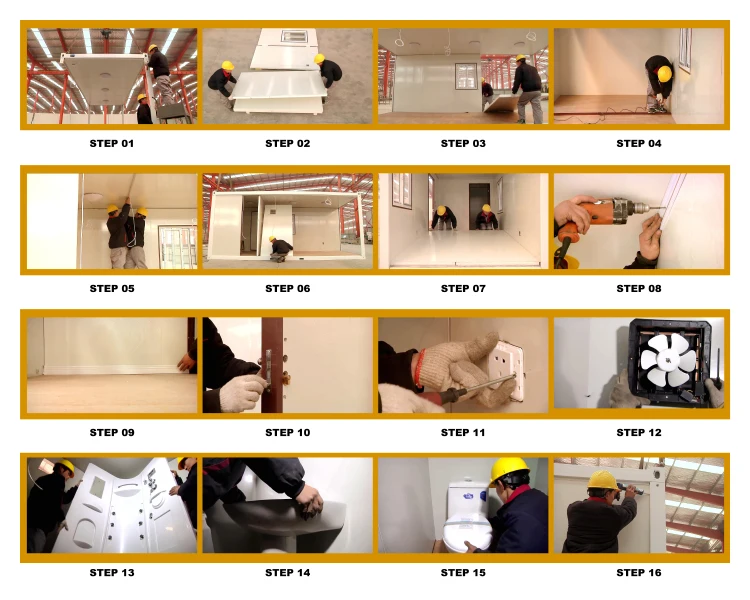

Easy and fast installation
Container house is a movable and reusable building product. The unit structure of the box body is a standard component welded by special profile steel. It is simple and the installation is convenient and quick.
Energy saving
The installation process is zero waste, the cycle is shortened by 80% compared to traditional buildings,labor saved by 70%,
concrete loss reduced by 98%, and comprehensive energy savings exceed 50%.
concrete loss reduced by 98%, and comprehensive energy savings exceed 50%.
Integration & customization

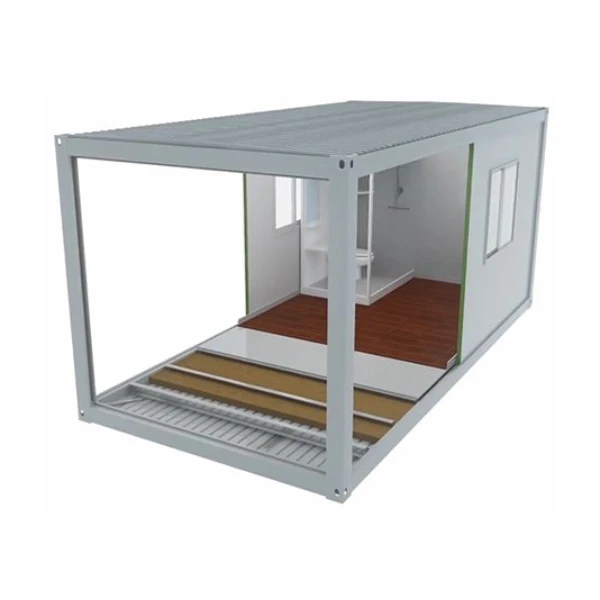

It adopts modular design and factory production, with the box as the basic unit, which can be used alone, or it can form a spacious use space through different combinations of horizontal and vertical directions.
Weifang Huizhi steel structure Co., Ltd, as a famous manufacturer of prefabricated steel houses and steel structure, is specialized in designing, manufacturing, installation and construction of the prefabricated houses in China. The products range from prefab houses, modular houses, container houses, light steel villa to the related components, like sandwich panel, profiled steel sheet, steel frames etc.
We can provide not only high quality products but also completely set of solutions to meet our client′s special requirement. Our products are economical, environment-friendly, energy-saving, safety and reliability, withstanding the force of 12 grade typhoon and 8.0 magnitude earthquake. We always chose the qualiy raw materials to make our products, which fireproof rating can be upto Grade A.
We have been expanding the domestic market in China, but also actively explore the international market. All our international team members are well-trained and professional on the products and international market. Nowadays, we have already successfully exported our products to many countries, from Middle East to southeast Asia, from southeast Asia to African countries.
Our company philosophy is Honesty, Cooperation and Win-Win. We warmly welcome our friends from all over the world to visit our company for cooperation.
We can provide not only high quality products but also completely set of solutions to meet our client′s special requirement. Our products are economical, environment-friendly, energy-saving, safety and reliability, withstanding the force of 12 grade typhoon and 8.0 magnitude earthquake. We always chose the qualiy raw materials to make our products, which fireproof rating can be upto Grade A.
We have been expanding the domestic market in China, but also actively explore the international market. All our international team members are well-trained and professional on the products and international market. Nowadays, we have already successfully exported our products to many countries, from Middle East to southeast Asia, from southeast Asia to African countries.
Our company philosophy is Honesty, Cooperation and Win-Win. We warmly welcome our friends from all over the world to visit our company for cooperation.
Q: What kind of company you are?
A: We are steel structure building Manufacturer located in Weifang China, We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.Q: Does your company is a factory or trade company?
A: We are factory, so you will enjoy the best price and competitive price. Our factory covers an area of 100,000 square meters.
Q: What's the quality assurance you provided and how do you control quality?
A: Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials, validated or tested materials, finished goods, etc.
Q: Can you offer designing service?
A: Yes, we have more than 100 design engineers. We could design full solution drawings as per your requirements.
Q: Do you offer guiding installation on site overseas?
A: Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
Q: How to buy your products?
A: TT and L/C are acceptable and TT will be more appreciated. 30%deposit before producing, 70% balance before loading by TT.
Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 40days.
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 40days.
Q: How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
Q: How to install after the goods arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, Alibaba TM, WhatsApp, Skype and so on 24*7 and you will get reply within 8 hours.
