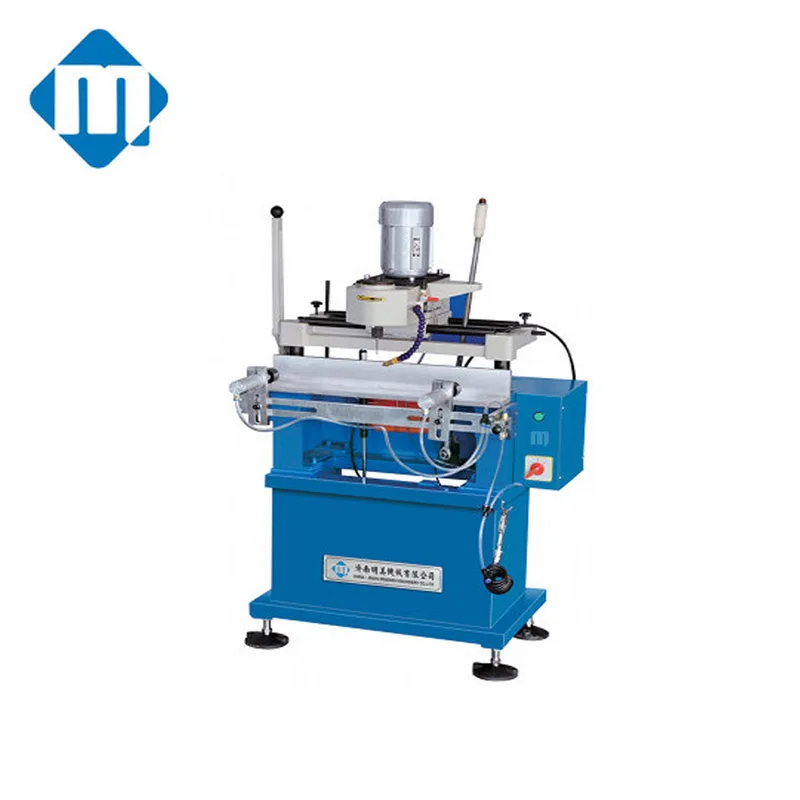

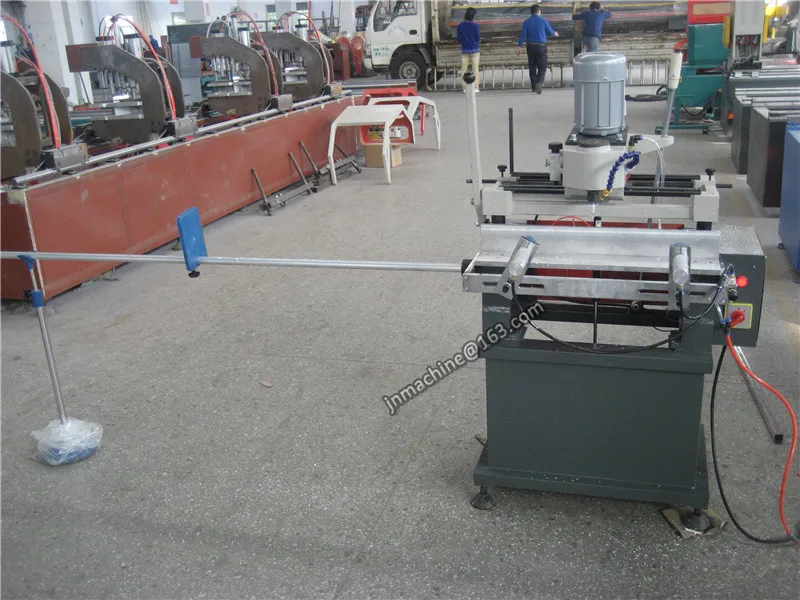

Aluminum/UPVC Window door machine/Aluminum profile drilling machine
Product Description
Used for processing all kinds of holes of the aluminum and pvc profiles.
High-precision copy routing, easy operation, two hand operation.

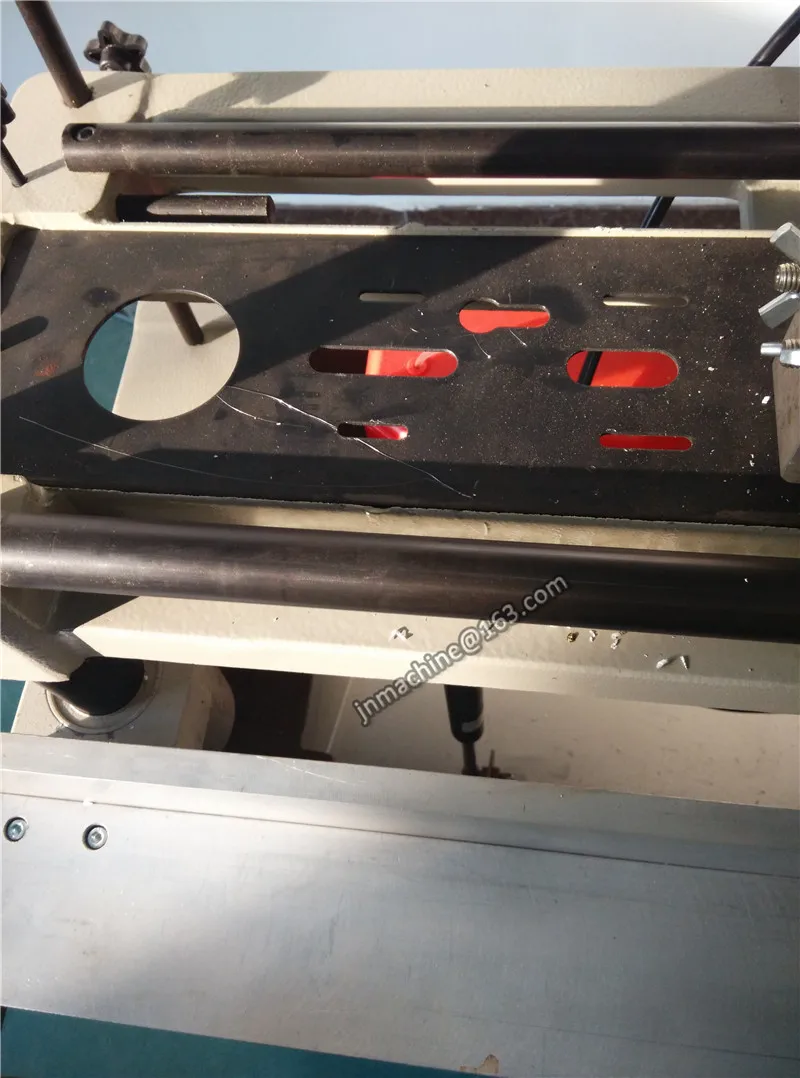

Changeable template for different copy routing.
It has features of compact structure and small volume, the air pressure drives the clamping.
2.Technical Parameters
Mingmei | |
Model | LXF-290*100 |
Power Supply | 380V 50Hz |
Input Power | 0.75KW |
Air Pressure | 0.6-0.8MPa |
Processing hole size error | ±0.2mm |
Processing deviation from straightness | ±0.1mm |
Milling cutter diameter | Φ5, Φ8 |
Copy routing range | 290*100mm |
Roughness of cutting surface | Ra 12.5 µm |
Over all dimension | 1000*1130*1600mm |
Weight | 230Kg |
