1 м одноконцевый кодирующий правый угол Женский датчик M12 4-контактный соединительный
- Категории: Другие электронные компоненты >>>
- Поставщик: Shenzhen,Renhotec,Technology,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Products Introduction:
M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
M12 series with IP67 / 68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.
We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.
M12 series with IP67 / 68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.
We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.

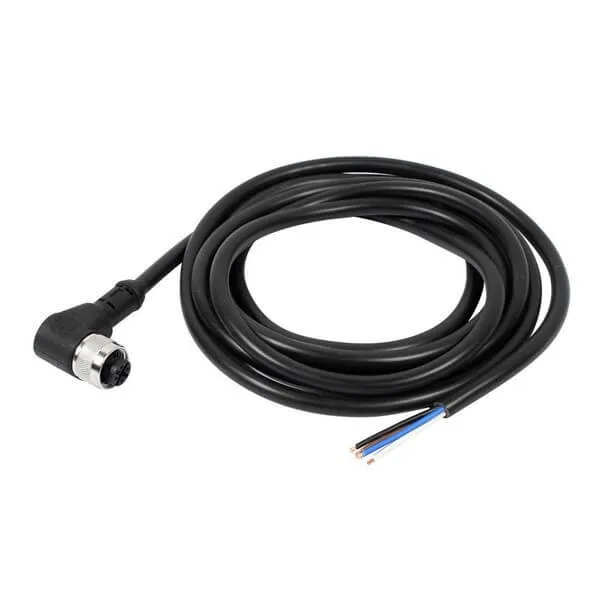

M12 Overmolded Cable A Code 4pin Female Right Angle Solder 1M Single Ended Cable AWG22
* ACCEPTABLE
- Different cable lengths: 10CM ,1M,5M,10M...
-- Cable material: PVC & PUR
-- Jacket colour: Black,Orange,Black.....
-- Shield & non-shield
-- Connection type: Single end & Double end
-- Other requirements
Products Feature:
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions;

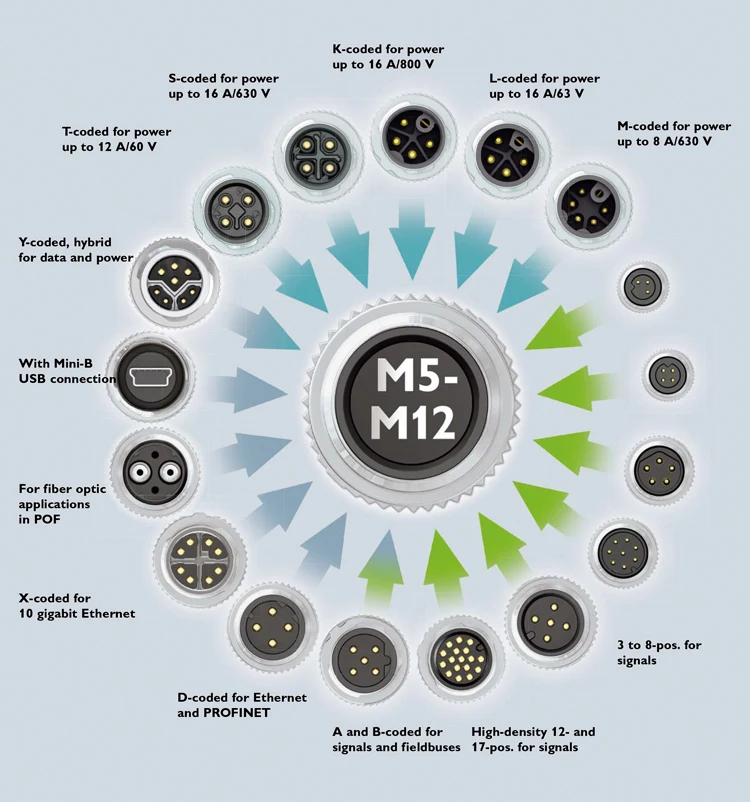

A, B, C, D, X, coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Used for M12 molding cable, customized M12 overmolded Cables also available.
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions;
A, B, C, D, X, coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Used for M12 molding cable, customized M12 overmolded Cables also available.
M12 Overmolded Cables | ||
Coding | A / B / C / D / K / L / X / S / T Code | |
Number of Positions | 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 | |
Connection Type | Single Ended Cable / Double Ended Cable | |

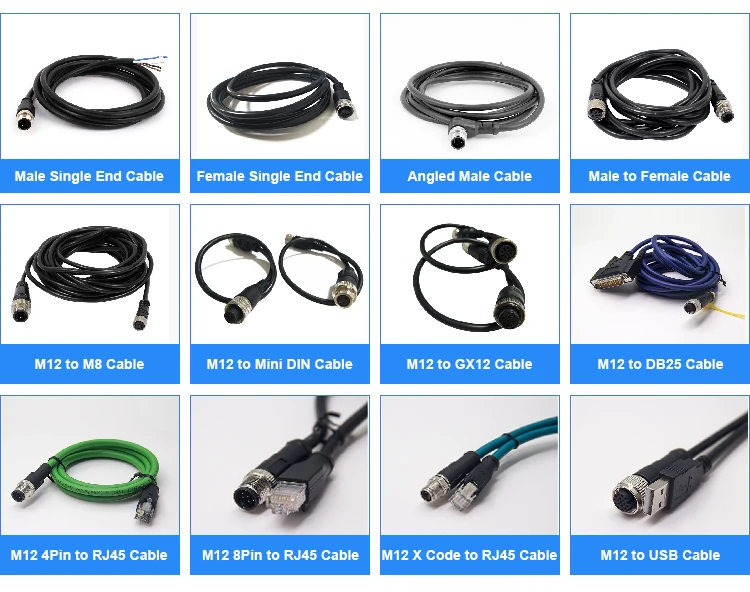

Connector type | M12 / M12 to M12 / M12 to D-sub / M12 to RJ45 / M12 to USB / M12 to MINI DIN / M12 to M8 / M12 to GX12 | |
Gender | Male / Female / Male to Female / Male to Male / Female to Female | |
Orientation | Straight / Right Angle / Straight to Right Angle / Y Type | |
Mounting Type | Cable | |
Termination Style | Solder Type | |
Shield | Shield / Unshielded | |
To ensure that the product is fully adapted, please confirm the connector size, gender, contacts nos , and the related technical parameters before placing the order !!!
About Us
Hot - Selling Product
Application Industry
Sensor and actuators
Industrial camera
Industrial I/O connections
Pharmaceutical manufacturing
Robotic systems
Packaging, Labeling & Logistic
One-stop Service
Packing & Delivery
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 28*24*20(CM)
3. OEM package available
2. Carton size: 28*24*20(CM)
3. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
FAQ
1: Do you provide samples ? Is that free or need to charge.
Yes, samples supply is acceptable. Samples cost depends on the requested quantities .
Yes, samples supply is acceptable. Samples cost depends on the requested quantities .
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
Quotation will be send to you within 24 hours after receiving your specific inquiry.
For more information and items, please feel free to contact us > >
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
Quotation will be send to you within 24 hours after receiving your specific inquiry.
For more information and items, please feel free to contact us > >
