5030C1 x-ray baggage scanner is a dual-level X-ray security inspection product. It is suitable for the safety inspection of briefcases, hand luggage, postal parcels and small and medium-sized parcels. It is widely used in courts, procuratorates, prisons, Hotels, museums, stadiums and other places.





Modularization: the internal circuit structure of the equipment adopts the modular design idea, through the reasonable layout design to improves the anti-interference ability of the equipment, ensures the equipment operation stability and convenient to maintain.



Digitization: the hardware system adopts the latest ASIC full digital scheme design, compared with the analog acquisition scheme, optimizes the circuit design, and has the characteristics of high integration, strong anti-interference ability, clear imaging effect and so on.



Intelligent: the software system integrates RTOS real-time image processing system, tip dangerous goods insertion, dangerous goods auxiliary alarm, remote control management, image rapid backup and other practical functions.



Automation: the system integrates the functions of one-button switch, infrared energy-saving induction, emergency alarm prompt, fault self-check and so on.



Specialization: humanized system operation interface, convenient and practical image processing function and customized special security keyboard to create a professional user platform.



TECHNICAL DATA:

Tunnel Size: 505 (W) ×305 (H)mm

Conveyor Speed: 0.22 m/s

Conveyor Max Load: 120 kg

Wire Resolution: >38AWG ( 0.1mm metal Wire)

Steel Penetration: >38 MM armor plate

Spatial resolution: horizontal / vertical φ 1.0mm





X-RAY GENERATOR:

Orientation: Vertically Upward

Control interface: analog interface

Tube Current: 0.6-1.2 MA (adjustable)

Tube Voltage: 140KV

Generator cooling: Sealed oil bath with forced air/100%



Radiation safety index

radiation leak dosage: <0.5µGy/h (5cm from the surface)

Single inspection dosage: < 5.0 µGy

Film Safety: ASA/ISO 1600 Standard of film safety



IMAGE PERFORMANCE SYSTEM:

X-RAY Sensor: Ltype Photo-Diode array detector ,12BIT

Monitor: High resolution 17 Inch color LCD Display

Color Quality: 24 BIT Real Colors

Edge Enhancement: Object contour edge is more distinct

Super Image Enhancement: Image detail is more distinct



Image restoration: Restore image to initial status at the time of stopping conveyor

Image Storing: Real time store any image and process it in operation status



OPERATING ENVIRONMENT:

Storage Temperature: -20ºC to 60ºC

Operating Temperature: 0ºC to 45ºC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power consumption: 0.5 KW (Max)

power source: AC 220v ±10%, 60Hz ±5 hz

Noise: <58 DB (A)



Optional functions:

multi-view monitoring system / remote operation management system / special security check keyboard / energy-saving induction device / adjustable speed conveyor belt / import and export extension frame / network communication / face recognition.



Physical Specifications:

Unit weight (kgs): 380

Unit size (mm): 1500 mm(L) * 767mm(W)*1100mm(H)

Gross weight (kgs): 420

Packing size: 1710 mm(L) * 860mm(W)*1360mm(H)

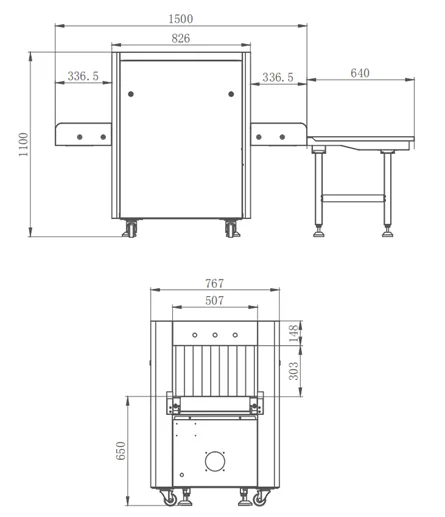

DIMENSION DRAWING





Physical Specifications:

Unit weight (kgs): 450KG

Unit size (mm): 2200 mm(L) * 980mm(W)*1300mm(H)

Gross weight (kgs): 500
