Product Overview

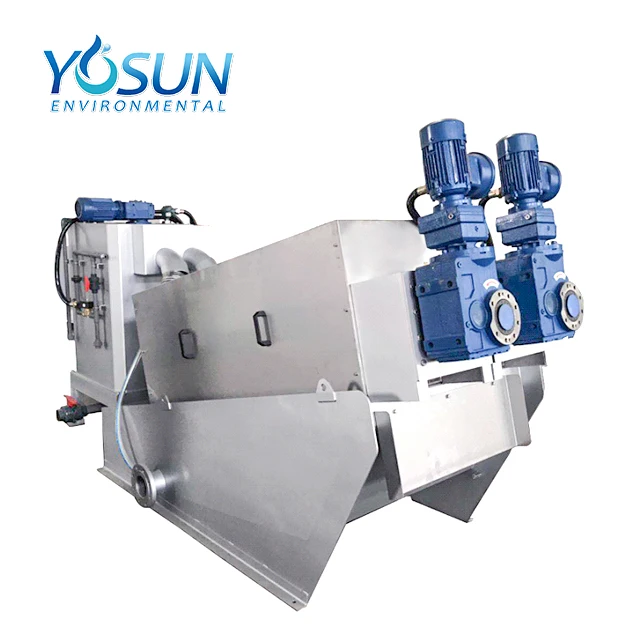

DL SERIES SLUDGE DEWATERING MACHINE

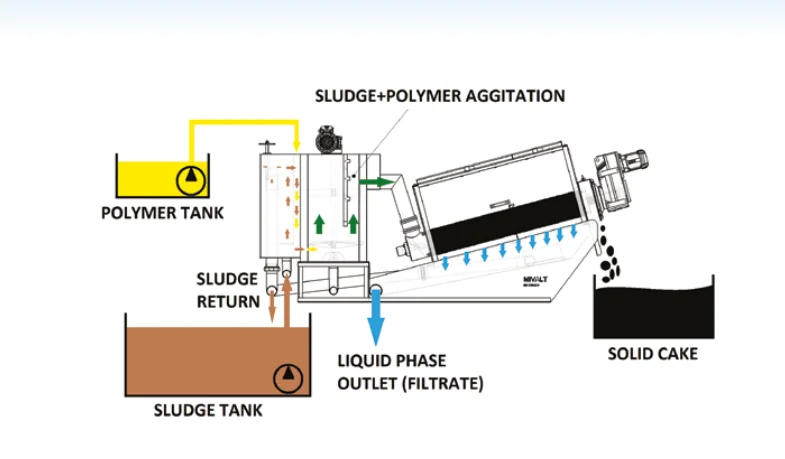

Screw sludge dewatering machine, originating from the advanced technology of foreign countries, is introduced into China to realize localization. The automatic renewal filtration technology is cleverly used in the sludge dewatering machine to replace the traditional filter screen filtration. The self -renewal filtration technology ensures that dewatering machine can separate sludge from sewage water stably. It is a new solid-liquid separation equipment to extrude and dehydrate the sludge through the strong extrusion pressure caused by the change of screw diameter and pitch, as well as the small gap between the floating ring and the fixed ring.
FEATURES AT A GLANCE
NOT EASY TO BLOCK: unique dynamic and static ring filter slot structure makes the device not easy to block;
CONTINUOUS AUTOMATIC OPERATION: automatic control is adopted, no personnel are
required to operate the equipment, and 24 hours of continuous unmanned operation;
SAVING OPERATION COST: integrated design, compact design, significant savings in operating costs; 24-hour fully-automatic unmanned operation, greatly reducing labor costs; equipment covers a small area, reducing civil engineering investment;
LIGHT WEIGHT AND DURABLE: The body is almost entirely made of stainless steel, and the replacement parts are only the spiral shaft and the moving ring, which have a long service life and are durable;
Left screw press
Front screw press
Right Product
PRODUCT SPECIFICATIONS
Model | DS Capacity(kg/h) | Sludge treatment Capacity(m3/h) | ||||||||||||
Low Concentration | High Concentration | 2000(mg/L) | 5000(mg/L) | 10000(mg/L) | 20000(mg/L) | 25000(mg/L) | 50000(mg/L) | |||||||
DL101 | 3 | 5 | 1.5 | 0.6 | 0.5 | 0.25 | 0.2 | 0.1 | ||||||
DL131 | 6 | 10 | 3 | 1.2 | 1 | 0.5 | 0.4 | 0.2 | ||||||
DL132 | 12 | 20 | 6 | 2.4 | 2 | 1 | 0.8 | 0.4 | ||||||
DL202 | 18 | 30 | 9 | 3.6 | 3 | 1.5 | 1.2 | 0.6 | ||||||
DL301 | 30 | 50 | 15 | 6 | 5 | 2.5 | 2 | 1 | ||||||
DL302 | 60 | 100 | 30 | 12 | 10 | 5 | 4 | 2 | ||||||
DL303 | 90 | 150 | 45 | 18 | 15 | 7.5 | 6 | 3 | ||||||
DL402 | 120 | 200 | 60 | 24 | 20 | 10 | 8 | 4 | ||||||
DL403 | 180 | 300 | 90 | 36 | 30 | 15 | 12 | 6 | ||||||

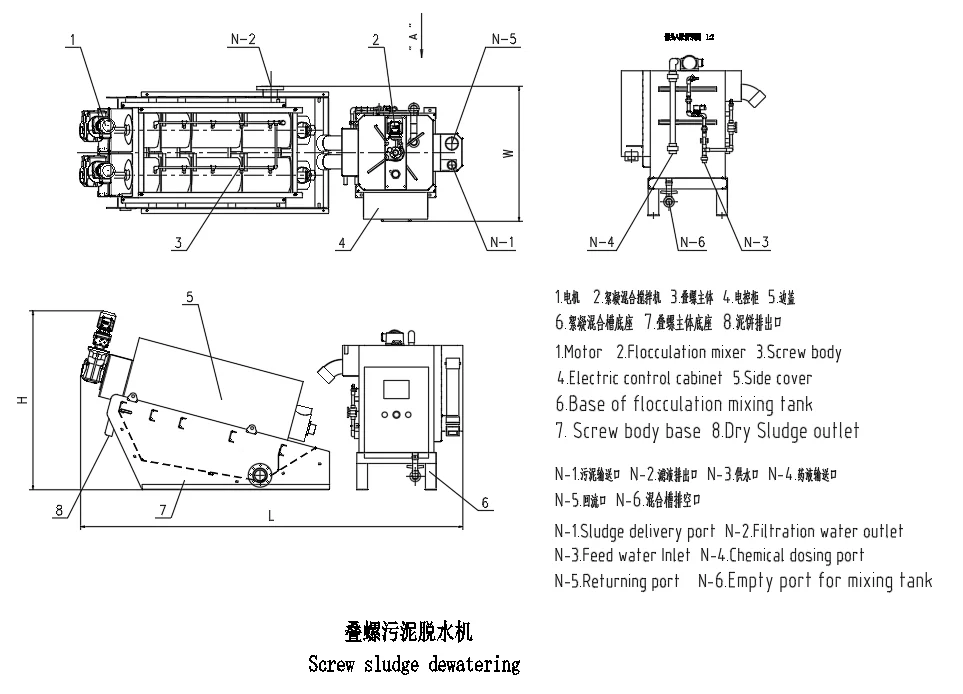

PRODUCT CONFIGURATION
Moving Ring
Main Shaft Tank
Main Screw Motor
Product Paramenters
