Product Overview

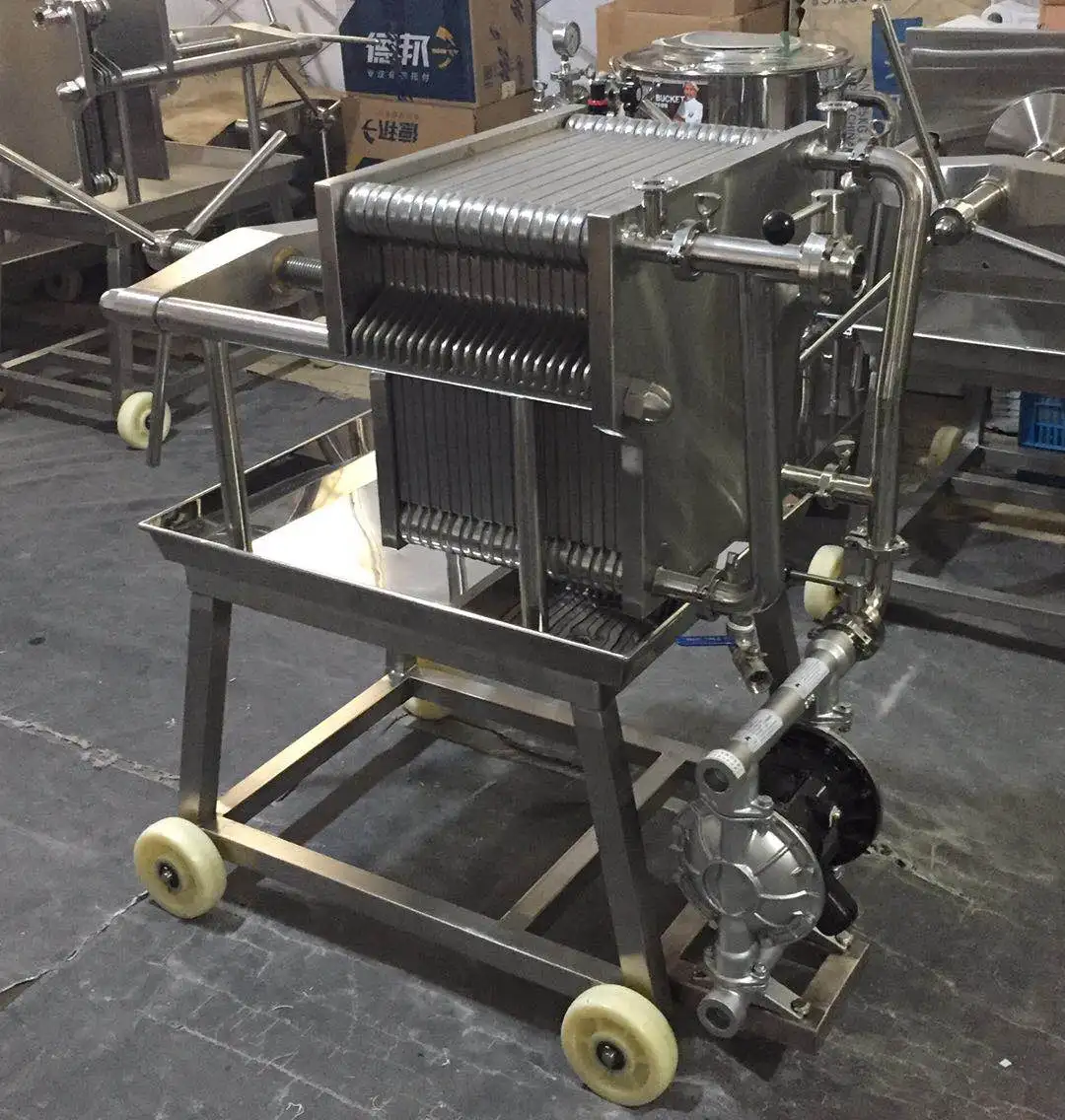

Stainless Steel Plate And Frame Filter
stainless steel plate and frame filter is suitable for many kinds of filter
board (such as coarse filter board, fine filter board, sterilization board, etc.) and filter membrane, filter paper, filter cloth to filter liquid materials. It is a kind of general and practical filter equipment with small capacity, large area, high precision and multi-purpose. It is suitable for primary filtration, fine filtration, even micro filtration and sterilization of liquid materials Treatment process. It has a novel structure, simple operation and simple cleaning. The filter plate is made of stainless steel, which is thoroughly cleaned, no liquid retention, smooth channels, no dead angles, and long length.This machine meets the special requirements of the pharmaceutical, chemical and other industries, and can be made of SUS316L material for pipes and valves in contact with materials (Please indicate when client place an order, because the price is different)
board (such as coarse filter board, fine filter board, sterilization board, etc.) and filter membrane, filter paper, filter cloth to filter liquid materials. It is a kind of general and practical filter equipment with small capacity, large area, high precision and multi-purpose. It is suitable for primary filtration, fine filtration, even micro filtration and sterilization of liquid materials Treatment process. It has a novel structure, simple operation and simple cleaning. The filter plate is made of stainless steel, which is thoroughly cleaned, no liquid retention, smooth channels, no dead angles, and long length.This machine meets the special requirements of the pharmaceutical, chemical and other industries, and can be made of SUS316L material for pipes and valves in contact with materials (Please indicate when client place an order, because the price is different)
PRODUCT SPECIFICATIONS
model | Plate Qty (pcs) | Filtr ation Area m2 | capacity (t/h) | Plate External Size (mm) | External Size(mm) |
BASB400NN-2 | 21 | 3 | 1-3 | 400×400 | 1750×670×1100 |
BASB400NN-2 | 31 | 4 | 3-4 | 400×400 | 2100×670×1100 |
BASB400NN-2 | 45 | 6 | 4-6 | 400×400 | 2500×670×1100 |
BASB400NN-2 | 61 | 8 | 6-8 | 400×400 | 2850×670×1100 |
BASB400NN-2 | 71 | 9.5 | 8-10 | 400×400 | 3100×670×1100 |

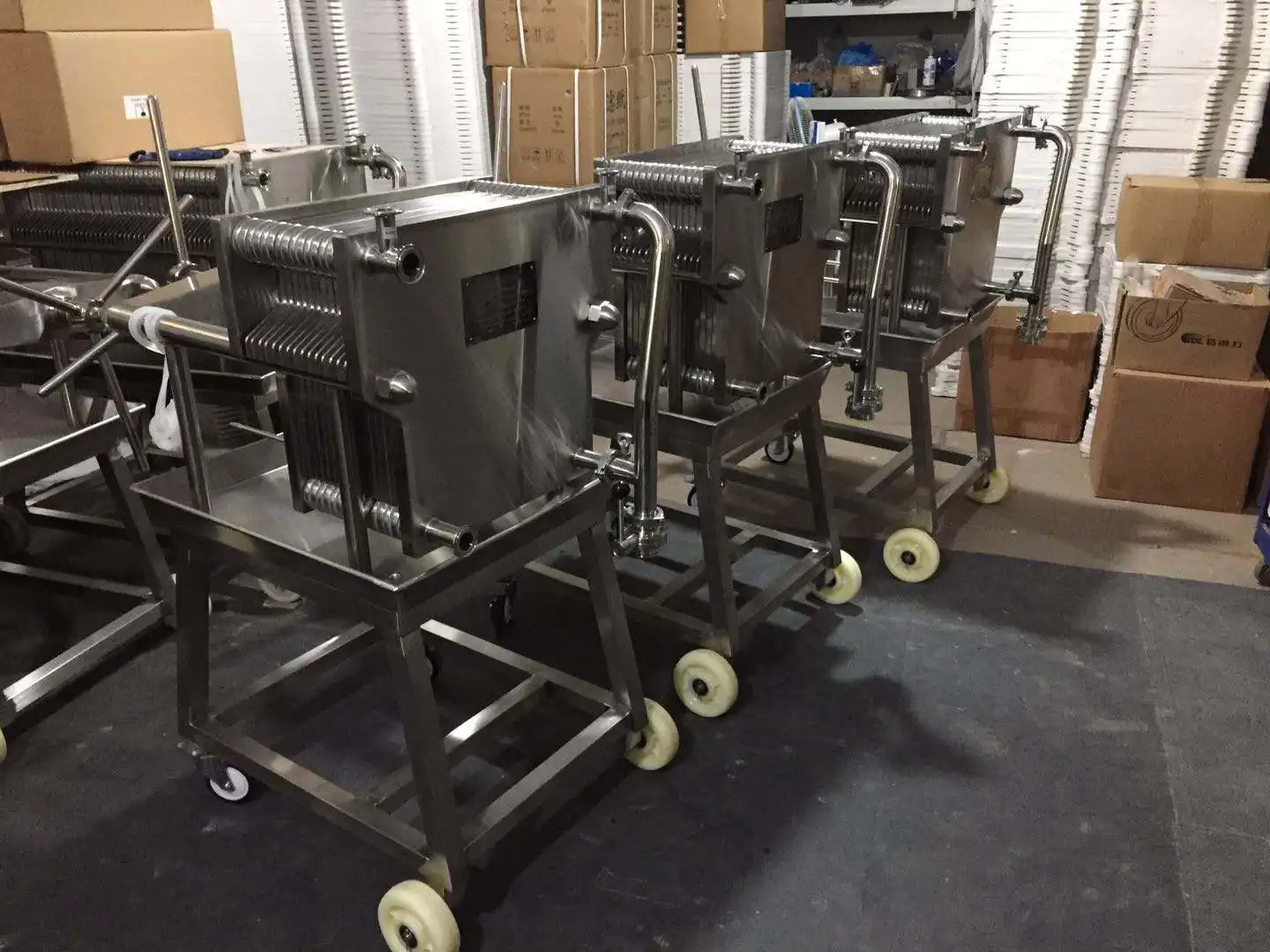

Details Images
Application
